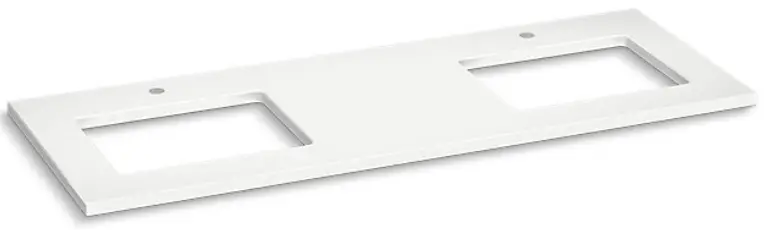

Silestone® 61″ quartz vanity top with two rectangular cutouts K-28255

Features

  • Designed for use with 60″ (1524 mm) KOHLER vanities Lodern, Poplin, Damask, Jute, Jacquard, and Marabou (sold separately).
  • Available in many classic and warm neutral tones to work seamlessly in any decor.
  • Pairs beautifully with select KOHLER® and Artist Editions® sinks for a complete solution.
  • ½” (12.7 mm) countertop overhang per side.
  • Flat, square edges give a crisp, finished look.
  • Optional side and backsplashes available (sold separately).
  • This product is covered under the Silestone® 25-Year Limited Warranty.

Material

  • Silestone® quartz.

Installation

  • Vanity top.
  • Single faucet hole with pilot holes for optional 8″ (203 mm) widespread faucet configuration.

Recommended Products/Accessories

  • K-2882 19-3/4″ rectangular undermount bathroom sink
  • K-2330 Undermount bathroom sink
  • K-20000 20-1/4″ rectangular undermount bathroom sink

Optional Products/Accessories

  • K-28265 Silestone® quartz 61″ backsplash
  • K-28266 Silestone® quartz side splash

Included Components

  • Additional Components: Mounting Screws

Codes/Standards

  • None Applicable

KOHLER® One-Year Limited Warranty

See website for detailed warranty information.

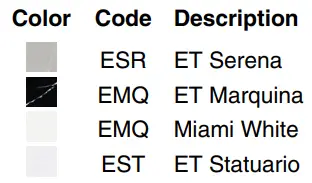

Available Colors/Finishes
Color tiles intended for reference only.KOHLER-K-28255-Silestone-61-Inch-Quartz-Vanity-Top-With-Two-Rectangular-Instruction-FIG-12

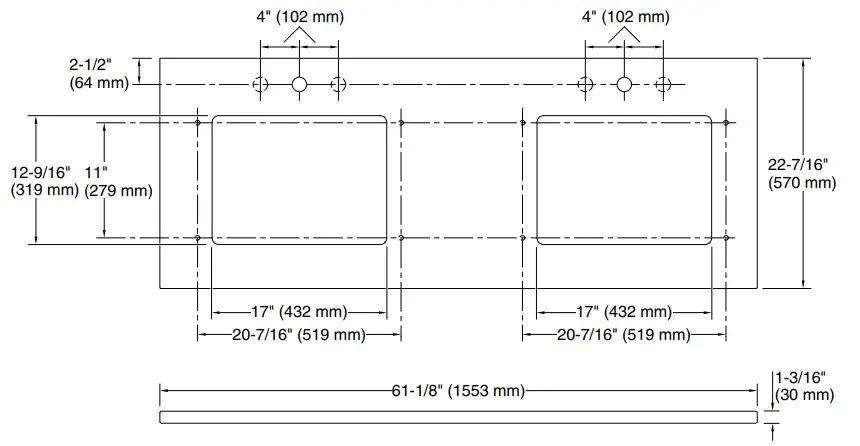

Technical Information

All product dimensions are nominal.KOHLER-K-28255-Silestone-61-Inch-Quartz-Vanity-Top-With-Two-Rectangular-Instruction-FIG-3

Notes
Install this product according to the installation instructions.

1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications. For the most current Specification Sheet, go to www.kohler.com.
10-15-2022 00:44 – US/CA
