KOHLER K-28253 Silestone 49 Inch Quartz Vanity Top with Rectangular Cutout

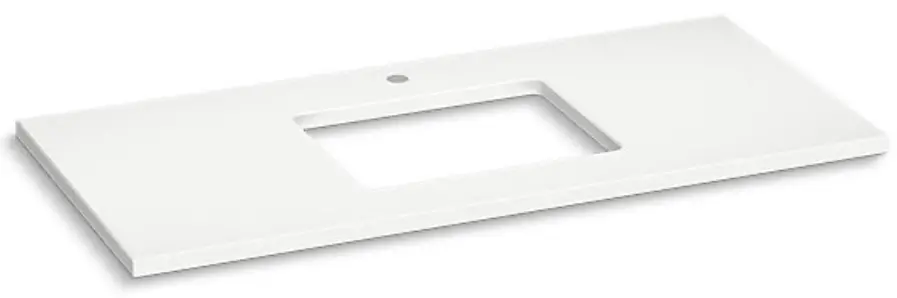

KOHLER-K-28253-Silestone-49-Inch-Quartz-Vanity-Top-with-Rectangular-Cutout-FIG-1

Features

  • Designed for use with compatible 48″ (1219 mm) KOHLER® vanities (sold separately).
  • Available in many classic and warm neutral tones to work seamlessly in any decor.
  • Pairs beautifully with select KOHLER® and Artist Editions® sinks for a complete solution.
  • ½” (12.7 mm) countertop overhang per side.
  • Flat, square edges give a crisp, finished look.
  • Optional side and backsplashes available (sold separately).
  • This product is covered under the Silestone® 25-Year Limited Warranty.

Material
Silestone® quartz.

Installation

  • Vanity top.
  • Single faucet hole with pilot holes for optional 8″ (203 mm) widespread faucet configuration.

Recommended Products/Accessories

  • K-2882 19-3/4″ rectangular undermount bathroom sink
  • K-2330 Undermount bathroom sink
  • K-20000 20-1/4″ rectangular undermount bathroom sink

Optional Products/Accessories

  • K-28264 Silestone® quartz 49″ backsplash
  • K-28266 Silestone® quartz side splash

Included Components

  • Additional Components: Mounting Screws

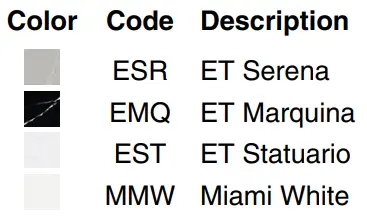

Available Colors/Finishes

Color tiles intended for reference only

KOHLER-K-28253-Silestone-49-Inch-Quartz-Vanity-Top-with-Rectangular-Cutout-FIG-3

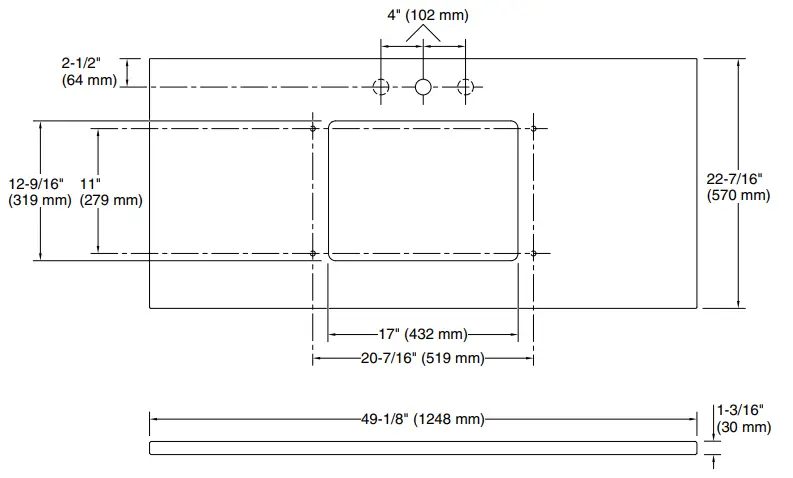

DIMENSION

KOHLER-K-28253-Silestone-49-Inch-Quartz-Vanity-Top-with-Rectangular-Cutout-FIG-2

Technical Information

All product dimensions are nominal.

  • Installation: Vanity top/ITB
  • Number of deck holes: 1

Notes
Install this product according to the installation instructions.

KOHLER® One-Year Limited Warranty

See website for detailed warranty information.

ABOUT COMPANY

  • 1-800-4KOHLER (1-800-456-4537)
  • Kohler Co. reserves the right to make revisions without notice to product specifications.
  • For the most current Specification Sheet, go to www.kohler.com.
  • 10-15-2022 00:44 – US/CA
