tp-link TL-SF1016D 10-100 Mbps Desktop Switch Installation Guide
LED Explanation
Power
On: Power on
Off: Power off
Link/Act
On: Link present but no activity
Flashing: Transmitting/receiving data
Off: No link

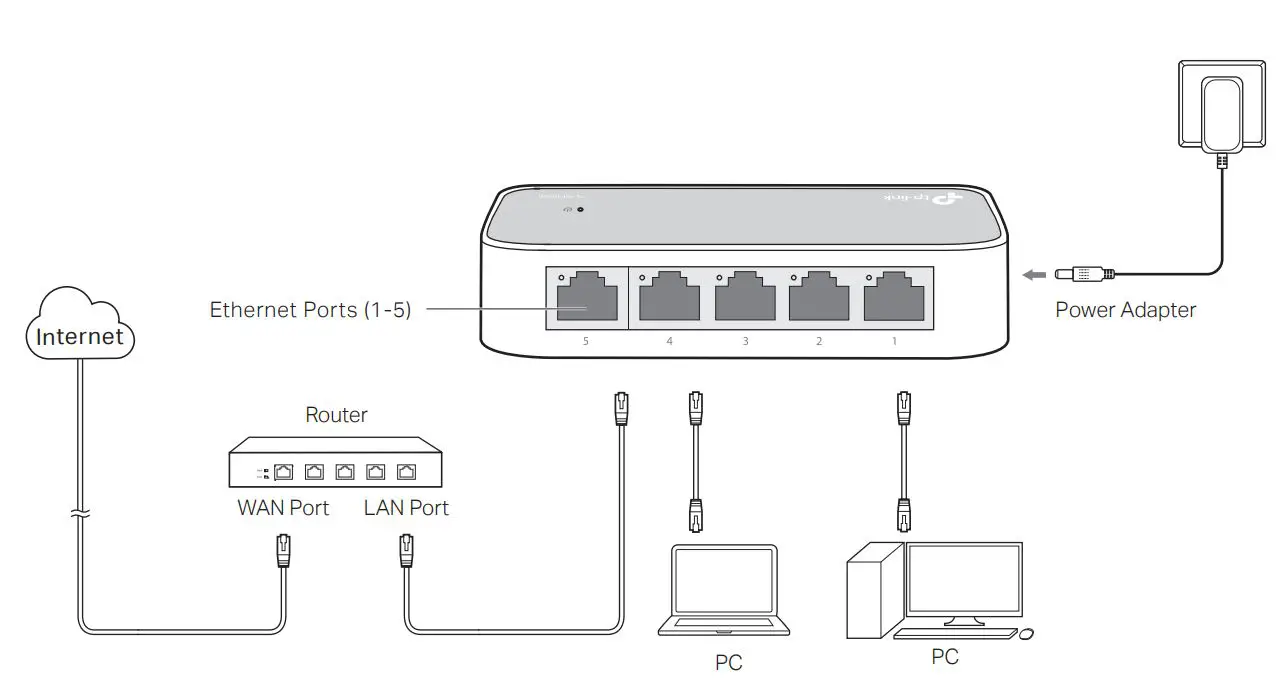

Connection
Frequently Asked Questions (FAQ)
The Power LED should be lit when the power system is working normally. If the Power LED is not lit, please check as follows: A1: Make sure the power cord is connected to the switch with power
source properly. A2: Make sure the voltage of the power supply meets the
requirements of the input voltage of the switch. A3: Make sure the power source is ON.
It is recommended that you check the following items: A1: Make sure that the cable connectors are firmly plugged into the
switch and the device. A2: Make sure the connected device is turned on and working well. A3: The cable must be less than 100 meters long (328 feet).
Specifications

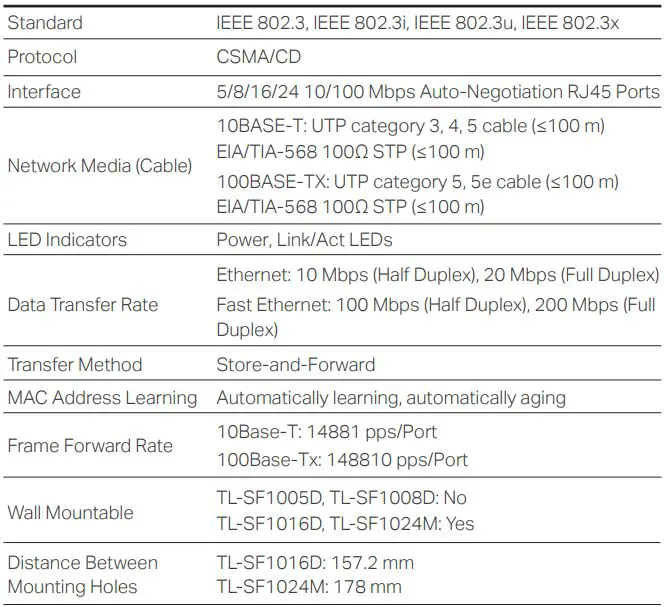

General Specifications
To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community.
For technical support and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.
If you have any suggestions or needs on the product guides, welcome to email [email protected].
Environmental and Physical Specifications
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 10% to 90%RH non-condensing
Storage Humidity 5% to 90%RH non-condensing
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
Safety Information
- Keep the device away from water, fire, humidity or hot environments.
- Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
- Do not use damaged charger or USB cable to charge the device.
- Do not use any other chargers than those recommended.
- Adapter shall be installed near the equipment and shall be easily accessible.
- Place the device with its bottom surface downward.
- Use only power supplies which are provided by manufacturer and in the origin packing of this product. If you have any questions, please don’t hesitate to contact us.
