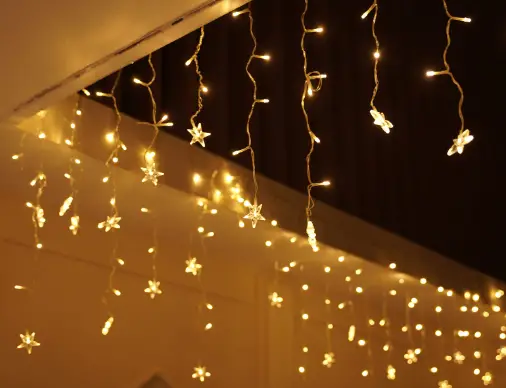

EKVIP 022435 LED Icicle String Lights
SAFETY INFORMATION
Read the operating instructions carefully before use.
Please retain for future reference.
- Do not connect the set to the mains while it is still in the pack.
- The bulbs are not replaceable.
- Do not connect this set to another set.
- The power cord for this set is not replaceable, if damaged discard the complete product.
- For indoor and outdoor use.
- Warning: this set must not be used unless all the seals are in place.
- This product must only be used together with a transformer with the same output as the one supplied and must never be connected directly to the mains supply.
TECHNICAL DATA
- input voltage 31 VDC
- Output 2,5 W
- Bulbs 100
- Protection rating IP44
- Length of light string 300 cm
- Width of light string 40 cm
| PRODUCT INFORMATION SHEET | |||||
| Supplier’s name or trademark: | EKVIP | ||||
| Supplier’s address (a): | Jula AB, Box 363, 532 24 SK | ARA | |||
| Model identifier: | 022435 | ||||
| Type of light source: | LED | ||||
| Lighting technology used: | LED | Non-directional or directional: | NDLS | ||
| Light source connected to mains supply or light source not connected to mains supply: | NMLS | Connected light source (CLS): | no | ||
| Colour-tuneable light source: | no | Envelope: | – | ||
| High luminance light source: | no | ||||
| Anti-glare shield: | no | Dimmable: | no | ||
| Product p | arameters | ||||
| Parameter | Value | Parameter | Value | ||
| General produc | t parameters: | ||||
| Energy consumption in on-mode (kWh/1000 h) | 3 | Energy efficiency class | F | ||
| Useful luminous flux (Φuse), indicating if it refers to the flux in a sphere (360˚), in a wide cone (120˚) or in a narrow cone (90˚). |
270 in sphere (360°) | Correlated colour temperature, rounded to the nearest 100 K, or the range of correlated colour temperatures, rounded to the nearest 100 K, that can be set. |
2 700 | ||
| On-mode power (Pon), expressed in W. | 2,5 | Standby power (Psb), expressed in W and rounded to the second decimal. | 0,00 | ||
| Networked standby power (Pnet) for CLS, expressed in W and rounded to the second decimal. | – | Colour rendering index, rounded to the nearest integer, or the range of CRI-values that can be set. | 80 | ||
| Outer dimensions without separate control gear, lighting control parts and non-lighting control parts, if any (millimetre). | Height | 400 | Spectral power distribution in the range 250 nm to 800 nm, at full-load. | See image in last page | |
| Width | 3 000 | ||||
| Depth | – | ||||
| Claim of equivalent power (c) | – | If yes, equivalent power (W) | – | ||
| Chromaticity coordinates (x and y) | 0,468 0,418 | ||||
| Parameters for LED and OLED light sources: | |||||
| R9 colour rendering index value | 20 | Survival factor | 1,00 | ||
| The lumen maintenance factor | 0,96 | ||||
| Parameters for LED and OLED mains light sources: | |||||
| Displacement factor (cos φ1) | – | Colour consistency in mcadam ellipses | 5 | ||
| Claims that an LED light source replaces a fluorescent light source without integrated ballast of a particular wattage. | -(b) | If yes then replacement claim (W) | – | ||
| Flicker metric (Pst LM) | – | Stroboscopic effect metric (SVM) | – | ||
| (a) ”-”: not applicable; (b) ”-”: not applicable; | |||||
