TRIOBIKE Boxter Cargo Bike for 4 Kids
Instruction Manual
INSTALLING THE STEP-IN
1- Check if your box has already the 4 holes for the step in (A): if so, skip to step 4
2- With the front box flipped upside down, on the right side identify the 2 gaps between the reinforcement fins (shown in red in the picture).

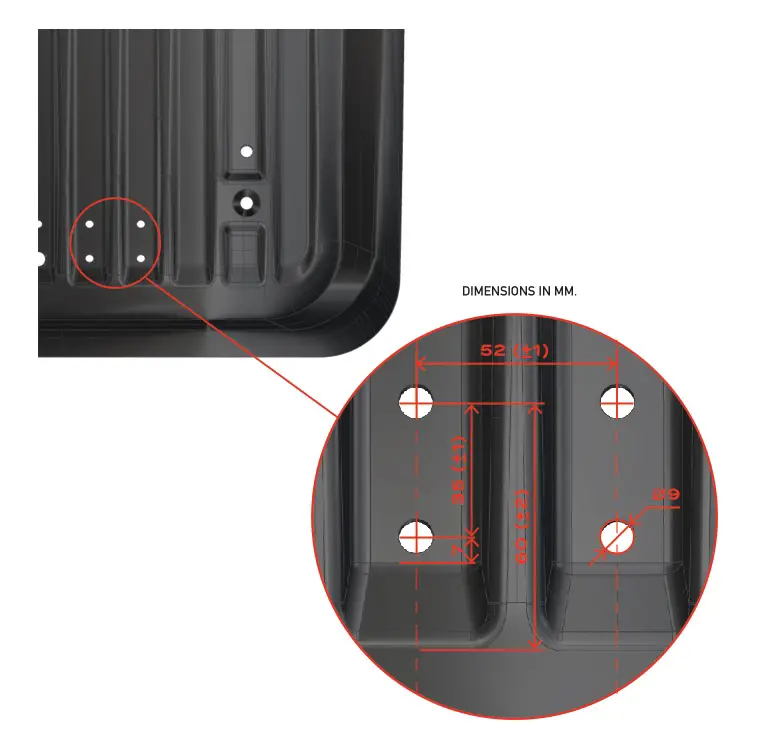

3- With a 9mm tip, drill 4 holes as shown in the picture. They have to stay in the middle of the flat part between the fins.

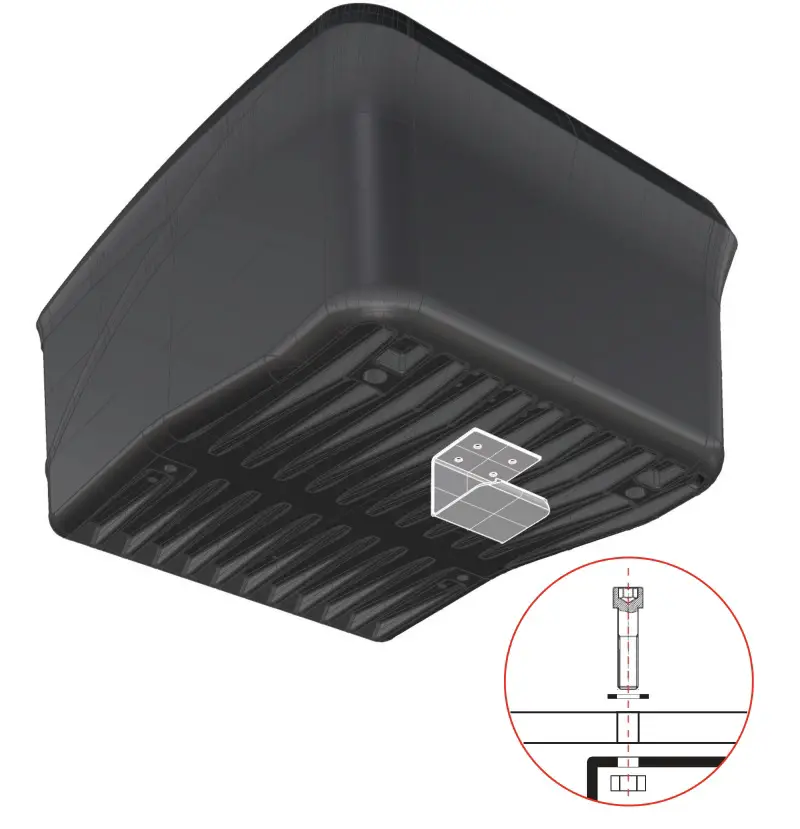

3- Connect the step in to the box using 2x DIN912 M8x40 bolt on the front and 2x DIN912 M8x45 on the rear. Put washers between the bolt head and box floor.

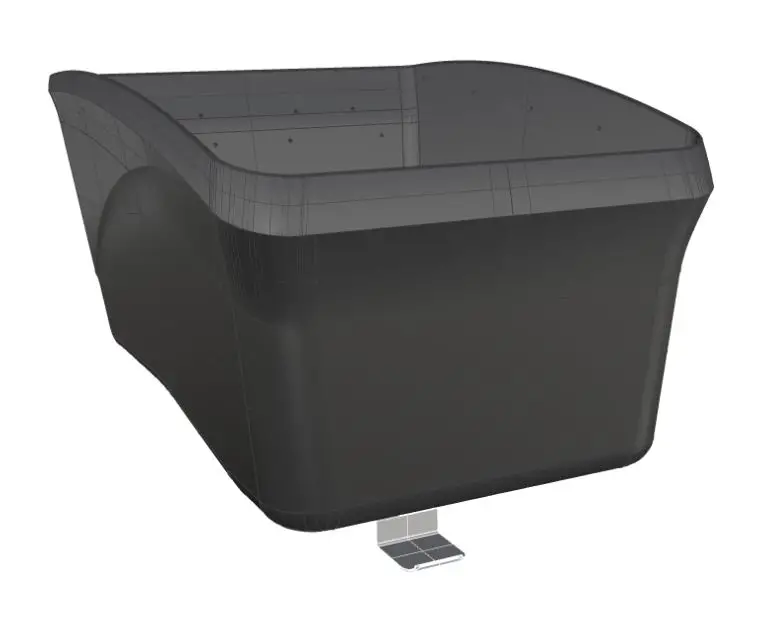

4- Test the step in putting your foot on it. It should not shake or make noise.
