Mindray Dp-50 Expert Ultrasound Machine User Guide

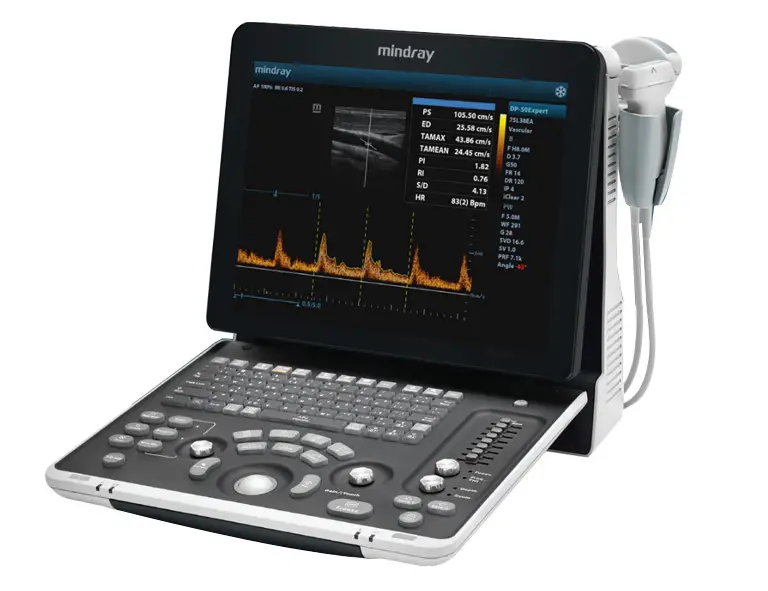

mindray DP-50 Expert Ultrasound Machine

MINDRAY DP-50 EXPERT ULTRASOUND DIAGNOSTIC SYSTEM

• 33992 MINDRAY DP-50 EXPERT PORTABLE ULTRASOUND with 15″ high resolution LCD monitor, 2 probe connectors, 500GB hard disk, 4 USB ports, multiple software package, without probes. Imaging mode: B, B/B, 4B, B/M, M
  Image processing technology:
  • Phase Shift Harmonic Imaging
  • iBeam™ Spatial Compound Imaging
  • iClear™ Adaptive Speckle Suppression Imaging
  • Tissue Harmonic Imaging
  • Trapezoid imaging
  • iTouch™ Auto Optimization
  • iZoom™ Automatically expand the image to full screen
  • Slant scanning for linear probes (2D Steer)
    Wideband multifrequency probes: continuously adjustable 2-14 MHz Intelligent Workflow/Storage/Review:
  • iStation™ Intelligent patient data management system
  • 320 GB integrated hard disk for storage – 4 USB ports
  • Cine memory capacity (Max.) B mode: 10566 frames M mode: 66.3 s

PW (Pulse Wave) and DICOM included

TECHNICAL SPECIFICATIONS

• Display: 15″ LCD
• Display language: GB, FR, IT, ES, PT, RU, PL, CZ, TR, FI, DK, NO, SE, DE
• Power: AC 100-240 V – 50/60 Hz rechargeable lithium-ion battery – on request
• Size and weight: DP-50 Expert 14.7×36.1xh 35.8 cm – 7.5 kg

MINDRAY Z50 COLOUR DIAGNOSTIC ULTRASOUND SYSTEM

• 33881 MINDRAY Z50 COLOUR PORTABLE ULTRASOUND with 15″ high resolution LCD monitor, 2 probe connectors, 500GB hard disk, 4 USB ports, multiple software package, without probes.
  A colour doppler system that offers a rare combination of high performance and low cost. Superior image quality, affordability, versatility and mobility in a unique portable Doppler system.
  Versatility
  • scanning modes: B, Colour, PW, Power, M, FreeXros M
  • image display modes: B, 2B, 4B, B/C, B/M, B/PW, Triplex PW
  • applications: ABD/OB/GYN/CAR/SML/URO/VAS/ORTH/EM/NERVE
  • transducer variety: Convex, Linear, Micro-convex, Endocavity
  • extended scanning angle with ExFov function
  • high frequency linear probe for superficial scanning
    Productivity
  • iTouch: quick image optimization with one-click
  • iZoom: instant full screen zoom with one-click
  • iStation: patient database review and analysis platform
  • iStorage: direct data transfer to PC
  • Clipboard: easy play, preview and sharing of cineloop
  • Multiple image formats: BMP, JPG, DCM, AVI, DCM, CIN
    Mobility
  • compact and streamlined design weighing 8.1kg
  • 15’’ LCD monitor with 60 degree tilt function
  • dual universal transdu-cer connectors
  • two level backlit keybo-ard for varying require-ments
  • Can be packed in a convenient hand-carried bag for easy transpor-tation
  • 1.5 h uninterrupted scanning with rechar-geable battery Supplied with
    CD manual:
    GB, FR, IT,
    ES, PT,
    DE, RU,
    BR.

TECHNICAL SPECIFICATIONS

• Display: 15″ LCD high resolution 1024×768
• Software display + keyboard input: GB, FR, IT, ES, PT, RU, PL, CZ, DE
• Keyboard input: TR, FI, DK, NO, SE
• Power: AC 100-240 V – 50/60 Hz rechargeable lithium-ion battery – on request
• Size and weight: 19×41.5xh 37.8 cm (7.5”x16.3”xh 14.9”); 8.1 kg without battery

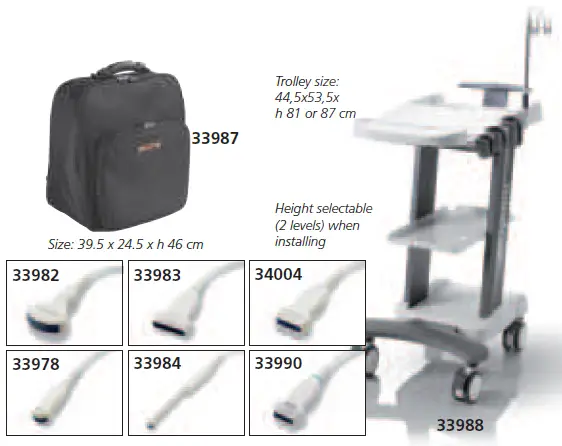

PROBES AND ACCESSORIES FOR DP-50, DP-50 EXPERT, Z5, Z50

*Not for DP-50PT **Not compatible for Z5, Z50
