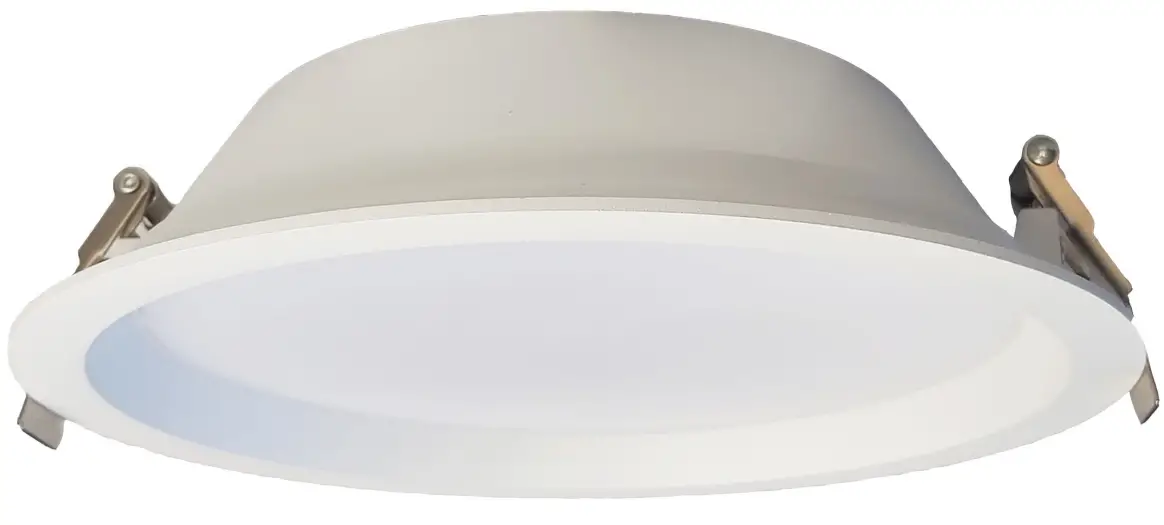

Beghelli A71-10331CED IK05 Downlight LED User Manual
SPECIFICATIONS:
- Fitting: Aluminium body + acrylic diffuser
- Protection against electric shock: CLASS II, Double insulated. Dones not require earth connection.
- Ingress Protection: IP44 Front.
- Driver: Included.
- Quality/Corrosive rating: QC22: Burning period: 12hrs/24hr cycle. Commercial use, indoor except in corrosive environments.
- Ambient temperature range: -20°C to +40°C.
Power:15W
model : A71-103310ED
size: 160x53mm 4)
Φ150mm
3-20mm
Power:25W
model : A71-10333CED
size: 215x62mm 0200mm 3-20mm
CAUTION:
WARNING-Risk of fire of electric shock. LED Grille light installation requires knowledge of luminaires electrical systems.
If not qualified, do not attempt installation. Contact a qualified electrician. WARNING-To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects
HYGIENE & SAFETY
We advise to use the soft cloth to clean up and do not attempt to use any chemical agent in order to avoid any damages from the surface.
For your safety, please cut off the power supply before changing or cleaning the lamp source.
