Gude Grw 500 Garden Lawn Roller Instructions

GRW 500
94759
Translation of the original instructions
Lawn roller

Please read the instructions carefully before starting the machine.

STARTING-UP THE MACHINE

POWER TOOL DESCRIPTION

DELIVERED ITEMS

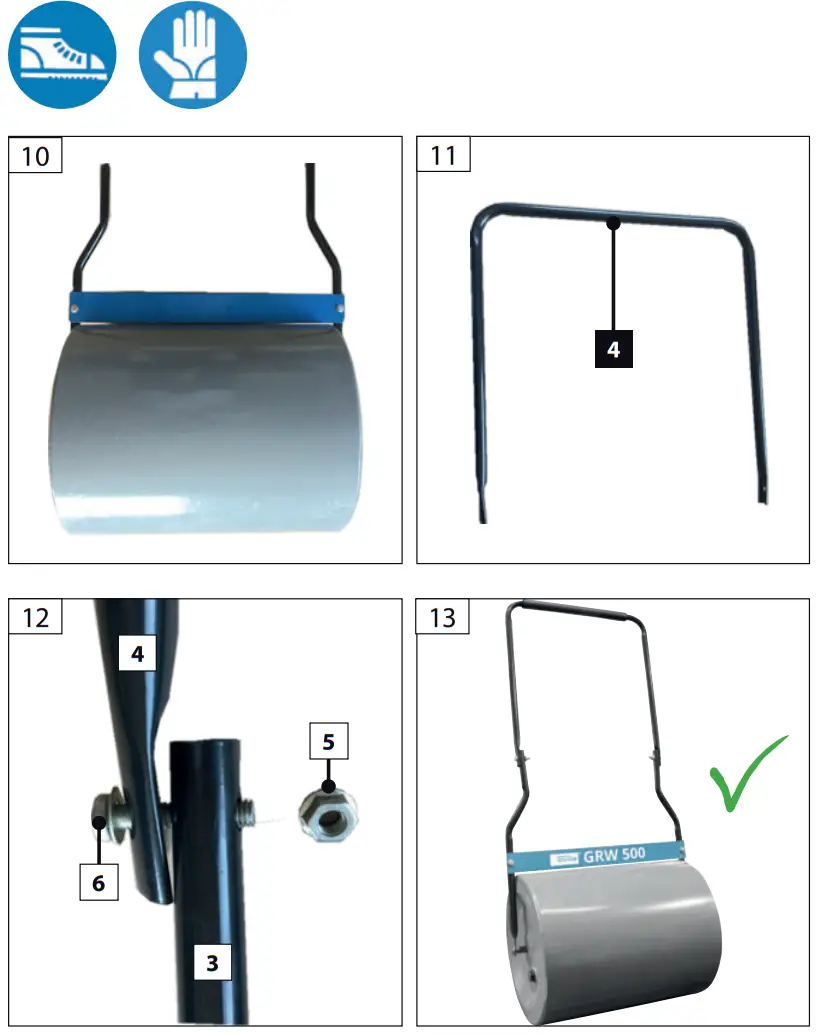

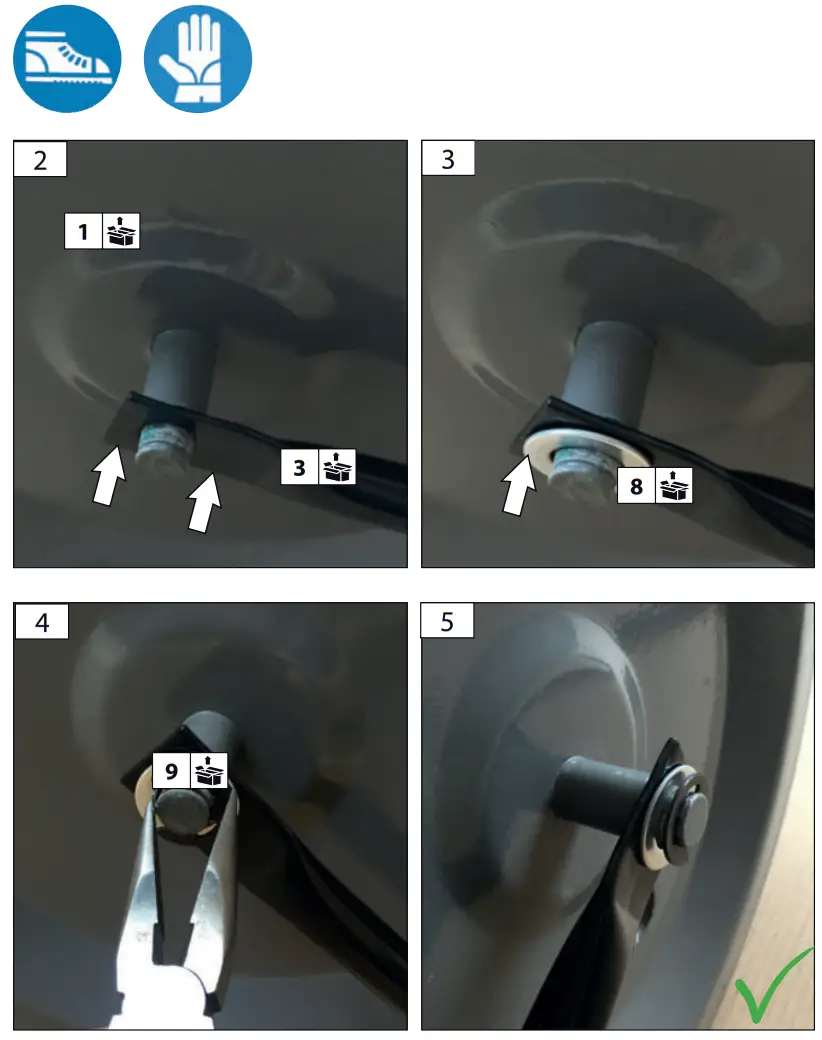

Assembly

Introduction

To enjoy your new tool as long as possible, please read carefully the Operating Instructions and the attached safety instructions before putting the appliance into operation. We also recommend keeping the Operating Instructions for future reference.
We reserve making technical changes to improve the appliance as part of the continuous product development.
This document represents the original Operating Instructions.

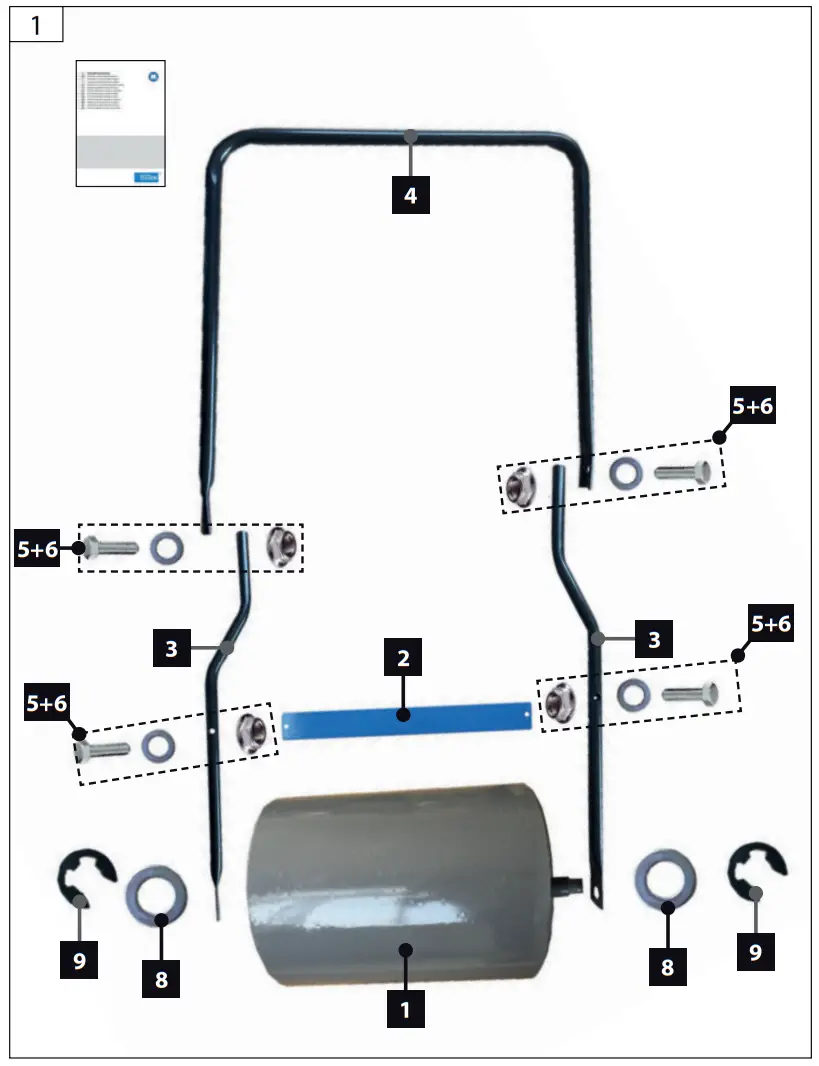

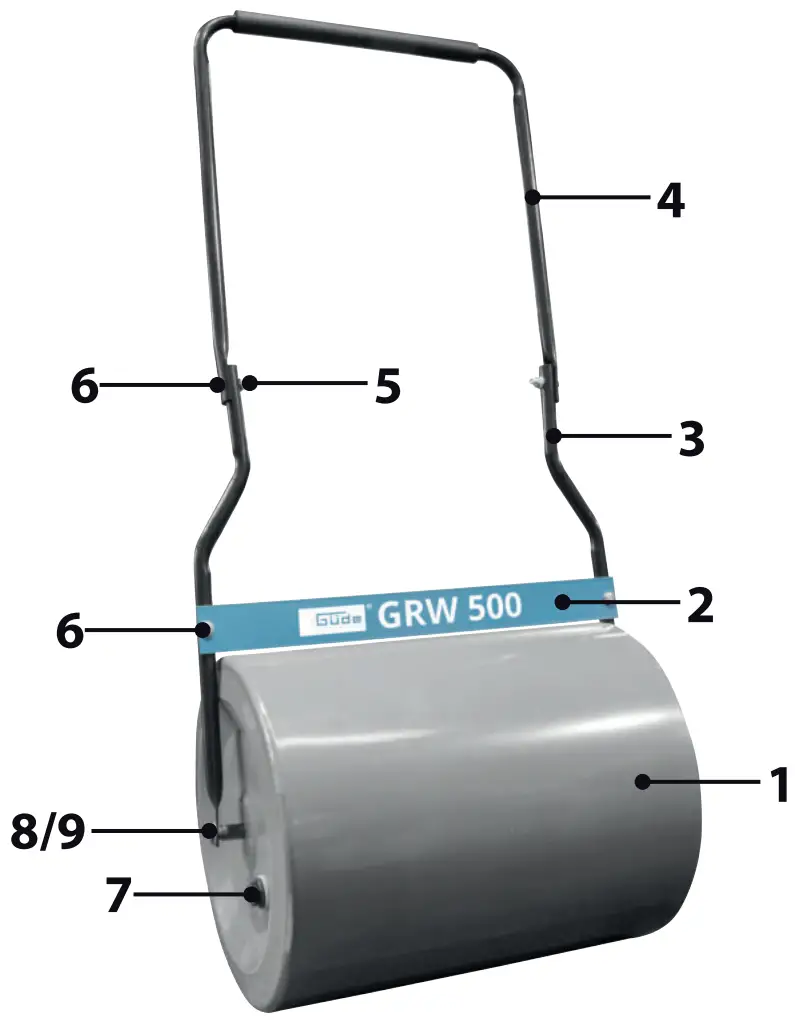

Appliance description/ Supply includes (pic. 1 or pic. 2)
Take the appliance out of the transport container and check whether there are the following parts:

1. Roller
2. Dirt wiper
3. Bottom Shaft
4. Push bar
5. Nut 4x
6. Screw 4x
7. sealing screw
8. Washer 2x
9. Spring 2x

If any parts are missing or damaged, please contact your dealer.

technical specifications

Marking

Product safety:

Product corresponds to appropriate EU standards

Prohibitions:

Must not be accessed by children
Warning:

Sufficient to keep a safe distance.	Warning of hand injuries

Commands:

	Please read carefully the Operating Instructions. Before using the appliance, familiarise carefully with the appliance operational elements.
	Use safety shoes

Environment protection:

	Dispose waste professionally so as not to harm the environment.
	Packing cardboard material may be delivered to collecting centres for recycling.

Packaging:

	Protect against moisture This side up
	Interseroh-Recycling

Technical specifications:

	Roll-Ø		Working width

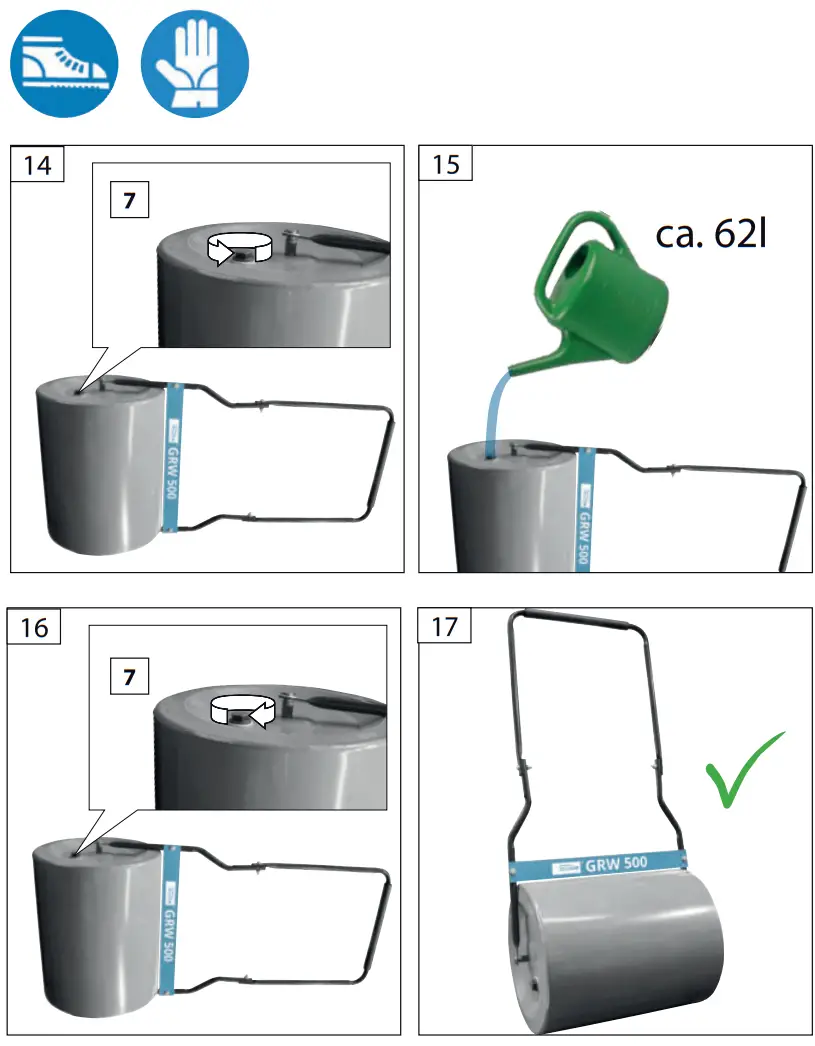

	Filling volumen/roll		weight

Operation

Pull the roller over the ground you wish to roll in even strips. Adjust the dirt wiper (1/2) so that as little soil as possible remains on the roller. Only roll dry ground.

Intended use

Lawn and garden roller for rolling surfaces and freshly sown seed (for example grass seed but also seed in beds) to ensure that the seed is perfectly inserted in the soil.
The roller can also be used after the lawn area has been scarified or fertilized.
The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Warranty

A warranty period of 12 months applies to commercial use and 24 months apply to private use and commences on the day of purchase of the device.
Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.

Warranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.

Behaviour in case of emergency

Provide necessary first aid treatment corresponding to the injury nature and seek qualified medical help as soon as possible.
Protect the injured person from other injuries and calm him/her down.

First aid kit must always be available in the place of your work in case of accident in accordance with DIN 13164. Material taken out of the first aid kit needs to be supplemented right away.
If help is needed, please provide the following details:

1. Place of accident
2. Accident nature
3. Number of injured persons
4. Injury type

Disposal

The disposal instructions are based on icons placed on the appliance or its package. The description of the meanings can be found in the “Marking” chapter.

Transport container disposal
The container protects the appliance against damage during transport. Container materials are usually selected depending on their environment friendliness and disposal method and can therefore be recycled.
Returning the container back in the circulation saves raw materials and reduces waste disposal costs.
Parts of the container (e.g. foils, styropore) can be dangerous to children. Risk of suffocation!
Keep parts of the container out of reach of children and dispose them as quickly as possible.

Operator requirements

The operator must carefully read the Operating Instructions before using the appliance.

Qualification

No special qualification is necessary for using the appliance apart from derailed instruction by an expert.

Minimum age

The may only be operated by persons over 18 years of age.
An exception includes youngsters operating the appliance within their professional education to achieve necessary skills under trainer´s supervision.

Training

Using the appliance requires only appropriate instruction by a professional or reading the Operating Instructions. No special training necessary.

Maintenance

Do you have any technical questions? A claim? Do you need spare parts or the Operating Instructions? You will be helped quickly and without needless bureaucracy at our webpage www.guede.com in the Services part. Please help us be able to assist you. To be able to identify your appliance when claimed, we need to know details can be found on the type label. Enter the details below for future reference.

Serial No.
Order No.
Year of production:

Tel.: +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
E-Mail: [email protected]

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.
