Godox Tl30 Rgb Led Tube Light Instruction Manual

TL30
RGB
RGB Tube Light

Instruction Manual

Foreword

Thank you for purchasing this Godox Product!
This RGB Tube Light TL30 is a multifunctional RGB light with dual-color temperatures, high light brightness, and wireless adjustment. Suitable for almost all shooting occasions e.g. live, camping, makeup, portrait shooting, make-up, video, wedding, children photography, etc. It’s portable and easy to be operated.

Features

• Freely switch LED CCT mode, RGB mode, and 37 special effects modes.
• Easy to adjust color temperature, light brightness, hue, and color saturation.
• Remote control by smartphone APP.
• Use in combination to make more creative light groups.
• Both ends have a magnetic absorption function and can be attached to the plane of iron products.
• Lightweight and portable, it can be held by a hand, and the angle can be flexibly changed.

Warning

Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be
sent to an authorized maintenance center.
Keep out of reach of children.
As this product does not have a waterproof function, please take measures to waterproof it in rainy or damp environments.
Do not use the flash unit in the presence of flammable gases, chemicals, and other similar materials. In certain circumstances, these materials may be sensitive to the strong light emitting from this flash unit, and fire or electromagnetic interference may result.
As this product has a built-in lithium battery, do not disassemble, impact, squeeze or put it into the fire. If a serious bulge occurs, please do not use it. Do not use or store the product if the ambient temperature reads over 40°C.

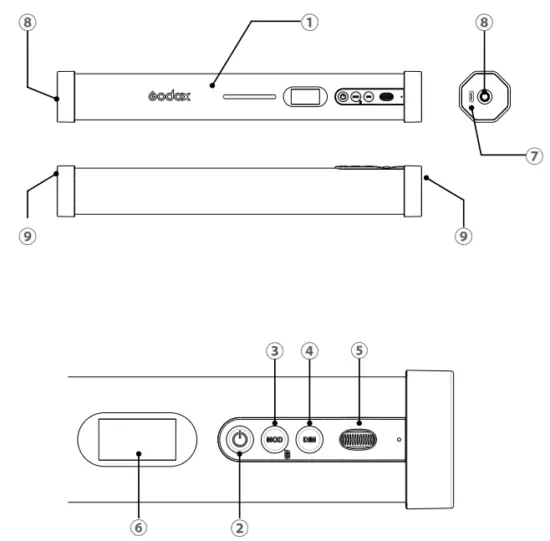

Names of Parts

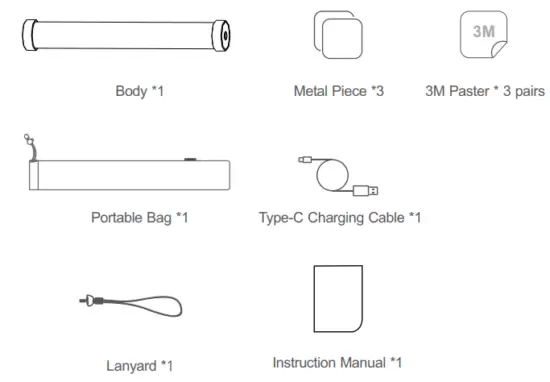

What’s in the Box

Battery Management

1. Power Supply
   With a built-in lithium battery that can offer about 1 hour’s lighting in 100% brightness once got fully charged.
   The light can also be charged through a USB cable.
2. Charge
   The whole charging takes about 1 hour and 30 minutes when using a 5V/2A charger (optional). The charge grids indicator will be blinking in charging while displaying full grids once got fully charged.

Operation

1. Power Switch

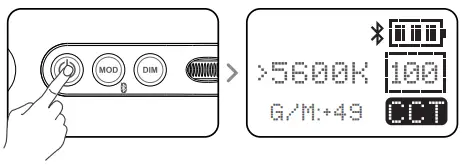

   Long press the switching power button for 1.5s to turn on or off. Then, the current information will be displayed on the OLED panel.
2. Mode Selection: CCT Mode/RGB Mode/ Special Effects Mode
   Press the MOD button to switch different modes:
   2.1 Bicolor Mode

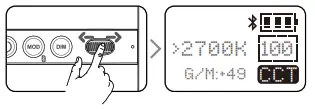

   2.1.1 Color temperature adjustment: turn the select dial to adjust the color temperature from 2700K to 6500K.
   Adjustment in 500 values quickly or 100 values normally by turning the selector dial.
   Press the DIM button again to confirm, and the parameter stops flashing.

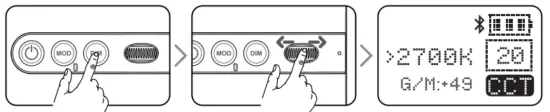

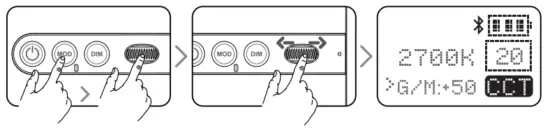

   2.1.2 Press the DIM button, then, press the DIM button, and the brightness value will be blinking. Turn the select dial to adjust the value. Adjustment in 10 values quickly or  1 value normally by turning the selector dial.2.1.3 Hue adjustment: press the MOD button to switch to the CCT interface. Press down the select dial to choose G/M and turn the select dial to adjust the hue from -50 to 0 and  0 to +50. Adjustment in 5 values quickly or 1 value normally by turning the selector dial.2.2 Colorful Mode

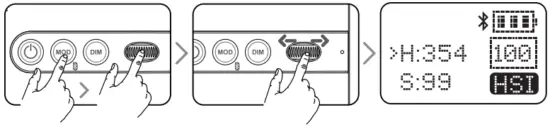

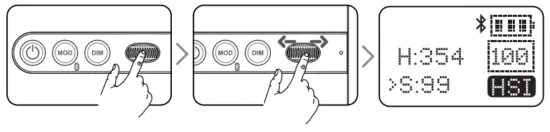

   2.2.1 Adjust hue H: press the MOD button to switch to the HSI interface. Press down the select dial to choose H and turn the select dial to adjust the hue. Adjustment in 10 values quickly or 1 value normally by turning the selector dial.2.2.2 Adjust saturation S: in the HSI interface, press down the select dial to choose S and turn the select dial to adjust saturation. Adjustment in 10 values quickly or 1 value normally by turning the selector dial.
3. Special Effects Modes (13 categories divided into 37 kinds)

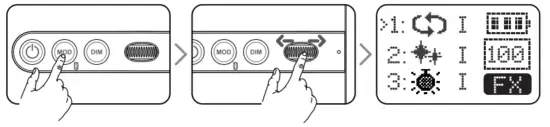

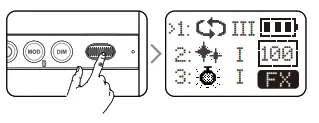

   3.1 Press the MOD button to switch to the FX interface. Turn the select dial to choose light effects categories from 1 to 13.3.2 After choosing the current mode, press down the FN multifunctional select dial from I, II, and III.3.3 There’re 37 kinds of situational special effects modes which are divided into 13 categories for your choice.

   No.	Display	Situation	Display I	Display II	Display III
   1		RGB cycle	Slow speed	Medium speed	Quick speed
   2		Flash	Flash	Press conference	Paparazzi
   3		Laser	Birthday party	KTV	Disco
   4		Lightning	Discontinuous	Frequent	Sustainable
   5		Broken bulb	Discontinuous	Frequent	Sustainable
   6		TV	Slow speed	Medium speed	Quick speed
   7		Candle	Discontinuous	Frequent	Sustainable
   8		Fire	Firewood	Campfire	Fire hazard
   9		Firework	Brief	Continuous	Show
   1 0		Police car	Strong flash	Frequent flash	Quick flash
   11		Firetruck	Strong flash	Frequent flash	Quick flash
   12		Ambulance	Strong flash	Frequent flash	Quick flash
   13		SOS

4. Bluetooth Control

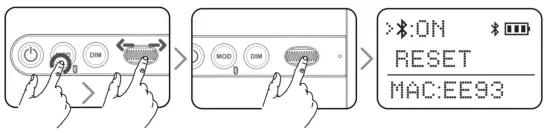

   4.1 Bluetooth ON/OFF: long-press the MOD button to enter the Bluetooth interface.
   Turn the select dial to choose the Bluetooth and press down to set it to ON or OFF.4.2 Scan the QR code to download the “Godox Light” smartphone APP(which can be used by Android and Apple systems). For more smartphone APP operations, please open the “help” in APP to gain detailed guidance.http://www.guteleben.com/html/dl_app/c_ble/GodoxLight/index.html4.3 Bluetooth reset function: in the Bluetooth interface, turn the select dial to choose RESET. Then, press down the select dial until the RESET is displayed. The screen
   will auto back to the Bluetooth interface after being successfully reset.

Note: the APP can be used directly o the firstly installed device (smartphone or iPad). When changing to another mobile device, the light shall be reset before the normal usage of the APP.

Technical Data

* Product design and specifications are subject to change without notice.

Maintenance

This product, except consumables e.g. adapter and adapter cable, is supported with a one-year warranty.
Avoid sudden impacts and the product should be dedusted regularly.
Maintenance of the flash must be performed by our authorized maintenance department which can provide original accessories.
Unauthorized service will void the warranty.
If the product had failures or was wetted, do not use it until it is repaired by professionals.
Changes made to the specifications or designs may not be reflected in this manual.

FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or  television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements.
The device can be used in portable exposure conditions without restriction.

Warranty
Dear customers, as this warranty card is an important certificate to apply for our maintenance service, please fill in the following form in coordination with the seller and safe keep it. Thank you!

Note: This form shall be sealed by the seller

Applicable Products

The document applies to the products listed on the Product Maintenance information (see below for further information). Other products or accessories (e.g. promotional items, giveaways, additional accessories attached, etc.) are not included in this warranty scope.

Warranty Period

The warranty period of products and accessories is implemented according to the relevant Product Maintenancelnformation. The warranty period is calculated from the day(purchase date) when the product is bought for the first time, And the purchase date is considered as the date registered on the warranty card when buying the product.

How to Get the Maintenance Service

If maintenance service is needed, you can directly contact the product distributor or authorized service institutions. You can also contact the Godox after-sale service call and we will offer you service. When applying for maintenance service, you should provide a valid warranty card. If you cannot provide a valid warranty card, we may offer you maintenance service once confirmed that the product or accessory is involved in the maintenance scope, but that shall not be considered our obligation.

Inapplicable Cases

The guarantee and service offered by this document are not applicable in the following cases: The product or accessory has expired its warranty period; Breakage or damage caused by inappropriate usage, maintenance, or preservation, such as improper packing, improper usage, improper plugging in/out external equipment, falling off or squeezing by an external force, contacting or exposure to the improper temperature, solvent, acid, base, flooding, and damp environments, etc; Breakage or damage caused by the non-authorized institution or staff in the process of installation, maintenance, alteration, addition, and detachment; The original identifying information of product or accessory is modified, alternated, or removed; No valid warranty card; Breakage or damage caused by using illegally authorized, nonstandard or non-public released software; Breakage or damage caused by force majeure or accident; Breakage or damage that could not be attributed to the product itself. Once met these situations above, you should seek solutions from the related responsible parties and Godox assumes no responsibility. The damage caused by parts, accessories, and software beyond the warranty period or scope is not included in our maintenance scope. The normal discoloration, abrasion, and consumption are not the breakages within the maintenance scope.

Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the following Product Maintenance Information:

Godox After-sale Service Call 0755-29609320-8062

GODOX Photo Equipment Co., Ltd.
Add Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Baoan District,
Shenzhen, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 E-mail: [email protected]
godox.comhttp://www.guteleben.com/html/dl_app/c_ble/GodoxLight/index.html
