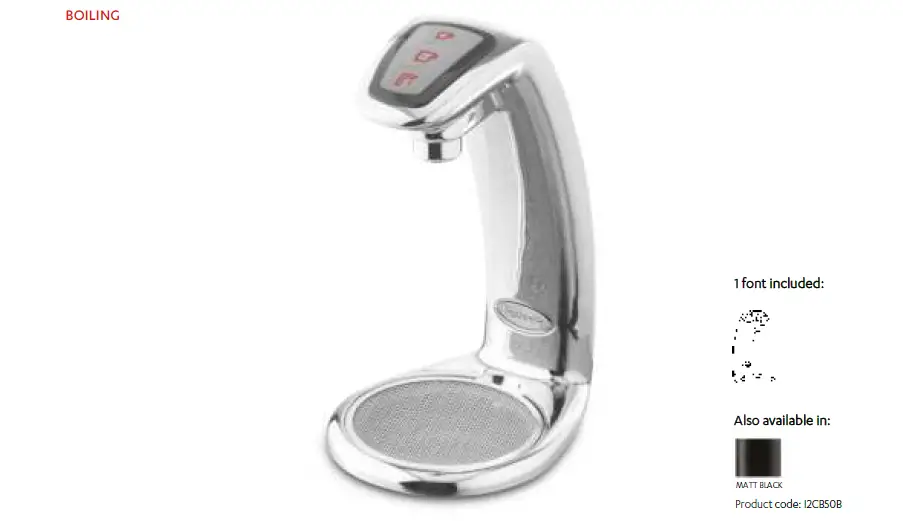

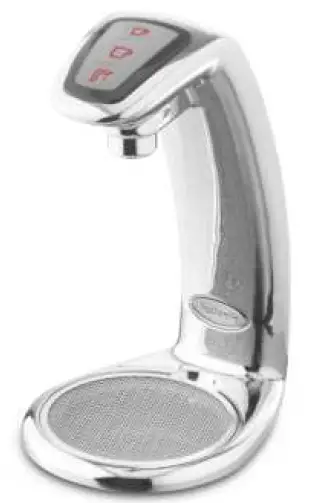

Instanta I2CB50 G2 InstaTap Commercial Boiling 50 litre Polished Stainless Steel
Features and benefits
Enhanced hygiene
Antimicrobial steritouch keypad that reduces 99.9% of surface bacteria, perfect for maintaining hygiene.
Smooth water flow
Dispenses a smooth water flow to minimise spluttering and steam.
Choice of dispense
There are three options available: free pour and 2 measured dispense.
Choice of design
Available in 2 heights and 2 finishes.
| Model | Capacity | Heat up time (minutes) | Rapid draw off (litres) | Rapid draw off (cups)* | Boiling cups per hour* | Nominal power rating kW @ 230V | Command centre dimensions W x D x H |
| I2CB50 | 50 Litres | 42 @ 6.75kW 64 @ 4.5kW | 50 | 300 | 378 @ 6.75kW 252 @ 4.5kW | 6.75kW 4.5kW | 560mm x 510mm x 600mm |
Product detail
Specification type
- Product code I2CB50
- Product name InstaTap G2 Commercial Boiling 50ltr polished stainless steel
Capacity, weights & dimensions
- Water functions Boiling
- Boiling capacity 378 Cups per hour @ 6.75kW or 252 Cups per hour @ 4.5kW
- Unit dimension (W x D x H) 560mm x 510mm x 600mm
- Product weight – empty / full 26kg / 70kg
Plumbing
- Wholesome water inlet supply required Cold Feed
- Supply pressure range 2 – 5 bar
- Supply connection 1 x isolated 3/4″BSP BSP fitting (Install rail 15mm)
- Installation Must comply with current water supply regulations
Electrical
- Command centre power rating 4.5kW (default) or 6.75kW @ 220-240V
- Voltage supply 20amps (4.5kW) or 30amps (6.75kW)
- Power supply requirements Single-phase supply via an isolation switch
- Cable length 1.7m fitted
- Installation Must comply with current IEEE regulations
Font
- Style Standard
- Finish Polished stainless steel
- Dimensions (W x D x H) 150mm x 197mm x 275mm
- Tap font clearance 195mm
- Disability options No
- Packed Dimensions (W x D x H) mm x mm x mm
- Packed weight LH
Command Centre
- Factory temperature boiling 96°C
- Heat up time 64 mins (4.5kW) or 42 mins (6.75kW)
- Stand by power loss (Idle over 24hrs) 1.5 kW/h
- Wholesome water supply requirements Cold Feed
- Tank material Stainless steel
- Packed Dimensions (W x D x H) 0mm x mm x 5mm
- Packed weight kg

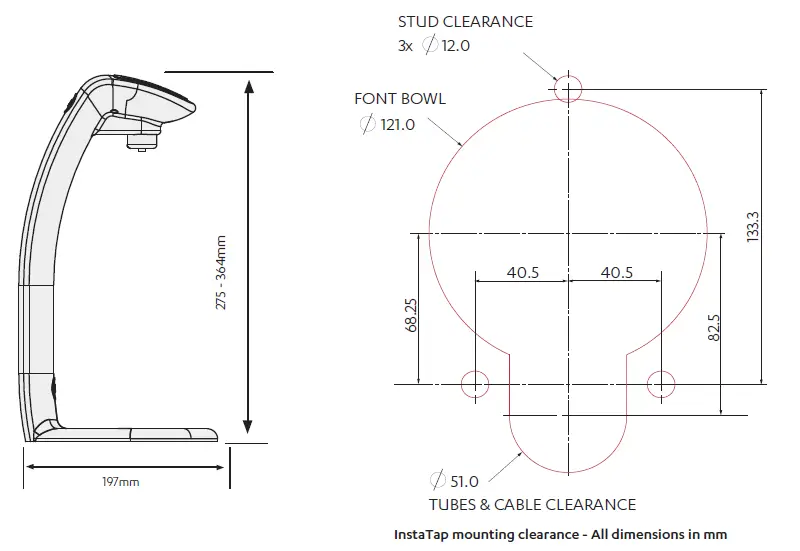

Font installation

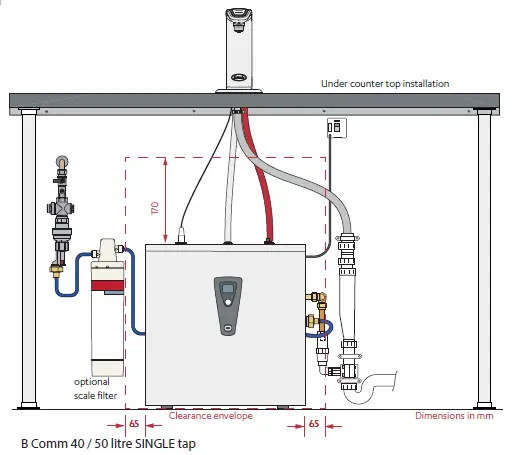

Under-counter unit installation
Clearance space required for under counter unit
Specification sheet InstaTap
