SERVICE MANUAL
RDR-VX410
RMT-D224P
Model
New Zealand Model
TS-10 MECHANISM
Refer to the SERVICE MANUAL of VHS MECHANICAL ADJUSTMENT MANUAL VII for MECHANICAL ADJUSTMENTS. (9-921-790-11)
SPECIFICATIONS
System
[DVD recorder section] Laser
Semiconductor laser Audio recording format
Dolby Digital
Video recording format
MPEG Video
[VCR section]
Format
VHS PAL standard
Video recording system
Rotary head helical scanning FM system
Video heads
Double azimuth four heads
Tap speed
SP: PAL 23.39 mm/s
LP: PAL 11.70 mm/s
EP: NTSC 11.12 mm/s, playback only
Maximum recording/playback time
10 hrs. in LP mode (with E300 tape)
Rewind time
Approx. 1 min (with E180 tape)
| [Tuner section] Channel coverage RDR-VX410 (B, E1, E2): PAL (B/G, D/K) VHF E2 to E12 VHF Italian channel A to H UHF E21 to E69 CATV S01 to S05, S1 to S41 HYPER S21 to S41 | RDR-VX410 (GI): PAL (I) VHF: Ireland A to J, South Africa 4 to 13 UHF: B21 to B69 CATV: S01 to S05, S1 to S20 HYPER: S21 to S41 |
| RDR-VX410 (B): SECAM (L): (For French model) VHF F2 to F10 UHF F21 to F69 CATV B to Q HYPER S21 to S41 | RDR-VX410 (AU2): PAL (B/G) VHF: E2 to E12 UHF: E21 to E69 CATV: S01 to S05, S1 to S41 PAL (B/B) VHF: R1 to R12 UHF: R21 to R69 |
The above channel coverage merely ensures channel reception within these ranges. It does not guarantee the ability to receive signals in all circumstances.
Aerial out
75-ohm asymmetrical aerial socket
[Timer section]
Clock
Quartz locked
Timer indication
24-hour cycle
Timer setting
12 programs in total (max.)
Inputs and outputs
LINE 2 IN
VIDEO IN, phono jack (1)
Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative
AUDIO IN, phono jacks (2)
Input level: 327 Vrms
Input impedance: more than 47 kilohms S VIDEO, 4-pin, mini-DIN jack (1)
Y: 1.0 Vp-p, unbalanced, sync negative
C: 0.286 Vp-p, load impedance 75 ohms
— Continued on next page —
VIDEO CASSETTE RECORDER/ DVD RECORDER
EXPLODED VIEWS
NOTE:
- -XX, -X mean standardized parts, so they may have some differences from the original one.
- Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

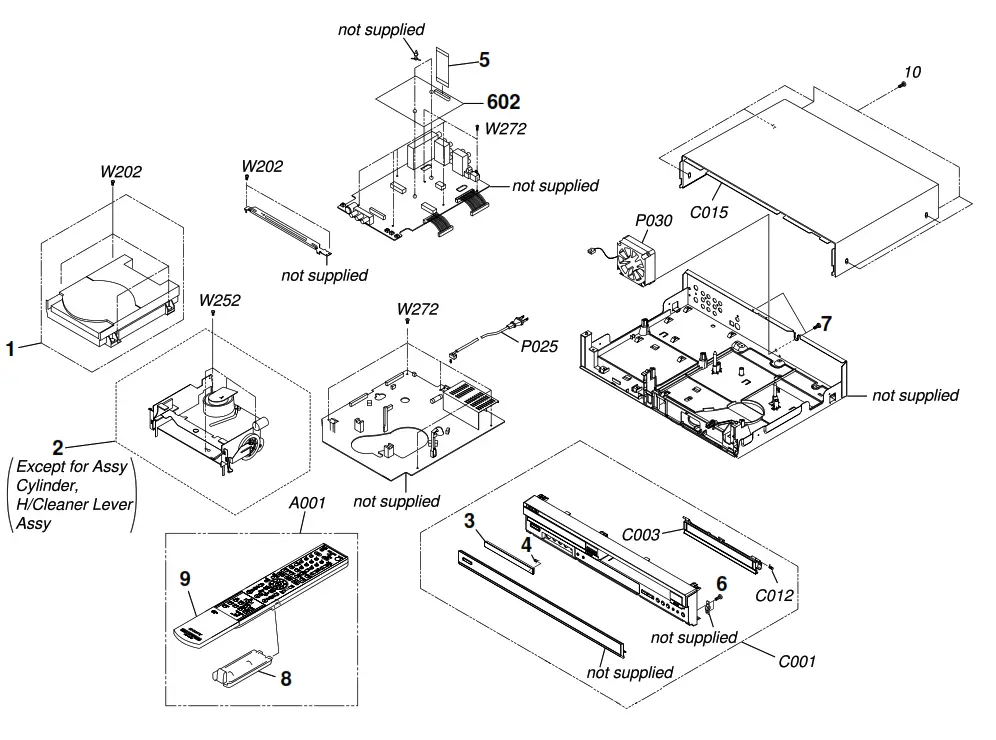

8-1-1 Cabinet Assembly
- The mechanical parts with no reference number in the exploded views are not supplied.
- Abbreviation
AU2: Australian, and New Zealand models
B: French model
E1, E2: AEP model
GI : UK model
The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

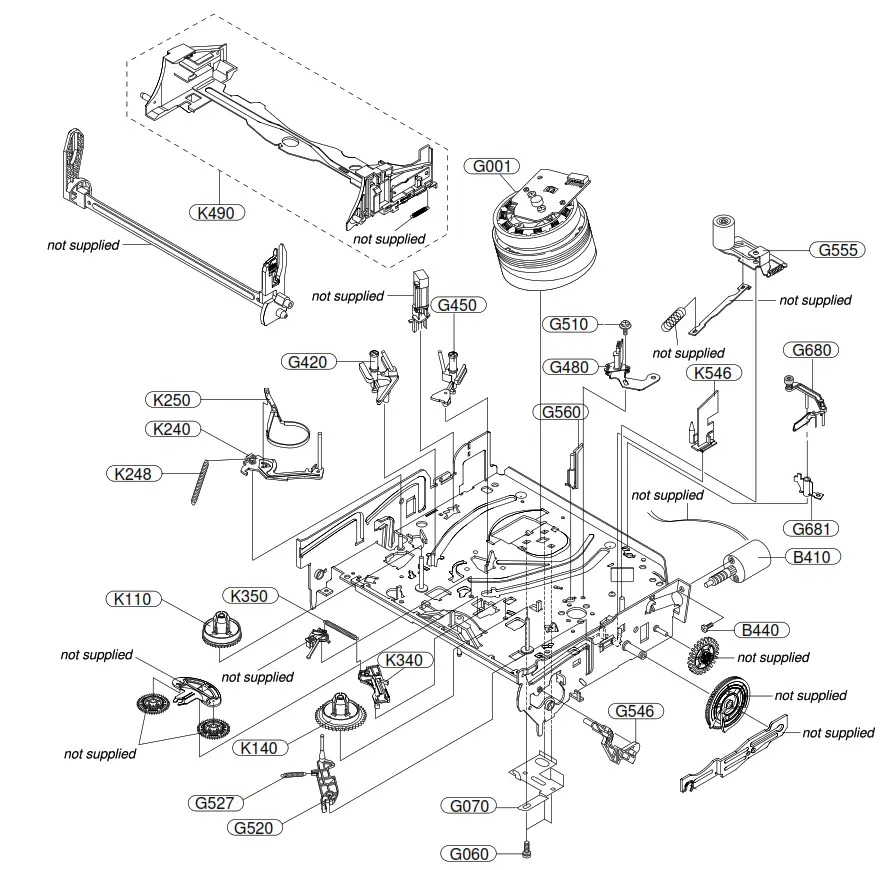

8-1-2 VCR Mechanical Parts (Top Side)

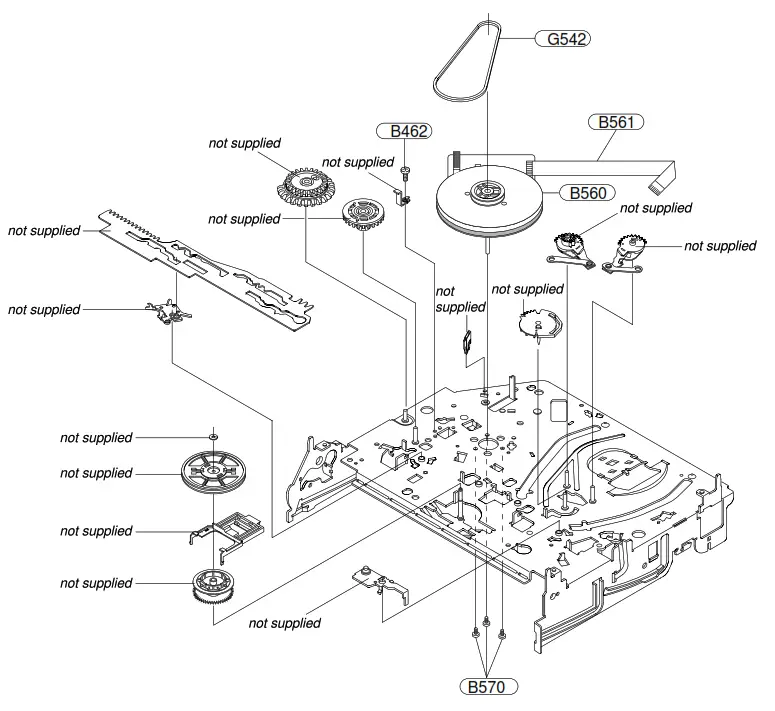

8-1-3 VCR Mechanical Parts (Bottom Side)
