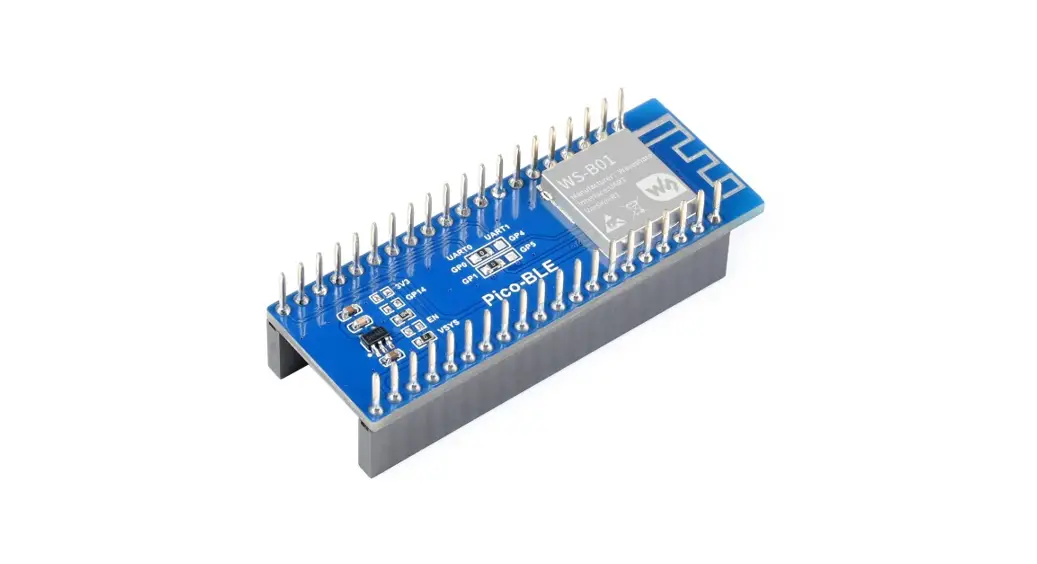

Raspberry Pi Pico-ble Dual-mode Bluetooth Module User Manual

Pico-BLE Dual-Mode Bluetooth Module
User Manual

Pico-BLE Dual-Mode Bluetooth Module

Dual-Mode Bluetooth Module for Raspberry Pi Pico,
SPP/BLE, Bluetooth 5.1
Model: Pico-BLE
Raspberry Pi Pico Header Compatibility:
Onboard Female Pin Header for Direct Attaching To Raspberry Pi Pico, Stackable Design

– For reference ONLY, Raspberry Pi Pico is NOT included.

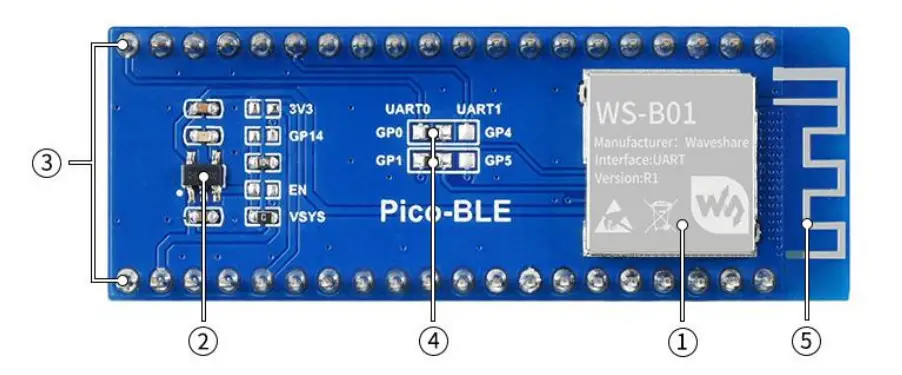

What’s on Board

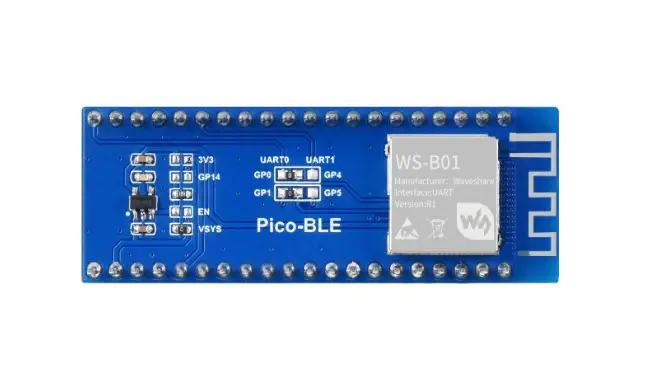

1. Bluetooth module
2. RT9193-33(3.3V regulator)
3. Raspberry Pi Pico header
4. UART input pins selection
5. Onboard Bluetooth antenna

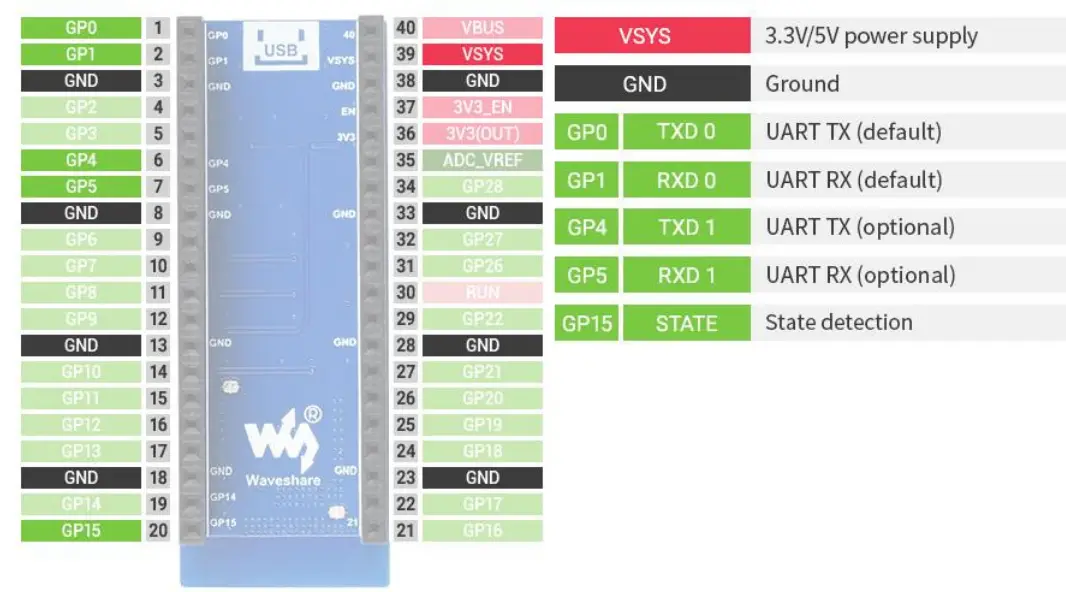

Pinout Definition:

References

• Raspberry Pi Pico, A Low-Cost, High-Performance Microcontroller Board With Flexible Digital Interfaces
