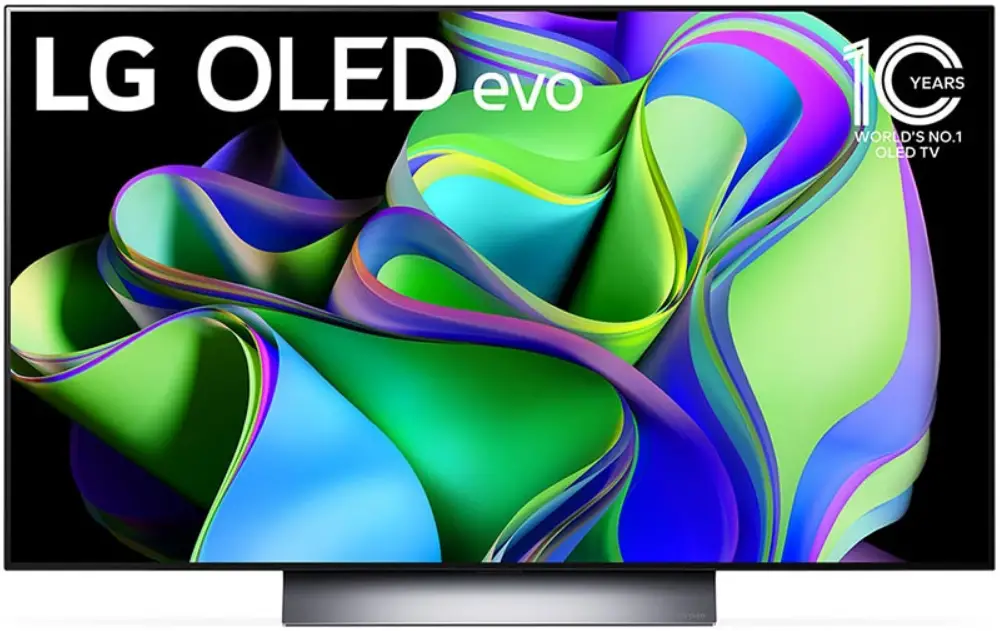

LG OLED48C3 48-Inch OLED Evo TV
Product Information

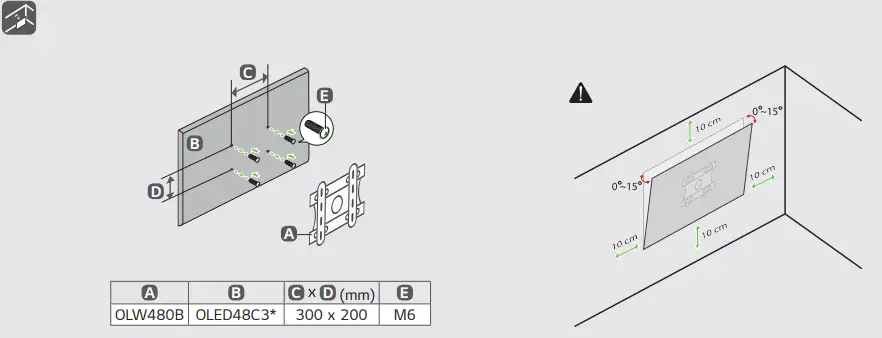

The product is a television model OLED48C3* with available variants including OLED48C31LA, OLED48C32LA, OLED48C34LA, OLED48C35LA, OLED48C36LA, OLED48C37LA, OLED48C38LA, OLED48C39LA, and OLED48C3RLA. The television has a weight ranging from 46.9 kg to 16.8 kg depending on the variant. The dimensions of the television range from 1071 mm x 675 mm x 230 mm to 618 mm x 14.9 mm x 16.8 mm depending on the variant. The product comes with an OLW480B wall mount which is compatible with the OLED48C3* model and has a VESA pattern of 300 mm x 200 mm with M6 screws.
Product Usage Instructions
- Unpack the television and ensure all parts are present including the OLW480B wall mount and screws.
- Choose a suitable location to mount the television, ensuring it is away from direct sunlight and heat sources.
- Attach the OLW480B wall mount to the back of the television using the provided screws.
- Locate a stud or solid anchor point in the wall where you want to mount the television.
- Mark and drill holes in the wall according to the VESA pattern of the wall mount.
- Insert the provided screws through the wall mount and into the drilled holes in the wall.
- Hang the television onto the wall mount and ensure it is securely attached.
- Connect any necessary cables such as power and HDMI cables to the television.
- Turn on the television and follow the on-screen instructions to complete the setup process.

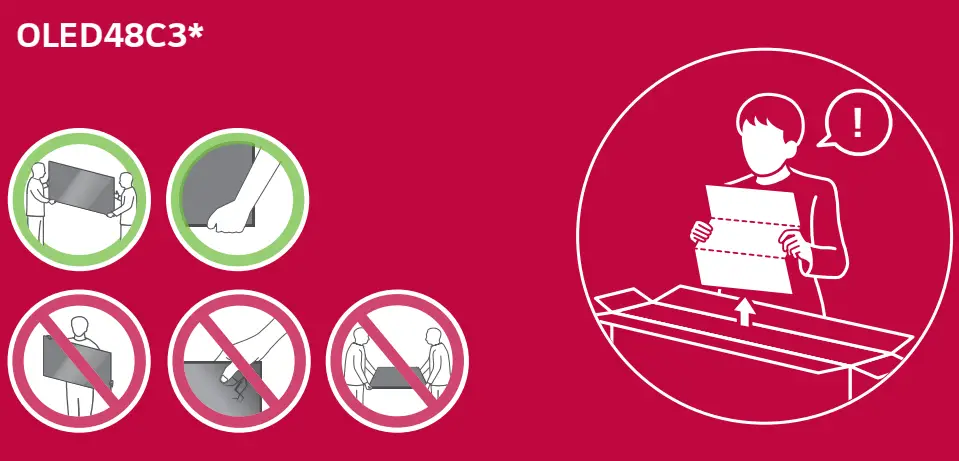

WARNING
QR code scanner

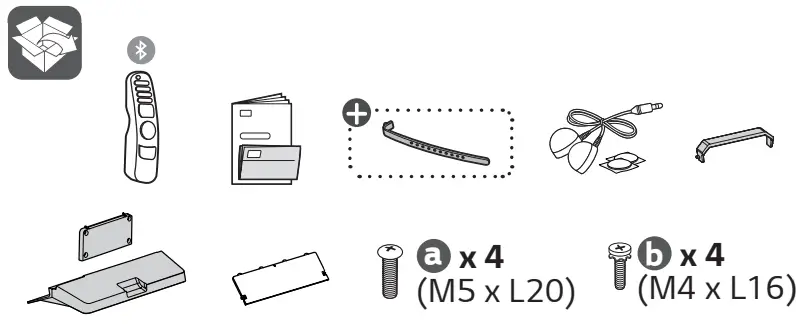

WHAT’S IN THE BOX

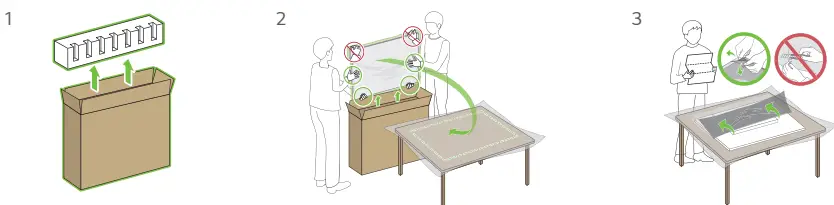

INSTRUCTION

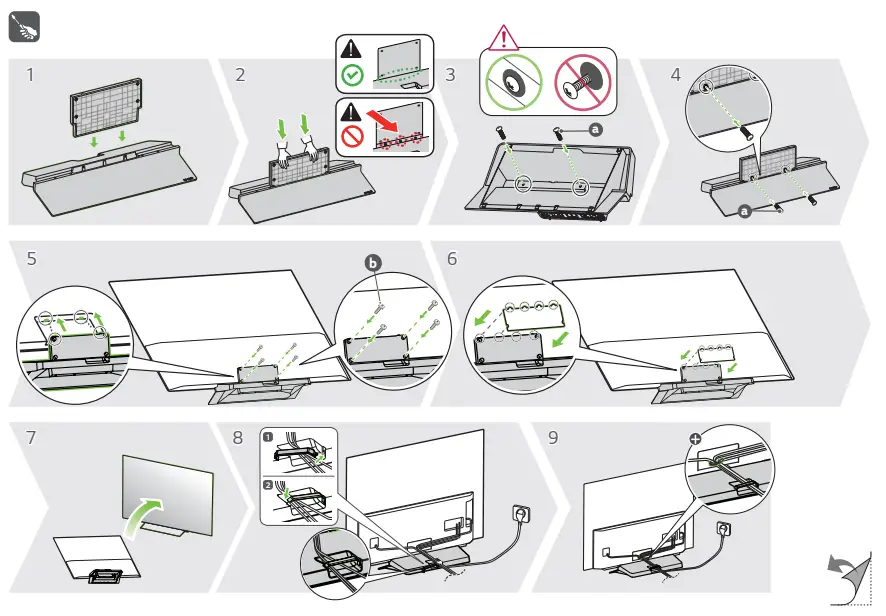

INSTALLATION

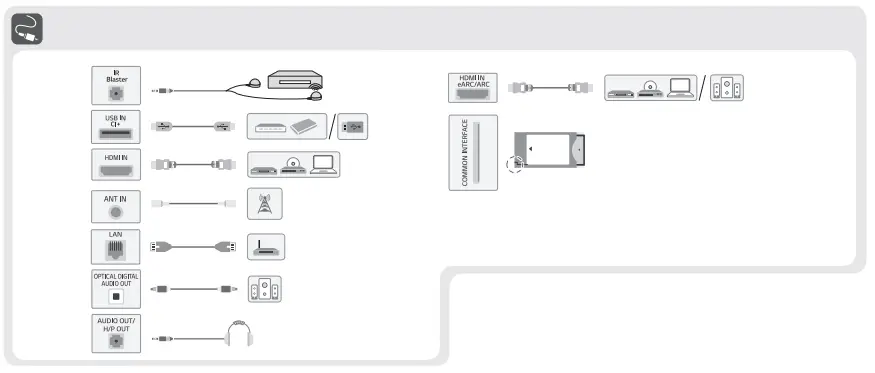

Plugin
Battery Instruction

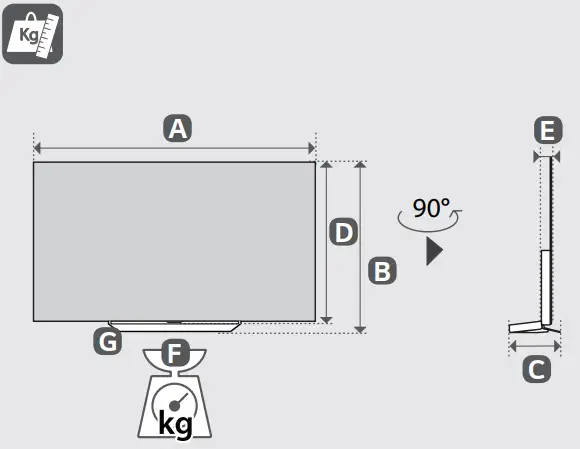

Dimension
| A | B | C | D | E | F | F G | |
| (mm) | (kg) | ||||||
| OLED48C31LA OLED48C32LA OLED48C34LA OLED48C35LA OLED48C36LA OLED48C37LA OLED48C38LA OLED48C39LA OLED48C3RLA | 1071 | 675 | 230 | 618 | 46.9 | 16.8 | 14.9 |
