OLED55C3*
OLED65C3*
OLED77C3*
a x 4
(M5 x L20)
b x4
(M4 x L16)

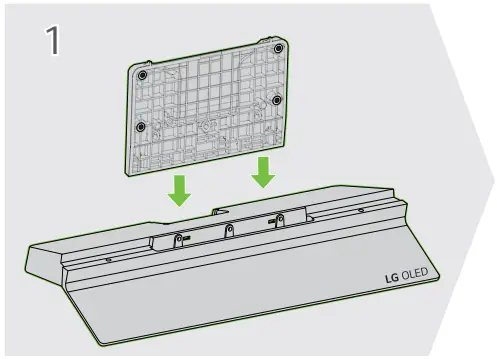

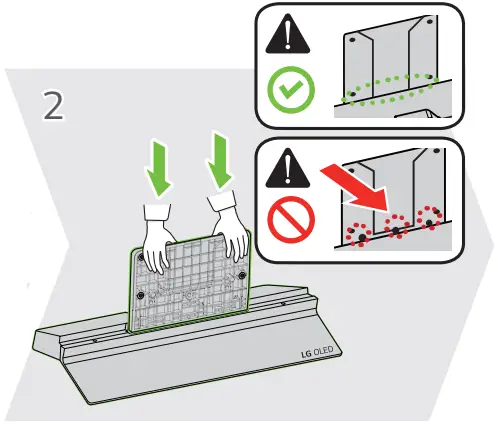

1-1 1-2 2

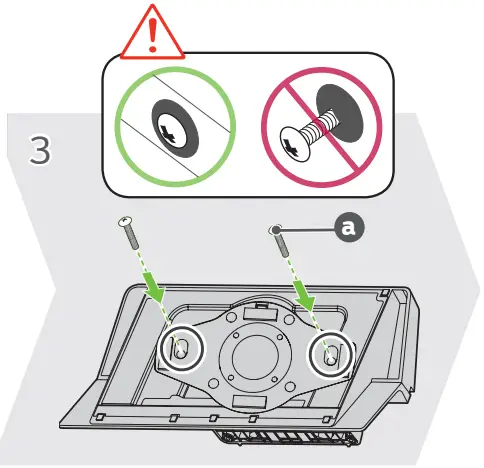

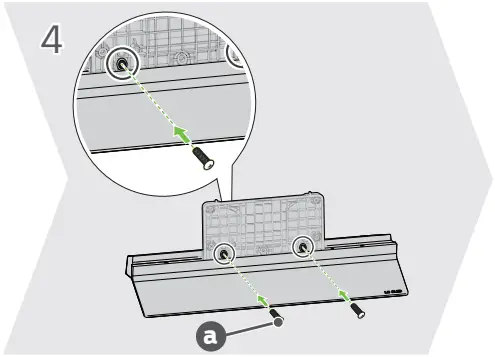

3 4

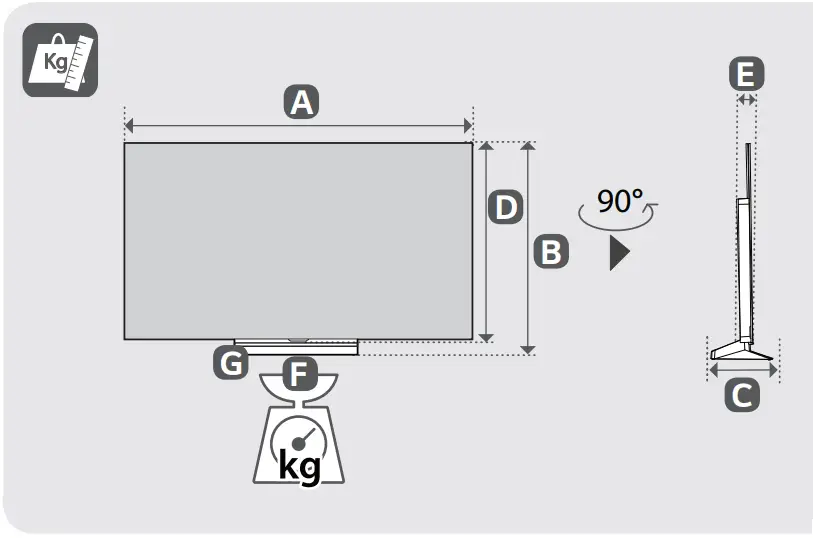

A | B | C | D | E | F | F-G | |
| (mm) | (kg) | ||||||
OLED55C36LC | 1222 | 757 | 230 | 703 | 45.1 | 17.5 | 14.1 |
| OLED65C36LC OLED65C39LC OLED65C3RLD | 1441 | 880 | 230 | 826 | 45.1 | 20.0 | 16.6 |
OLED77C36LC | 1711 | 1035 | 267 | 982 | 47.1 | 29.2 | 23.5 |

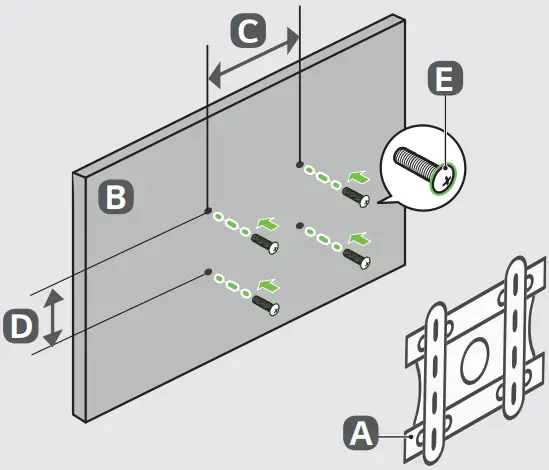

A | B | CxD (mm) | E |
| OLW480B | OLED55/65/77C3* | 300 x 200 | M6 |
