FUFU GAGA TCHT-KF210118-01 Gray Wood Shoe Storage Cabinet With 3 Drawers

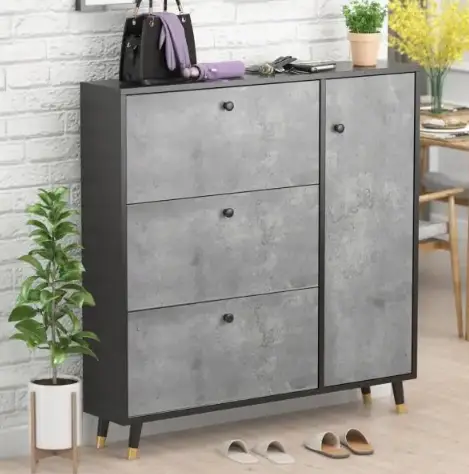

FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -product

WARNINGFUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig1

  • Unit can tip over causing severe injury or death.
  • Anchor unit to stud in wall (if instructed to).
  • Do Not allow children to climb on unit.
  • Put heavy items on lower shelves or drawers.

Helpful Hints FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig2

  • Open your item in the area you plan to keep it to avoid excessive heavy lifting.
  • Identify, sort and count the parts before attempting assembly.
  • Compression dowels are lightly tapped in with a hamner
  • Slides are labeled with a R (right) and L (left) for proper placement.
  • Make sure to al ways face the point on the top of the Cam Lock towards the outer edge.
  • Use all the nails provided for the back panel and spread them out equally.
  • Back panel must be used to make sure your unit is sturdy.
  • Do NOT use harsh chemicals or abrasive cleaners on this item.
  • Never push, pull, or drag your furniture.

Before You Start

  • Read through each step carefully and follow the proper order
  • Separate and count all your parts and hardware
  • Give yourself enough room for the assembly process
  • Have the following tools: Hammer
  • Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.
  • Failure to do so may result in stripping the screw.

IN THE BOX

FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig3FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig4

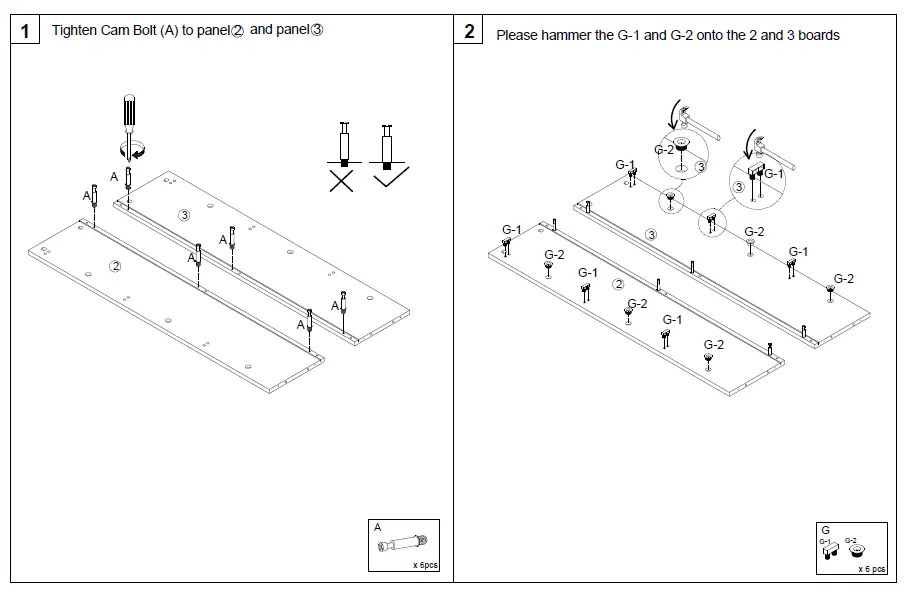

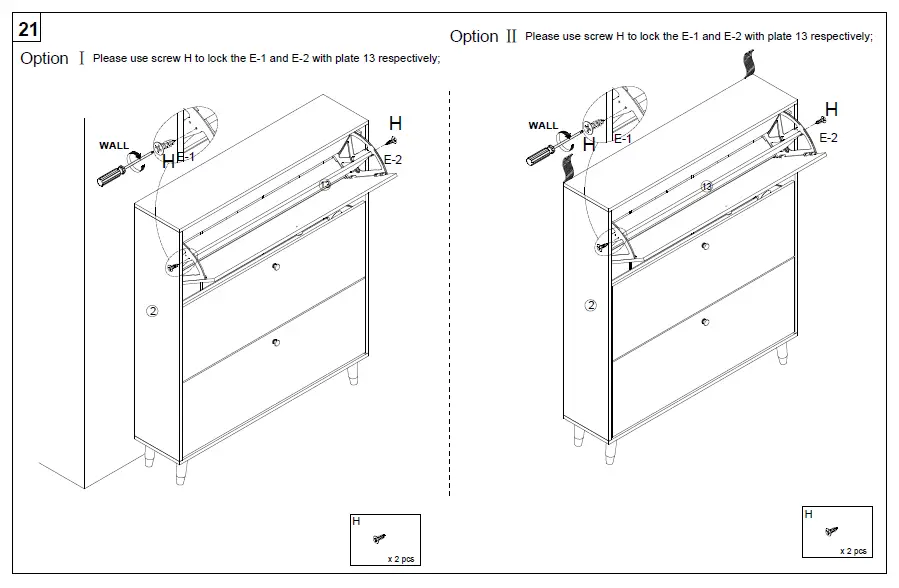

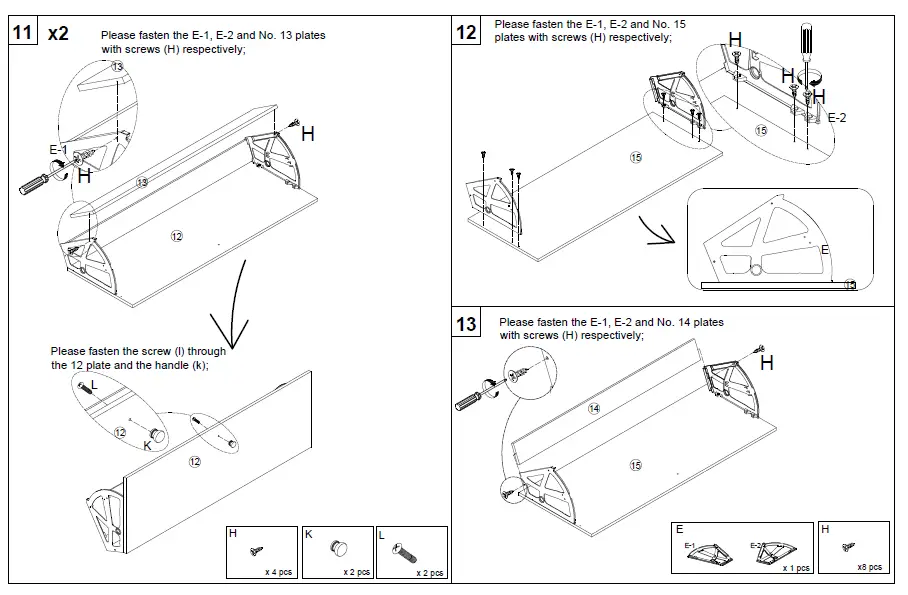

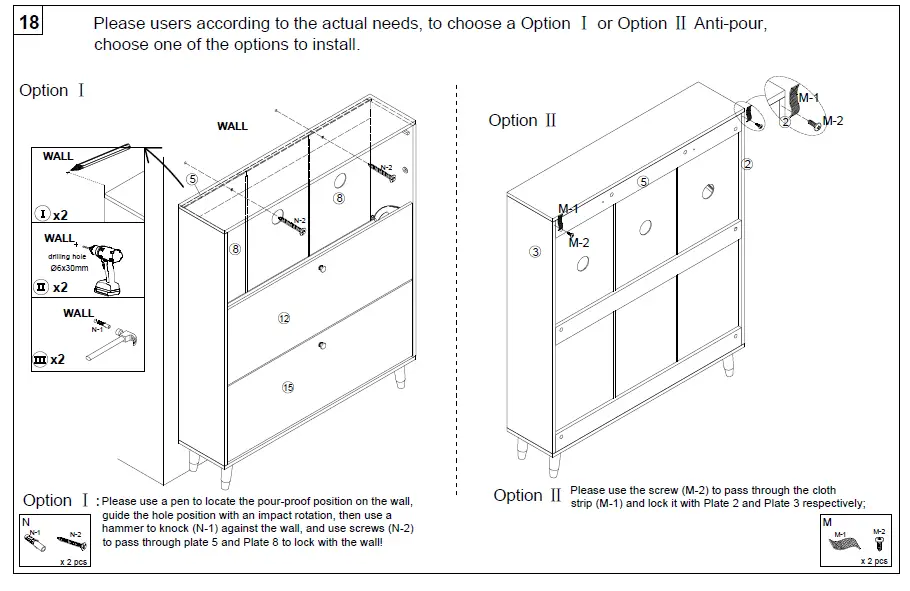

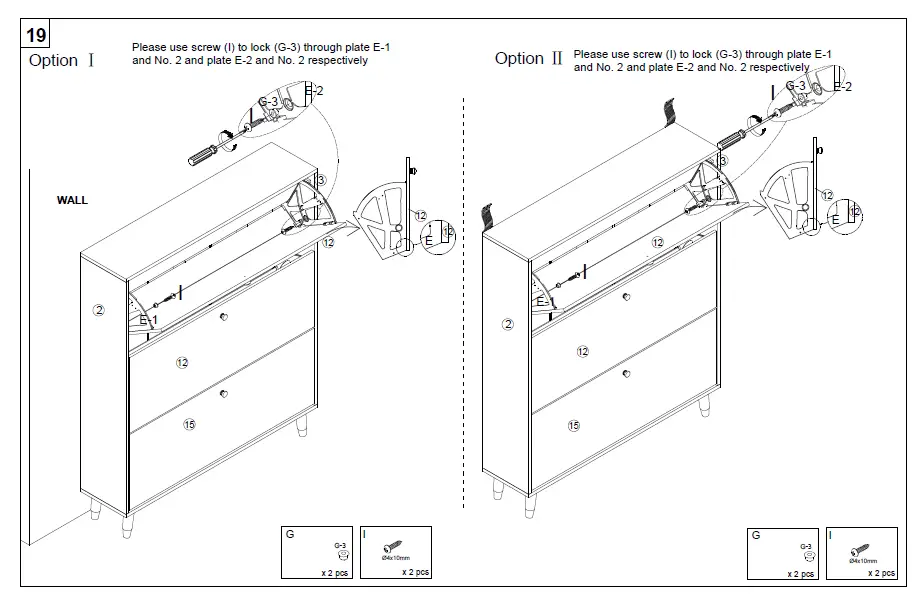

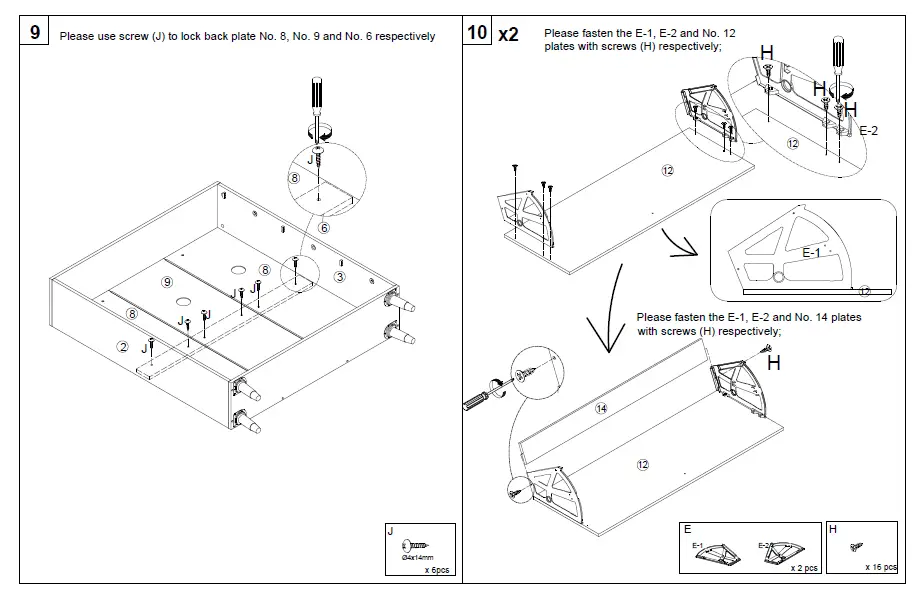

SETUP INSTRUCTION

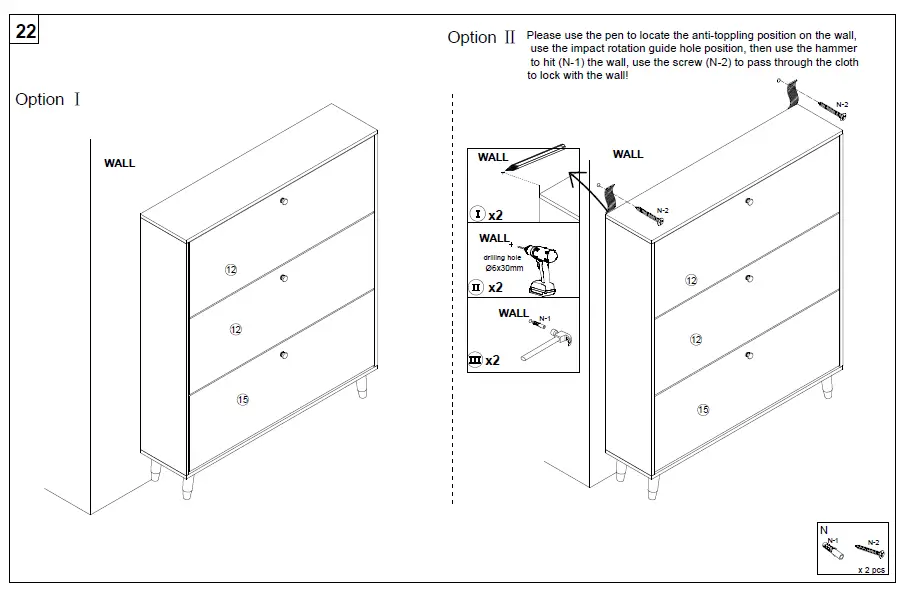

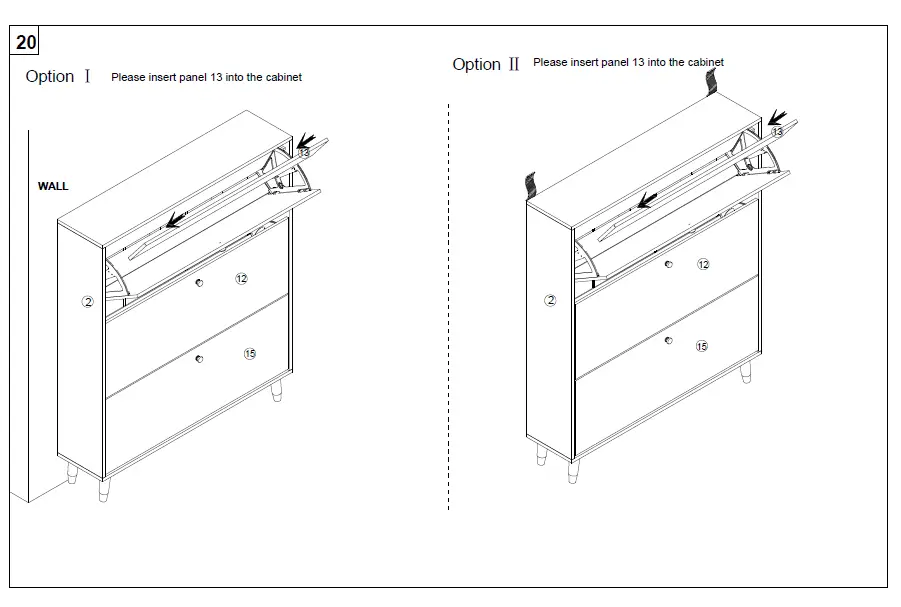

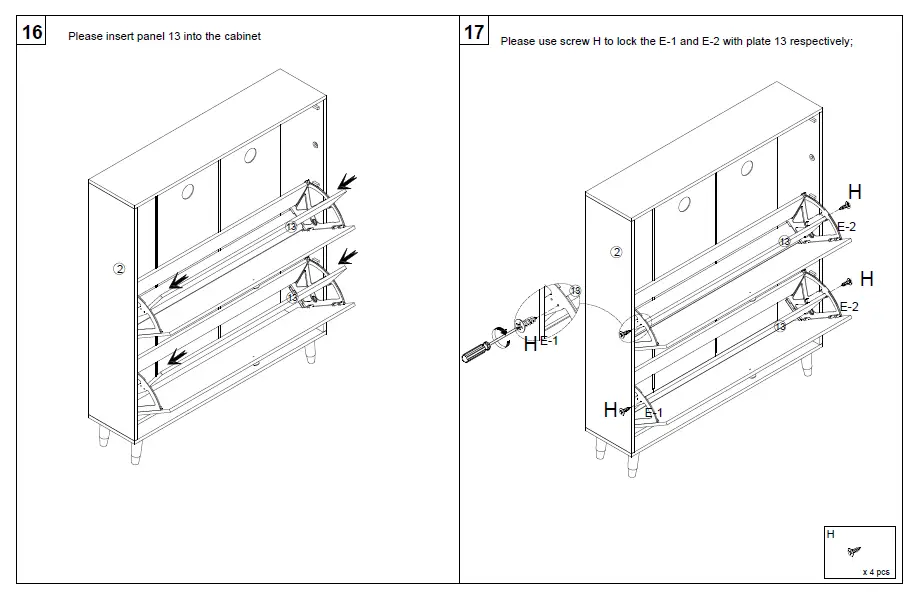

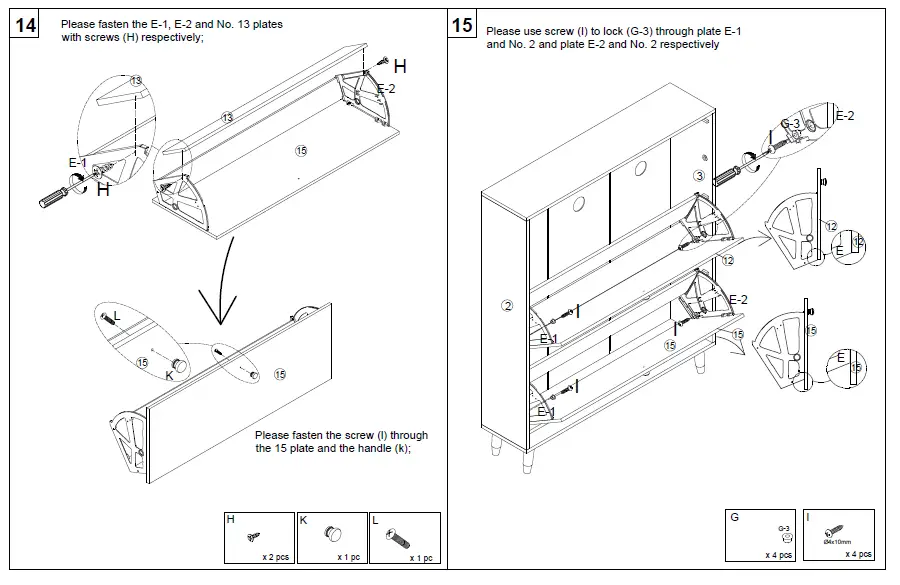

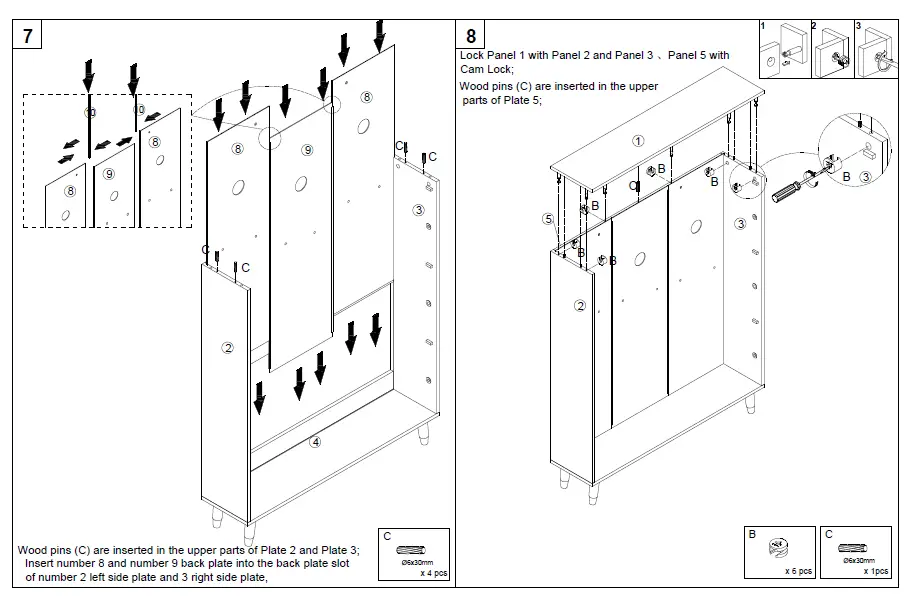

FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig5FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig6FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig7FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig8FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig9FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig10FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig11FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig12FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig13FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig14FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig15FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig16FUFU-GAGA-TCHT-KF210118-01-Gray-Wood-Shoe-Storage-Cabinet-With-3-Drawers -fig17
