Nedis Spbb315bk Bluetooth Party Boombox Speaker Instruction Manual

Portable Bluetooth® Boombox

with colour changing RGB LED party lights

SPBB315BK

ned.is/spbb315bk

Quick start guide

For more information see the extended manual online:
ned.is/spbb315bk

Intended use

This product is intended to stream audio from your media device via Bluetooth®, audio cable or from a USB flash drive.
The product is not intended for professional use.
Consult the local laws and regulations for this product before installing and using.
Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

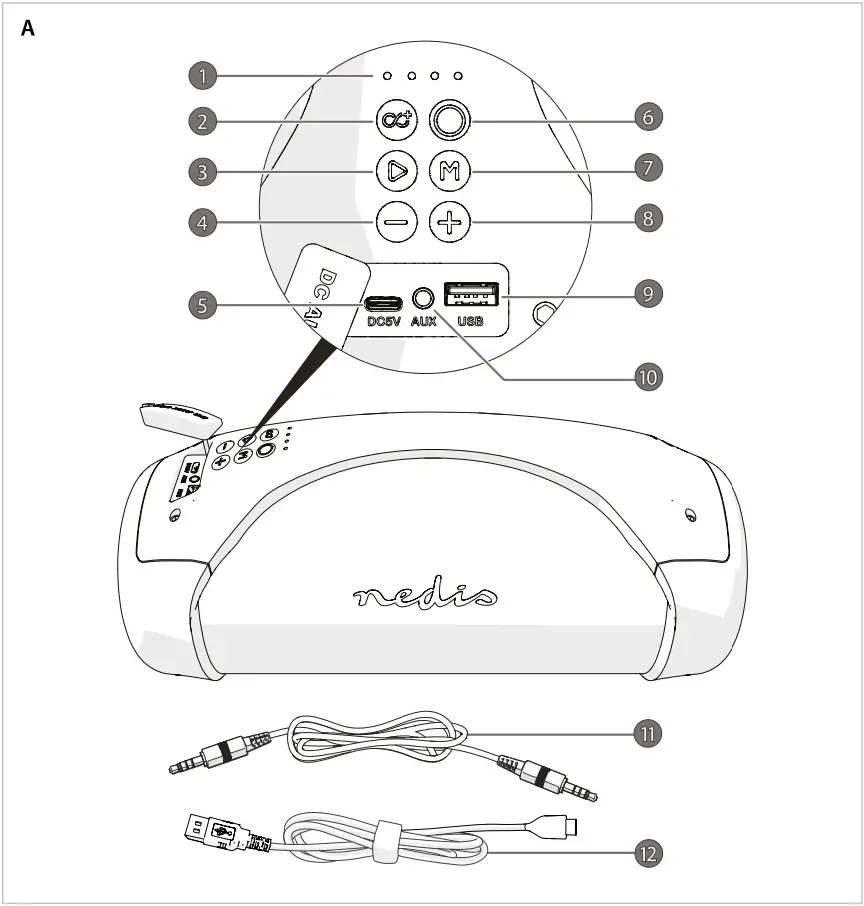

Main parts (image A)

1 Battery indicator LED
2 True Wireless Stereo (TWS) button
3 Play / pause button
4 Volume down / previous track button
5 USB-C port
6 Power button
7 Mode button
8 Volume up / next track button
9 USB port
10 AUX input
11 3.5 mm audio cable
12 USB — USB-C charging cable

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not expose the product to water or moisture.
• Do not immerse the product in water.
• Do not charge when the product is wet.
• Do not drop the product and avoid bumping.
• Do not dismantle, open or shred batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Do not subject cells or batteries to mechanical shock.
• Charge the battery for at least 3.5 hours when you use it for the first time.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to direct sunlight, naked flames or heat.
• Disconnect the product from the electrical outlet and other equipment if problems occur.
• The handle is exclusively intended to carry the weight of the product.
• Only use the provided USB charging cable.

Charging the product

You can charge the product in two ways.

For charging via the power outlet:

1. Plug the USB-C connector of the USB charging cable A 12 into the USB-C charging port A 5.
2. Plug the other end of into a 5V/1-2A USB adapter (not provided).
3. Plug the USB adapter into a power outlet.

The battery LED indicators A 1 start blinking to indicate that the product is charging.

The maximum charging time is up to 3.5 hours.
If the battery is fully charged, all four battery LED indicators A 1 stay lit white.
When the battery voltage is low, the product will emit a tone for recharging.

Playing music from a Bluetooth® audio source

1. Press and hold the power button A 6 to switch on the product.
   The product emits a tone and A 6 blinks blue to indicate the product is switched on.
   The product automatically enters Bluetooth® mode.
2. Activate Bluetooth on your audio source and connect with the product (SPBB315BK).
   The product emits a tone and A 6 stops blinking to indicate pairing is successful.
   [A][6] keeps blinking blue if Bluetooth® is not connected.
3. Play music from a Bluetooth device.

Playing music through the audio cable

1. Plug the 3.5 mm audio cable A 11 into the AUX input A 10.
2. Plug the other end of A 11 into your audio source.
3. Play music from your audio device.

Bluetooth® is deactivated when you use a different audio source.
Press and hold A 7 to reactivate Bluetooth’ mode.

Controlling the music

1. Press and hold button A 8 or A 4 to skip between tracks.
2. Press A 8 or A 4 to control the volume.
3. Press A 3 to play or pause music.

You can also control the music and volume from your audio device.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product SPBB315BK from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/SPBB315BK#support

For additional information regarding the compliance, contact the customer service:
Web: www.nedis.com
E-mail: [email protected]
Nedis B.V., de Tweeling 28
5215 MC ‘s-Hertogenbosch, the Netherlands
