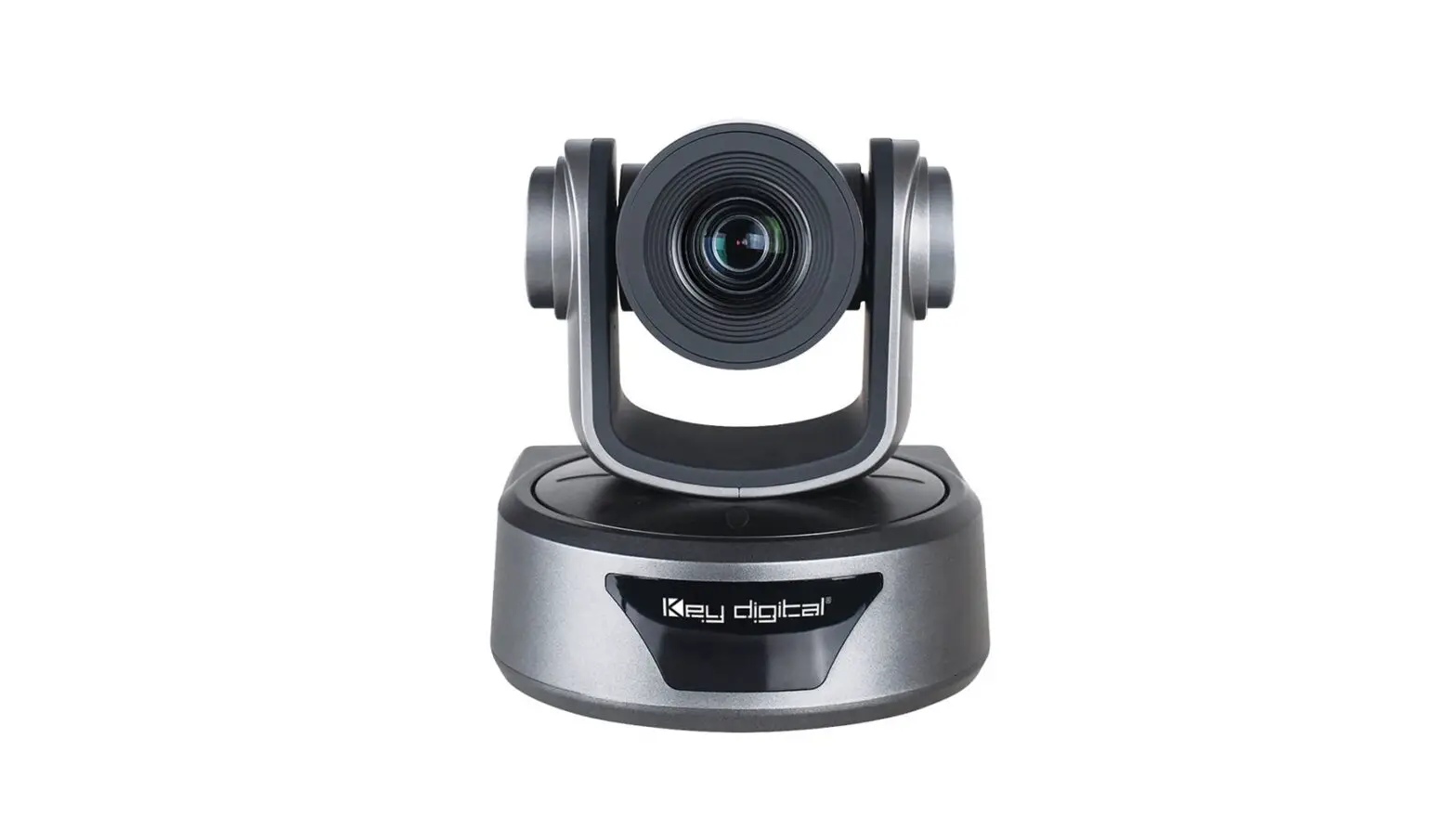

Key Digital Kd-camusb Lecambio Integrated Conferencing System Instruction Manual

LeCAMbio Integrated Conferencing System
Speaker and Microphone Beam Steering with Auto PTZ Control
Kit Selection

 Integrated Audio, Video, and Control
Solutions for Conference Spaces by

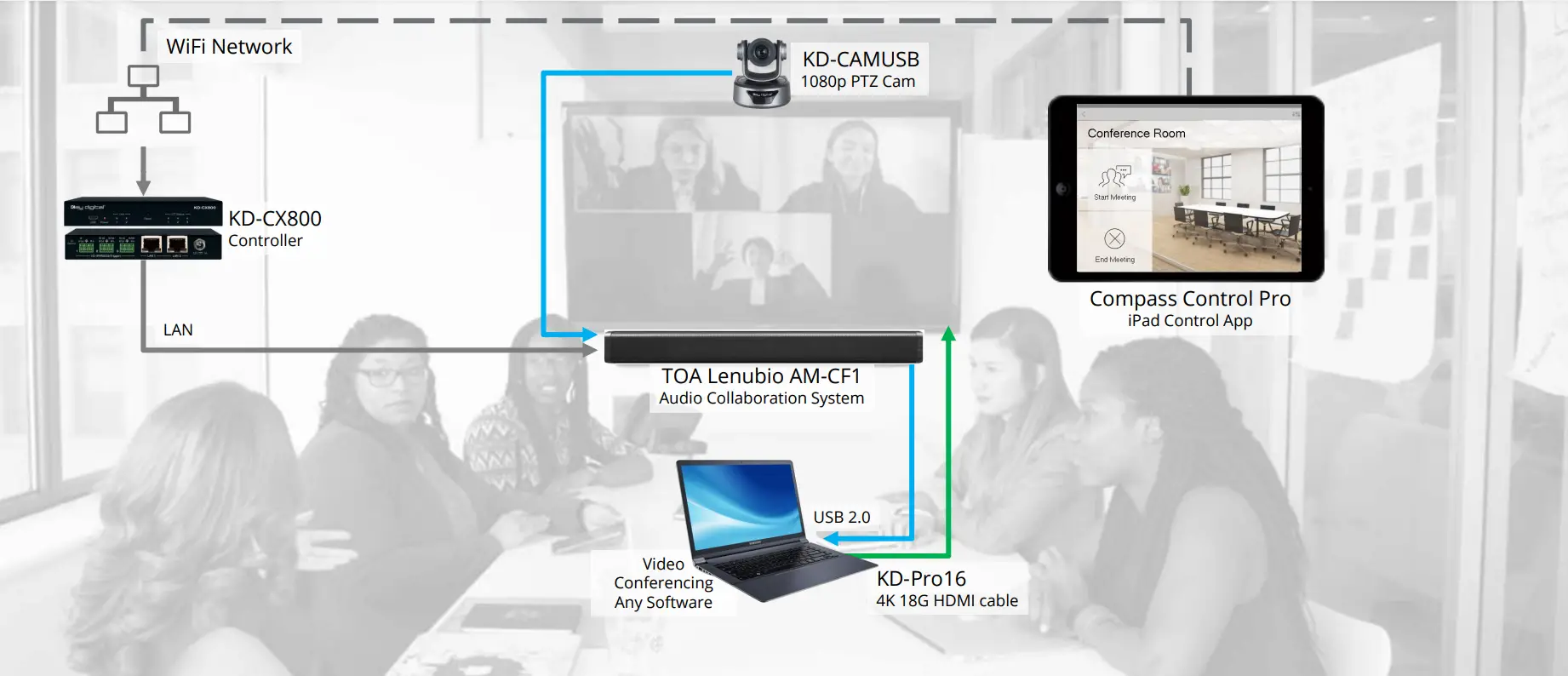

 Kit 1 / Good: ≤ 5m / 16ft USB & HDMI cable length from Display
Products shown: TOA Lenubio, Key Digital KD-CamUSB, KD-CX800, KD-Pro16, KD-ProCL1
System Delivery: Connect laptop USB & HDMI to present and provide remote participants an HD 1080p professional auto-PTZ controlled view of the conference space while speaking with each other just as you would in normal conversation thanks to the integrated array mic and soundbar.

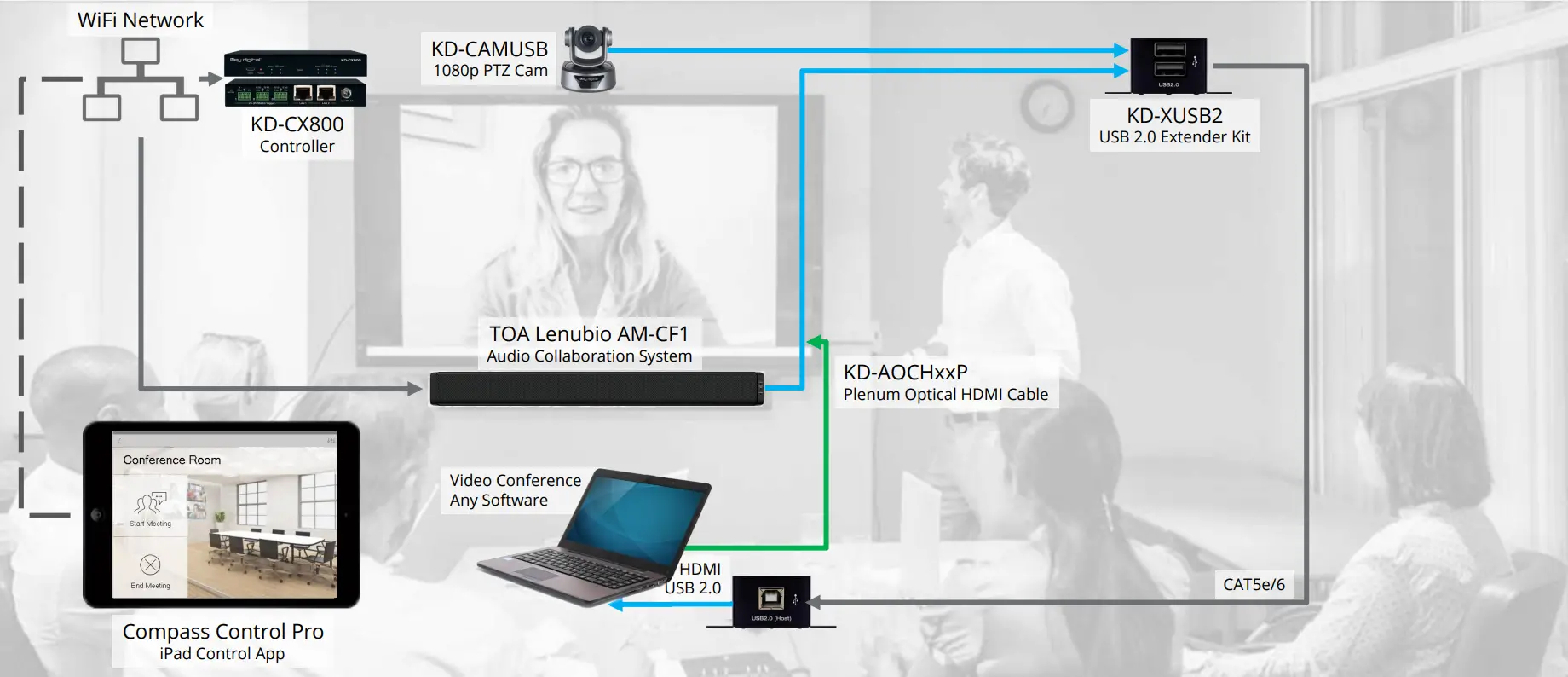

Kit 2 / Better: ≤ 50m / 164ft USB & HDMI cable length from Display
Products shown: TOA Lenubio, Key Digital KD-CamUSB, KD-CX800, KD-XUSB2, KD-AOCHxxP, KD-ProCL1
System Delivery: Connect laptop USB & HDMI to present and provide remote participants an HD 1080p professional auto-PTZ controlled view of the conference space while speaking with each other just as they would in normal conversation thanks to the integrated array mic and soundbar.

Kit 3 / Best 1: HDBaseT Consolidation & 100m Extension of Audio, Video, USB
Products shown: TOA Lenubio, Key Digital KD-X4x1WUTx / KD-X3x1WUTx, KD-X100MRx, KD-CamUSB, KD-CX800, KD-ProCL1
System Delivery: Connect laptop USB and AV to present and provide remote participants an HD 1080p professional auto-PTZ controlled view of the conference space while speaking with each other just as they would in normal conversation thanks to the integrated array mic and soundbar.

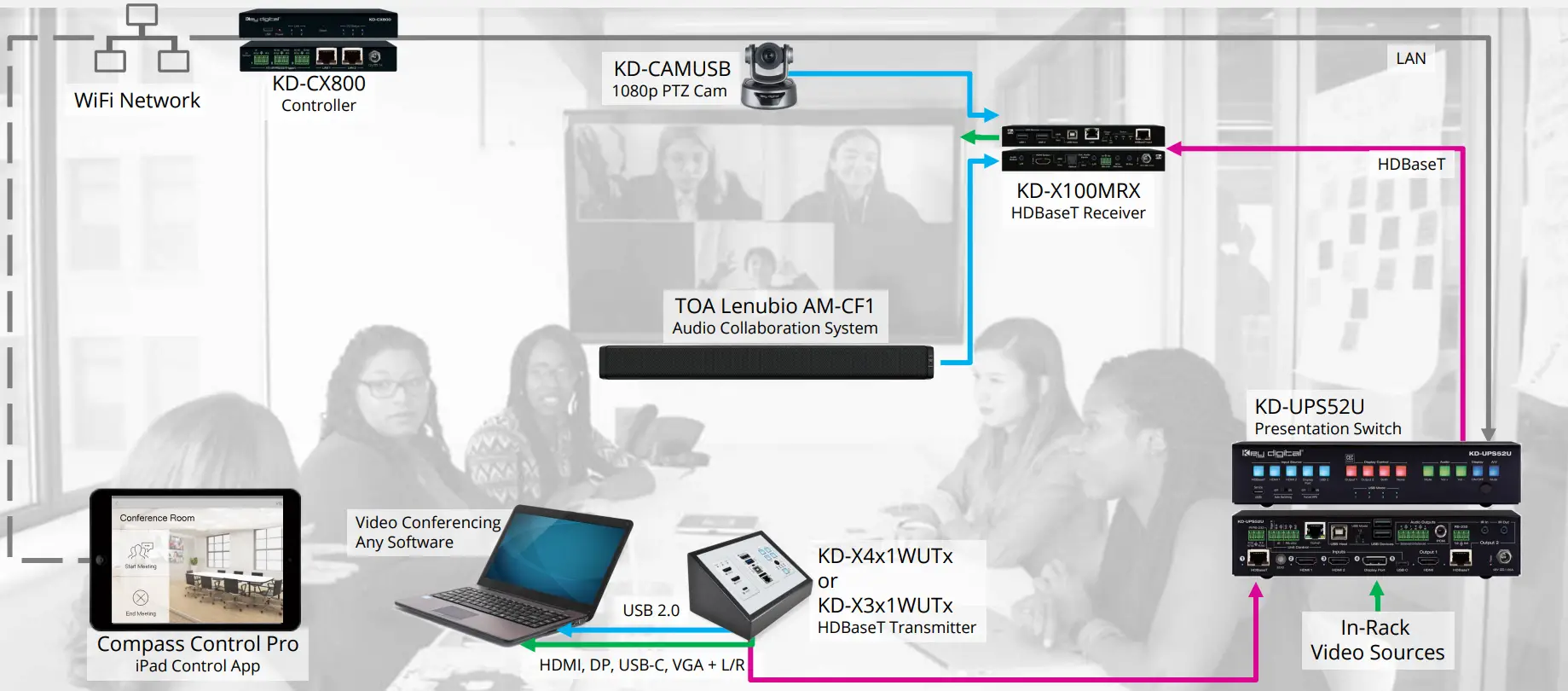

Kit 4 / Best 2: HDBaseT Consolidation & 100m Extension of Audio, Video, USB with in-rack connectivity
Products shown: TOA Lenubio, Key Digital KD-X4x1WUTx / KD-X3x1WUTx, KD-UPS52U, KD-X100MRx, KD-CamUSB, KD-CX800, KD-ProCL1
System Delivery: Connect laptop USB and AV to present and provide remote participants an HD 1080p professional auto-PTZ controlled view of the conference space while speaking with each other just as they would in normal conversation thanks to the integrated array mic and soundbar.
