STIX – 2 PROBE PA-CAT SCANNER
QUICK-REFERENCE GUIDE

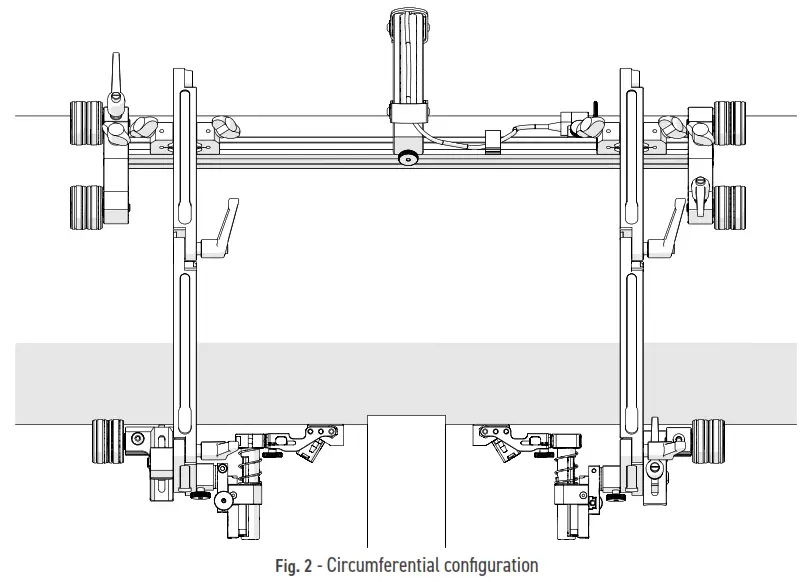

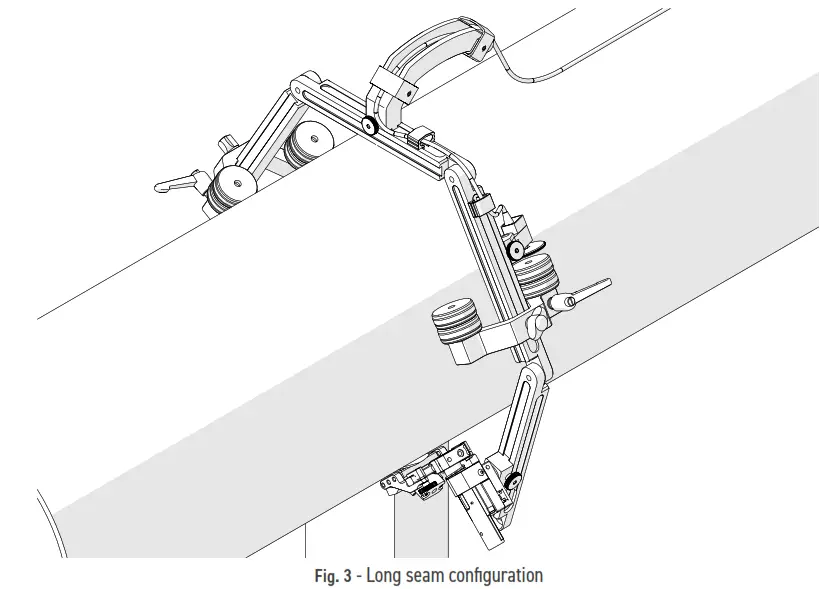

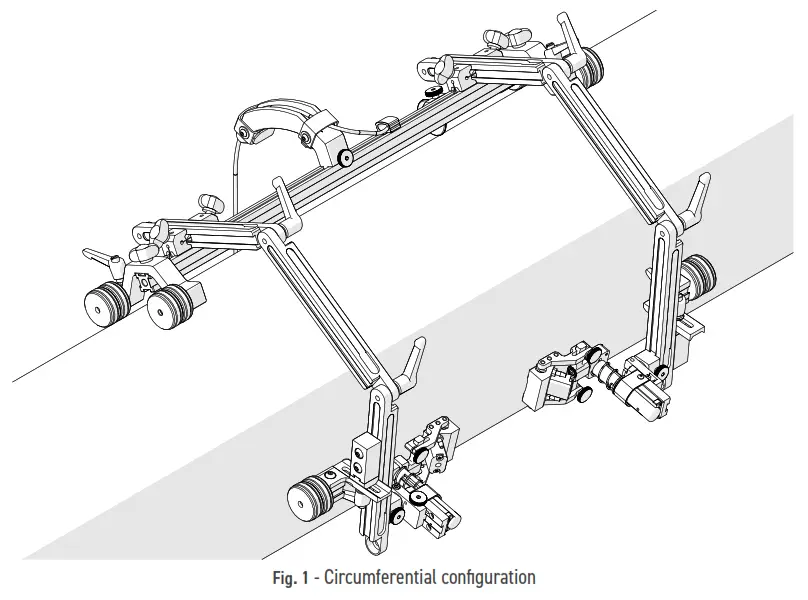

CONFIGURATIONS
The following configurations are mounted on a 25.4 cm (10 in) pipe.
- Axial Outside Diameter (AOD)
- Circumferential Outside Diameter (COD)

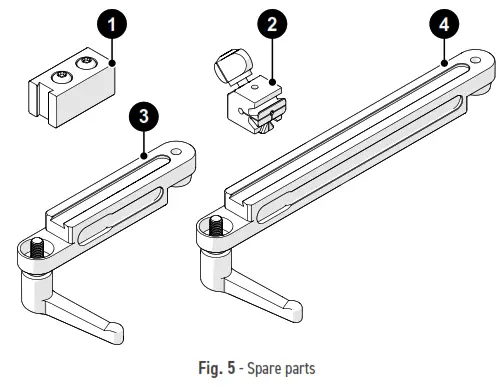

SPARE PARTS
| BOM ID | Part # | Description |
| 1 | BGS078 | Perpendicular wheel mount |
| 2 | BGS001 | Cross block |
| 3 | BGS080 | Short pivoting frame bar |
| 4 | BGS079 | Long pivoting frame bar |
NOTE: This quick-reference guide is supplementary to the BG0088 user manual. See the BG0088 user manual for additional spare parts.
