The Automatic Device Industrial Series 3-6-12 Kg Powder is a certified device manufactured by Biogenesis S.r.l. It is designed for industrial use and is suitable for fire extinguishing applications. The device comes in three versions with different powder dimensions.

• 3 Kg Powder Dimensions: 440 +/- 5 x 140 +/- 3 x 130 +/- 1
• 6 Kg Powder Dimensions: 490 +/- 5 x 160 +/- 3 x 160 +/- 3
• 12 Kg Powder Dimensions: 590 +/- 5 x 190 +/- 3 x 190 +/- 3

The device is approved and certified for ABC fire rating, which means it can extinguish fires involving Class A, Class B, and Class C fires. It uses an extinguishing agent called EPW 18462, which is an ABC powder with a MAP (monoammonium phosphate) content of 20%. The device operates within a temperature range of 40 to 50 degrees Celsius.

Technical Specifications

• Extinguishing Agent: ABC Powder – MAP 20%
• Propellant: Not specified
• Cylinder Material: Alloy steel
• Temperature Range: Between 40 and 50 degrees Celsius
• Cylinder Pressure Test: Not specified
• Valve Tightening Torque: Not specified
• External/Internal Treatment: Sandblast and epoxypolyestere
  powder painting, Red Ral 3000 colour

Product Usage Instructions

Installation:

1. Install the device in a vertical position using the supplied bracket.
2. Place the distribution pipe and fix the nozzles.
3. Remove the safety pin to make the operating system ready.

Maintenance:
Recommended maintenance should be carried out as per the mentioned in the Use and Maintenance Manual provided with the device. It is important to comply with the rules and of the country where the device is being utilized.

Spare Parts:

• Valve o-ring
• Pressure gauge

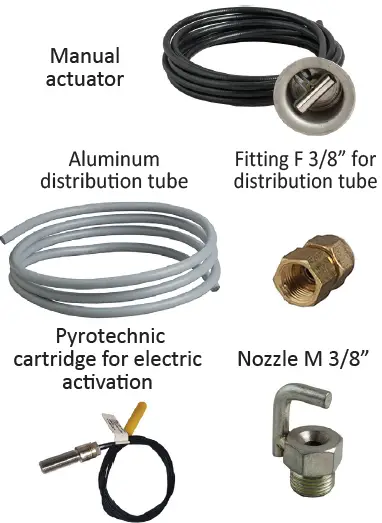

• Manual actuator in control box (cable 5 m) – Optional
• Cylinder 3 Kg
• Cylinder 6 Kg
• Cylinder 12 Kg
• Iron bracket 3 Kg
• Iron bracket 6 Kg
• Iron bracket 12 Kg
• PVC dip tube 3 Kg
• PVC dip tube 6 Kg
• PVC dip tube 12 Kg
• Dispensing nozzle AVP M 3/8 – Optional
• Fitting F 3/8 for distribution tube – Optional
• Pyrotechnic cartridge
• Label Pressure switch 1/8 for valve, set at 11 bar

Note: The packaging quantities and measurements are indicative and subject to change.

This information is based on the product user manual and is subject to change without prior notice. Please refer to the documentation provided with the product for the most accurate and up-to-date information.

Biogenesis S.r.l.
www.bio-genesis.it

AUTOMATIC DEVICE “INDUSTRIAL SERIES” 3-6-12 Kg PowderIn new installations, the devices for to be operative need at least of this components: 2164; 2165; 2163-1
See example of installation at next page

• CYLINDER
  Alloy steel, epoxypolyestere powder painting, Red Ral 3000.
• EXTINGUISHING AGENT
  ABC Powder – MAP 20 %
• PROPELLANT
  Nitrogen (N2)
• VALVE
  Automatic M. 30×1.5, set 93 °C.

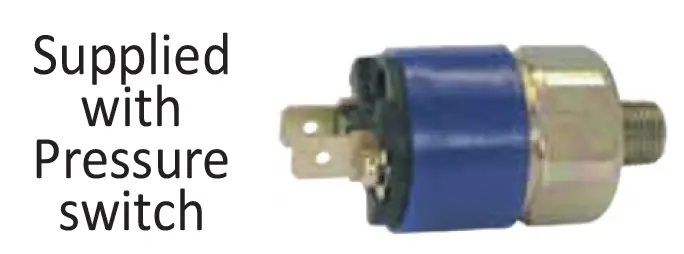

  (with bulb in standard equipment) Supplied with pressure switch set at 11 bar.
• USE
  A B C fire rating (solid materials, flammable liquids, flammable gas).
• ACTIVATION
  • Automatic when bulb temperature is reached. On request (see optional):
  • with manual actuator with handle;
  • with pyrotechnic cartridge for electric activation.
• BRACKET
  Wall-mounted in standard equipment.

Note for pressure switch:
The pressurized device is “normally open”. The pressure switch alone, not installed on the device, is “normally closed”.

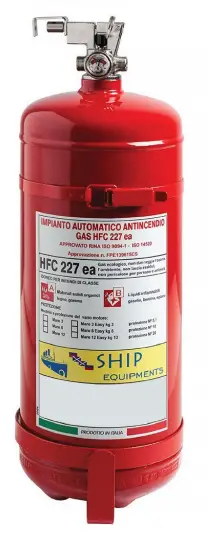

Note: image is for illustrative purpose only, the product purchased can has some differences

Powder Automatic Device, Industrial Series, available charge 3, 6, 12 Kg , temperature range from -30°C to +60°C, certified according to the directive for pressure equipment PED 2014/68/EU.
Quality Product certification guaranteed by Bureau Veritas Italia.
Suitable for use on fire involving electrical voltages up to 1.000 V, at a distance of 1 mt.

AVAILABLE VERSIONS

APPROVED/CERTIFIED DEVICE:

TECHNICAL SPECIFICATIONS

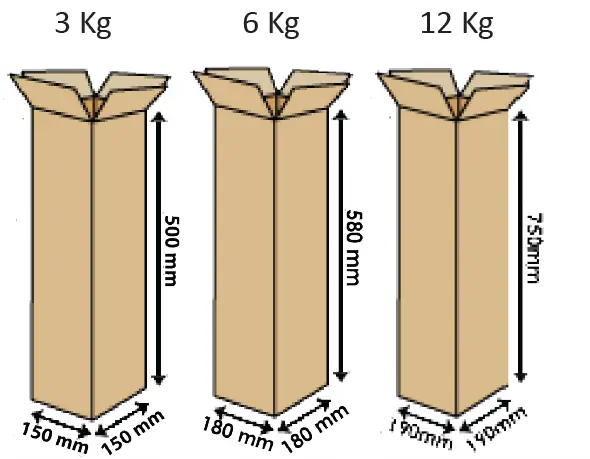

PACKAGING

STANDARD : single packaging
Note: the packaging quantities and measurements are indicative and can be subject at changes

MAINTENANCE AND INSTALLATION

Install the system in vertical position using the supplied bracket. Place the distribution pipe and fix the nozzles. Remove the safety pin to make operating system.
Recommended maintenance : see specification in Use and Maintenance Manual equipped with the device, comply with the rules in use in utilization country.

EXAMPLE OF AUTOMATIC DEVICE INSTALLATION

AVAILABLE THERMOSENSIBLE BULBS

SPARE PARTS
