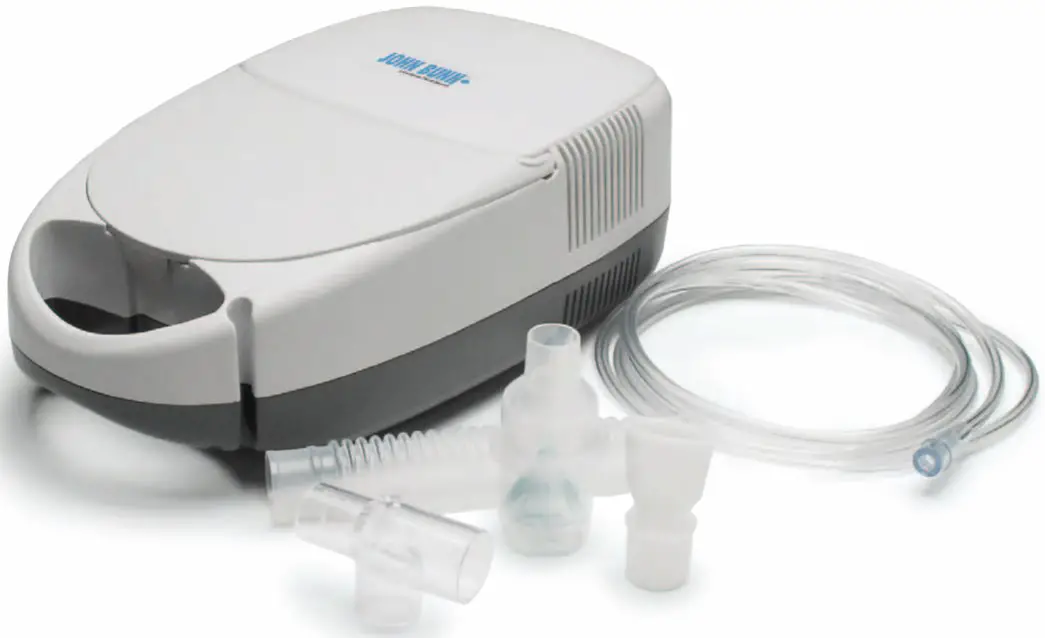

JOHN BUNN JB0112-110 Neb-u-Lite LX2 Nebulizer Compressor Owner’s Manual
- High-quality, low-noise aerosol compressor with user-friendly design.
- Piston-driven motor ensures high performance and long life.
- Complete with disposable nebulizer featuring 0.2 ml/min flow rate and 5 ml capacity medicine cup and cleaning/instruction manual.
- Designed to meet the requirements of HCPCS code: E0570.
- Five year limited warranty.
Technical Specifications
- Method Of Nebulization …………………………………………………….. Piston Driven
- Power …………………………………………………………………………… 120VAC, 60Hz
- Operating Temperature Range ………………… 50°F TO 104°F (10°C TO 40°C)
- Operating Humidity Range …………………….. 10% to 90% RH non-condensing
- StorageTemperatureRange ………………….. -5°F TO 122°F (-15°C TO 50°C)
- StorageHumidityRange ………………………… 10% to 90% RH non-condensing
- Weight …………………………………………………………………………. 4.2 lb (1.91 kg)
- Width …………………………………………………………………………………………… 6.8″
- Height …………………………………………………………………………………………… 4.2″
- Length …………………………………………………………………………………………. 11.7″
- Max Pressure (Compressor) ………………………………………………………….30 psi
- Flow Range (Compressor) ……………………………………………….0 – 14 liters/min
- ParticleSize (Nebulizer) ………………………………………………….0.5 to 5 microns
- Capacity (Nebulizer) ………………………………………………………………………..5 ml
