Yapa B09wj3r8kh Pro Wireless Earbuds User Manual

Yapa B09wj3r8kh Pro Wireless Earbuds User Manual

yapa-LOGOyapa B09WJ3R8KH Pro Wireless Earbuds

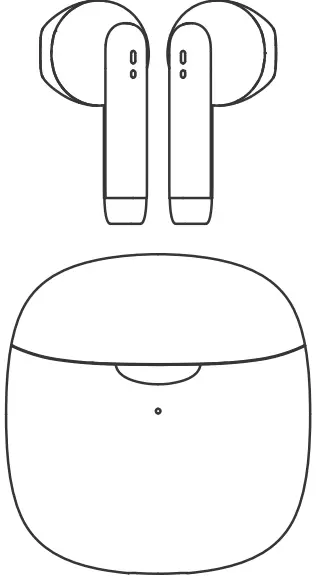

yapa-B09WJ3R8KH-Pro-Wireless-Earbuds-PRODUCTSpecification

  1. Brand: Yapa Electronics
  2. Model:Yapa Pro
  3. Manufacturer: Yapa Electronics
  4. Communication Range: 12m
  5. Frequency Response: 20Hz ~ 20KHZ
  6. Earbuds Weight: About 3g x 2
  7. Earbuds Battery Capacity: 25mAh
  8. Playing Time: About 4h (80% Volume)
  9. Calling Time: About 3h (dual earbuds work)
  10. Earbuds Charging Time: About 1h
  11. Charging Case Weight: About 35g
  12. Charging Case Battery Capacity: 320mAh
  13. Charging Time for the Case: About 1h
  14. Stand-by Time: About 25h
  15. Charging Case Size: 46.5 x 48.8 x 25mm
  16. Compatibility: For Apple/Android devices
  17. Material: ABS+PC
  18. BT Version: 5.0
  19. Speaker Diameter: 13mm
  20. Impedance: 32Ω
  21. Sensitivity: 112 ± 3db

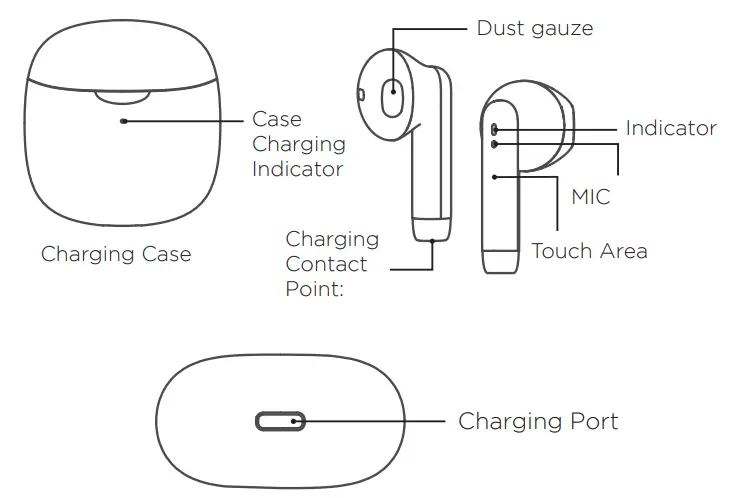

Product Structureyapa-B09WJ3R8KH-Pro-Wireless-Earbuds-1

Notes: Pictures for reference only, product please in kind prevail. Including: Earbud 1x pair, Charging case 1x, Type-C Charging Cable 1x, User Manual 1x

How to Use

FunctionPresent StatusHow to Operate
Power – onWhen earbuds in charging caseOpen charging case






Pairing

(connect devices)







When earbuds power on







Turn on device’s Bluetooth and search for Yapa

Pro

Power-offConnectedIf more than 3mins without connection, earbuds will auto power off.
ConnectedPut Earbuds into charging case and close lid
FunctionPresent StatusHow to Operate
Next songWhen playing musicTouch R Earbud 2 times
Prev songWhen playing musicTouch L Earbud 2 times
Play/PauseConnected / playing musicTouch L/R Earbud once
Wake-up Siri/ voice assistantConnectedLong press L/R touch area for 2s until hear “di” and release
Answer callConnectedTouch L/R Earbud once
Hang up callConnectedTouch L/R Earbud once
Reject callConnectedTouch L/R Earbud for 2s
  1. When earbuds are working, if turn off one earbud, the other one will work normally.
  2. When earbuds are out of case and powered off, if turn on one earbud manually, the other will not power on together.
  3. After first connection, earbuds will automatically reconnect to the recently paired mobile phone.
  4. If automatic reconnection fails, please connect manually on the phone’s Bluetooth interface.

Charging



Status

Case Charging IndicatorEarbuds Charg- ing IndicatorEarbuds Prompt Voice
Charging case low batteryGreen light flashes
Charging for the caseOrange light flashes
Charging case is fully chargedOrange light is always on
Earbuds low battery  Make a “du’ at regular intervals
Earbuds is being chargedGreen light is always onRed light is on for 10s then goes out
Earbuds is fully chargedLight off

Safety information

  1. The Earbuds have left and right parts. To make them stable in ears, please adjust the angle after wearing them
  2. Only 5V adapter can be used to charge the case and Earbuds. Do not use adapter with voltage higher than 5V.
  3. When the case fails to charge the Earbuds, please clean the Earbuds’ charging contact point and put it back to case.
  4. Do not use heavy objects to squeeze or impact the product. Keep it away from extremely hot or humid environment.
  5. In order to avoid signal interference and discontinuous sound, please stay away from Wi-Fi routers and other high-frequency transmitting devices when using the product.

Customer service

We consider customer service and customer-friendliness to be of paramount importance. We strive for 100% customer service. You still cannot find a solution or do you have another question? We can be reached on all working days via WhatsApp on +31611218468 for all your questions about our products. Scan the QR code below to order directly via WhatsApp to get in touch with us.yapa-B09WJ3R8KH-Pro-Wireless-Earbuds-2

Would you prefer to get in touch with us in another way?

Please use the information below.
Yapa Electronics Koperhoek 10  3162LA Rhoon
The Netherlands
[email protected]
www.yapaelectronics.com
