AAABLK100024300 Wireless Earbuds
User Manual
Get to Know Your Wireless Earbuds
- Model： AAABLK100024300
- Speaker Diameter： 7mm
- Speaker Impedance： 32Q±15%
- Sensitivity： 96±3dB at 1 KHz
- Speaker Driver Rating Power： 2mW
- Charging Cable： 23cm
- 20 hours of total playtime (with charging case)
- IPX5 waterproof rating applies to the earphones, not to the charging case.
What’s in the Box?
- Earphones x1 pair
- Charging case x1
- Silicone eartips x4 pairs (M size installed), foam tips x1 pair
- USB-C charging cable x1
- Quick Start Guide
01. First Time Setup

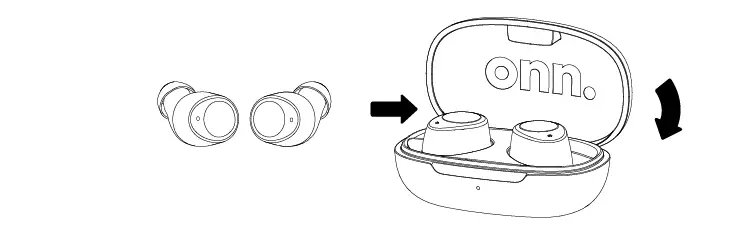

Step 1： Drop earphones back into charging case for initial activation and close the charging case to fully charge.

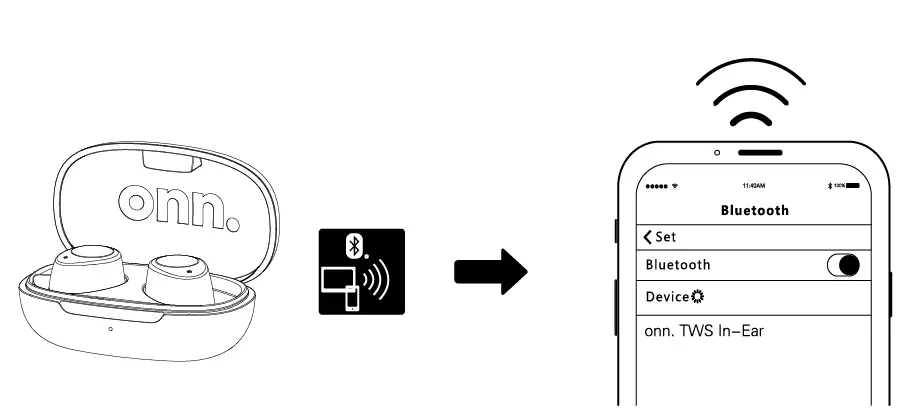

Step 2： Open the charging case, earphones will be powered on and go into pairing mode automatically, connect to your device by selecting nonn. TWS In-Ear”.

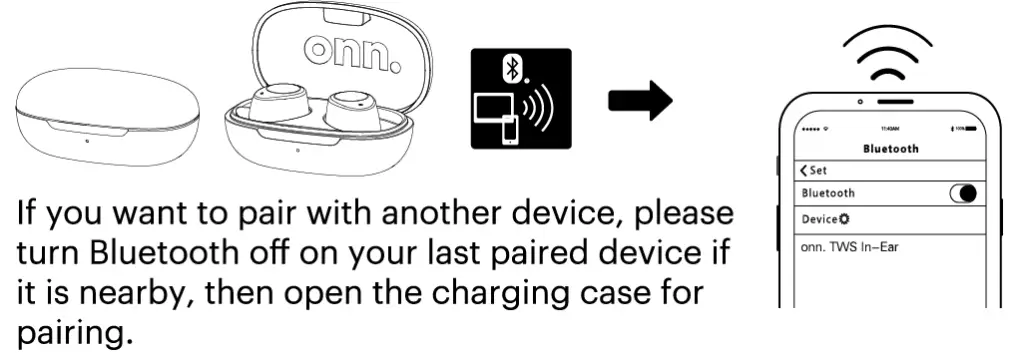

02. Power on / Power Off & Pairing

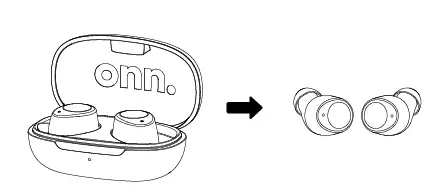

Take them out to Power On automatically & connect to last paired device.

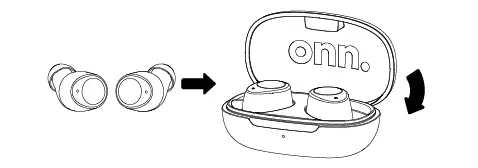

Drop them back and close the charging case. Power Off automatically & disconnect to paired device.

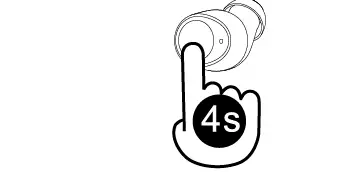

Tap & Hold 4 Secs Each Side for Power On/Off (If you are carrying the earphones without charging case)

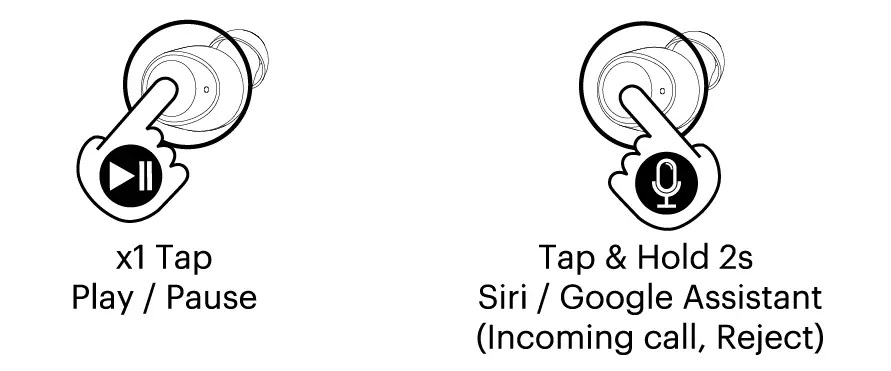

03. Enjoy Your Music & Accepting a Call
In-ear detection Both earphones will auto-pause when you remove them from your ears.

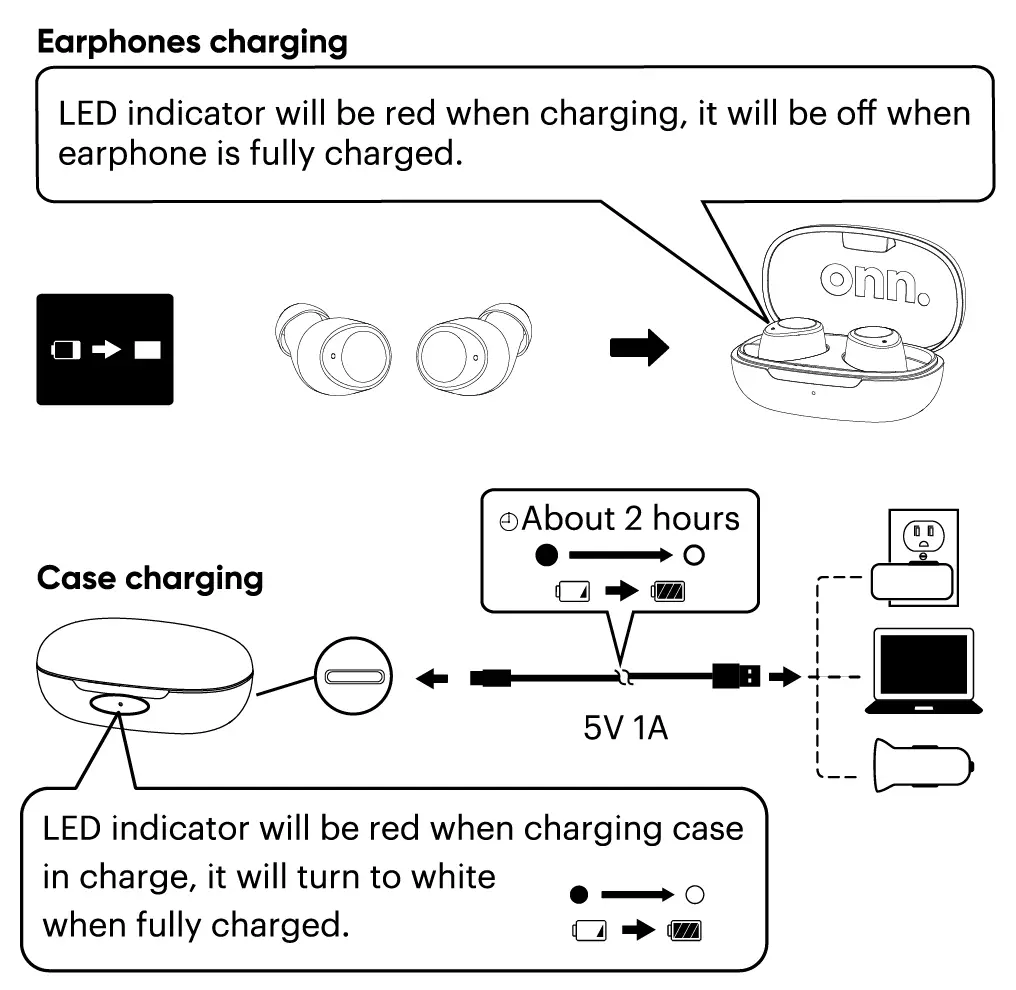

04. Charge Your Earphones
