Installation Instructions
BE367/BE367F

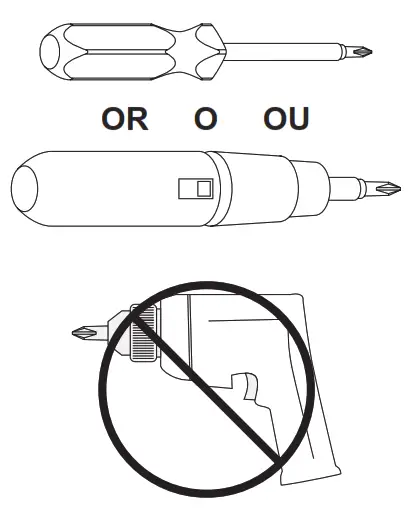

Tools

A. Key
B. Cylinder Cap
C. iButton Assembly
D. Deadbolt
E. Mounting Plate
F. 9v Battery
G. Mounting Screws (2)
H. Thumbturn Assembly
J. Screws (2)
K. Drive-in Faceplate
L. Square-corner Faceplate
M. Rounded-corner Faceplate
N. Deadbolt/Strike Screws (4)
P. Strike
Q. Reinforcement Screws (3)
R. Dust Box
S. UL Cup (BE367F ONLY)
T. UL Screw (BE367F ONLY)

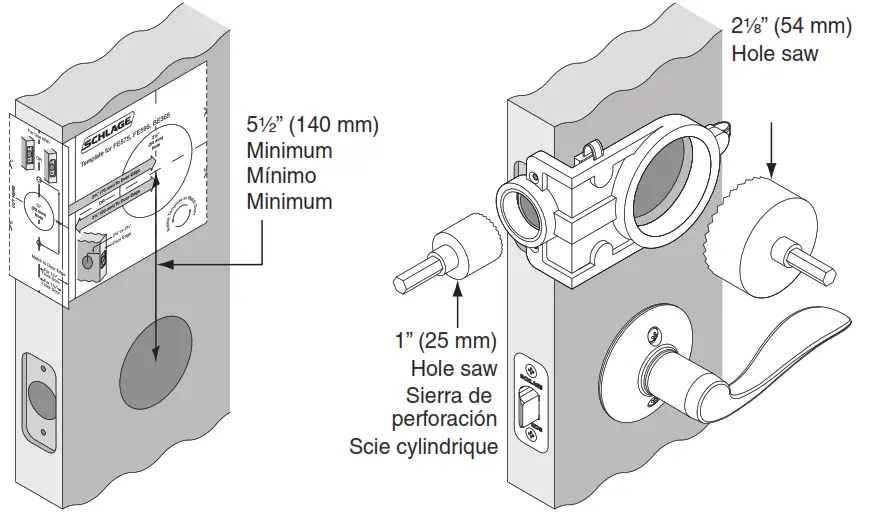

Install Lock

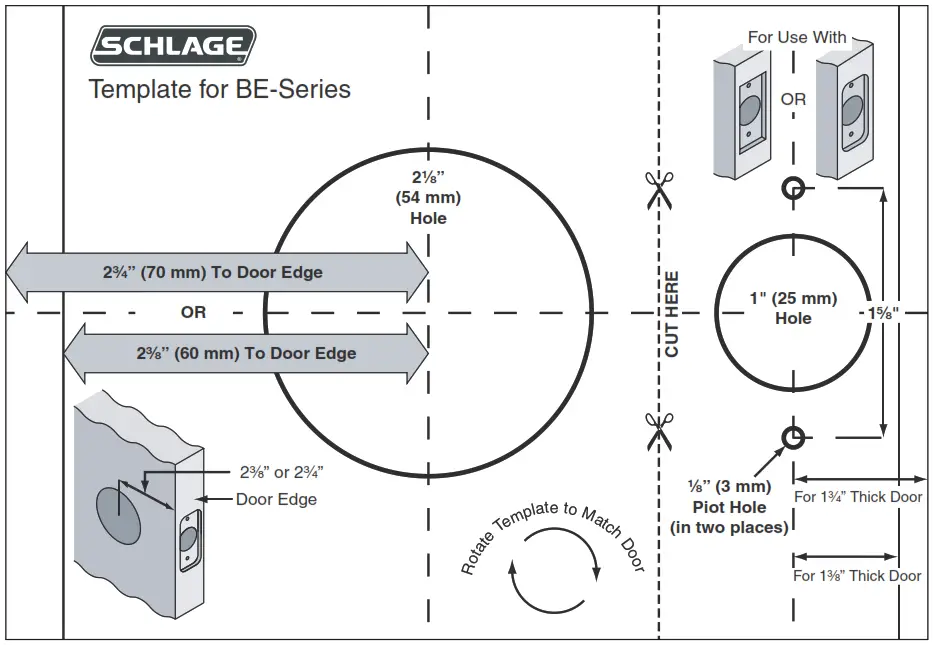

1  Template Is Included In Box

IMPORTANT: Template shown is not full size

2 Check Door Holes

Note: If holes do not match template, purchase a GuideRight® jig or visit www.schlage.com for door drilling instructions.

3 FOR BE367F ONLY: Measure and Drill Hole

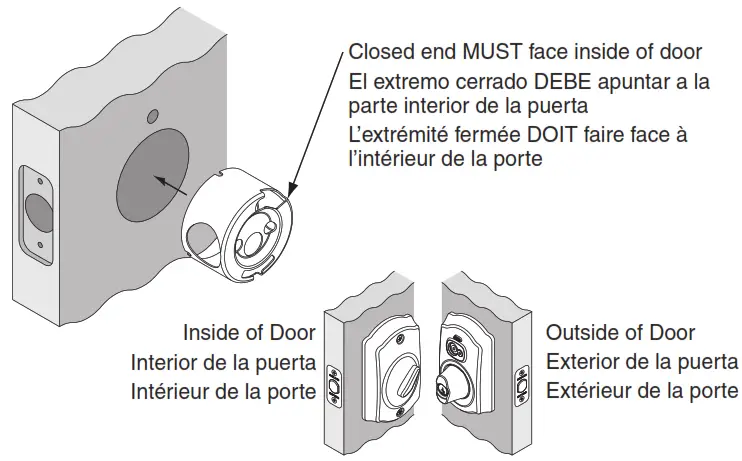

4 FOR BE367F ONLY: Install UL Cup

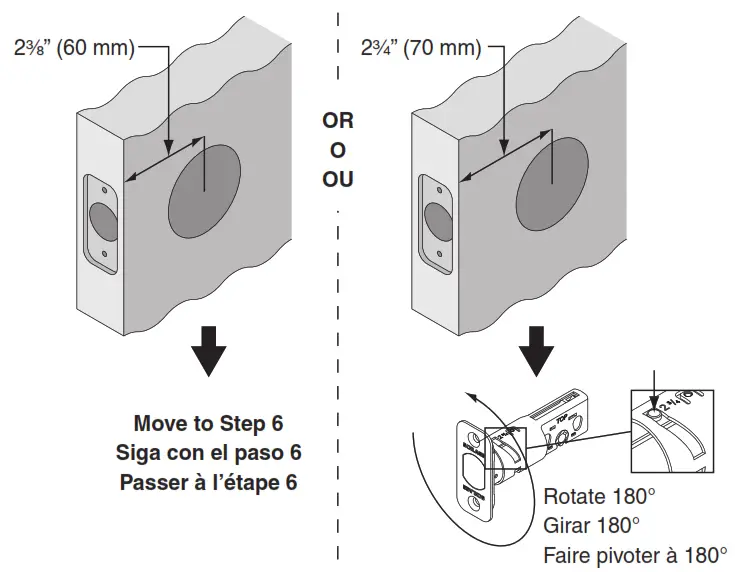

5 If Needed, Adjust Deadbolt

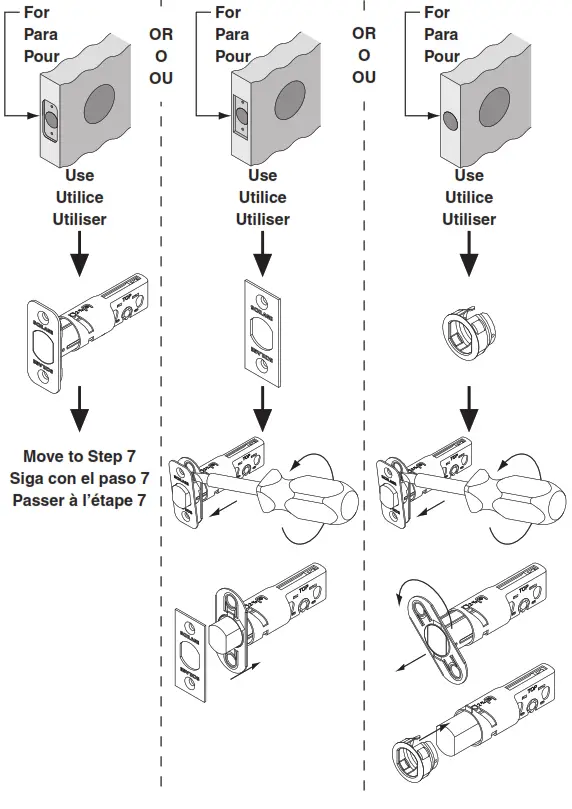

6 Choose Deadbolt Faceplate

Match faceplate to your door.

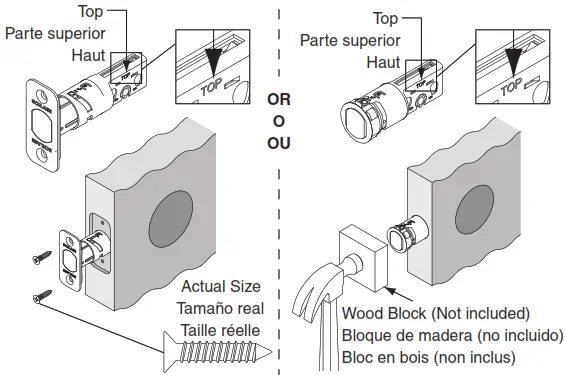

7 Install Deadbolt

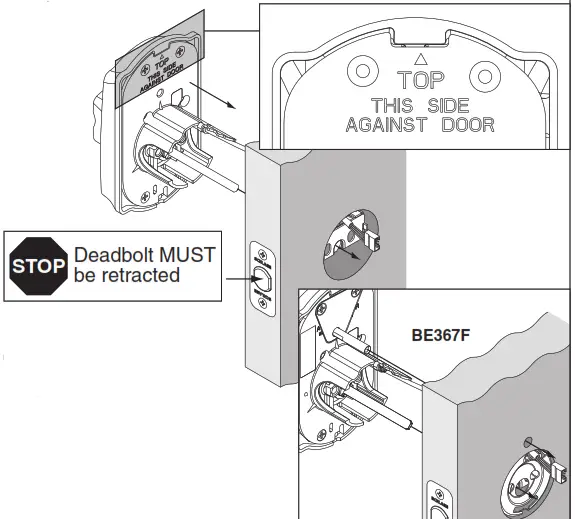

8 Install Keypad Assembly

IMPORTANT: Cable passes over top of deadbolt.

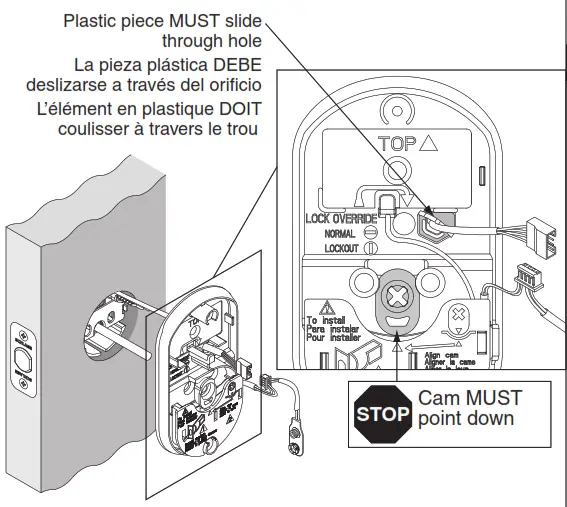

9 Install Inside Mounting Plate

IMPORTANT: Pull excess wire through mounting plate.

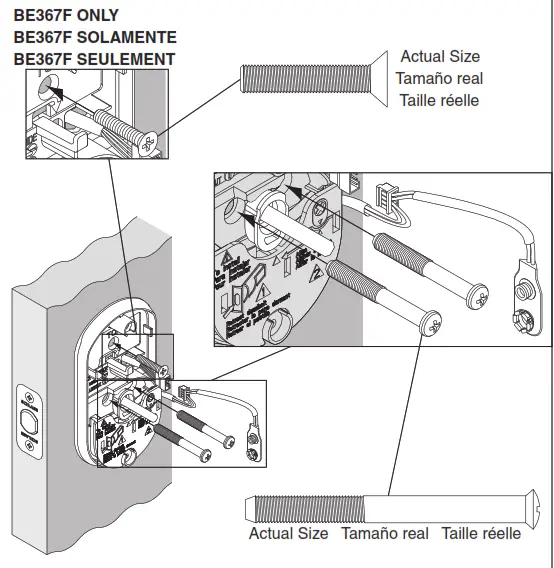

10 Check Cam and Install Screws

NOTE: Ensure lock is straight before tightening.

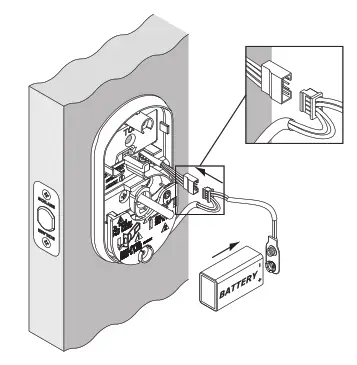

11 Install Battery and Connect Cables

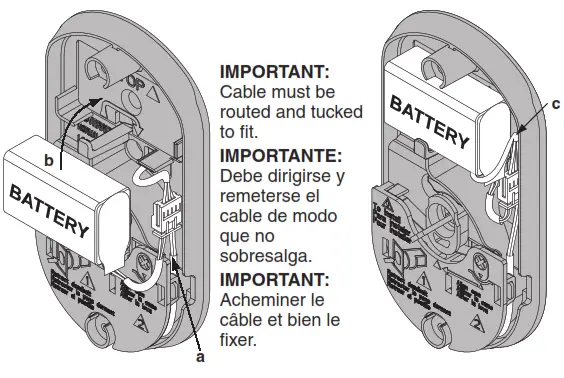

12 Route and Tuck Cables

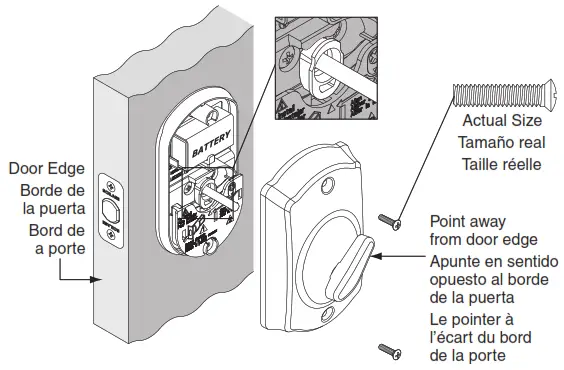

13 Install Thumbturn

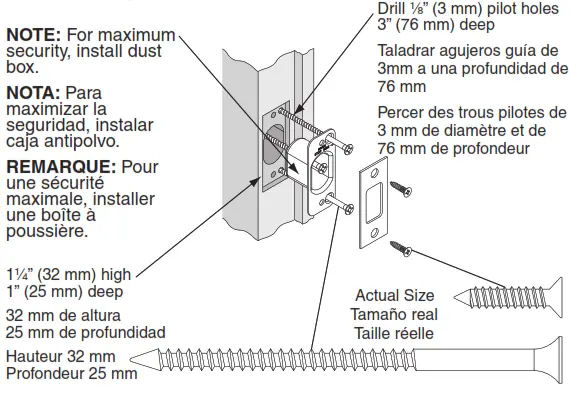

14 Install Strike and Dust Box

Check Operation

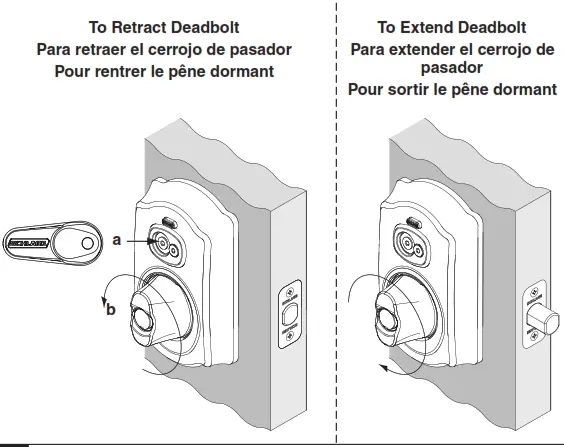

A If you have a yellow construction iButton Credential, then test lock operation

IMPORTANT: If the BE367 is unprogrammed, then all yellow construction iButtons will operate lock. Yellow Construction iButtons are disabled automatically when the BE367 is programmed.

B  For Programming, See the SMS/SMS Express Site Set-Up Guide

Questions? (888) 805-9837

© Allegion 2014
Printed in U.S.A.
P515-488 Rev. 11/14-online
