PHILIPS Automotive Driving Recorder

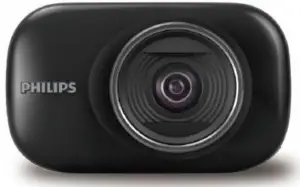

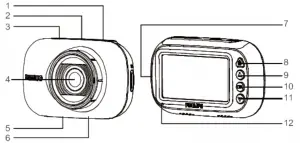

Product Overview / Device display

1. Suction c up holder
2. Micro USB port
3. Mini USB port
4. Lens
5. Microphone
6. Speaker
7. Micro SD card slot
8. Emergency/Return button
9. Up button
10. Enter button(OK)
11. Down button
12. Status indicator

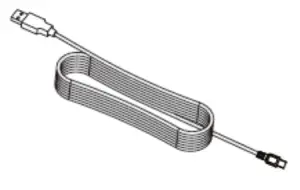

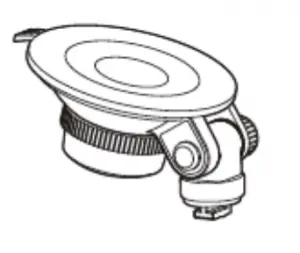

Bracket for suction mount x 1	Charger x 1	USB cable x 1

Quick Start

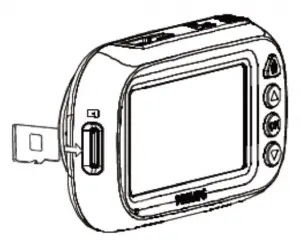

Insert SD Memory Card
Insert the memory card with the golden contacts side of the card facing the front of the camera.

About the Micro SD card

1. Please use a Micro SD card with a capacity of at least 16GB, Class 10 (maximum 128GB).It is recommended to use 32GB card or above if you are using the FHD rear camera module.
2. Format your Micro SD card before first use by selecting “format SD card” in the system settings of your Go Sure device.
3. The relationship between card capacity and recording time is given below.


   Micro SD Card Capacity	ADR820 Single Camera		ADR820 Dual Camera
   	1080P/30fps	720P/30fps	1080P/30fps	720P/30fps
   32GB	320 minutes	520 minutes	160 minutes	260 minutes
   64GB	640 minutes	1040 minutes	320 minutes	520 minutes
   128GB	1280 minutes	2080 minutes	640 minutes	1040 minutes

1. Install the suction cup onto the device.
2. Find a suitable position on your windshield and lock the suction cup.
3. Adjust the position of the device within the mount to ensure you’re recording a clear view of the road.
4. Connect the USB cable to the Micro USB socket on the device.
5. Plug the other end of this supplied car charger into the 12-24V DC outlet of your vehicle (running the wire under the glove box and around the edge of the windshield).
6. Now your Philips GoSure will automatically turn on when you start your engine and will stop recording only when you turn it off again.

Note:

1. Please use our dedicated car charger to avoid any device incompatibility issues.
2. To avoid damaging the video recording, please unplug your device before inserting or removing your SD memory card.
3. To remove the SD card, simply press down on the card and it will eject from the card slot automatically.
4. If the car power supply doesn’t turn off automatically, it is recommended that you disconnect the device’s charger cable manually, to avoid draining your car’s battery.

Connecting the GoSure App

1. To download the app, please search “Philips GoSure” in Apple’s App Store or the Google Play Store.

2. Open your mobile phone Wi-Fi or WLAN settings. Find the “PHILIPS_xxxx” device and connect to it. The default password is “12345678”
3. Now open the Philips “GoSure” app and you can watch live what the camera is recording, or playback older footage, and adjust other settings directly on your mobile phone.

Note:

1. You need to reconnect the app to the device after modifying SSID or the password.

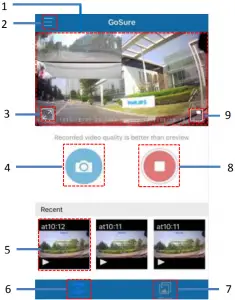

Using the GoSure App

GoSure app system settings

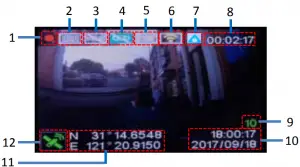

GoSure ADR820 user interface

GoSure ADR820 system settings

Press the OK button to open the menu list, allowing you to adjust various device settings.

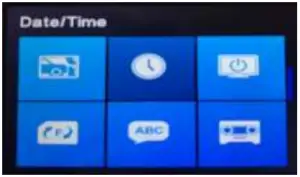

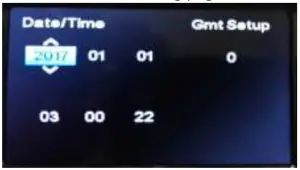

Set the Date and Time

1. Press OK to open the on-screen display menu.

2. Press ▲/▼ to select clock icon and then press OK to enter date and time setting page.

3. To adjust date and time field, press ▲/▼ to select the field.
4. Press▲/▼ to select the value.
5. Repeat steps 3-4 to adjust other fields.
6. Press to save your changes.

Function setting

No.	Function	Menu icon	Description
1	Video		Operate normal and emergency video files, user scan play, pause, delete, lock and unlock the video files
2	Preview Mode		Set preview mode to picture in picture, single front camera or single rear camera display on LCD screen.
3	WIFI		Set WIFI open, dose, SSID and password, get APP download information.
4	Resolution		Set the video resolution to Full HD 1080p(FHD), and HD Premium
5	Video Time		Set video clip time to 1 minute, 3 minutes 5 minutes.
6	WDR (Wide Dynamic Range)		Turn the WDR function on/df.
7	Collision Detection		Select the level of sensitivity to Collison detection between high, medium and ION sensitivity, or turn this function off. When switched an, this feature will detect any collision above certain force threshold, automatically creating an emergency recording. This video will be saved to the Emergency Recording folder.
8	Date/Time		Set the date, time and time zone for the device.
9	Display Auto off		Format your TF card (MicroSD). Please format your card using the device before-you use it for the first time.
10	Format		English and Chinese are available for selection.
11	Language		Turn voice recording function on/ off.
12	Voice Recording		Manually adjust the exposure level.
13	EV		Set date and time marking on the video on/ off.
14	Date Stamp		Set date and time marking on the video on/ off.
15	Remind Light		Set remind light function on/ off
17	GPS		Turn GPS function on/ off. The GPS module is optional (sold separately)
18	Driver Fatigue Alert		Turn driver fatigue alert function on/off.
19	Default		Reset all device settings to the factory def au it.
20	About		Firmware version.

Operating instructions

Device button icons

• button: Emergency button/Return button
• ▲ button: Up button/Voice recording on/off button
• OK button: Enter/Action button
• ▼ button: Down button/PIP mode button

Record video

Normal video recording

With a MicroSD memory card inserted, every time you turn on the device, it will automatically start recording with the default settings. When you switch your vehicle engine off, the camera will stop recording automatically. A normal video recording file is saved in the “NORMAL” folder (viewable in the GoSure app). The file name is the system time (hour, minute, second) as a prefix.

Emergency video recording

An emergency file will be automatically generated when you either press the emergency button (see 8.1) or the device detects a collision above a certain force threshold. This file will be stored in the “EMGREC” folder (again, viewable in you GoSure app).

Additional functions

Driver fatigue alert

To help drivers keep track of how tired they might be getting, the device comes with a fatigue alert. This takes into account various physiological and journey related parameters; for example, it considers the time of day and the time spent driving. The device will alert you every two hours of driving, to remind you that fatigue could be becoming an issue.
As well this alert, there is also a fatigue indicator on the device’s display. With a low fatigue rating below 60, the indicator is green. When the fatigue rating is between 60 and 80 the indicator is yellow and a warning alert sounds.
When the fatigue rating reaches 80, the indicator turns red and three warning beeps sound.
When you switch on this driver fatigue feature, it’s important that you set correct system time (so it knows at what time of day you’re driving). If you have this feature switched off, the fatigue rating will not be displayed on the screen.

Updating the device’s firmware

Firmware download

To update the firmware (the device’s in-built software), please download the latest file version from Philips.com or contact Philips Consumer Care for assistance.

How to update firmware

1. Copy the firmware (ADR820.bin) to your SD memory card root folder.
2. Then insert the memory card into the device and press the emergency button, before plugging in the power cable to the device.
3. A green LED will then blink, indicating the device is updating automatically.
4. When the device restarts it means the update was successful, please enter the menu and check the firmware version in “About”.

Technical specifications

Lumileds is the warrantor of this product. The Philips trademarks are used under license from Koninklijke Philips N.V. (2017). © Lumileds Holding B.V. 2017. All rights reserved.
