Thermex Downdraft Kits User Guide

DOWNDRAFT Kits
User Guide

DOWNDRAFT Kits

YDERLIGERE INFORMATION
Mer information

THERMEX SCANDINAVIA A/S	THERMEX SCANDINAVIA S.L.U.
www.thermex.dk	www.thermex.es
THERMEX SCANDINAVIA AS	THERMEX SCANDINAVIA A/S
www.thermex.no	www.thermex.fi
THERMEX SCANDINAVIA AB	THERMEX SCANDINAVIA A/S
www.thermex.se	www.thermex.nl

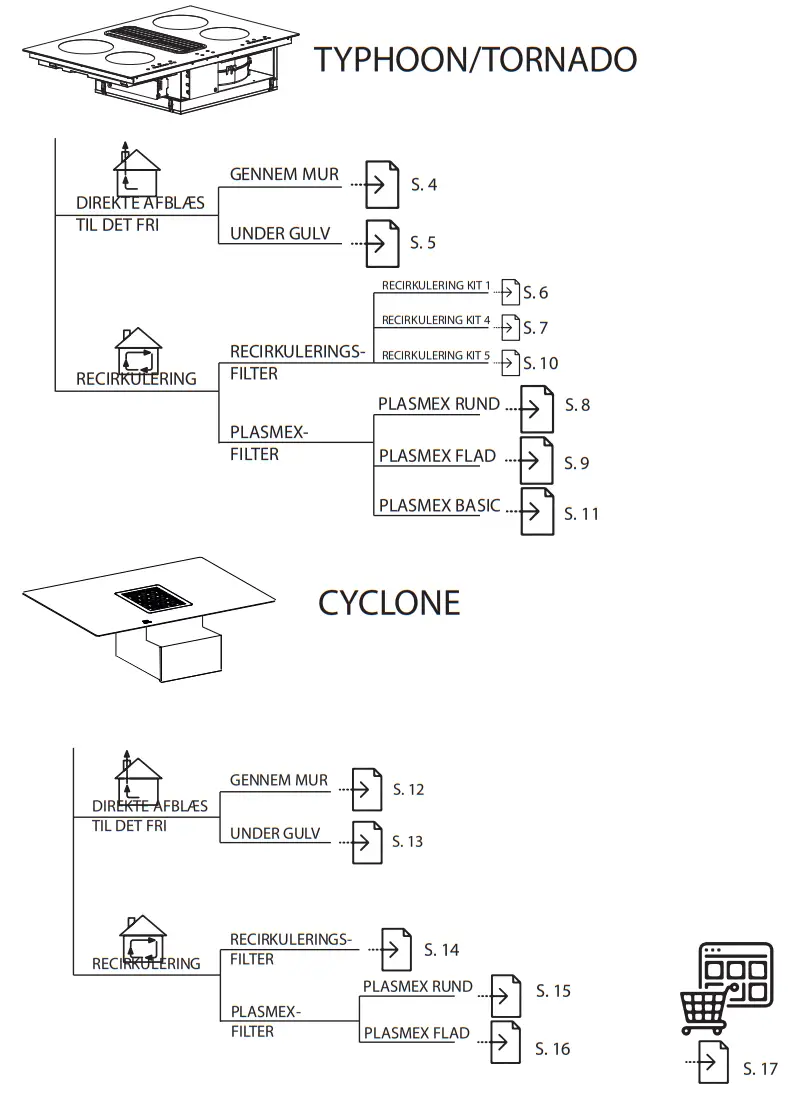

DOWNDRAFT KIT
BM2509930100

TORNADO

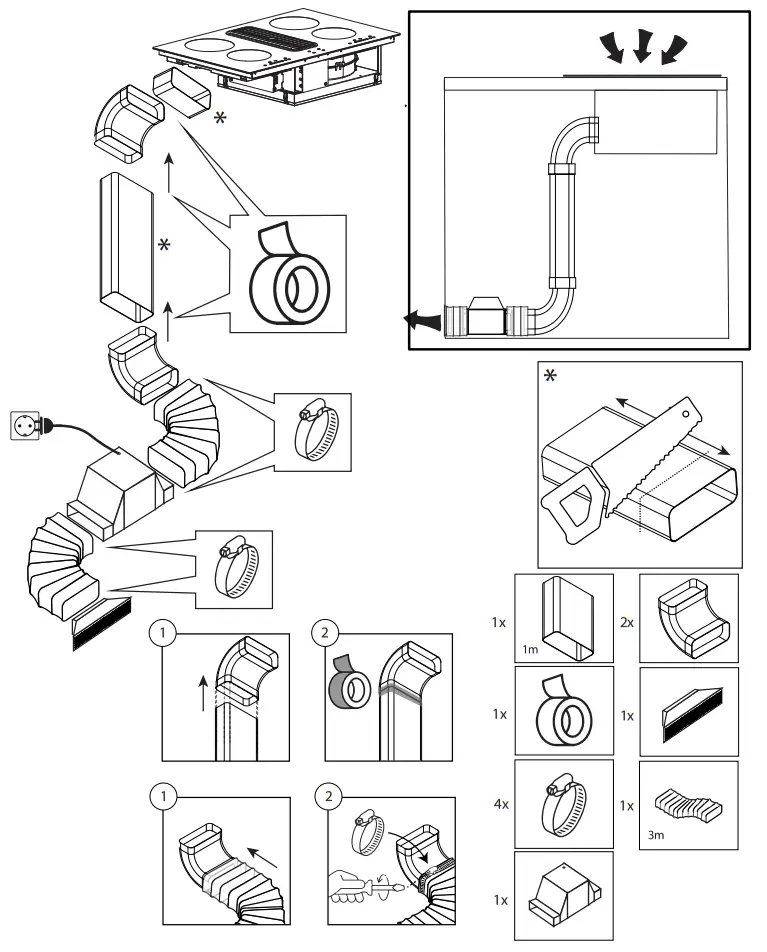

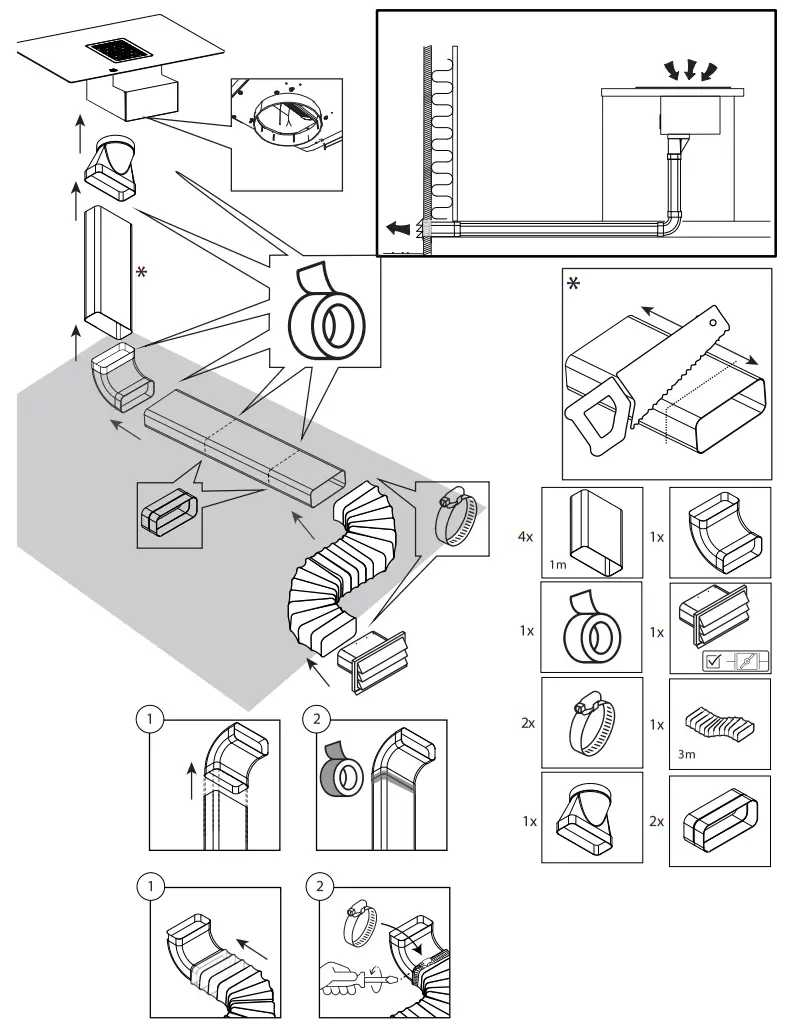

Kit varenr. 535.21.1250.9TORNADO/TYPHOON KIT- DIREKT UNDER GULV KIT 3
Kit varenr. 535.21.1260.9TORNADO/TYPHOON KIT – ALM. KIT 1

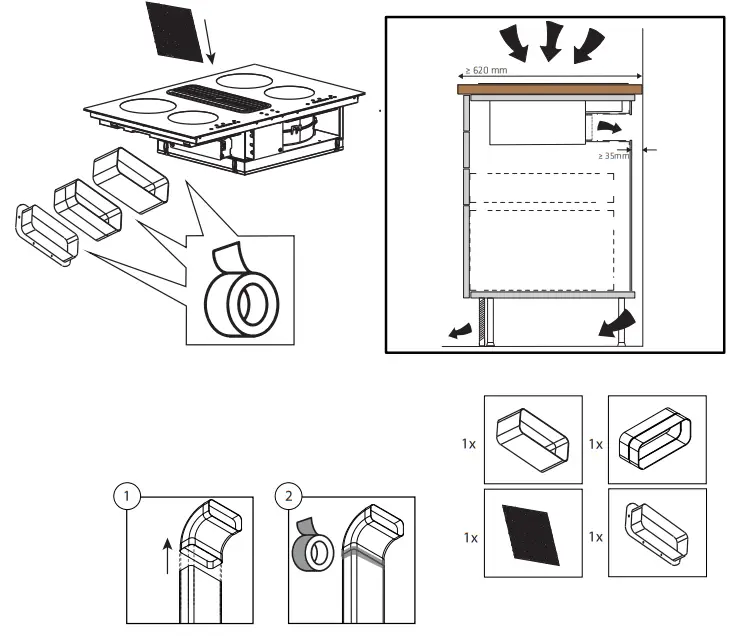

Kit varenr. 535.21.1200.9TORNADO/TYPHOON KIT – KIT 4
Kit varenr. 535.21.1280.9 TORNADO/TYPHOON KIT – PLASMEX RUND
Kit varenr. 536.99.1800.9TORNADO/TYPHOON KIT – PLASMEX FLAD
Kit varenr. 536.99.1801.9TORNADO/TYPHOON KIT – KIT 5
Kit varenr. 535.21.1285.9

TORNADO/TYPHOON KIT – PLASMEX BASIC KIT 6

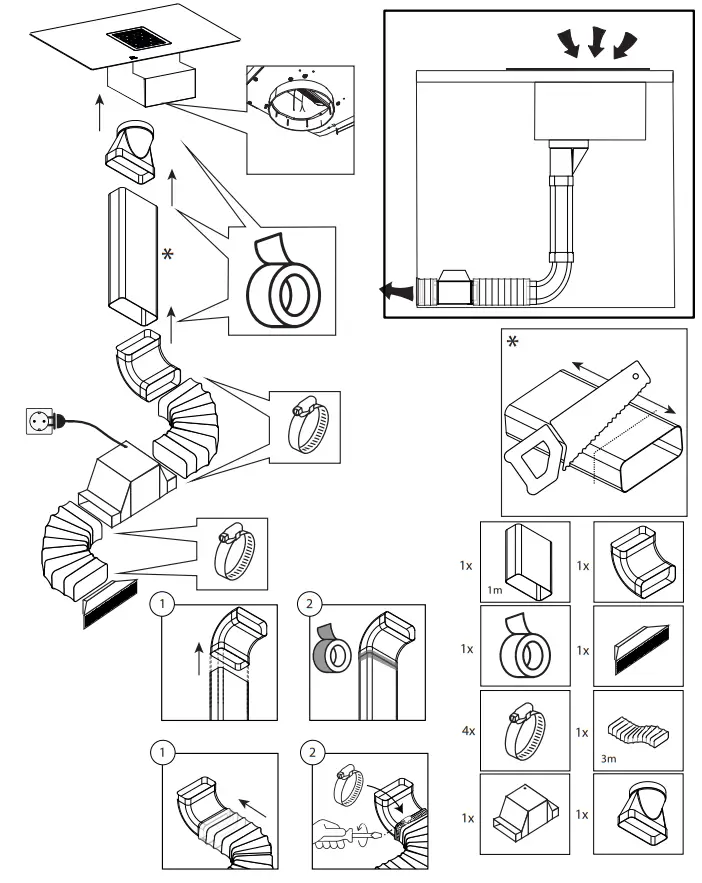

Kit varenr. 535.21.1290.9CYCLONE KIT – DIREKTE
Kit varenr. 535.23.1250.9

CYCLONE KIT – DIREKTE UNDER GULV
Kit varenr. 535.23.1260.9CYCLONE KIT FILTER

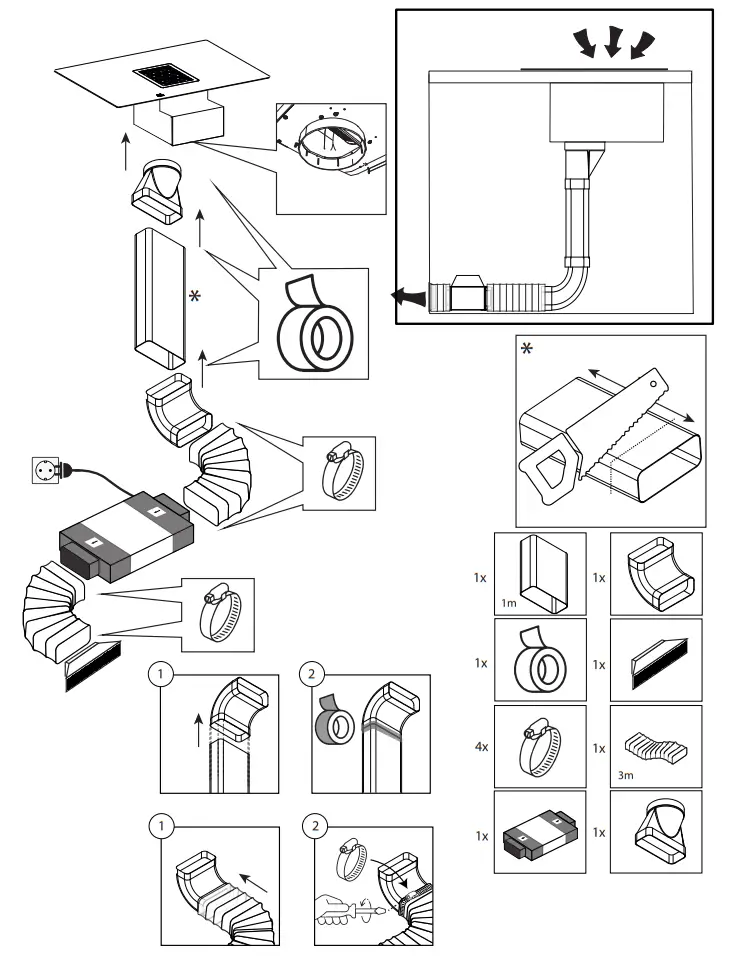

Kit varenr. 535.23.1200.9CYCLONE KIT – PLASMEX RUND
Kit varenr. 536.99.1800.9CYCLONE KIT – PLASMEX FLAD
Kit varenr. 536.99.1801.9

Varenummer	Billede	Varenummer	Billede
Duct Tape 815.50.1231.9		Grill outlet outdoor 830.60.2038.9
Clamp 815.16.8208.9		Conversion Flat to Round 825.60.3006.9
Duct 825.60.3001.9		Flex duct 825.50.5933.9
Duct Bend 90°825.60.3004.9		Joint 825.60.3005.9
Outlet Indoor p536.99.1015.9
