Termoventiler Thermomatic 125 User Guide

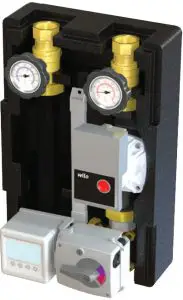

Termoventiler Thermomatic 125
Technical data
Options:
Without actuator Thermomatic TVM,
actuator only (for external control), 230 V
Thermomatic CC,
constant temp. controller, 230 V
Thermomatic EC Home,
complete automation for regulation with room sensor and/or outdoor sensor, 24 V
Thermomatic EC Home WL,
complete automation for regulation with wireless room sensor and/or outdoor sensor, 24 V
Pump: 6 m ErP, 180 mm
Connections: 2 x R25
Kvs value: 6 or 10
- Function
Thermomatic 125 is a series of units with mixing function for heating or cooling applications. Based on our well known and reliable TV 3S mixing valves and Thermomatic actuators. - Connection
Shut off valves are to facilitate servicing. The installation position does not affect the function of the Thermomatic 125, but the lines must be connected to the correct port on the valve.

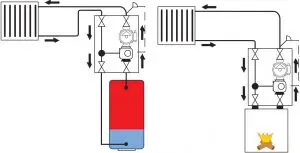

Connection example without accumulator tank

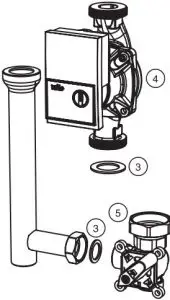

SPARE PARTS
| Pos. | Art. No. | Description |
| 1a | 141021 | Ball valve R40-R25 |
| 1b | 141020 | Ball valve R40-R25, with built-in check valve |
| 2a | 141020 | Thermometer RED, for ball valve |
| 2b | 383006 | Thermometer BLUE, for ball valve |
| 3 | 110008 | Gasket kit for Thermomatic 125 |
| 4 | 146016 | Pump Wilo Yonos Para 6, 180 mm |
| 5a | 15060026 | Mixing valve TV3S, Kvs 6, incl. PF. |
| 5b | 15100026 | Mixing valve TV3S, Kvs 10, incl. PF. |
Accessories
Manifold – For connecting 2, 3, 4 or 5 units.
All needed gaskets and reducers included.
Wall bracket for manifold
Hydraulic neutralizer – For systems without natural neutralizer, i.e.
without accumulator tank
Check valve – Prevents self-circulation
Connection kit, R25-R25 – Art. No. 18 94 00 01

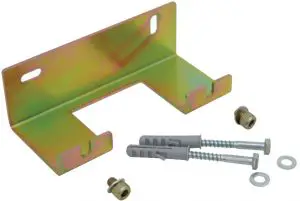

Wall bracket for Termoventiler 4H-Series –
See separate instruction

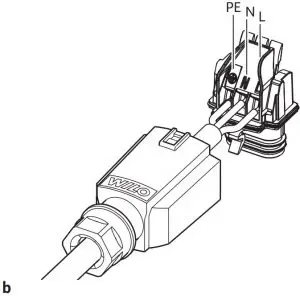

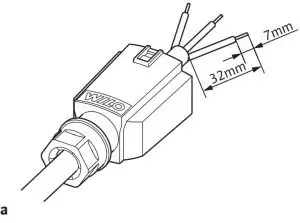

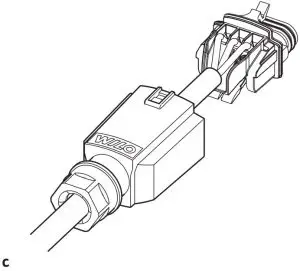

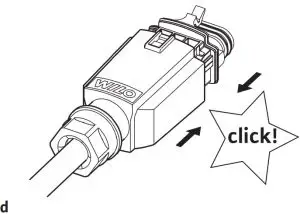

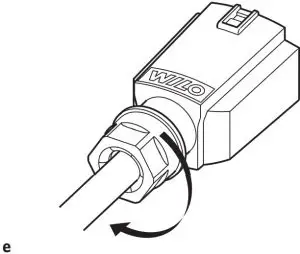

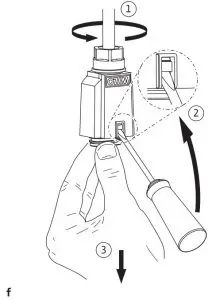

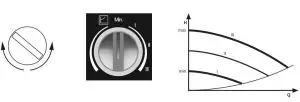

Pump instruction
