Wharfedale Pro Titan Sub A12 1×12 Inch 250W Powered Subwoofer
SPECIFICATIONS
| Model Name | Titan Sub A12 |
| System Type | Active 12″ Reflex Subwoofer |
| Frequency Response (+/-3 dB) | 55 Hz-200 Hz |
| Frequency Range (-10 dB) | 50 Hz-200 Hz |
| Calculated Maximum SPL @1 m | 127 dB |
| LF Transducer Size (mm / inches) | 305 mm / 12” |
| Coil Size (mm / inches) | 64.26 mm / 2.5″ |
| Amplifiers | |
| Low-Frequency Power Amplifier RMS/Peak Watts | 250/500 W (Class D) |
| Controls—EQ | Crossover filter : 80 Hz – 200 Hz (adjustable) |
| DSP | |
| Hi Pass switch | 150 Hz |
| Amplifier Protection / Thermal protection | Yes |
| Low Line Voltage Shut Down | 60% Nominal line voltage |
| Driver Protection | Independent LF limiters |
| DC Protection / Short Protection | Yes |
| Clip Limiter | Tums on ~250 W output |
| Limiter Indicator / Power Indicator | Red LED / Green LED |
| Connectors | |
| Input – type | 0 / 180° phase switch |
| Input Connector | 2 * XLR 1/4″ Combo Jack |
| Line Output Connector | Hi Pass out : 2 * Balanced XLR |
| AC Power Supply | SMPS |
| AC Power Options | AC100-120 V~/220-240 V~,50/60 Hz |
| Hardware | |
| Rigging / Bracket / Mounting Options | 35 mm socket |
| 2 carry handles (one on each side) | |
| LED Horn lighting (On/Off switch) | No |
| Enclosure Material and finish | 15 mm MDF |
| Colour Options | Grey / Black |
| Grille Material & Finish | 1.2 mm steel |

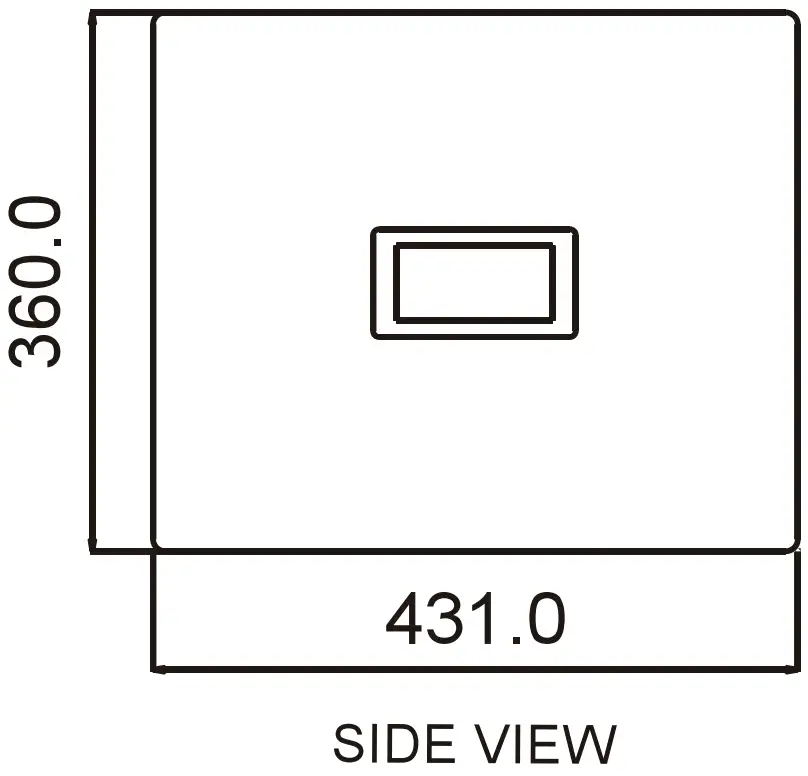

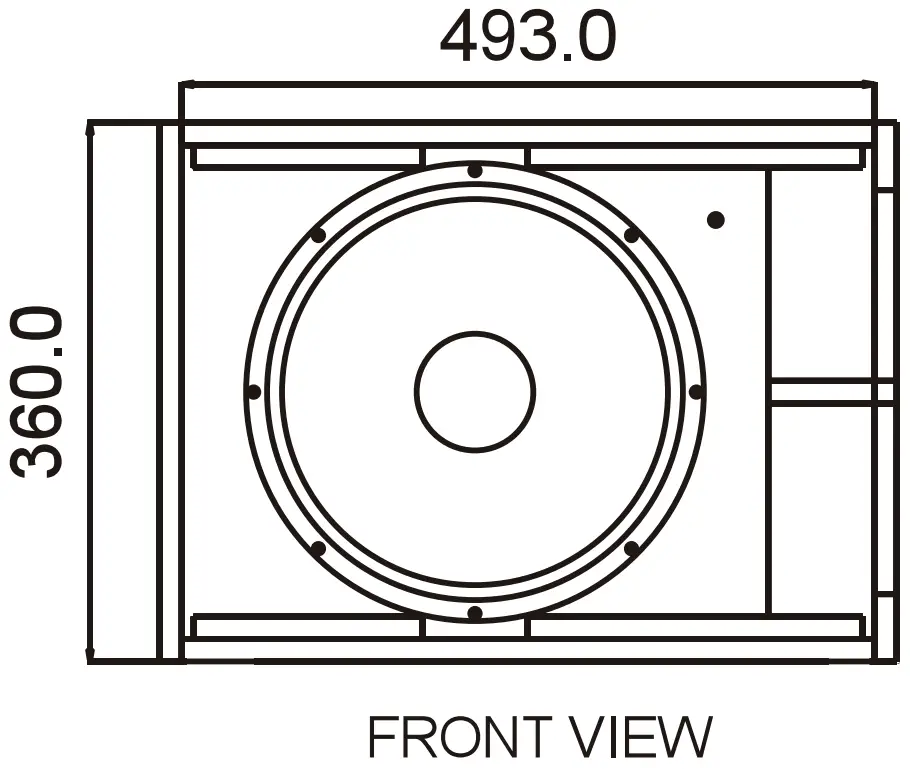

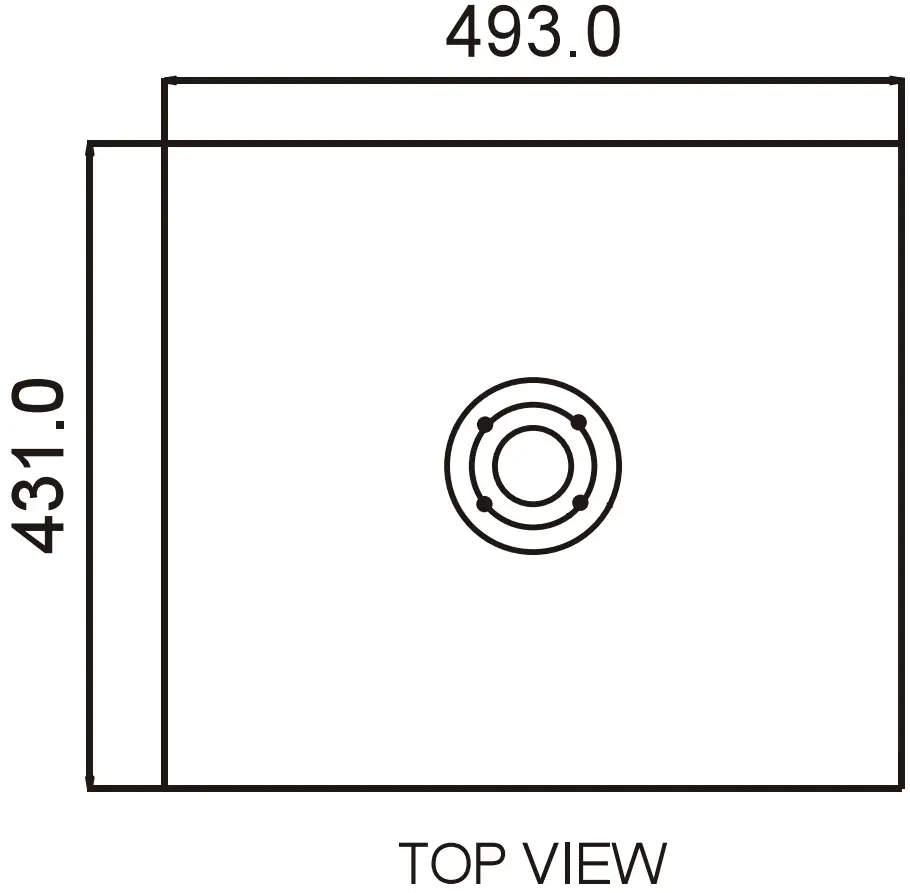

| Dimensions – Unpacked – Height | 360 mm / 14.2” |
| Width Front | 493 mm / 19.4” |
| Depth | 431 mm / 16.9” |
| Dimensions – packed – Height | 440 mm / 17.3” |
| Width Front | 560 mm / 22.0” |
| Depth | 440 mm / 17.3” |
| Net Weight (kg / lbs) | 22.31 kg / 49.0 lbs |
| Gross Weight (kg / lbs) | 26.26 kg / 57.8 lbs |
OVERVIEW

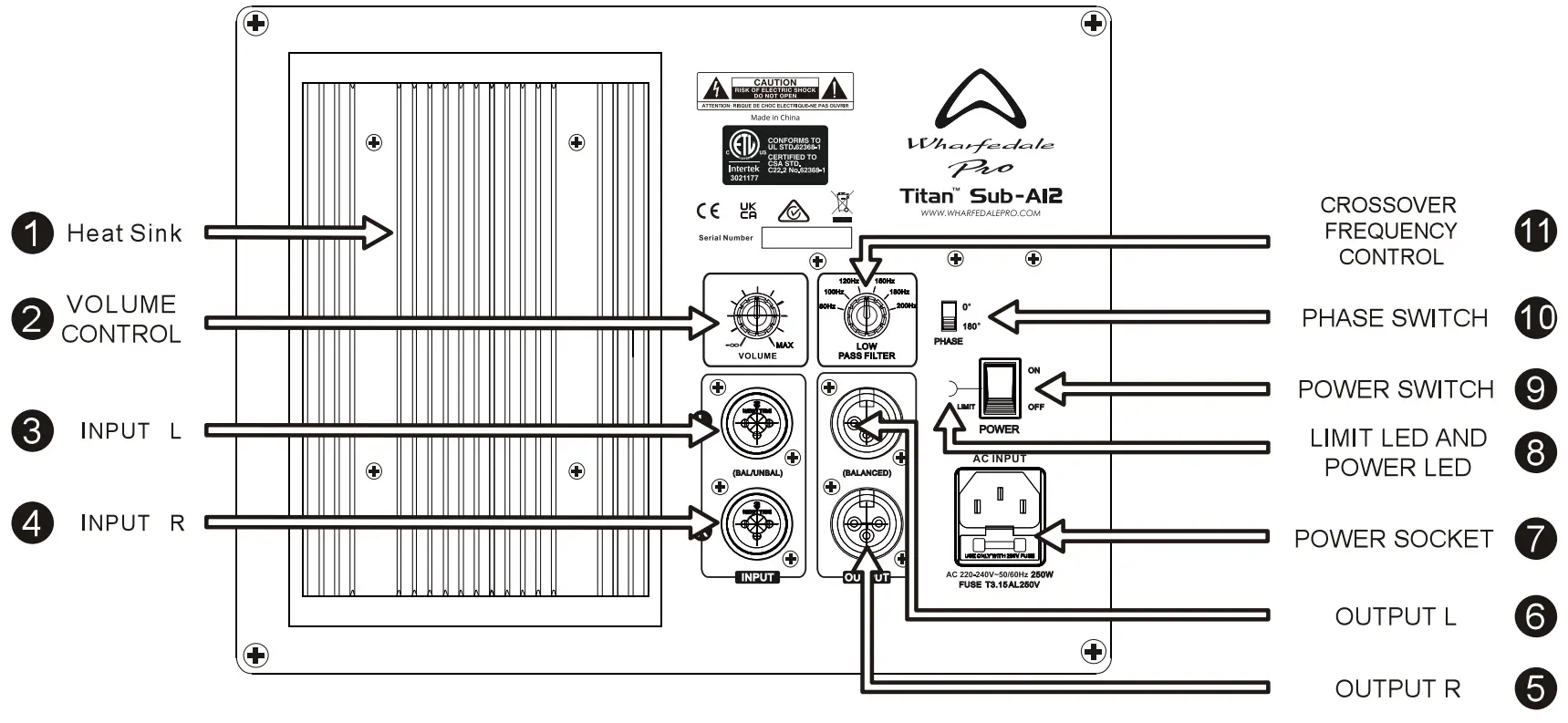

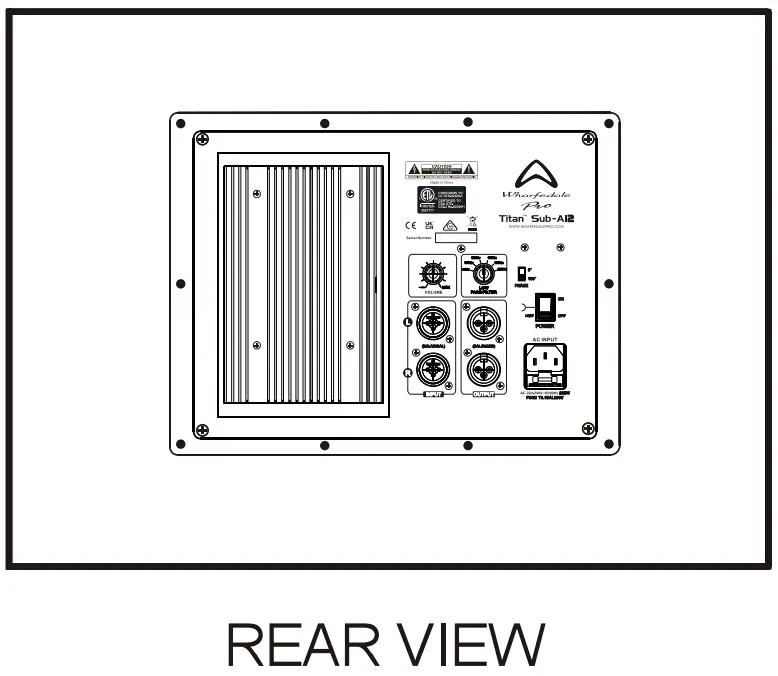

Titan Sub A12 REAR PANEL FEATURES
| 1. HEAT SINK | Cooling fins for amplifier. Do not obstruct. |
| 2. VOLUME CONTROL | Adjusts the volume |
| 3. INPUT L | Balanced line level input via a XLR / ¼” combo connector. |
| 4. INPUT R | Balanced line level input via a XLR / ¼” combo connector. |
| 5. OUTPUT R | Balanced XLR pin connector provides output HIGH PASS signal. |
| 6. OUTPUT L | Balanced XLR pin connector provides output HIGH PASS signal. |
| 7. POWER SOCKET | This is the connection for the IEC AC power connector. |
| 8. LIMIT LED POWER LED | LED indicator illuminates when the signal limiting function is activated. LED indicator illuminates when the unit is powered up. |
| 9. POWER SWITCH | Turns the power on and off to the subwoofer amplifier module. |
| 10. PHASE SWITCH | Selects the polarity of the signal being sent to the subwoofer. 0° selects the signal polarity as it appears at the input. The 180° selection inverts the polarity of the signal. |
| 11. CROSSOVER FREQUENCY CONTROL | Adjustable 80 Hz / 100 Hz / 120 Hz / 150 Hz / 180 Hz / 200 Hz. |
WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro products are warranted of manufacturing or material defects for a period of three years from the original date of purchase. In the event of malfunction, contact your authorised Wharfedale Pro dealer or distributor for information. Please be aware that the warranty details may differ from country to country. Contact your dealer or distributor for information (available at www.wharfedalepro.com). These terms do not infringe your statutory rights. |
WHARFEDALE PROFESSIONAL
IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK
www.wharfedalepro.com
Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2022 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
