Hewitt Falcon Manual Nozzle
PRODUCT OVERVIEW
- Specifically designed for business and private over-the-wing aviation fueling.
- Spout can be removed by loosening nut.
- 100 mesh stainless steel fuel filter to prevent dust and debris from entering the fuel tank; located in the spout for easy removal and cleaning.
- Complies with IE 1540 and NPA 407.

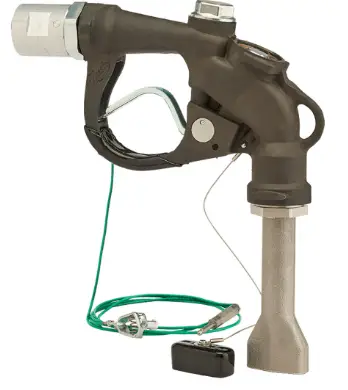

- Black jet fuel nozzle with optional duck bill spout or round spout.
- Red aviation gas nozzle with round spout.
- Available with the following inlets:
- 1-1/2” (38mm) Female NPT
- 1-1/2” (38mm) Female BSPP
- 1-1/4” (32mm) Female NPT
- 1-1/4” (32mm) Female BSPP
Falcon Nozzle with NPT
| 12090218N^ | without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1½ FNPT (38mm) Inlet Inline Swivel | 5.0 (2.3) |
| 12090219N^ | without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1¼ FNPT (32mm) Inlet Inline Swivel | 5.0 (2.3) |
| 13734218N^ | without Hold Open Clip, with Jet Black, Round Spout, and 1½ FNPT (38mm) Inlet Inline Swivel | 5.0 (2.3) |
| 13734219N^ | without Hold Open Clip, with Jet Black, Round Spout, and 1¼ FNPT (32mm) Inlet Inline Swivel | 5.0 (2.3) |
| 13739218N^ | without Hold Open Clip, with Aviation Red, Round Spout, and 1½ FNPT (38mm) Inlet Inline Swivel | 5.0 (2.3) |
| 13739219N^ | without Hold Open Clip, with Aviation Red, Round Spout, and 1¼ FNPT (32mm) Inlet Inline Swivel | 5.0 (2.3) |
Falcon Nozzle with BSPP
| 12090216N^ | without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1½ FBSP (38mm) Inlet Inline Swivel | 5.0 (2.3) |
| 12090217N^ | without Hold Open Clip, with Jet Black, Duck Bill Spout, and 1¼ FBSP (32mm) Inlet Inline Swivel | 5.0 (2.3) |
| 13734216N^ | without Hold Open Clip, wth Jet Black, Round Spout, and 1½ FBSP (38mm) Inlet Inline Swivel | 5.0 (2.3) |
Construction
- Body Aluminum
- Seals Fluorocarbon
- Packing Double o-ring seal protected by fiber reinforced Teflon®
- Lever One piece contoured steel

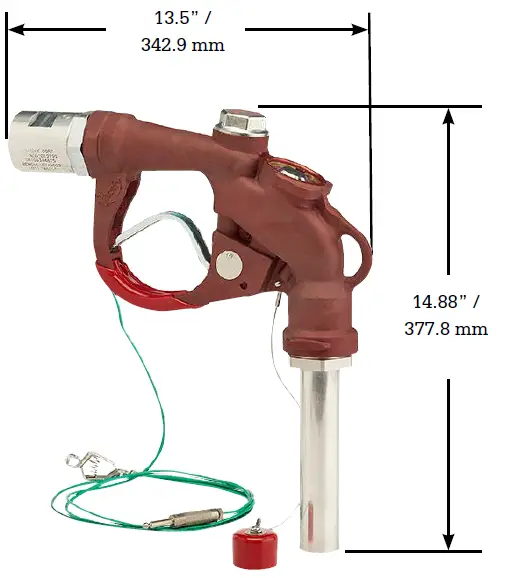

Dimensions and System Options
Accessories
MODEL NO. DESCRIPTION
- 012086 Falcon Strainer Kit
- 012946 Jet Oval Manual Spout Kit
- 012948 Aviation Round Manual Spout Kit
- 013476 Interlock Hook Assembly
- 014204 Black Jet Fuel Oval Spout Cap Assembly
- 014205 Black Jet Fuel Round Spout Cap Assembly
- 014206 Red Aviation Fuel Round Spout Cap Assembly
- 015829 Falcon Poppet Valve Seal Service Kit
