CIGWELD W1004500 WELDSKILL 250 Mig Welder
Instructions

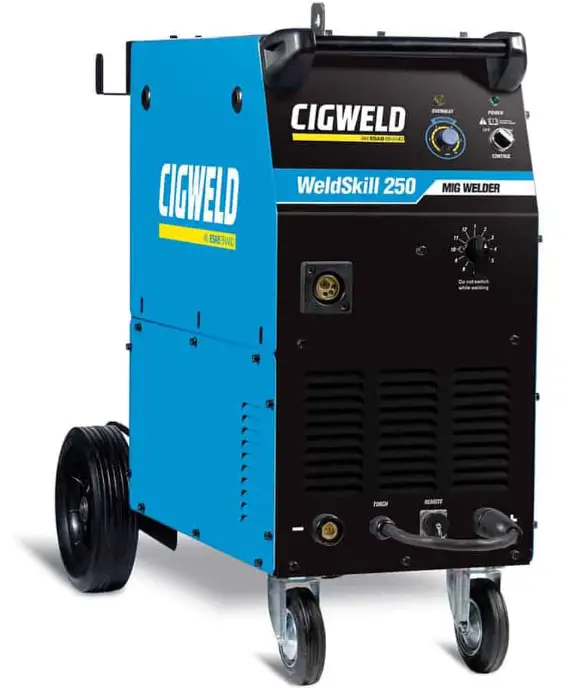

The WeldSkill 250 is a single phase compact power source designed specifically for the handyman or tradesman that requires high quality welding performance. This constant voltage power source is rated at 250 amps @ 20%** duty cycle and provides excellent arc performance with solid or flux cored wires. The unit is suitable for use with either mixed shielding gases, CO2 or gasless operation.
PRONTO No. ..80727
Part No: W1004500
WELDSKILL 250 Mig Welder
Features
Power Source Weight 100.0kg
Plant (Package) Weight 125.0kg
Power Source
- Dimensions H 1050mm
- W 470mm
- D 1020mm
PACKAGE CONTENTS
WeldSkill 250 MIG Welder Plant
- WeldSkill 250 power source
- Tweco Fusion 250 Mig Torch 3.6m
- Work lead 3m,
- Regulator/Flowmeter (Aus/NZ Only)
- yclinder Chain, 200mm Spool Adaptor
- Feed Rolls: 0.9/1.2mm V Groove (Fitted)
- Contact Tips: 0.8mm, 0.9mm (Fitted), 1.0mm,1.2mm
- Shielding Gas Hose Assembly
SPECIFICATIONS
| Standards | AS 60974.1-2006 / IEC | 60974-1 & AS1674 |
| Number of Phases | 1 | |
| Nominal Supply Voltage | 240V +/- 10% | |
| Nominal Supply Frequency | 50Hz | |
| Energy Input | This Column applies to the Factory Fitted 2.5mm2 (20A) Primary Lead with 15A Supply Plug. | This Column applies to a 4.0mm2 (25A) Primary Lead with a 25A Supply Plug. |
| Welding Current Range | 50-190A, | 50-270A |
| Effective Input Current (I1eff) | 15A | 24A |
| Maximum Input Current (I1max) | 33A | 54A |
| Generator Requirement | 8kVA | 13kVA |
| MIG (GMAW) | 190A @ 20%, 23.5V | 250A @ 20%, 26.5V |
| Welding Output, 40)C, 10 min. | 110A @ 60%, 19.5V 85A @ 100%, 18.3V | 144A @ 60%, 21.2V 112A @ 100%, 19.6V |
| Number of Output Voltage Switch 12 Settings | ||
With upgraded 4.0mm Supply Lead and 25A Supply Plug. Note: In order to achieve the maximum rated output & duty cycle ratings refer to Section 3.04 in the Operating Manual
MIG TORCH & SPARES & ACCESSORIES
| OPTIONS – MIG ACCESSORIES | |||
| 1 | ..71572 | FAB250X12 | Weldskill MIG Torch 250A Euro 3.6m |
| 2 | ..70623 | WSPLIER | Weldskill Mig Pliers |
| 3 | ..125650 | W4012300 | Tweco Mig Torch Consumable Organiser Box |
| 4 | ..42165 | 646215 | Chipping Hammer Spring Handle |
| 5 | ..42166 | 704814 | Spatter Safe – 400ml Pump Can |
| OPTIONS – MIG TORCH CONSUMABLES | ||
| 1 ..42528 | OTW14/23/R | Contact Tip Tweco No2/4, 0.6mm (10Ea/Pk) |
| 2 ..42529 | OTW14/30/R | Contact Tip Tweco No2/4, 0.8mm (10Ea/Pk) |
| 3 ..42530 | OTW14/35/R | Contact Tip Tweco No2/4, 0.9mm (10Ea/Pk) |
| 4 ..53632 | OTW14/40/R | Contact Tip Tweco No2/4, 1.0mm (10Ea/Pk) |
| 5 ..42531 | OTW14/45/R | Contact Tip Tweco No2/4, 1.2mm (10Ea/Pk) |
| 6 ..42523 | OTW22/50/R | Nozzle |
| OPTIONS – FEED ROLLS | |||
| 1 | ..150181 | 7977729 | Feedrolls 0.6/0.8mm V Groove Hard Wire |
| 2 | ..150182 | 7977703 | Feedrolls 0.9/1.2mm V Groove Hard Wire |
| 3 | ..150183 | 7977733 | Feedrolls 0.8/0.9mm U Groove Soft Wire |
| 4 | ..150184 | 7977730 | Feedrolls 1.0/1.2mm U Groove Soft Wire |
| 5 | ..150185 | 7977734 | Feedrolls 0.8/0.9mm V Knurled Flux Cored |
| 6 | ..150186 | 7977347 | Feedrolls 1.2/1.6mm V Knurled Flux Cored |
NOTE: Feedrolls require 2ea/ part number as this is a 4 roll system
OPTIONS – MIG WIRE (SOLID)
| 2 3 | ..72560 WS5008 WeldSkill Mig Wire Mild Steel 0.8mm/5kg spool ..72561 WS5009 WeldSkill Mig Wire Mild Steel 0.9mm/5kg spool | ||
| 4 | ..36181 | 720103 | Autocraft LW1-6 Mig Wire Mild Steel 0.6mm/15kg spool |
| 5 | ..36182 | 720114 | Autocraft LW1-6 Mig Wire Mild Steel 0.8mm/15kg spool |
| 6 | ..41239 | 720090 | Autocraft LW1-6 Mig Wire Mild Steel 0.9mm/15kg spool |
| 7 | ..43367 | 720096 | Autocraft LW1-6 Mig Wire Mild Steel 1.2mm/15kg spool |
| OPTIONS – MIG WIRE (ALUMINIUM) | |||
| 1 | ..62318 | 723224 | Autocraft AL5356 1mm/2kg spool |
| 2 | ..48007 | 722226 | Autocraft AL5356 0.9mm/7kg spool |
| 3 | ..48008 | 722227 | Autocraft AL5356 1.2mm/7kg spool |
OPTIONS – SAFETY EQUIPMENT
| 4 ..63799 | 454305 | Weldskill Auto Dark Welding Helmet – Blue Shade 9-13 |
| 5 ..36205 | 453833 | Hiderok Welding Helmet Lift Front |
| 6 ..93228 | 646755 | Heavy Duty Weldskill Gloves – Large |
| 7 ..114801 | 646754 | WeldSkill Leather Tig Welding Gloves – Large |
| 8 ..145672 | 646771 | JACKET WELDING Blue / Black – Medium |
| 9 ..145673 | 646772 | JACKET WELDING Blue / Black – Large |
| 10 ..145674 | 646773 | JACKET WELDING Blue / Black – X Large |
OPTIONAL:

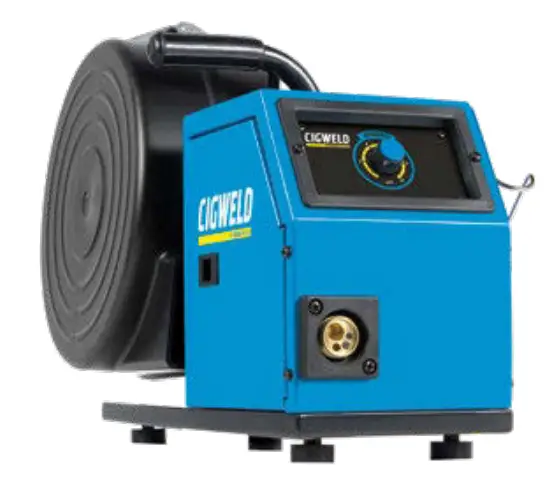

WeldSkill 4R Wirefeeder
Part No: W3000401
PRONTO No: ..80729
The WeldSkill 4 Roll Wirefeeder is specifically designed for use on both the WeldSkill 250 and 350 power sources. The unit can be easily added to either model power source by simply plugging in and selecting remote mode on the power source.
Wirefeeder Contents: 4R Feeder, 0.9/1.2mm V Groove Feed rolls, interconnection lead 8m
Cigweld. Australian Welding & Cutting Products.
