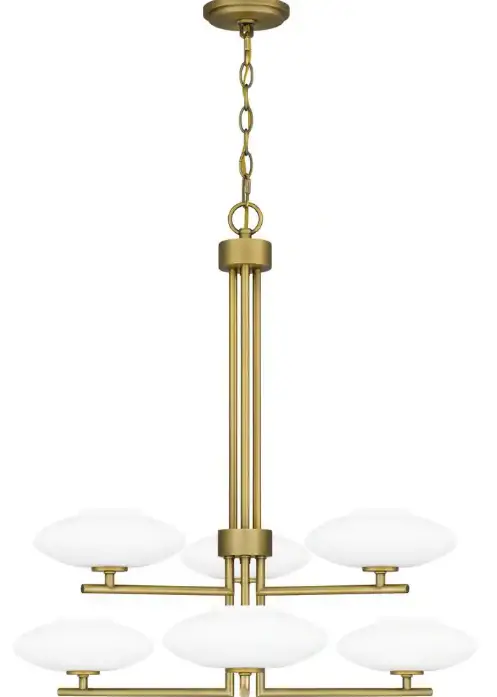

QUOIZEL QCH5577MBK Chenal 6-Light Aged Brass Chandelier with Opal Etched Glass Shade
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read the instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).

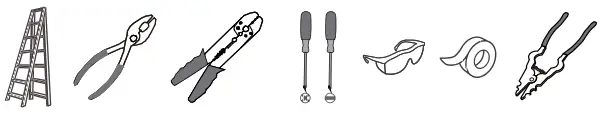

TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using a soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
- If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST) or visit us online at www.quoizel.com.

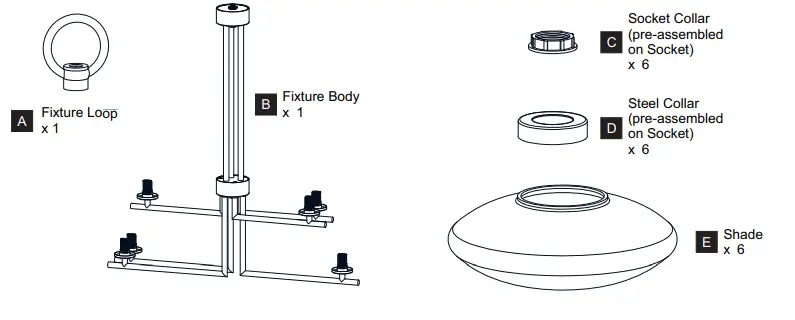

PACKAGE CONTENTS

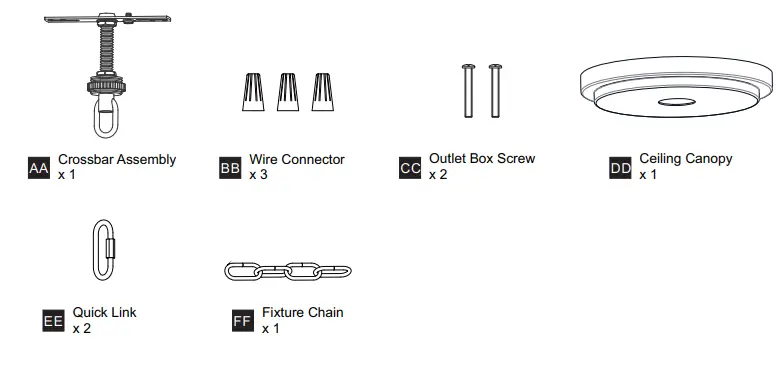

MOUNTING HARDWARE
INSTALLATION

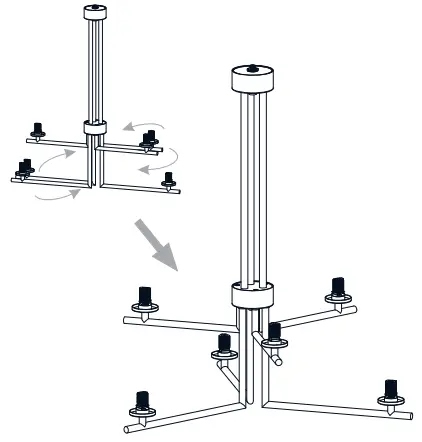

- Unfold Side Arms

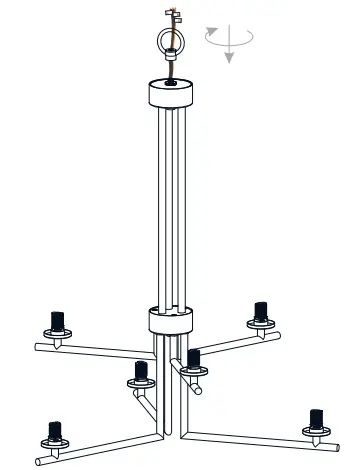

- Install Fixture Loop to Fixture Body

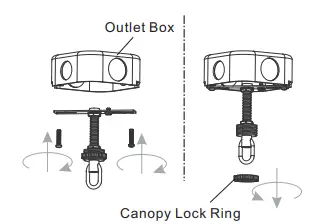

- Install Crossbar Assembly

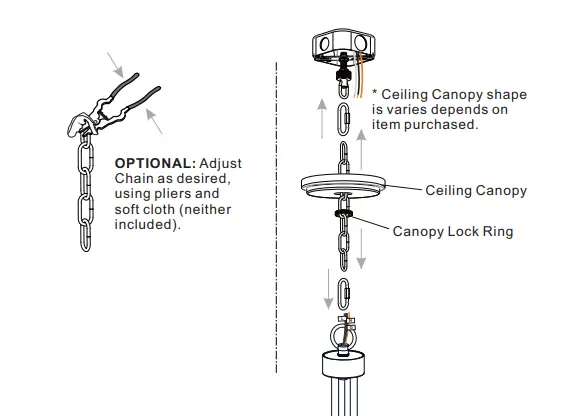

- Install Fixture Chain

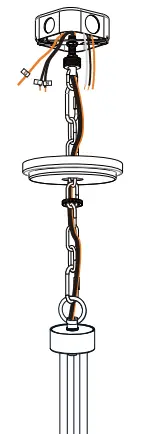

Suggested chain length for Ceiling height: 8 feet ceiling: use 1 link of chain and 2 quick links 9 feet ceiling: use 11 links of chain and 2 quick links 10 feet ceiling: use 21 links of chain and 2 quick links. - Pull Supply Wires
Pull the supply wires with ground wire through the chain alternate links.

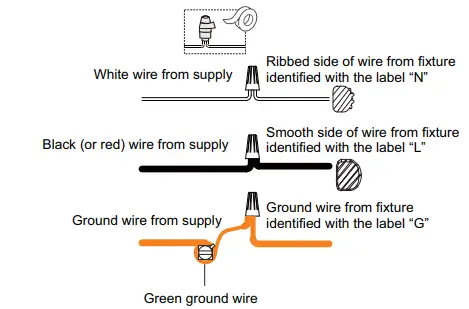

- Wiring
- Install Ceiling Canopy
The ceiling Canopy shape varies depending on the item purchased.

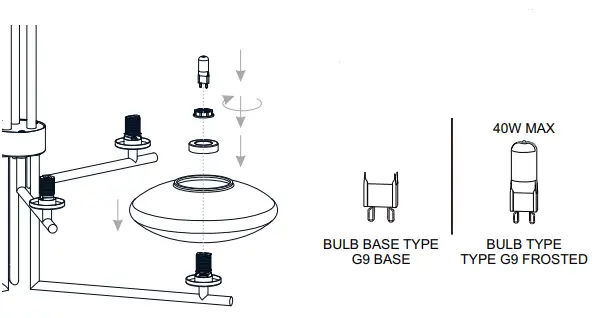

- Install Shades and Bulbs
Install six correct bulbs referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not included): - Do not touch the bulb with bare hands use a cloth or glove.
Install six correct bulbs referring to fixture markings and/or labels for maximum wattage.Your installation is now complete! Restore electricity and save this sheet for future reference.
