Eve Single S Line and Pro Line
Installation Guide
Eve Single S Line and Pro Line
Eve Single S-line and Pro-line
–Quick installation guide
NOTICE!
For detailed installation description, refer to the User/Installation manual provided with the charging station. More languages of the User/Installation manual are available online. Please refer to alfen.com for your language, or scan the QR-code in step 19 of this instruction.

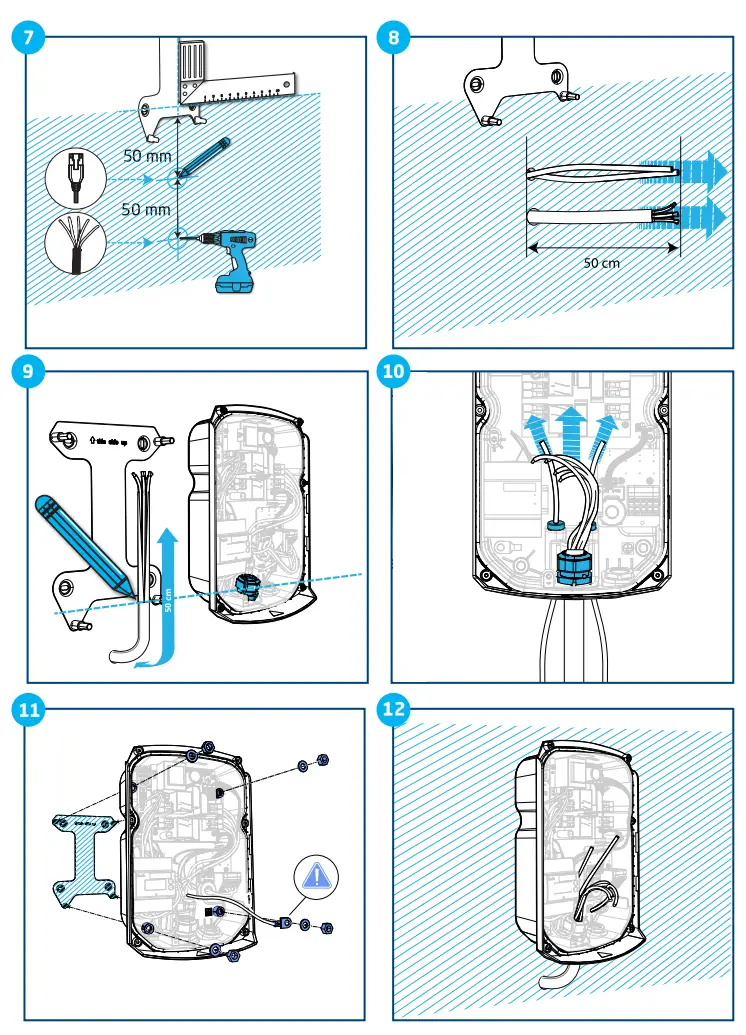

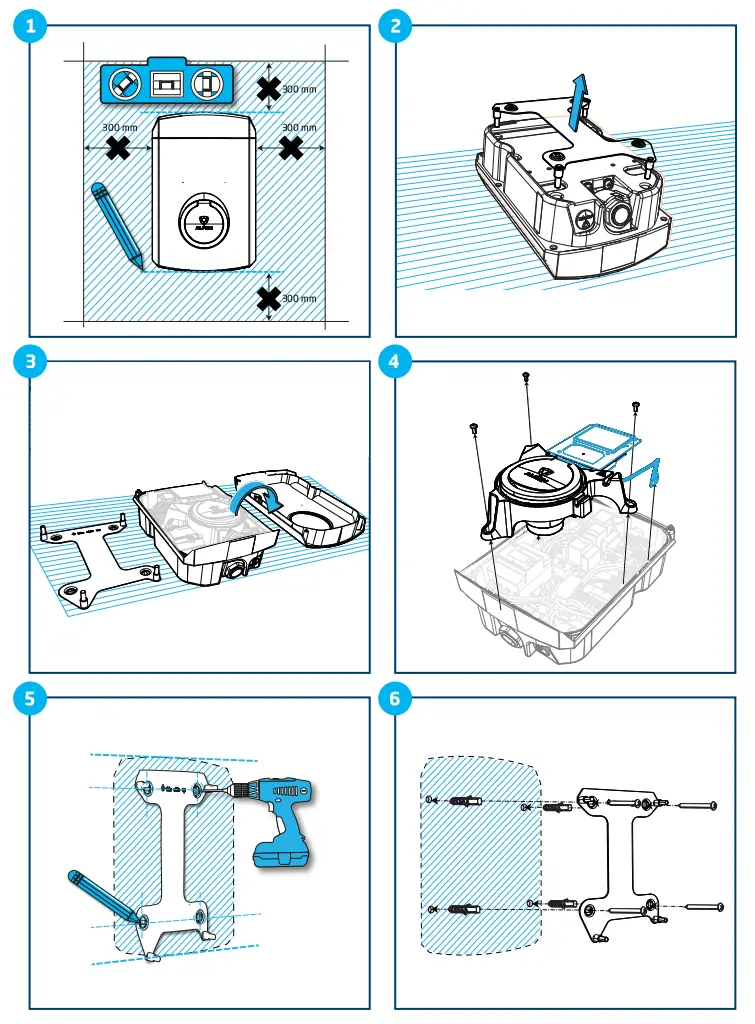

MECHANICAL INSTALLATION – WALL MOUNT

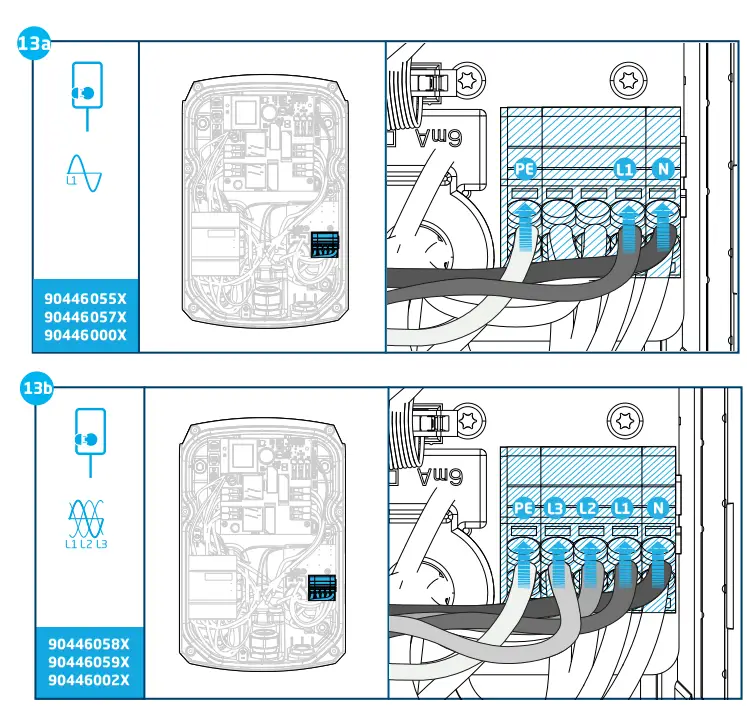

ELECTRICAL INSTALLATION
FIXED CHARGING CABLE ELECTRICAL INSTALLATION

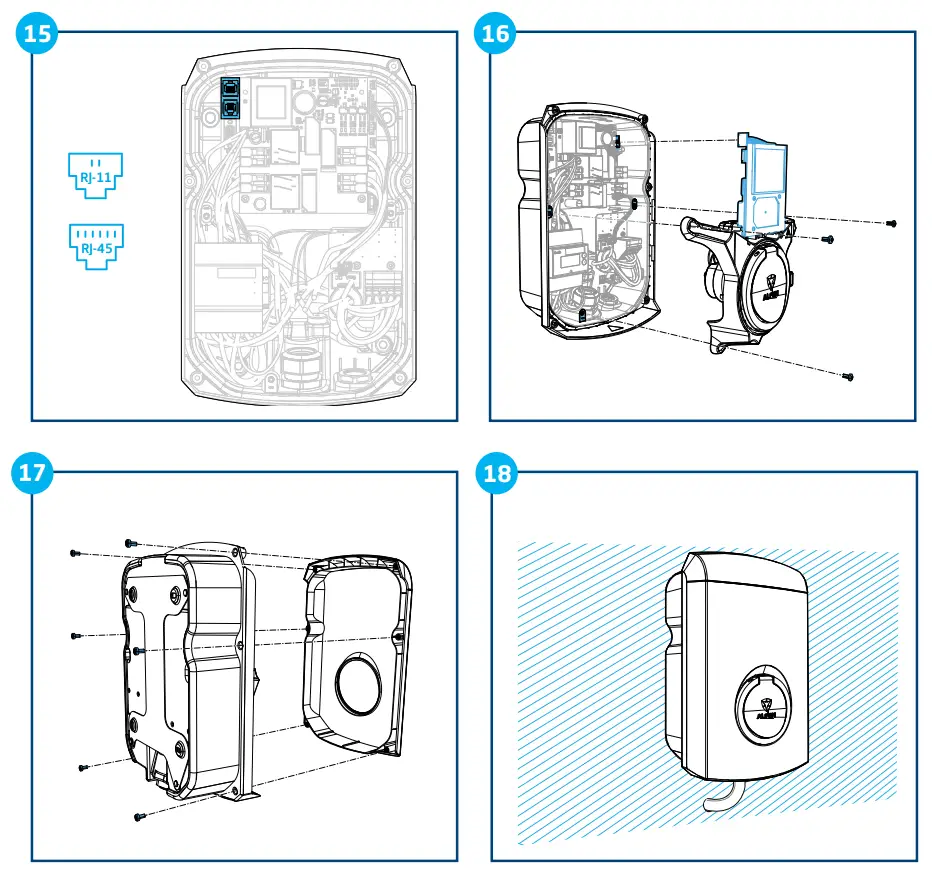

FINAL ASSEMBLY & CONFIGURATION
https://qrco.de/eve-single-s
https://qrco.de/eve-single-pro
DISPOSAL
Electrical and electronic equipment (EEE) contains materials, components and substances that may be hazardous and present a risk to human health and the environment when waste electrical and electronic equipment (WEEE) is not handled correctly.
Equipment marked with the below crossed-out wheeled bin is electrical and electronic equipment.
The crossed-out wheeled bin symbol indicates that waste electrical and electronic equipment should not be discarded together with unseparated household waste, but must be collected separately.
For this purpose all local authorities have established collection schemes under which residents can dispose waste electrical and electronic equipment at a recycling centre or other collection points, or WEEE will be collected directly from households. More detailed information is available from the technical administration of the relevant local authority.
Users of electrical and electronic equipment must not discard WEEE together with household waste.
Residents must use the municipal collection schemes to reduce adverse environmental impacts in connection with disposal of waste electrical and electronic equipment and to increase opportunities for reuse, recycling and recovery of waste electrical and electronic equipment.
Contact
Alfen ICU B.V.
Hefbrugweg 28
1332 AP Almere
The Netherlands
P.O. box 1042
1300 BA Almere
The Netherlands
Tel. Sales Support: +31 (0)36 54 93 402
Tel. Service: +31 (0)36 54 93 401
Website: www.alfen.com
Article no.: 203130039-ICU
