SyberSense EZ-BCam Indoor and Outdoor Camera User Guide
Introduction
Add security to your home Indoor or outdoor with the new EZ-BCam Battery Camera. It canbeBattery or Cable powered for indoor use, or powered with an extension cable for outdoor use. Magnetic base simplifies the camera installation process to just a minute. Attach and plugintohug your seamlessly secure video life
Included materials
- EZ-BCam Camera*1
- Magnetic base*1
- Type-C USB Cable*1
- Fixing screw*3
- Expansive rubber sleeve*3

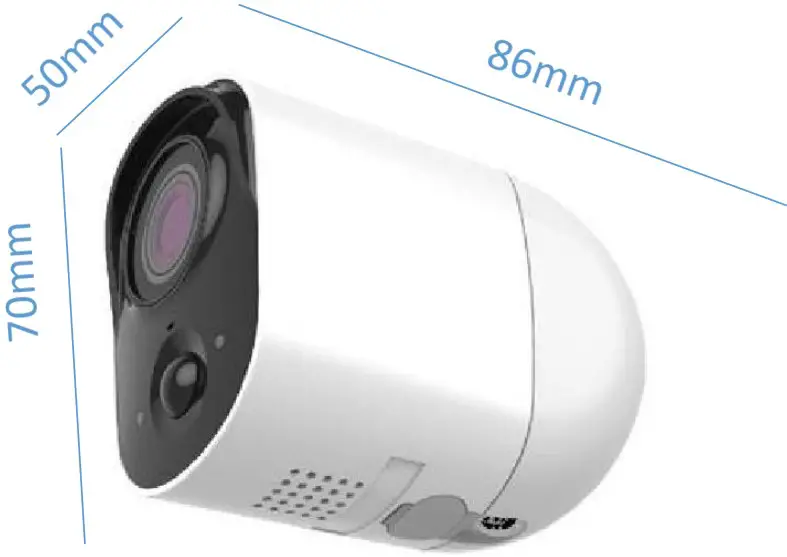

Product Appearance
Product Features
- Amazon Shadow and MQTT Protocol, faster and safer Communication with server.
- The magnetic mount allows easy installation and adjustments
- Built-in rechargeable battery allows wire-free and easy set up almost anywhere
- Compatible with D3 panels and the panel is as the Chime of the camera
- Reports Camera online offline status, low battery and all events to the panel & mobileApp
- AI enhanced Human body detection and auto launch the device for recording
- Custom Motion Zone plus the NN algorithm to reduce the false triggers
- Long battery life, as long as 4 months and rechargeable with cable or Solar Panel
Product Specification
| Model Name: EZ-BCam V1 (XOC01) | Video compression format H.264+ AAC For Video Clip and Video streaming |
| Memory: 2GBit Embedded DDR3 | Network protocol P2P Video streamingAWS IOT Camera configuration |
| Image sensor: 1/2.9″ FHD (1080P) sensor | Night Vision B&W Night Vision/850nm @5M |
| Streaming resolution: HD(720P)/FHD(1080P) | LED RGB color status LED |
| Video framerate Variable framerate 10-15fps | Chime Security Panel as Chime |
| OS: Dual OS (RTOS + Linux 4.9) | Storage: Cloud Storage: Amazon KVS Video storage |
| Field of View: 124(H)*67(V) | Power 5V 1A DC Type-C USBBattery: Built-in 6500mAh battery Solar Panel optional for charging |
| WIFI/ SubG RF radio WIFI: 802.11 b/g/n 2.4GHz SubG RF: 433MHz | Operation Temperature -20°C ~ 50°C (Charging function 0°C ~ 45°C) |
| Motion Detect Motion sensor/100° @ 5MAI Human detection algorithm to reduce false trigger | Waterproof IPX4 |
| Video /Audio Streaming Full-duplex two way call | Certification FCC/IC |
Warning：
This device complies with part 15 of the FCC Rules. Operation is subject to the followingtwoconditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC warning:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generatesuses and can radiate radio frequency energy and, if not installedand used in accordancewiththe instructions, may cause harmful interference to radio communications. However, thereisno guarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct the interferencebyone or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.
- Consult the dealer or an experienced radio/TV technician for help
This equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with minimum distance 20cmbetween the radiator & your body
This device complies with Industry Canada licence-exempt RSS standard(s). Operationissubject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimumdistance 20cm between the radiator & your body.
The distance between user and products should be no less than 20cm
