ALFATRON ELECTRONICS GmbH GERMANY
ALF-TPUK150-RS
18Gbps HDMI over HDBaseT Extender with Bi-directional IR (150M)
VER 1.0
Preface
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
FCC Statement
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. It has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. Operation of this equipment in a residential area is likely to cause interference, in which case the user at their own expense will be required to take whatever measures may be necessary to correct the interference. Any changes or modifications not expressly approved by the manufacturer would void the user’s authority to operate the equipment.
Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging. The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment. Please contact your local authorities for details about collection points.
Introduction
This ALF-TPUK150-RS is an 18Gbps HDMI Extender that can extend the high-definition video/audio signal, RS-232, and bi-directional IR at distances of up to 492ft / 150 meters between the transmitter and receiver via a single CAT 6 cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps, and HDCP 2.2. One HDMI loop port is available for output and the extender supports de-embedded audio for L/R audio output. In addition, the extender is equipped with a two-way IR pass-through which allows for source and display control.
This ALF-TPUK150-RS set includes a transmitter and receiver. The Transmitter captures the HDMI input signal and passes the signal via a single Cat 6 cable whilst transmitting / emitting IR control signals. The Receiver obtains the HDMI signal whilst transmitting/emitting the IR control signal.
The TPUK150-RS offers the most convenient solution for HDMI extension via a single Cat 6 with long-distance capability and is the perfect solution for any application.
Features
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18Gbps video bandwidth
- The maximum extended transmission distance via a single Cat 6 cable:
328ft / 100 meters for 4K2K signal; 492ft / 150 meters for 1080P signal - HDMI loop output on the transmitter
- Extract audio to analog stereo output on the receiver
- Bi-directional IR, RS-232, and CEC pass-through
- HDR, HDR10+, Dolby Vision, and HLG function supported
- Supports PoC (Power over Cable) function
- Compact design for easy and flexible installation
Package Contents
| Qt | Item |
| 1 | TPUK150 Transmitter |
| 1 | TPUK150 Reciever |
| 1 | IR Emitter cable (1.5 meters) |
| 1 | 20 ~ 60KHz IR Receiver cable (1.5 m |
| 4 | Mounting Ears |
| 2 | 3-pin Phoenix connector |
| 1 | 24V/1A Locking Power adapter |
| 1 | User Manual |
Specifications
| Technical | |
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions including 1920 x 1200 |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Colour Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTSHD Master, DTS HD-HRA, DTS-X |
| L/R Audio Formats | PCM 2.0 |
| ESD Protection | |
| Human body ±8kV discharge) & model — (Air-gap ±4kV (Contact discharge) | |
| Connection | |
| Transmitter | Inputs: lx HDMI Type A [19-pin female] Outputs: lx HDMI Type A [19-pin female] lx HDBT OUT [RJ45, 8-pin female] Control: lx IR IN [3.5mm Stereo Mini-jack] lx IR OUT [3.5mm Stereo Mini-jack] lx RS-232 [Phoenix jack] lx SERVICE [Mini-USB, Update port] |
| Receiver | Inputs: lx HDBT IN [RJ45, 8-pin female] Outputs: lx HDMI Type A [19-pin female] lx AUDIO OUT [3.5mm Stereo Mini-jack] Control: 1x IR IN [3.5mm Stereo Mini-jack] lx IR OUT [3.5mm Stereo Mini-jack] lx RS-232 [Phoenix jack] lx SERVICE [Mini-USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 140mm [W] x 65mm [D] x 18mm [H] |
| Weight | Transmitter: 160g, Receiver: 155g |
| Power Supply | Input: AC 100 – 240V 50/60Hz Output: DC 24V/lA (Locking connector) |
| Power Consumption | 9.36 W |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
| Resolution / Distance | |||
| 4K2K | 328ft / 100M | ||
| 1080P | 492ft / 150M | ||
| Resolution / Cable Length | 4K60 – Feet! Meters | 4K30 – Feet / Meters | 1080P60- Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| Use of a high quality HDMI cable is highly recommended. | |||

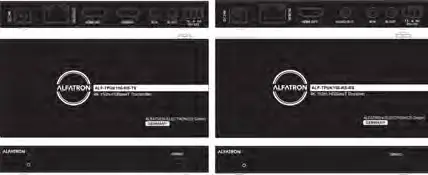

Operation Controls and Functions

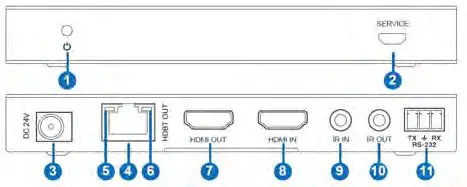

Transmitter Panel
| No. | Name | Function Description |
| 1 | Power LED | Red LED indicates that the transmitter is powered. |
| 2 | SERVICE port | Firmware update port. |
| 3 | DC 24V | DC 24V/lA power supply input port. Note that the extender supports PoC function, which means that either transmitter or receiver is powered on by a 24V/ 1 A power adapter, the other one doesn’t need a power supply. |
| 4 | HDBT OUT | RJ45 connector for connecting the HDBT IN port of receiver with a CAT 5e/6 cable. |
| 5 | Connection Signal Indicator lamp | •Illuminating: Transmitter and Receiver are well connected. •Flashing: Transmitter and Receiver are poorly connected. •Dark: Transmitter and Receiver are not connected. |
| 6 | Data Signal Indicator lamp | •Illuminating: HDMI signal with HDCP. •Flashing: HDMI signal without HDCP. •Dark: No HDMI signal. |
| 7 | HDMI OUT | HDMI loop output for display. |
| 8 | HDMI IN | HDMI source input. |
| 9 | IR IN | IR input port for receiving the signal of IR remote. |
| 10 | IR OUT | IR output port for control of source device. This IR output signal is from the IR IN port of the receiver. |
| 11 | RS-232 | 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass through from the transmitter to the receiver or from the receiver to the transmitter. |

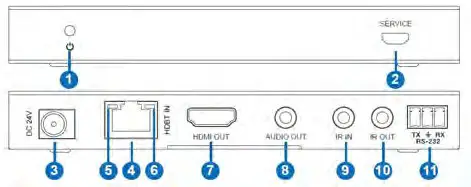

Receiver Panel
| No. | Name | Function Description |
| 1 | Power LED | Red LED indicates that the receiver is powered. |
| 2 | SERVICE port | Firmware update port. |
| 3 | DC 24V | DC 24V/lA power supply input port. Note that the extender supports PoC function, which means that either transmitter or receiver is powered on by a 24V/1A power adapter, the other one doesn’t need a power supply. |
| 4 | HDBT IN | RJ45 connector for connecting the HDBT OUT port of transmitter with a CAT 6 cable. |
| 5 | Connection Signal Indicator lamp | •Illuminating: Transmitter and Receiver are well connected. •Flashing: Transmitter and Receiver are poorly connected. •Dark: Transmitter and Receiver are not connected. |
| 6 | Data Signal Indicator | •Illuminating: HDMI signal with HDCP. •Flashing: HDMI signal without HDCP. •Dark: No HDMI signal. |
| 7 | HDMI OUT | HDMI output for display. | |
| 8 | AUDIO OUT | 3.5mm stereo connector for analog audio output. | |
| 9 | IR IN | IR input port for receiving the signal of IR remote. | |
| 10 | IR OUT | IR output port for control of display device. This IR output signal is from the IR IN port of the transmitter. | |
| 11 | RS-232 | 3-pin Phoenix connector for RS-232 command transmission.The RS-232 command will pass through from transmitter to receiver or from receiver to the transmitter. | |
IR Pin Definition

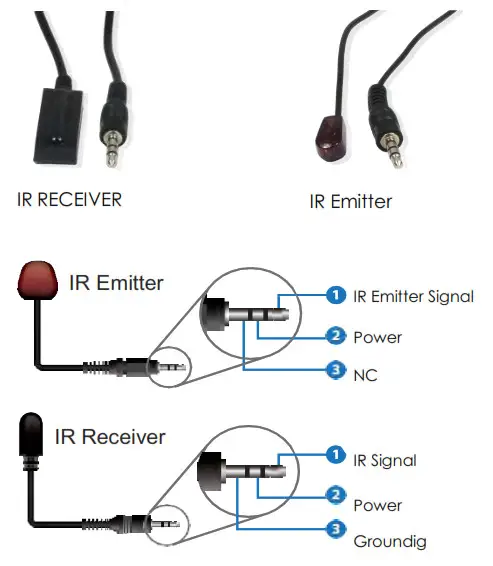

IR Receiver and emitter pin’s definition is as below:

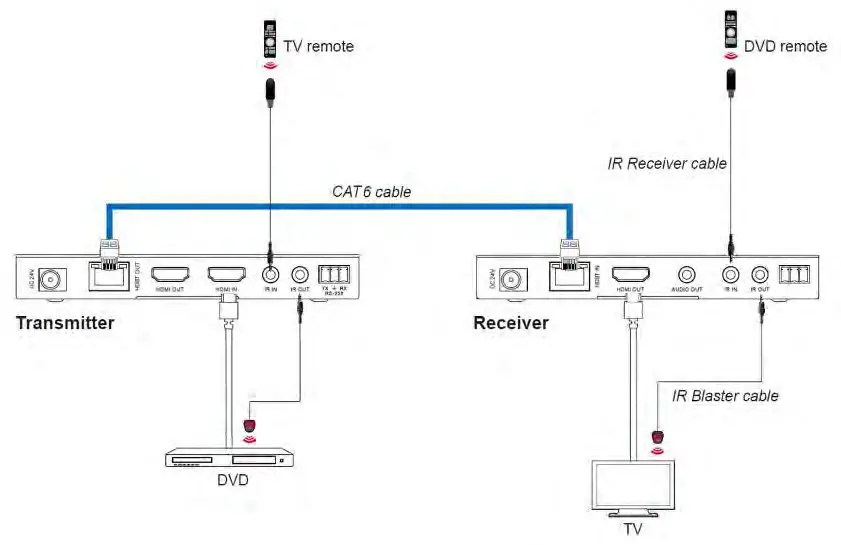

The following is an IR system diagram about the IR cable use method.
Note: When the angle between the IR receiver and the remote control is ± 45°, the transmission distance is 0 – 5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters.
Application Example
After-sales Service
Should you experience problems using the Alfatron ALF-TPUK150-RS please note that any transport costs of the equipment to the distributor are borne by the user during the warranty.
1) Product Limited Warranty: Alfatron warrants that its products will be free from defects in materials and workmanship for seven years, which starts from the first day of purchase.
Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the warranty period must be presented to obtain warranty service.
2) What the warranty does not cover (servicing available for a fee):
- Warranty expiration.
- The factory-applied serial number has been altered or removed from the product.
- Damage, deterioration, or malfunction caused by:
- Normal wear and tear.
- Use of supplies or parts not meeting product specifications.
- No certificate or invoice as proof of warranty.
- The product model shown on the warranty card does not match with the product or if the product had been altered.
- Damage caused by force majeure.
- Servicing is not authorized by Alfatron.
- Any other causes which do not relate to a product defect.
- Delivery, installation, or labor charges for installation or setup of the product.
Technical Support: Contact our after-sales department at www.alfatronelectronics.com
