Installation Guide
INSTALLATION KIT
| 2N WALLMOUNT BRACKETS (50*100) |  |
| 2 PLASTIC FASTENERS (4*32) |  |
| 2 SELF THREAD SCREW (4*30) |  |
| 4 SELF THREAD SCREW (2*6) |  |
| 1 WALL MOUNT PAPER TEMPLATE | |
| 2 PLASTIC FOOT & SELF-ADHESIVE RUBBER FOOT |  |
WALLMOUNT CARVAAN MUSICBAR

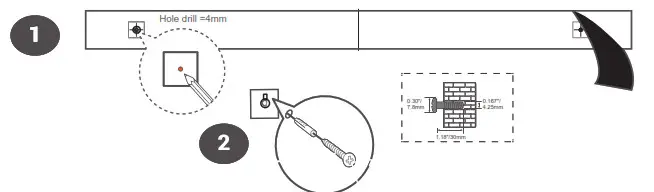

Step 1: Fix the screws
Stick the paper template in the installation kit using tape on the wall.
Mark the wall mount bracket hole location given on this template using a pen on the wall. Drill an only center hole at marked location and fix the screws (4*30) along with plastic fasteners provided in the kit.
Note: Ensure that the paper template is aligned correctly in order to avoid misalignment of the screws

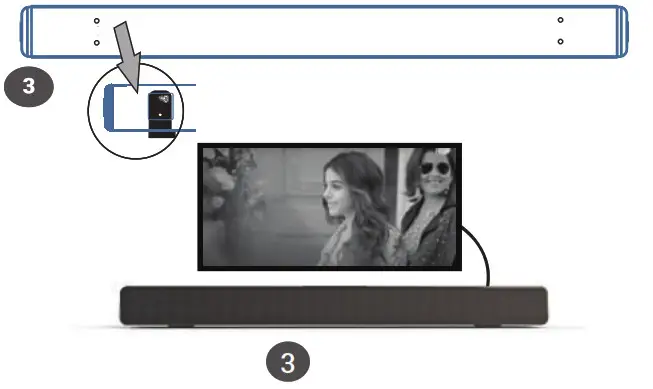

Step 2: Connect the brackets to the Carvaan Music bar
The installation kit comes with 2 brackets – one for each end of the Carvaan Musicbar. There are four holes (2 for each bracket) on the bottom of the device. Align the holes on the device and brackets. Once aligned, fix the two using the screws (2*6) provided in the wall mount kit. Your Carvaan Musicbar is now ready to be wall-mounted.
Step 3: Hook the Caravan Musicbar on the wall
Hook the brackets on the screws drilled on your wall. Connect HDMI cable before hanging.
PLACE YOUR CARAVAN MUSICBAR ON A TABLETOP
Step 1: Fix the plastic foot pegs
The installation kit comes with 2 plastic foot pegs. There are four holes (2 for each foot peg) on the bottom of the Carvaan Musicbar. Align the holes on the device and foot pegs. Once aligned, fix the two using the screws (2*6) provided in the installation kit.
Step 2: Place the rubber foot
The installation kit comes with 2 rubber feet. Peel the plastic on the same and paste one on each footpeg.
