Bivbtp B0bzz9q7sv Compressed Air Duster And Vacuum Cleaner User Manual

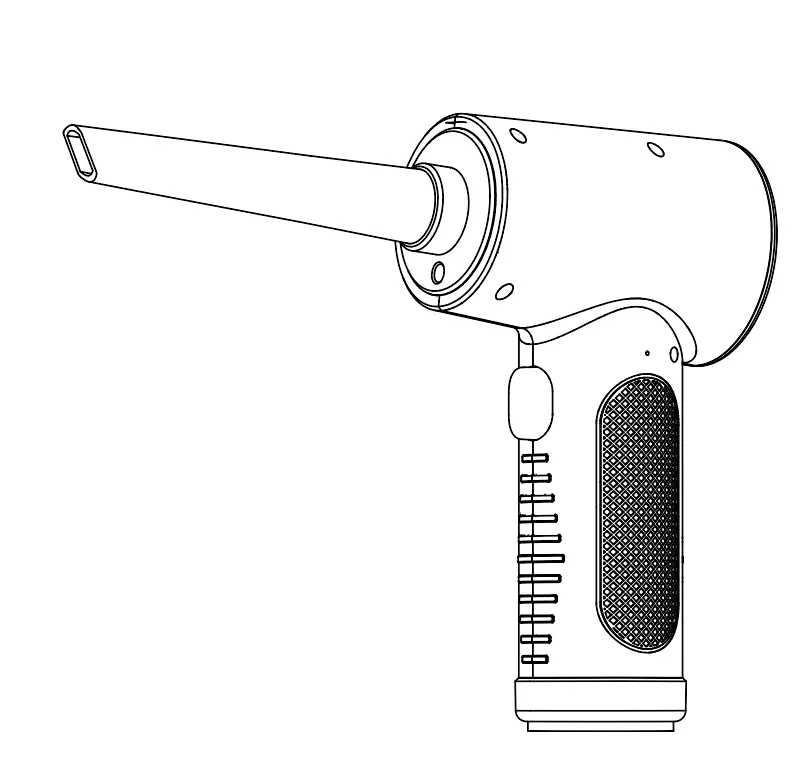

BIVBTP B0BZZ9Q7SV Compressed Air Duster and Vacuum Cleaner

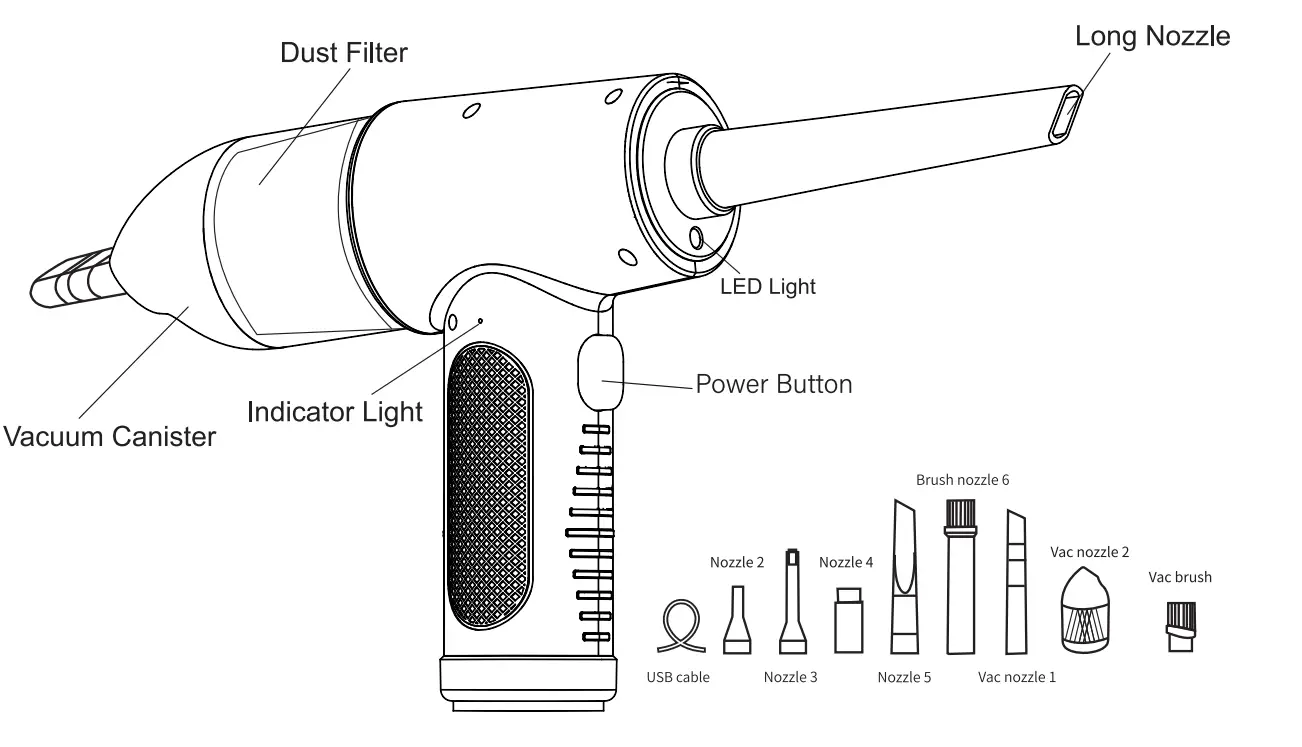

Overview

Please read this user manual carefully before using the product, and keep it for future reference.

Dusting Off /Blowing Air: Select nozzle 1-6 components or the brush nozzle according to the corresponding scenario.
Vacuum Cleaner: Select the nozzle or use it with the nozzle brush head according to the corresponding scenario.

About the components

Tube nozzle 1: For Cleaning up the dust in OA equipment or narrow spaces where tools can not reach out (used with Nozzle 2)
Nozzle 2: For camera lens/jewelry/phone’s charging port/BBQ grill or other objects.
Nozzle 3: For inflating swimming ring/beach ball/yoga ball; Air blasting on barbecue charcoal.
Nozzle 4: For PVC swimming pools and inflatable beds, etc.
Nozzle 5: For blowing the dust off the PC Cases, keyboards, tire treads, etc.
Brush Nozzle 6: For cleaning up static or thick and adhesive dust.
Vac Nozzle 1: For Vacuuming the dust or debris. Silicone Component: For pumping air for storage bags/compresssion bags ( used with nozzle 4 ).
Vac Brush: For vacuuming static or thick and adhesive dust(Used with Vac nozzle 1 ).

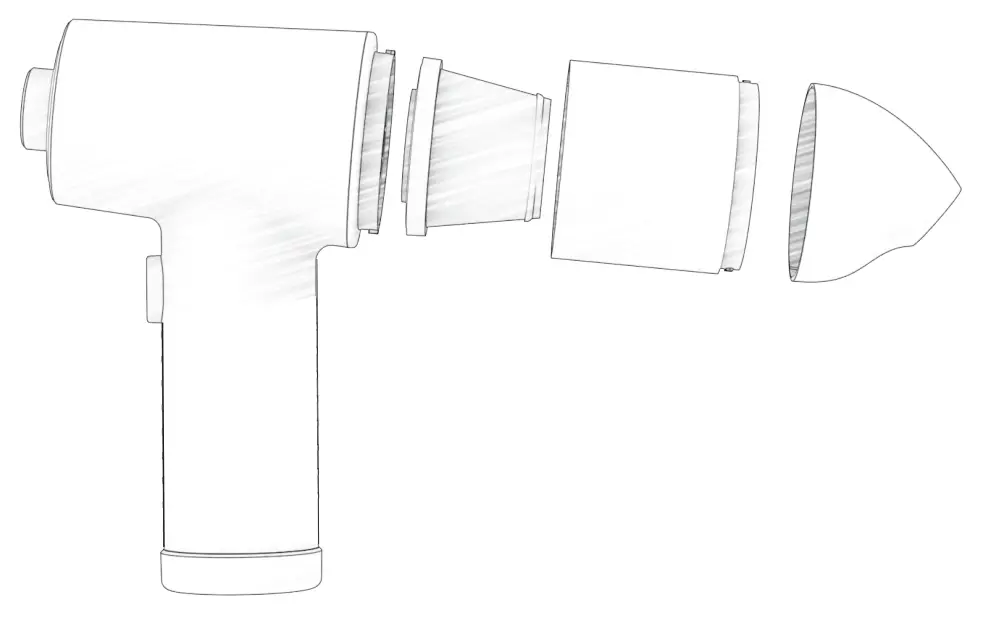

How to clean the Dust Canister?

1. Take off the dust canister, and ditch all the dirt, crumbs, or debris.
2. Take out the dust filter inside the dust canister, and clean it with water.

Please wait until it’s dry to use it again.

Notice: Please make sure the product has stopped running when you want to clean it.

Specifications

Operating instruction

1. Hold down the power button for 3 seconds to turn on the duster with the first speed gear defaulted.
2. Press the power button again to switch to the second gear.
3. Press the power button again to switch to the third gear.
4. Press the power button the fourth time to switch it to standby mode. If you do nothing in standby mode for about one minute, it turns off automatically.
5. Long press the power button to turn it off when it is in turn-on status.

How to Charge

1. Insert the Type-C port into the charging port on the air duster, and connect the other end to a 5V/2A USB adapter. A mobile phone adapter, a laptop, or a mobile power bank will work as well. To shorten the charging time, a 5V/2A adapter is the best choice.
2. When the device is charging, the indicator light flashes red. It will stay green light when fully charged.

Notes:

1. We suggest not using the product while charging. The battery might get damaged and malfunction. The discharging will outspeed the charging as well.
2. Please always start to use the product after it has fully charged, or it might stop running in a shorter time. Meanwhile, the battery’s life will get affected if you put them somewhere moist.

Indicator Introduction

1. Red light flashes when charging.
2. Stays green light when fully charged.
3. Stays green light while working.

Tips: To shorten the charging time, please charge it with a 5V/2A power supplier. Some adapters with smaller standards might cause longer time of charging or even worse.

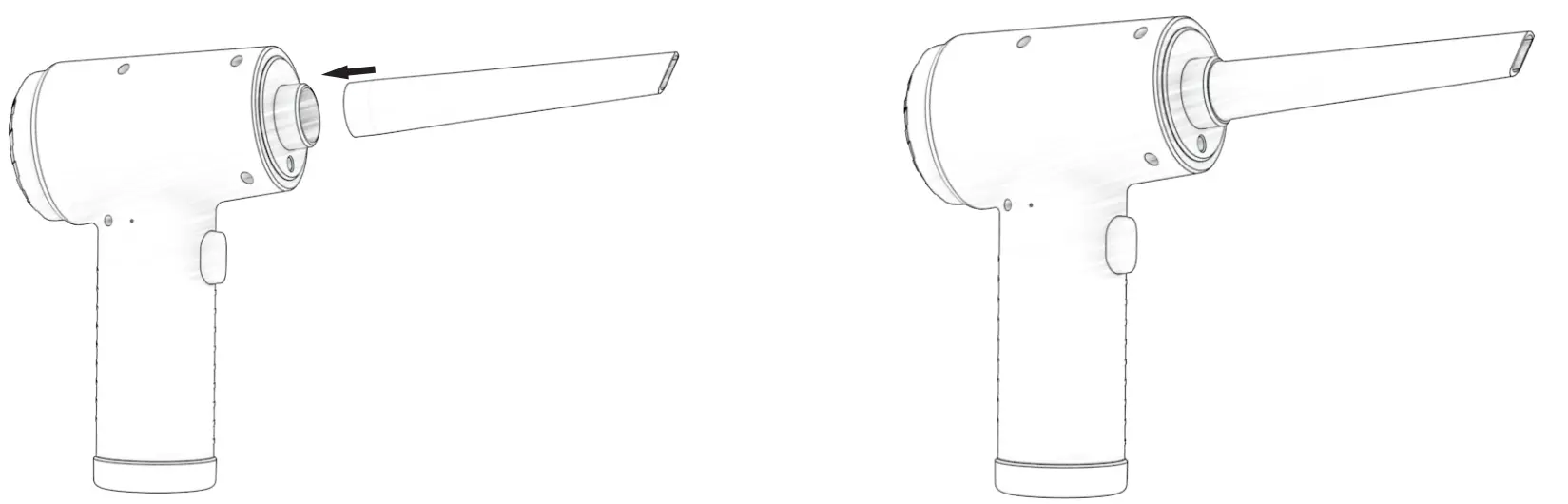

How to Use

Note:

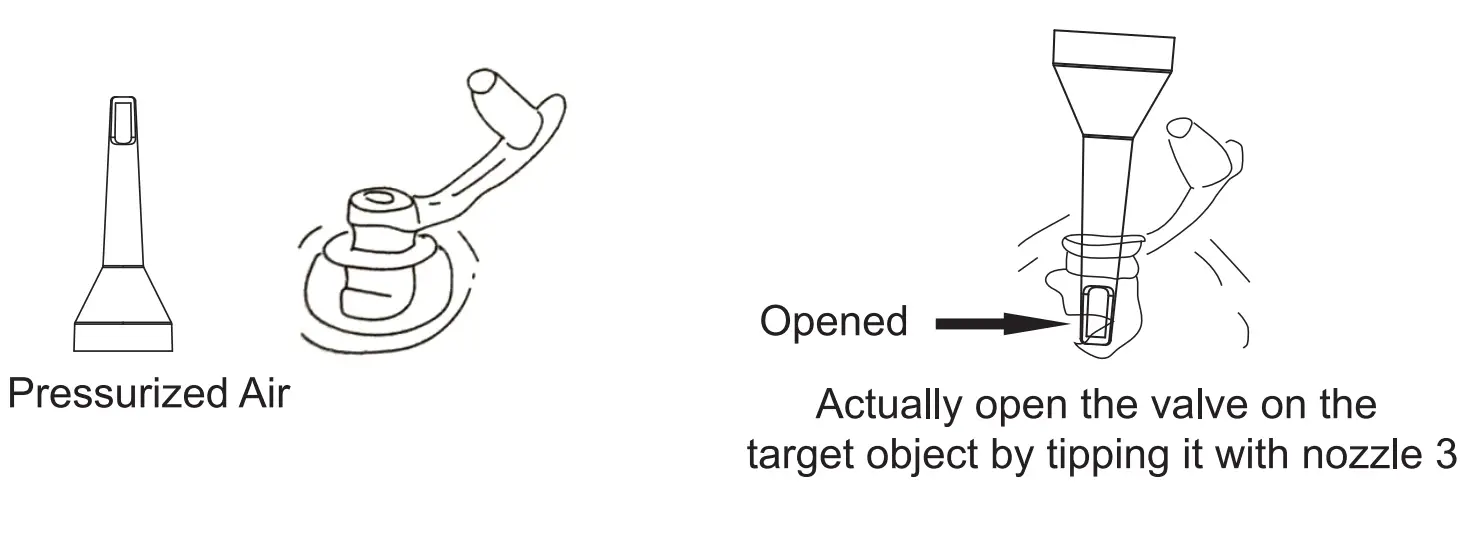

Before using the pressurized air with nozzle 3 for inflating, please open the valve on the target object by tipping it with nozzle 3.

As shown below:

Parameters:

Brand: BIVBTP
Product Name: Compressed Air Duster
Model Name: C4915
Power Supply: 5V/2A
Rated Power : 68w
Output Airflow :7.2 kPa (Max)
Working Temperature: 14°F-122°F
Dimension :160*100*65 mm
Weight: 485g

CUSTOMER SUPPORT

EVATOST CONSULTING LTD
Suite 11,First Floor,Moy Road Business
Centre, Taffs Well,Cardiff,Wales,CF15 7QR
[email protected]

Manufacturer:
Lixin Industrial (Shenzhen) Co., Ltd.

Manufacturer base:
3th Floor, C building , Futai Industry District, liaokeng Village,
Shiyan ,baoan , shenzhen , guangdong, China
