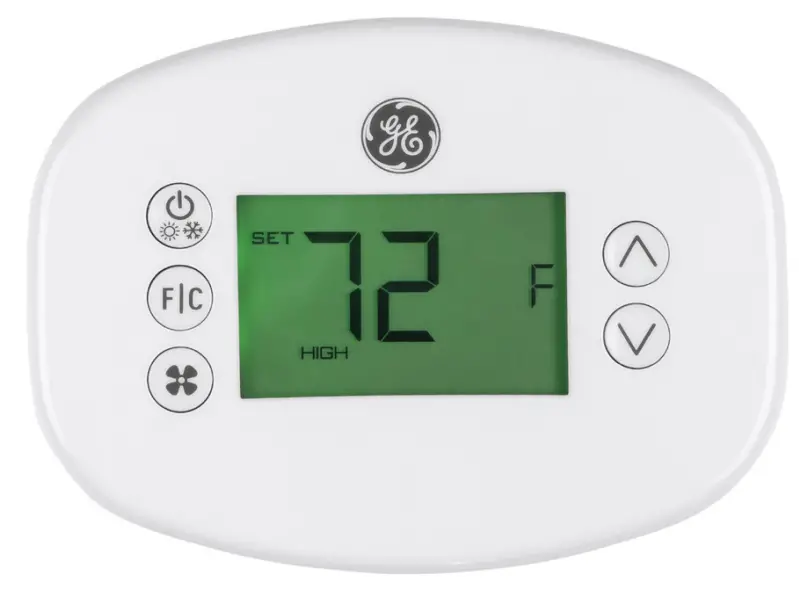

GE APPLIANCES RAK160W2 Wireless Thermostat
Wireless Thermostat
- Wireless communication with both wireless and wired power options
- Plug and Play with all AZ45/65/95 and AJE/AJH models
- 2 Fan Speeds
- Optional Remote Management* includes:
- 24/7 control over thermostat settings from computer, phone, or tablet
- Real-time guestroom temperature and humidity data
- Customized alerts to indicate potential concerns
- User management – providing different levels of control for staff
- Built in mesh network – no Wi-Fi network required
- Requires purchase of a network connection kit (OLKITNTWK) and individual
thermostat access subscription (XMFNOS)
- Requires purchase of a network connection kit (OLKITNTWK) and individual
Wireless Installation
Wired Installation

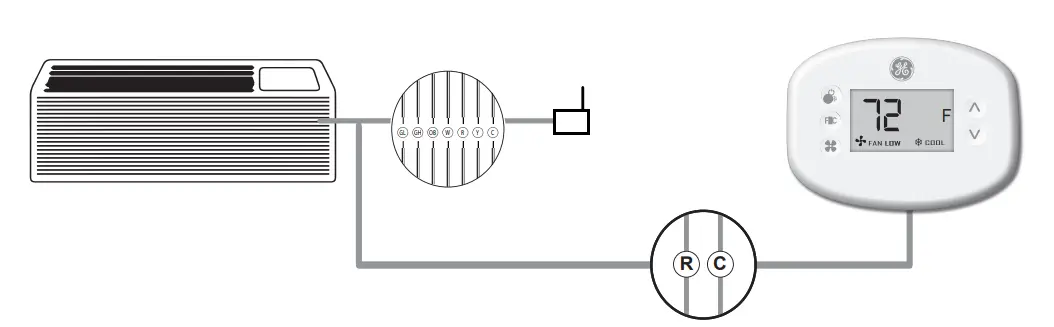

Optional Wired Thermostat Installation
| Wiring Table – 24V AC | ||
| BLACK | C | COMMON |
| RED | R | 24V |
SPECIFICATIONS – SUBJECT TO CHANGE
| Thermostat | Wireless Control Card | |
| Case Dimensions (Imperial) | 4.015 x 5.5118” x 0.925” | 3.875” x 2.125” x 0.75” |
| Case Dimensions (Metric) | 102mm x 140mm x 23.5mm | 98mm x 54mm x 19mm |
| Screen Dimensions (Imperial) | 3.625” x 2.125” | N/A |
| Screen Dimensions (Metric) | 92mm x 54mm | N/A |
| Operating Voltage | 3V DC – 2 “AA” Cell Batteries OR(Optional) 24V AC | 24V AC |
| Control Outputs | Fan High (GH) | |
| Fan Low (GL) | ||
| Compressor (Y) | ||
| Heat Pump (OB) | ||
| Heat (W) | ||
| Wireless Frequency | 900MHz | 900MHz |
| Temperature Accuracy | ±1°F | N/A |
| FCC ID | XEYWX | XEYV8ACCC |
Control Card Installation
| Wiring Table – 24V AC | ||
| BLACK | C | COMMON |
| RED | R | 24V |
| YELLOW | Y | COMPRESSOR |
| WHITE | W | HEAT |
| ORANGE | O OR B | REVERSE VALVE |
| GREEN | GH | FAN HIGH |
| PURPLE | GL | FAN LOW |
