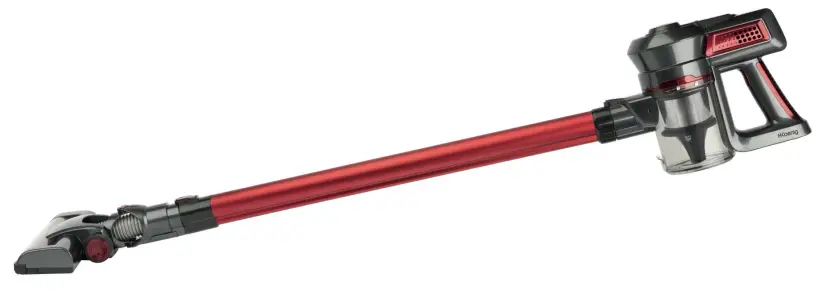

H-koenig Up810 2 In 1 Vacuum Cleaner Instruction Manual

INSTRUCTION MANUALUP810
2 IN 1 VACUUM CLEANER
https://goo.gl/V7sJQo

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.

RETAIN INSTRUCTIONS FOR FUTURE REFERRENCE.
Do not use in rain or leave outdoors whilst raining
WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury.

Personal Safety:

1. Store indoors in a dry place out of the reach of children;
2. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Don’t let children play with the appliance; supervise children using or maintaining the appliance;
4. Use only manufacturer’s recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended may present a risk of personal injury;
5. Take extra care when cleaning stairs;
6. Keep the appliance and accessories away from the hot surfaces;
7. Do not block the appliance’s openings or hinder airflow, keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body);
8. Particularly keep hair away from openings and moving parts;
9. The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

Electrical Safety:

1. Only use batteries and chargers supplied by the manufacturer;
2. Never modify the charger in any way;
3. The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate;
4. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack;
5. Before use, check the charger cord for signs of damage or aging. A damaged or entangled charger cord increases the risk of fire and electric shock;
6. Don does not abuse the charger cord;
7. Never carry the charger by the cord;
8. Do not pull the cord to disconnect from a socket, grasp the plug and pull to disconnect;
9. Don’t wrap the cod around the charger when storing;
10. Keep the charger cord away from hot surfaces and sharp edges;
11. The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced. It must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
12. Do not handle the charger or the appliance with wet hands;
13. Do not store or charge the appliance outdoors;
14. The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.
15. Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
16. Keep the appliance and its power cord out of reach of children under 8 years of age.
17. When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock, and/or injury in the event of misuse.
18. Make sure that the voltage rating on the typeplate corresponds to the main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit
19. Never leave the unit unattended while in operation.
20. Please keep this document at hand and give it to the future owner in case of transfer of your device.

Battery safety:

1. This appliance includes Li-ion batteries, do not incinerate batteries or expose to high temperatures, as they may explode;
2. Liquid ejected from the battery may cause irritation or burns;
3. in an emergency situation contact professional help immediately;
4. Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations;
5. Shorting the battery terminals may cause burns or fire;
6. When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws, or other small metal objects that could make a connection from one terminal to another.
7. When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.

Service:

1. Before using the appliance and after any impact, check for signs of wear of damage and repair as necessary;
2. Do not use the appliance if any part is damaged or defective;
3. Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous;
4. Never modify the appliance in any way as this may increase the risk of personal injury;
5. Only use replacement parts or accessories provided or recommended by the manufacturer.

Intended use:

1. This appliance has been designed for domestic dry vacuum cleaning only;
2. Do not pick up liquids or use on wet surfaces;
3. Do not pick up anything that is flammable, burning or smoking;
4. Use only as described in this manual;
5. Don’t use on concrete, tarmacadam, or other rough surfaces.

WARNING:

1. Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth;
2. Never immerse the unit in water and do not clean in a dishwasher.

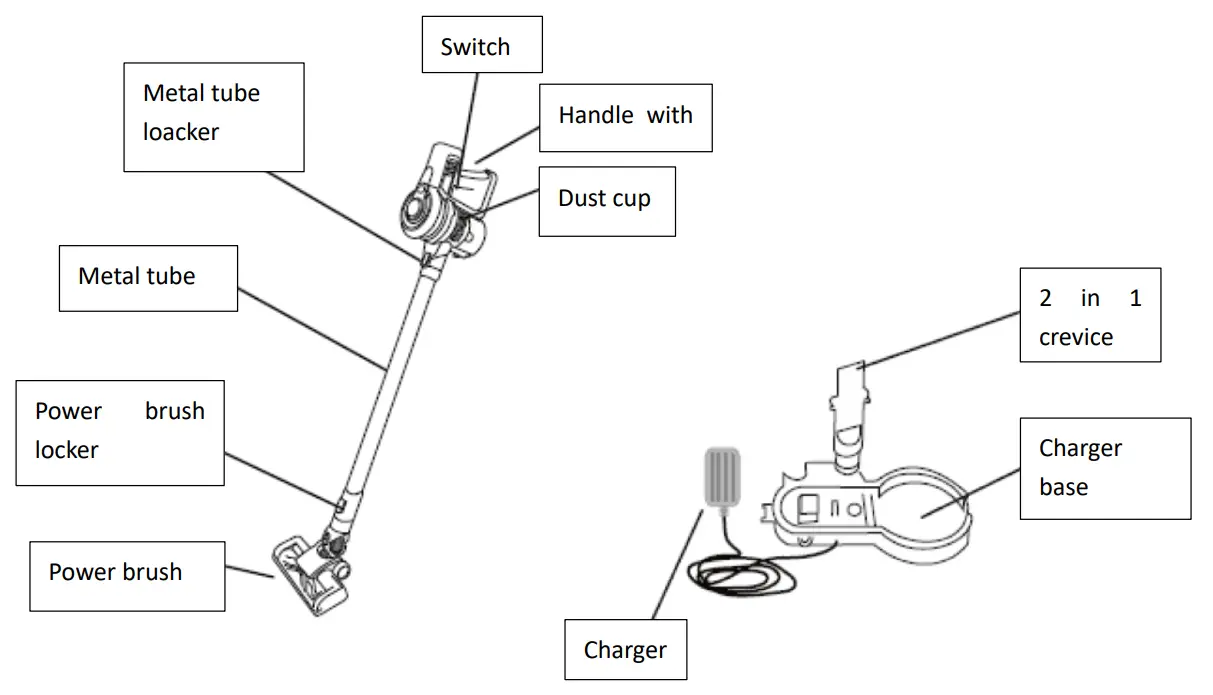

Introduction of components:

Use as the stick vacuum cleaner

a) Assemble the battery into the dust cup, make sure the battery bolt head insert the dust cup slot rightly as below

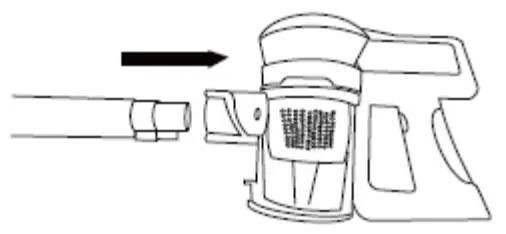

b) Attached the metal tube to the body as below until hearing a click sound

c) Attached the brush to another head of the metal tube as below showed

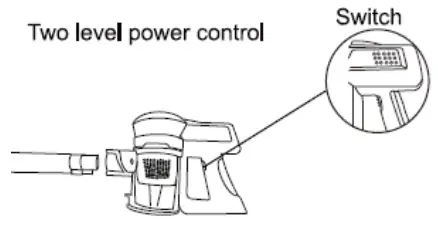

d) Press the switch to work

A Lower power
It’s lower power when your press the switch button first time
B high power
Its high power when you press the switch button a second time It will be power off when press third time, it’s kind of circle as below showed

How to use as handly

Insert the accessory (2in 1 crevice or long crevice) to the body as below showed

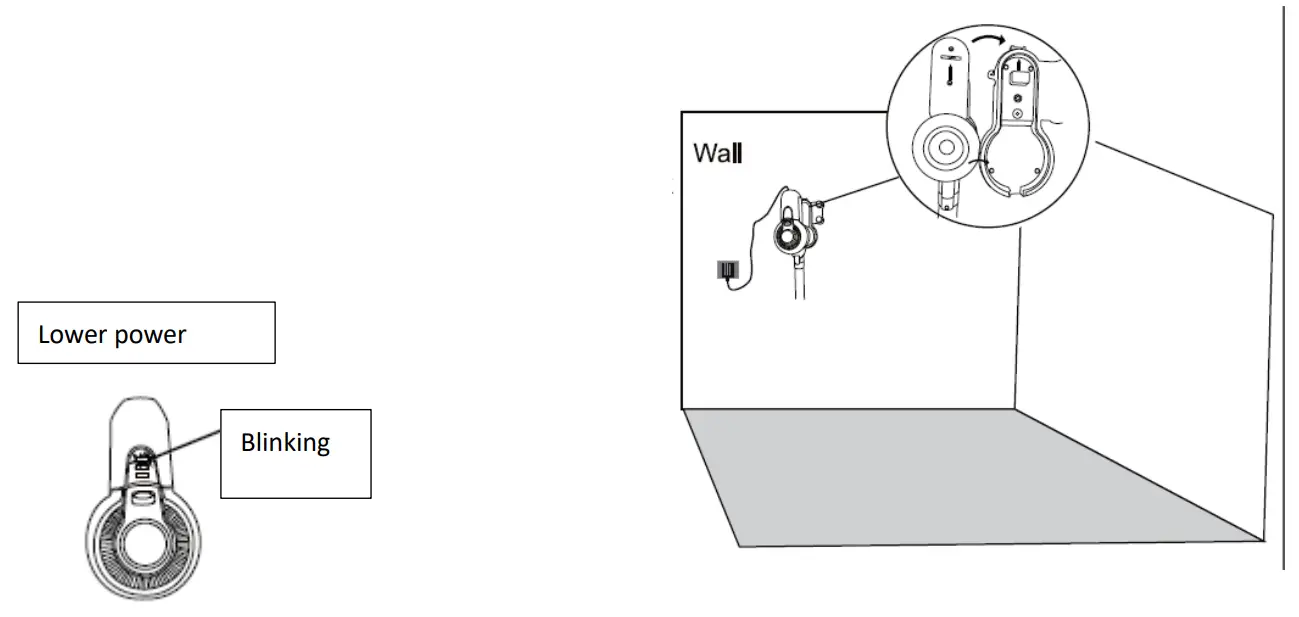

BATTERY CHARGING:

When the battery power indicator Is blinking, please power off then Put it back to charge base for charging As left showed

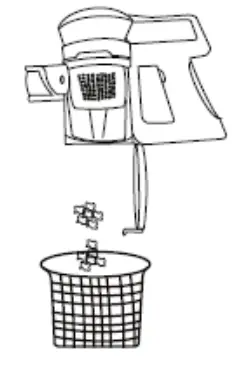

HOW TO EMPTY THE DUST CUP:

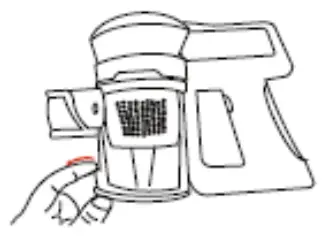

1. Press the metal tube locker then take out the metal	2. unlock the dust cup locker	3. Empty the dust cup

HOW TO MAINTAIN THE FILTER:

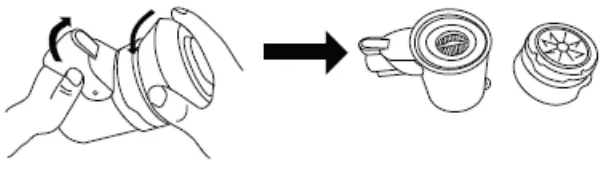

1. Press the battery locker to unattached the battery  from the dust cup	2. Open the dust cup as below showed

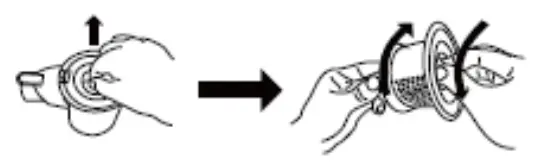

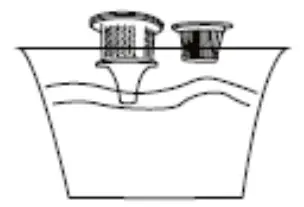

3. Take out the filter case, then take out the filter	4. wash the filter case and
	HEPA filter

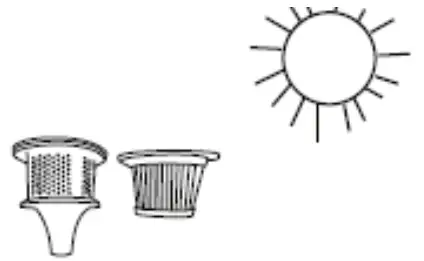

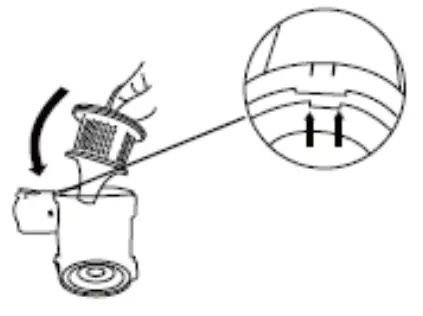

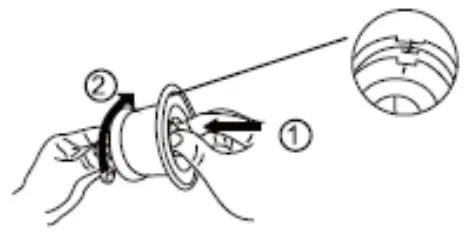

5. Please dry the HEPA filter and filter case completely before assembling it back	6. After drying, assemble the filter to the case
7. put the filter case back to the dust cup	8. assemble the dust cover into the dust cup as below  showed

TROUBLESHOOTING:

TECHNICAL SPECIFICATION:

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe – 8 rue Marc Seguin – 77290 Mitry Mory – France
www.hkoenig.com – [email protected] – [email protected] – Tél: +33 1 64 67 00 05
