Delux Gm902 Wireless Ergonomic Split Keyboard Rechargeable User Manual

Ergonomic Split Keyboard

Package Content

keyboard
Manual*1
Built-in Lithium Battery
System
Windows / Mac / Android / IOS

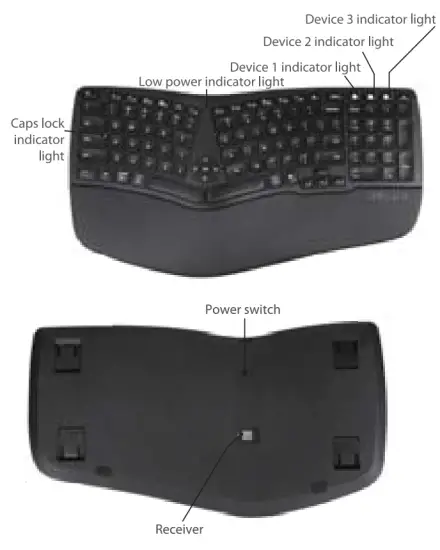

Illustration

The Keyboard Function

Icon	Bluetooth (I0S)	Bluetooth (MAC)	Bluetooth (Windows/ Android)	Icon	Bluetootl” (I0S)	Bluetooth (MAC)	Bluetooth (Windows/ Android)
	Brightness –	Brightness –	Brightness –		Brightness +	Brightness +	Brightness +
	Windows	Windows Preview	Windows		Recent Windows	Application Center (Ctrl +Shift+V)	Windows Preview(Not for Android)
	Non- function	Desktop	Desktop		Search	Search	Search
	Previous	Previous	Previous		Volume +	Volume +	Volume +
	Next	Next	Next		Volume –	Volume –	Volume –
	Play/Pause	Play/Pause	Play/Pause		Select All	Select All	Select All
	Copy	Copy	Copy		Paste	Paste	Paste
	Cut	Cut	Cut		Mute	Mute	Mute
	F1-F12 Lock	F1-F12 Lock	F1-F12 Lock		Home	Non- function	Home
	ScreenShot	ScreenShot	ScreenShot		Lock Screen	Lock Screen	Lock Screen
All Functions can work by a single key as default; F1-F12, tap anyone can be locked.

Instruction

1. Charge Mode Connected the keyboard to the USB port with a cable for charging. An indicator light turns red when charging, the light off when fully charged.
2. Device Switch Turn on the keyboard, tap the device button (1.2.3) can switch the device connection.
   The upper right corner on the keyboard:

   	Device 1 (2.4G receiver mode)
   	Device 2 (Bluetooth mode 1)
   	Device 3 (Bluetooth mode 2)

3. Code Matching Mode
   Device 1: Tap device 1 and plug the receiver into a USB port(2.4g mode has matched before delivery). You can set it as follows if it doesn’t work. Plug the receiver into a USB port and press ESC+ 3s, then you can match the code.
   Device 2: Tap device 2, the corresponding light flashes, then press device 2 (about 3s), and the indicator light flashes faster. The keyboard “BT4.0+2.4G KB” can be searched on your device. You can use the keyboard when connected successfully.
   Device 3: Tap device 3, the corresponding light flashes, then press device 3 (about 3s), and the indicator light flashes faster. The keyboard “BT4.0+2.4G KB” can be searched in your device. You can use the keyboard when connected successfully.
4. Battery Detection
   “Please charge in time when the battery voltage is less than 3.2V (indicator light flashes red).”

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
