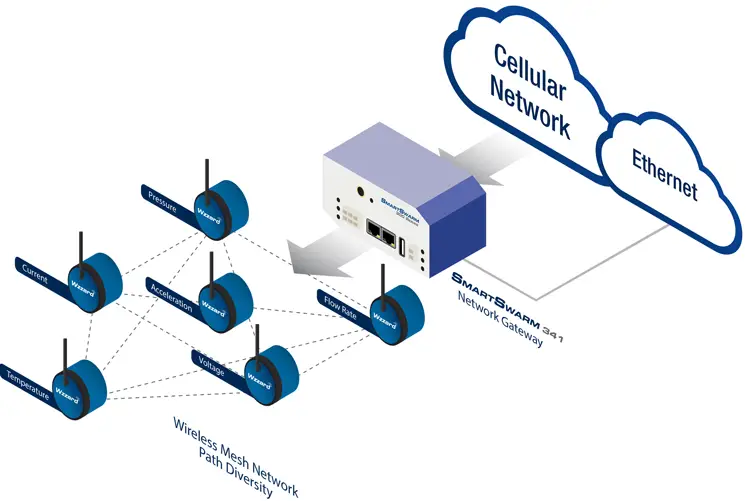

Analog Devices ETERNA2 802.15.4 Wireless Mesh Mote
Antenna Installation Manual

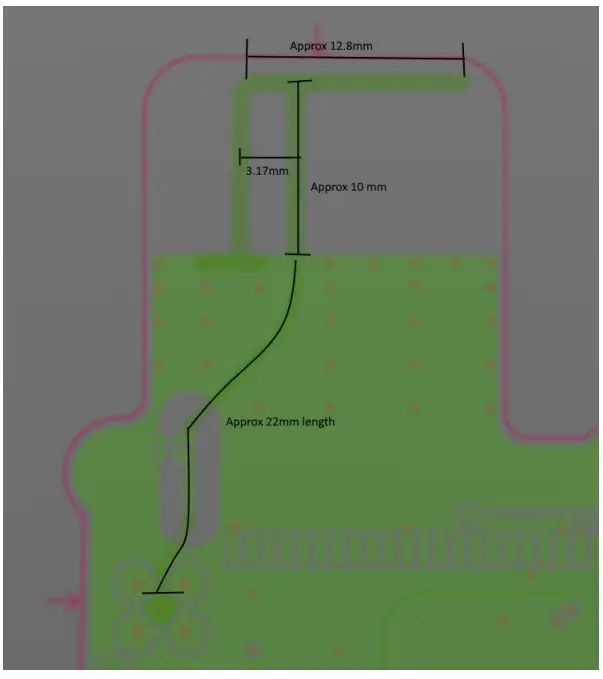

Antenna and Trace Information
(May also reference image above for dimensions)
SPECIFICATION
- Antenna type: inverted F
- Nominal Impedance: 50ohm
- Dielectric Constant of PCB Substrate 4.27
- Radio to Antenna Trace
- Width: Approx 0.58mm
- Length: Approx 22mm
- Antenna Trace
- Width: Approx 1mm width
- Length: Approx 10mm and 12.8mm
Contact Information
Per Section CFR 47, Part 2.909, the responsible party within the United States is the following:
- Company: Emerson Automation Solutions, Rosemount Inc
- Address: 6021 Innovation Blvd., Shakopee, MN, 55379, USA
- Contact Person: Elizabeth Reierson
- Title: Quality Engineer
- Email: [email protected]
