Knipex 16 95 01 Sb Ergostrip Universal Stripping Tool Owner's Manual

KNIPEX 16 95 01 SB ErgoStrip Universal Stripping Tool

Product Information

• Article No.: 16 95 01 SB
• EAN: 4003773079927
• Weight: 75 g
• Dimensions: 135 x 85 x 37 mm
• REACH compliant: Yes
• RoHS compliant: Yes

General

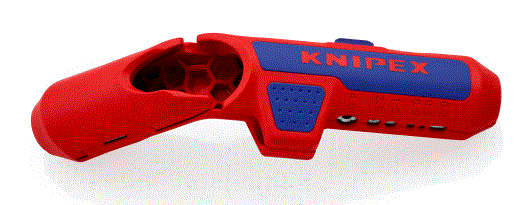

The Universal Stripping Tool has an innovative, ergonomic pistol grip design that makes cutting, stripping, and longitudinal cuts of the sheath easy, while also providing a secure grip. The housing is made from stable glass fiber-reinforced plastic.

Installation

Technical Details

Wire Stripping Value for Conductors and
Strands: Not specified

Wire Stripping Value for Data Cable CAT 5 – 7, Twisted
Pair (UTP/STP): Not specified

Stripping Capacities: Not specified

Product Usage Instructions

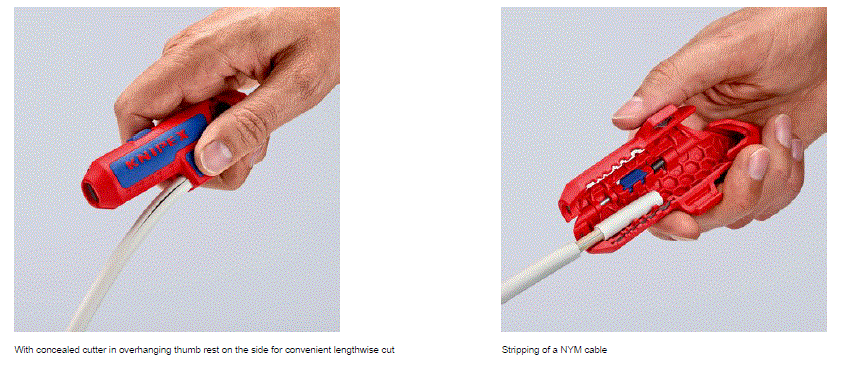

The Universal Stripping Tool can be used to strip single conductors, coax cables, data cables, and NYM cables. It also has a concealed cutter in the overhanging thumb rest on the side for convenient lengthwise cuts.

To Strip Single Conductors:

1. Place the conductor in the stripping hole.
2. Squeeze the handles together to cut the insulation.
3. Remove the insulation.

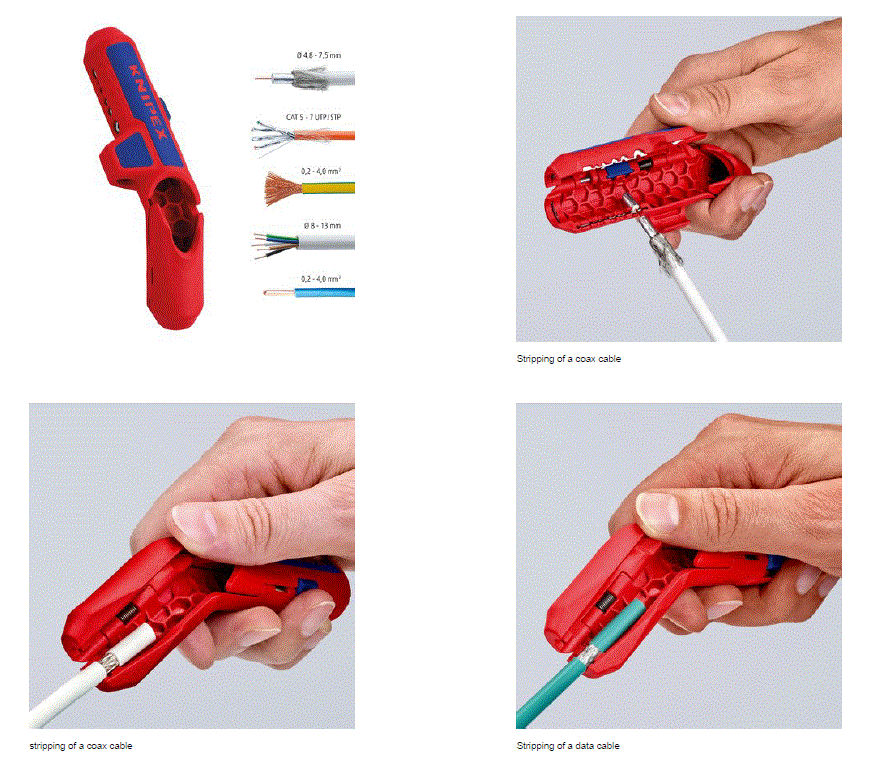

To Strip Coax Cables:

1. Insert the cable into the stripping hole.
2. Rotate the tool around the cable to cut the insulation.
3. Remove the insulation.

To Strip Data Cables:

1. Insert the cable into the stripping hole.
2. Squeeze the handles together to cut the insulation.
3. Remove the insulation.

To Strip NYM Cables:

1. Place the cable in the stripping hole.
2. Squeeze the handles together to cut the insulation.
3. Remove the insulation.
