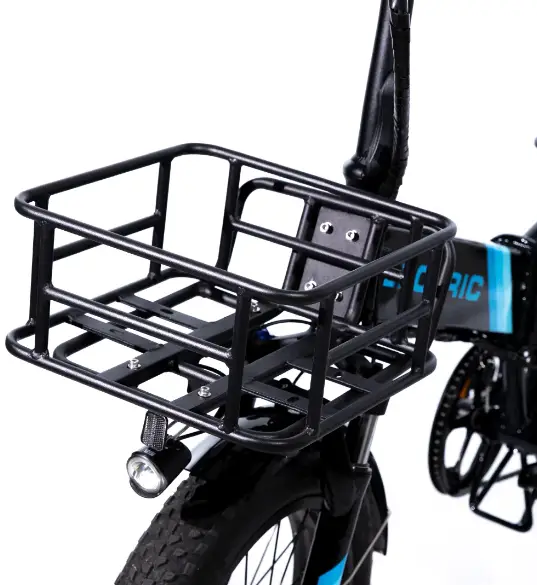

LECTRIC eBIKES Small Basket User Guide
Installation Instructions
How to correctly install your small basket
MAX Weight Capacity- Front Rack: 30lbs Rear Rack:75lbs

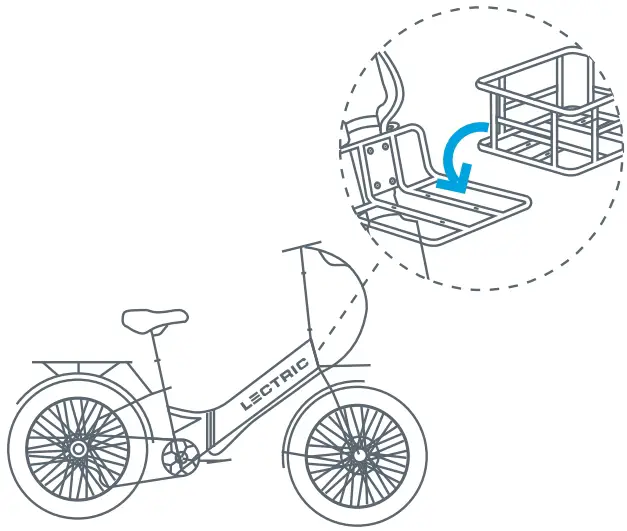

- STEP 1
Place the small basket above the front rack while aligning the screw holes above the insertion points of the front rack.

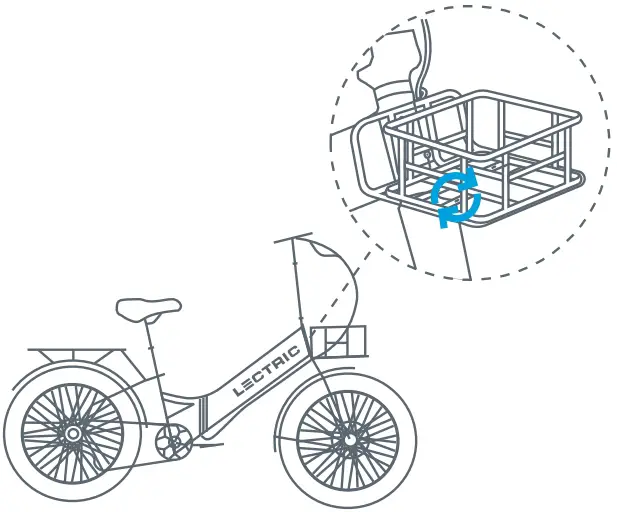

- STEP 2
Line up all screw holes and insert screws/washers. Begin finger
tightening each screw/washer until all are snug in place. Use a 4mm allen wrench to tighten the screws/washers, connecting the rear basket to the rear rack.

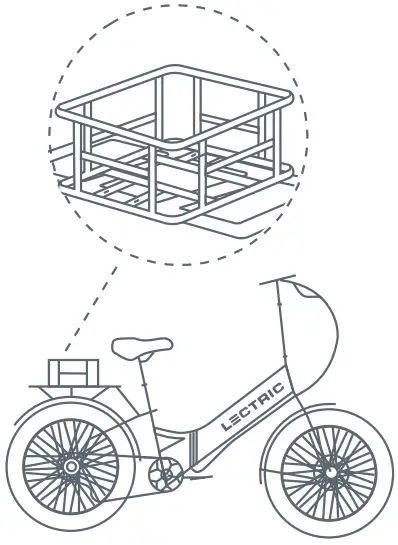

- STEP 3
Baskets are interchangeable with front and rear racks. The basket may be placed perpendicular or parallel to the rear rack, depending on personal preference.
