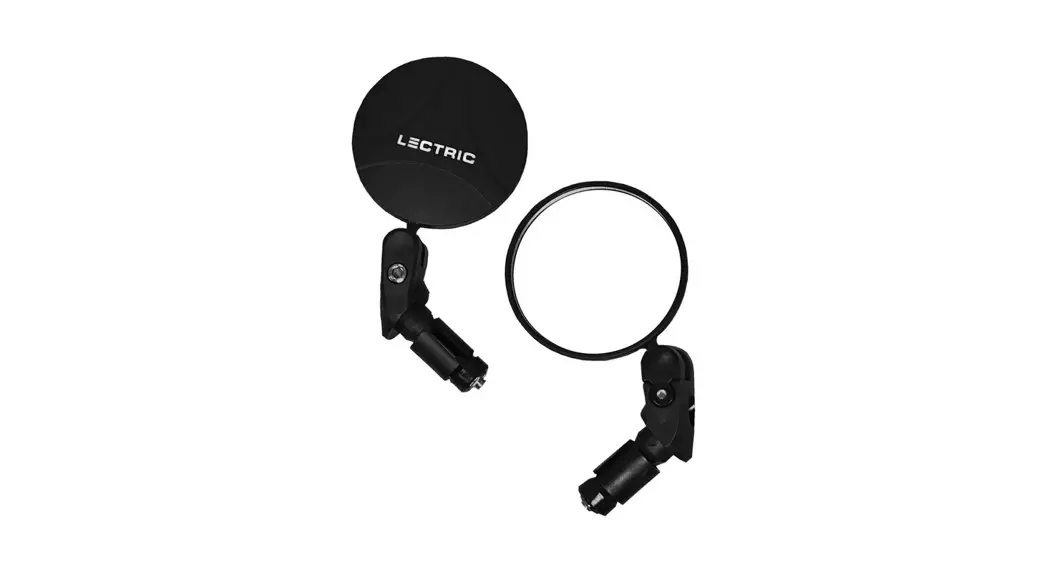

eBIKE Handle Bar Mirror
User Guide
Handle Bar Mirror
HANDLEBAR MIRRORS QUICK START
How to correctly install your handlebar mirrors
STEP 1
Identify if you have bar end plugs on your bike or a closed grip.
If you have a closed grip continue to STEP 2.
If you have bar end plugs proceed to STEP 3.

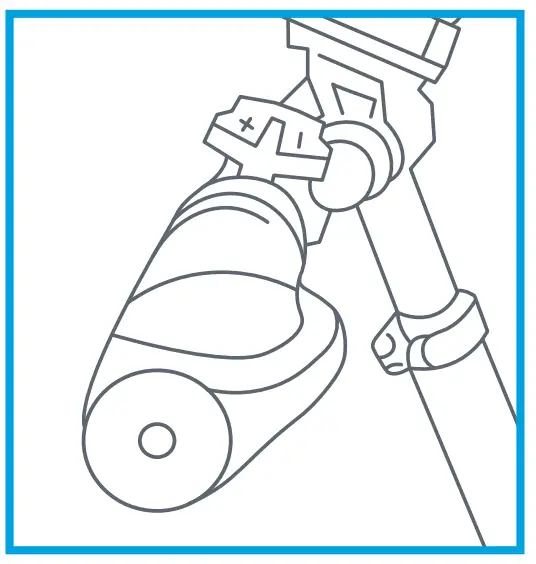

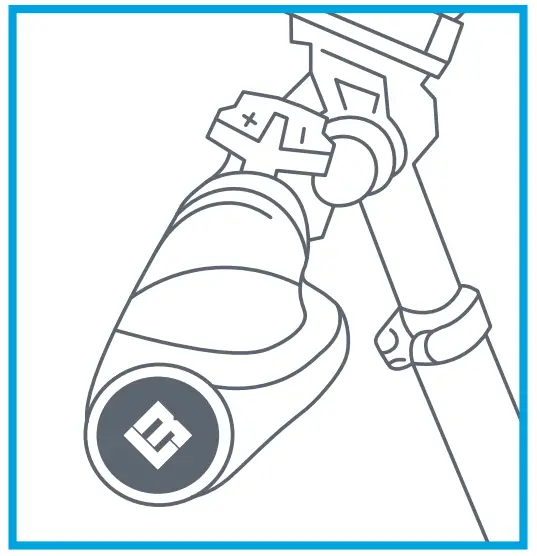

Closed grip | Bar end plugs |
 |  |
STEP 2
To begin, you will need to create a larger opening at the end of the rubber handlebar grip.
Behind your handlebar grip, your handlebars are hollow, this is where the collar of the mirror will fit into.
Use a knife to create a larger opening for the mirror collar.

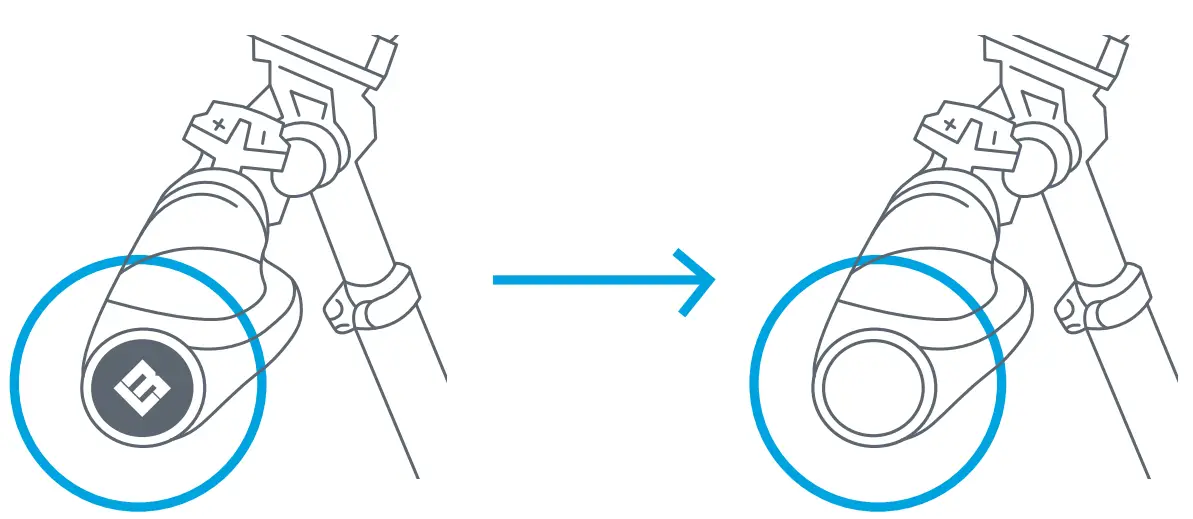

STEP 3
Use a flathead screwdriver to carefully remove the plug at the end of your handlebars.

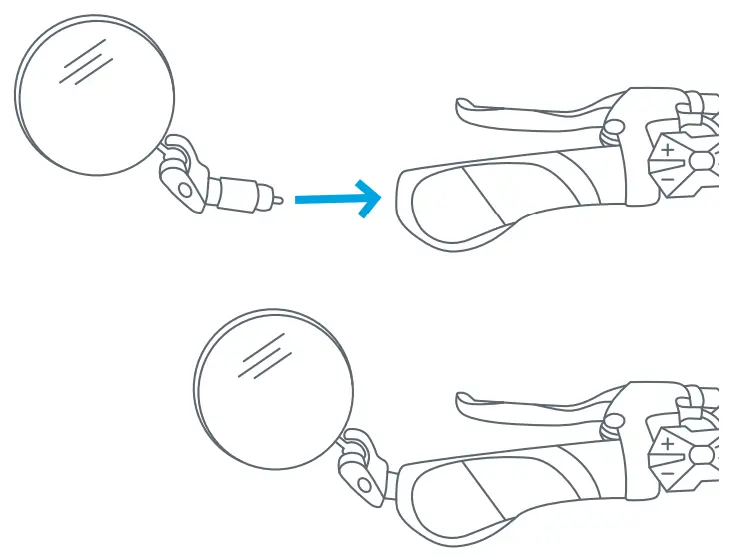

STEP 4
Next, you will insert the mirror collar into the opening.

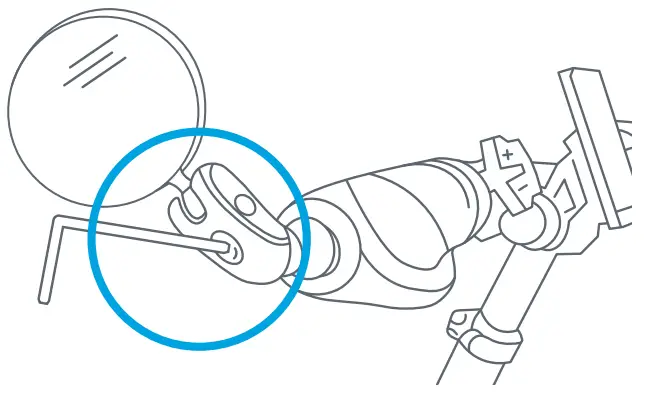

STEP 5
Using your 5mm hex wrench, tighten the screw to expand the collar grip. This secures the mirror within the handlebars.

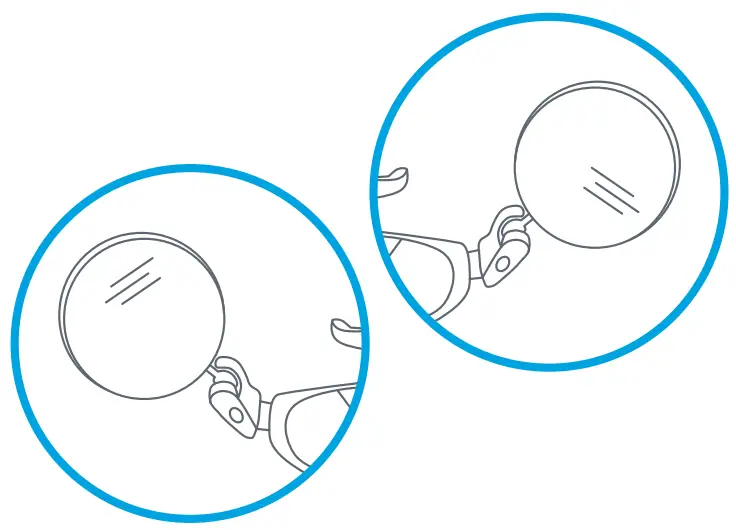

STEP 6
Once your mirrors are secure, adjust each mirror to the best position for YOU!
