Adxm1023 Firepower Pro 23 Rgb Gaming Mouse Instruction Manual

Product Overview

Top View

1. Right Button
2. Scroll Wheel
3. Left Button
4. DPI Button
   Press to switch between different DPI resolution.
5. DPI Lights
   Showing different DPI in different colours.

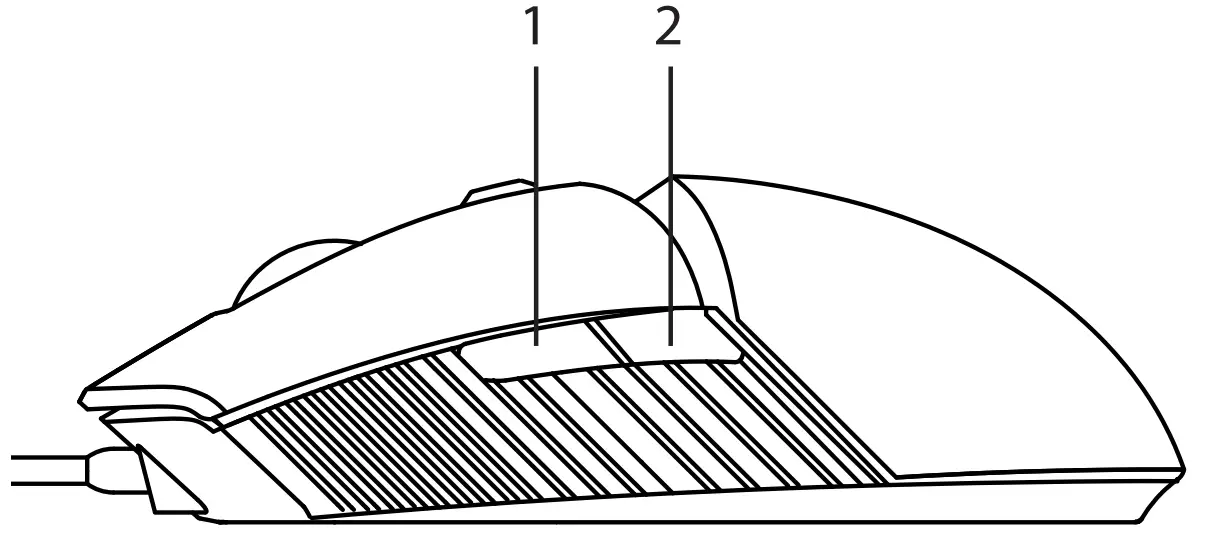

Side View

1. Foward Button
2. Backward Button

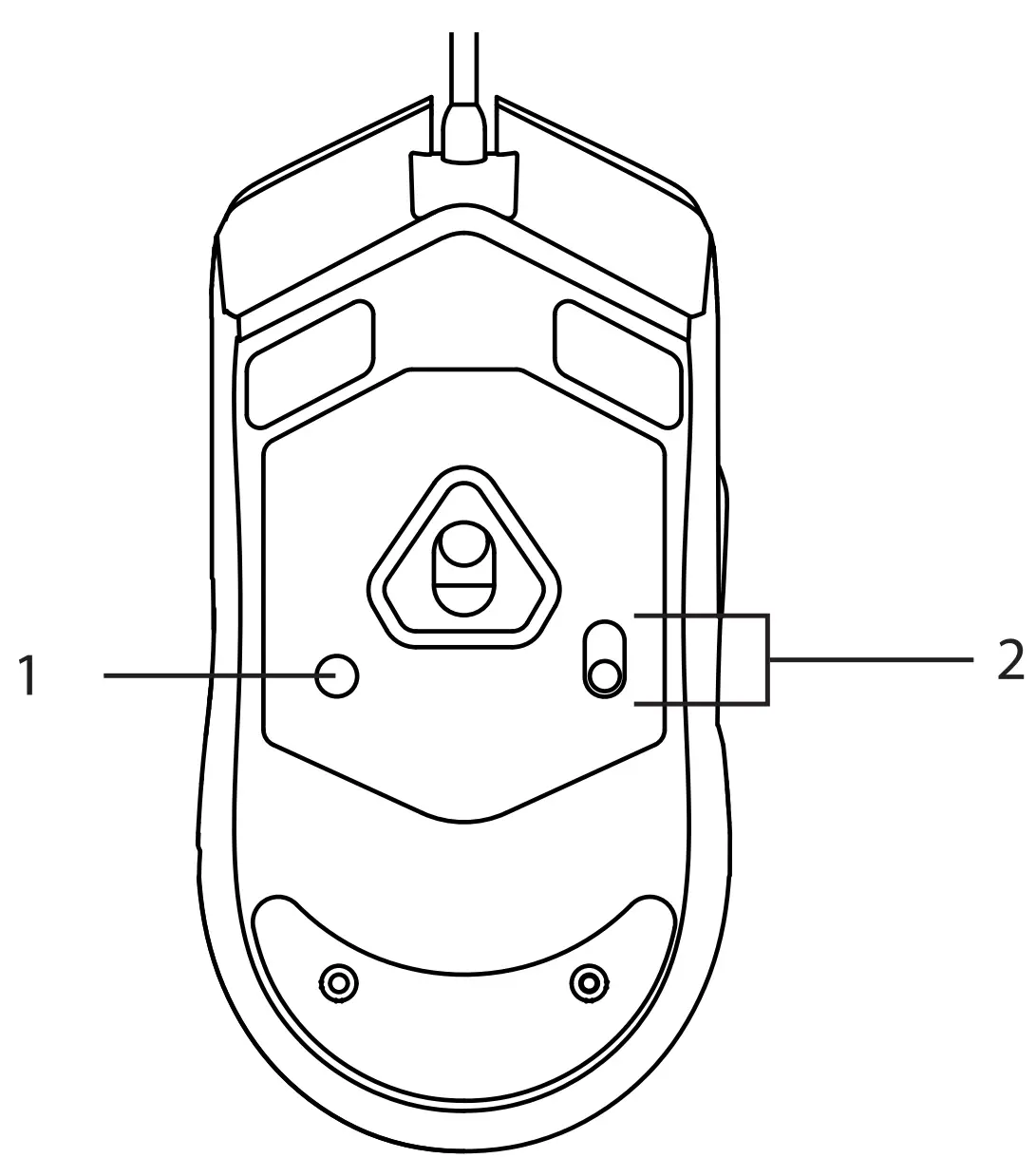

Bottom View

1. RGB light mode Button
   Press to switch between different RGB light modes.
2. RGB ON/OFF Button
   Press to switch On/Off the RGB light

DPI Settings

Press the DPI button on the mouse repeatedly to select desired resolution.

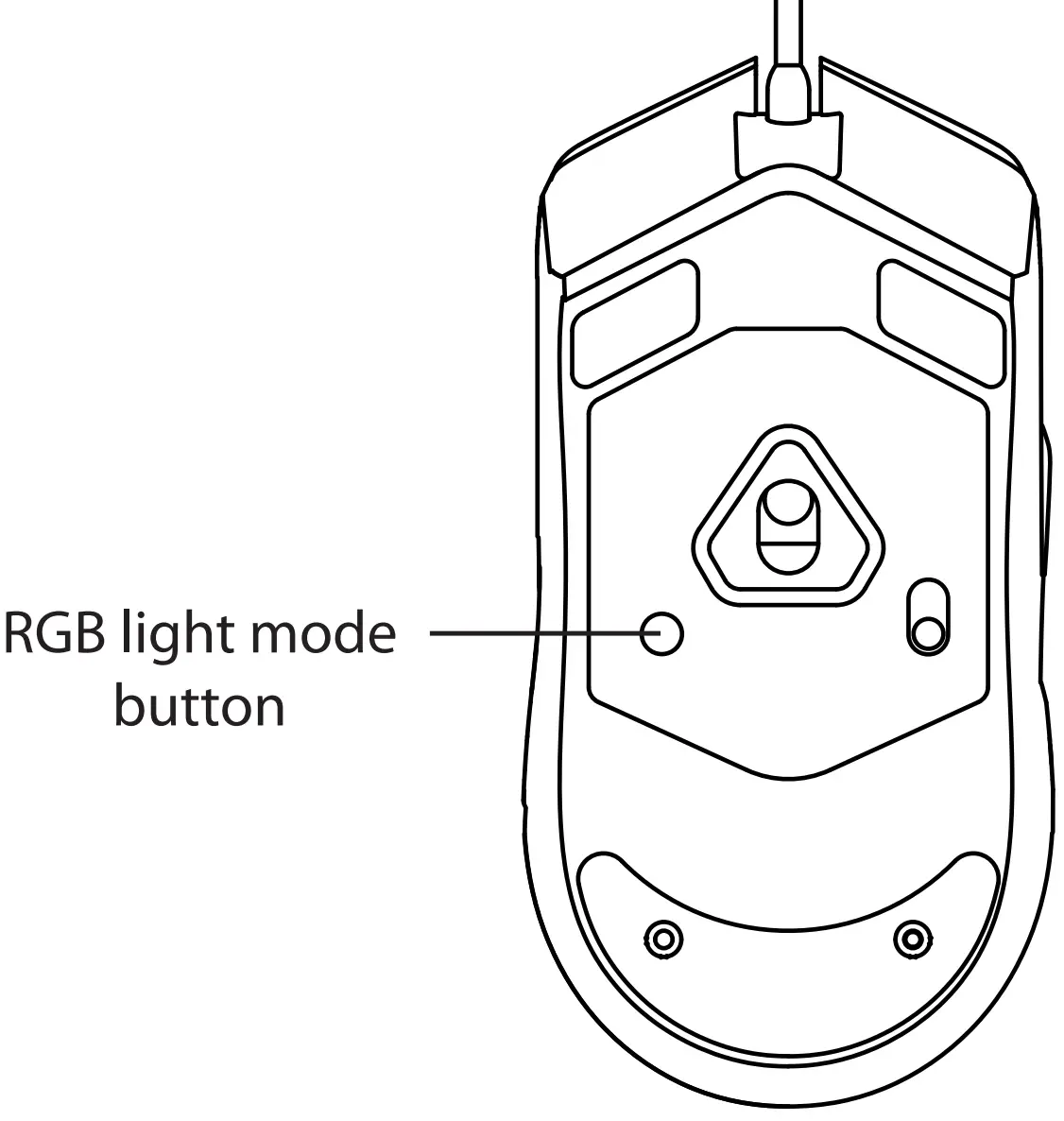

RGB Light Settings

Press RGB light mode button repeatedly to switch the RGB lighting mode between Stream (default)/ Breathing / Static / Pulse / Criss Cross / React / Random.

Software Installation

1. Plug the unit into the USB port of your computer.
2. Download the latest gaming software from https://downloads.adxgaming.com (under ADX HUB LIGHTING SOFTWARE DOWNLOAD)
3. Run the software (ADX HUB 2 Setup.exe) installer.
4. Follow the installation instruction to complete the installation.
5. Choose ADX HUB 2.exe from the desktop to start the software.

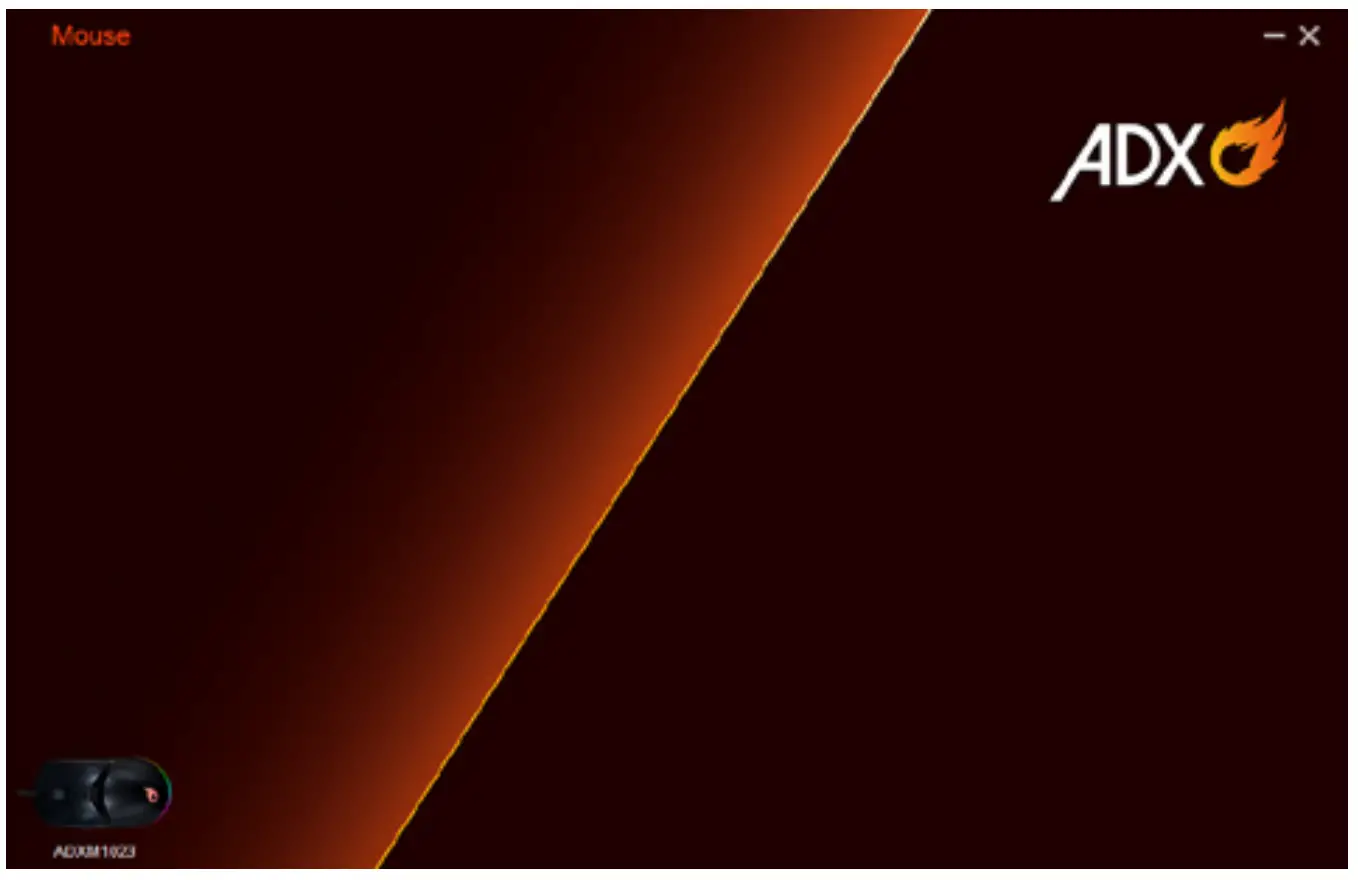

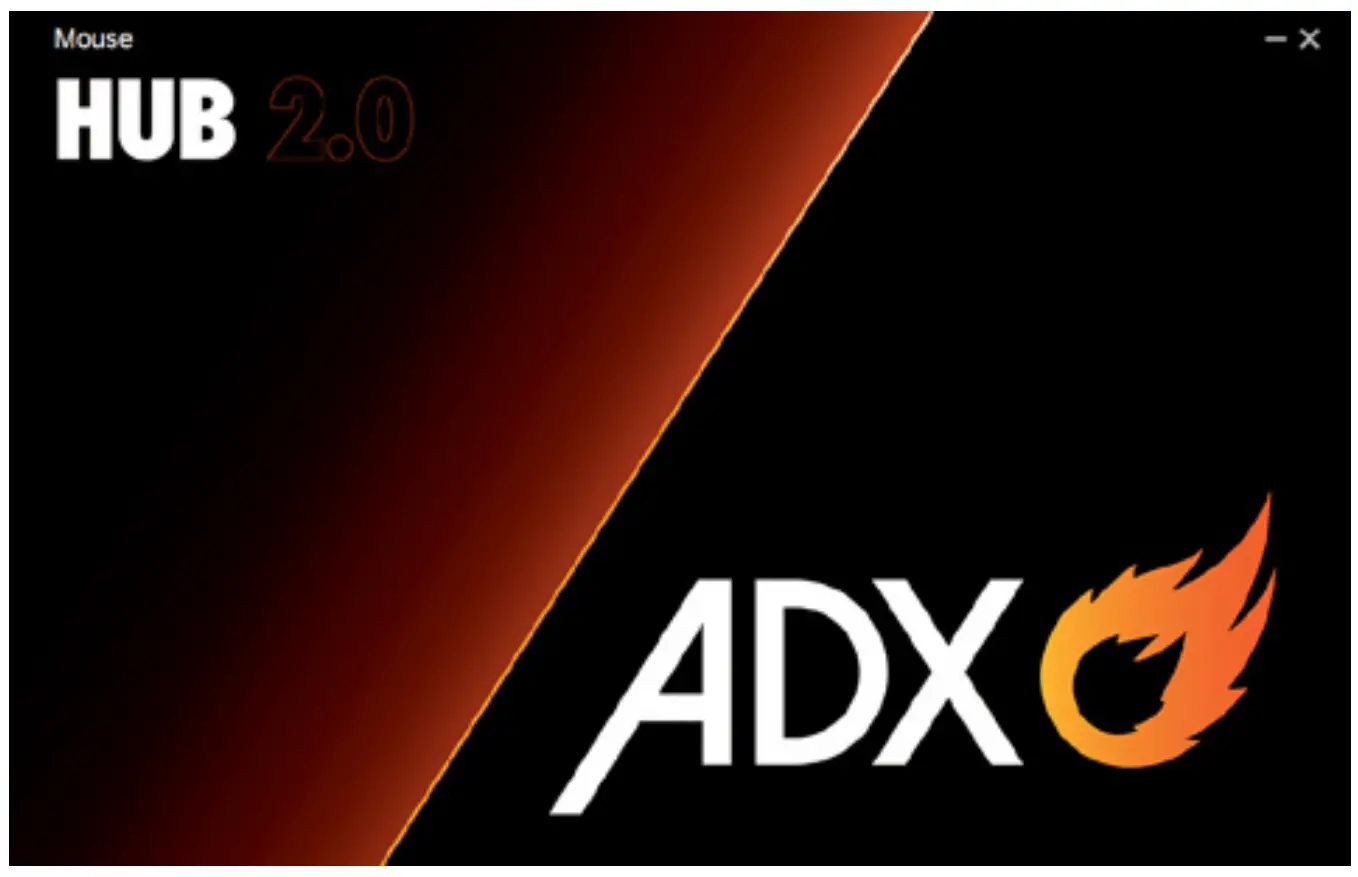

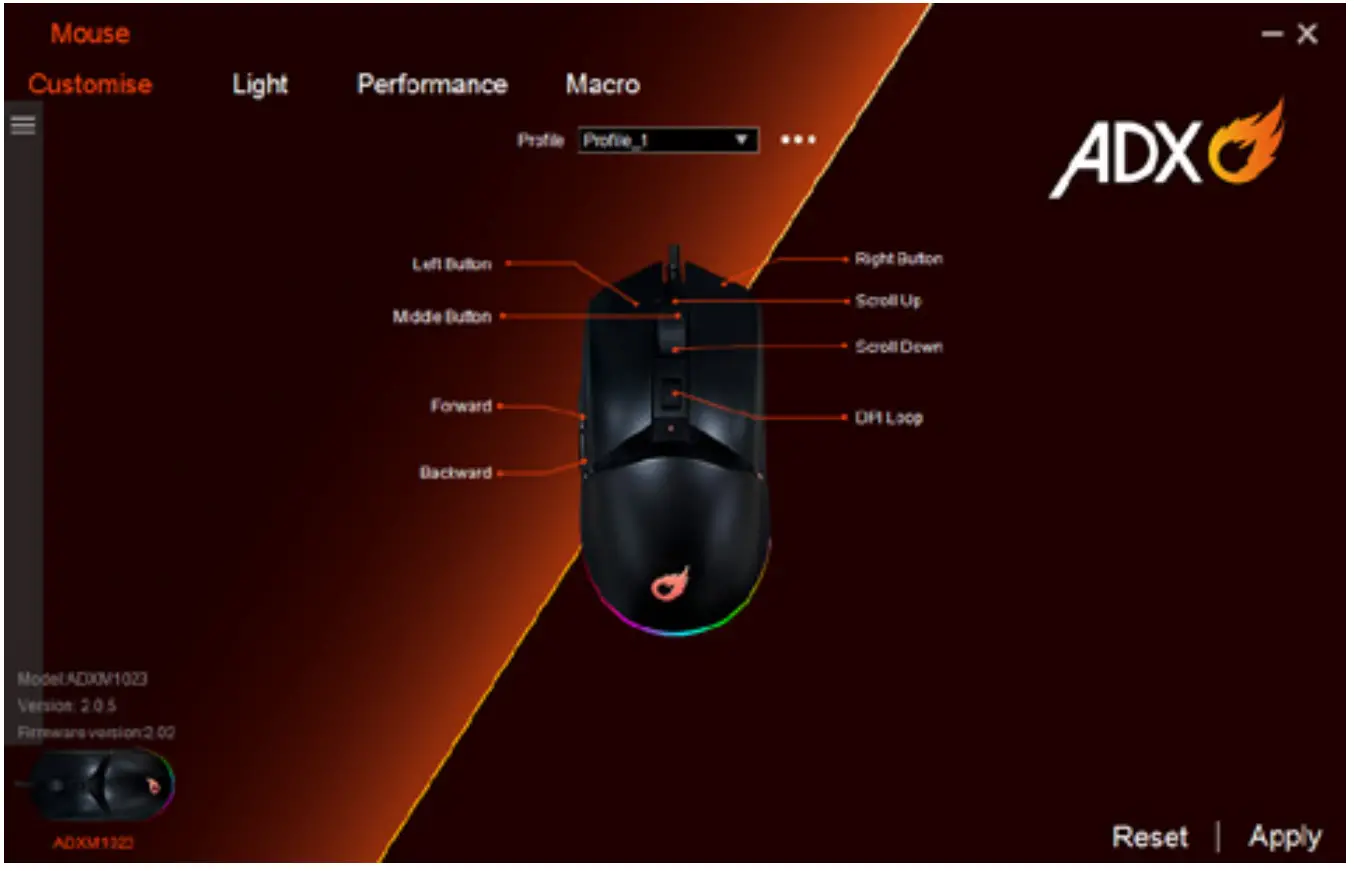

User Interface

1. Choose ADX HUB.exe from the desktop to launch the software.

2. Select “Mouse“ and then “ADXM1023“at the bottom of the connected device list to enter the interface.

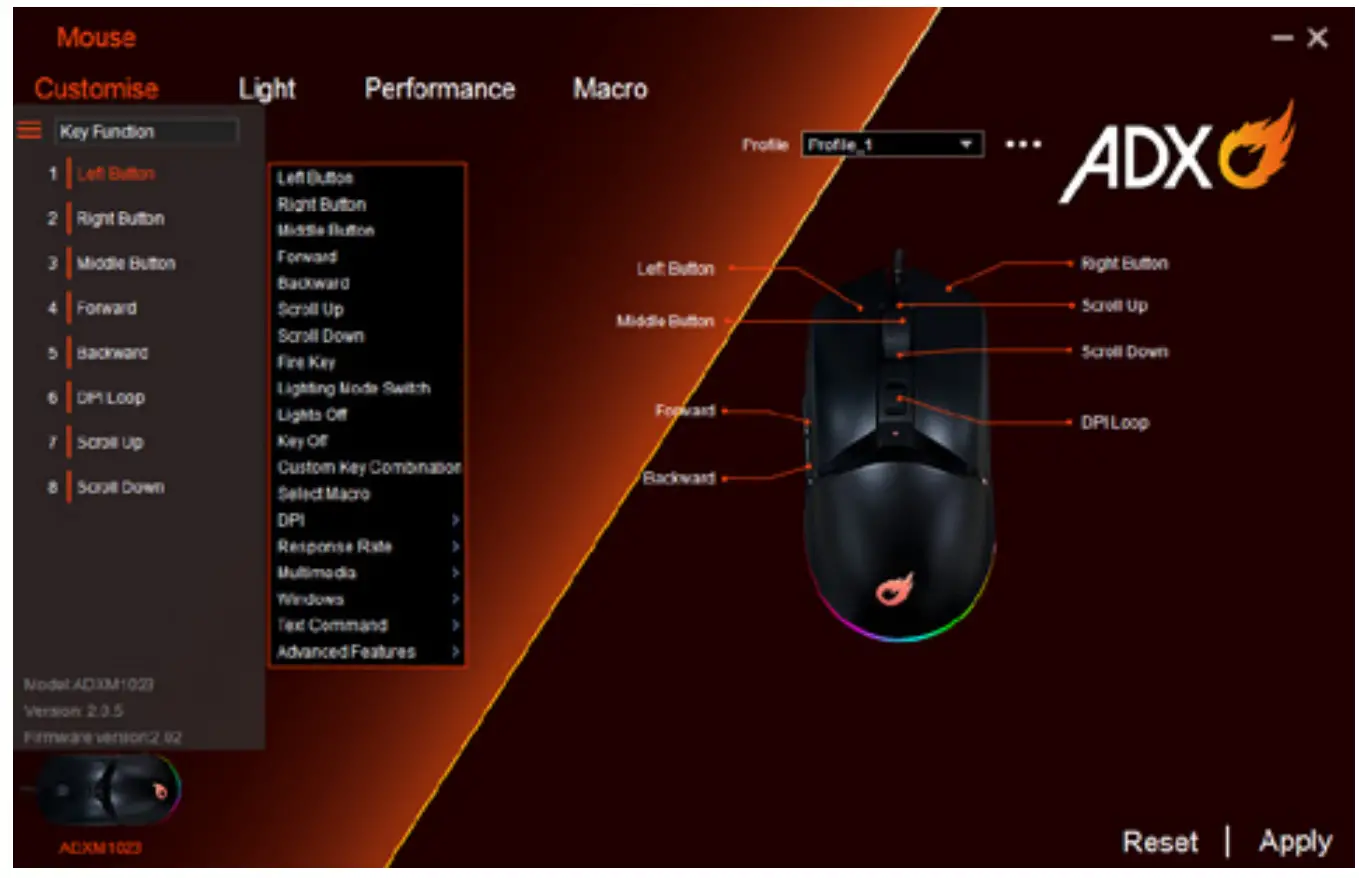

User Interface- Customise

1. Select Customise to enter the setting page.

2. Set your preference of the mouse buttons in the Key Function menu.

3. You may save your own preference in the Profile menu.
4. Select “Apply“ to implement your settings, or “Reset“ to reset all settings.
   Some Customise settings may not be supported. Please check the application program of your computer.

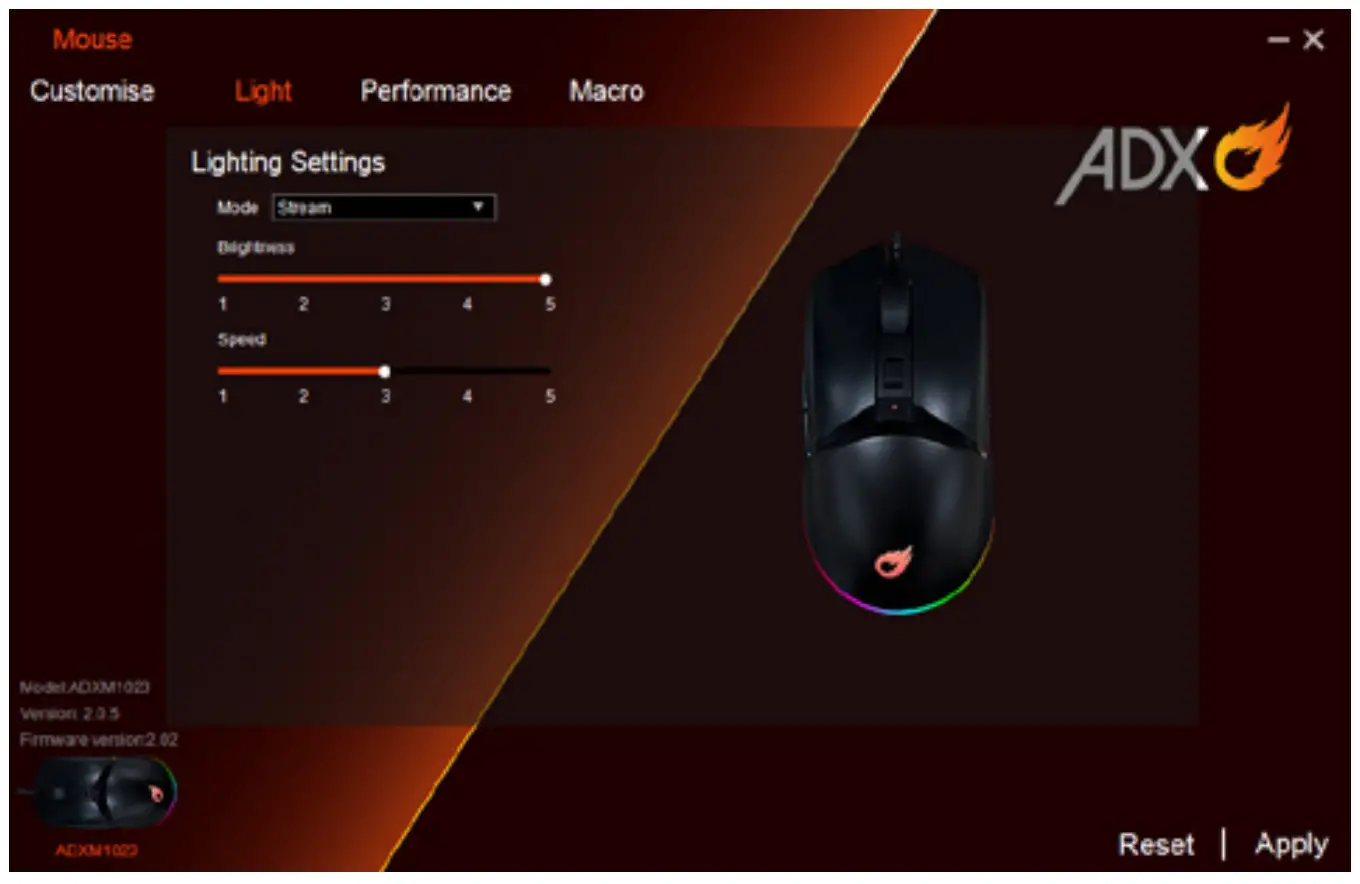

User Interface- Light

1. Select Light to enter the Light Settings page.
2. Choose your preference among the below:
   • Mode
   • Brightness
   • Speed
3. Select “Apply“ to implement your settings, or “Reset“ to reset all settings.


User Interface – Performance

1. Select Performance to enter the setting page.
   • Select the DPI from Level 1 to Level 6, and then set it from 800 to 16000.
   • Select the Response Rate between 125 Hz, 250 Hz, 500 Hz and 1000 Hz.
2. Select “Apply“ to implement your settings, or “Reset“ to reset all settings.


For Mouse Parameters, click Open Windows Mouse Properties to open the Mouse Properties menu of your computer.

User Interface- Macro

1. Select Macro, and the “+“to create a New Macro Command.
2. Press Start Recording.
3. After recording your input command, press Stop Recording.
4. You may edit your recorded commands on the right menu
5. Select “Apply“ to implement your settings, or “Reset“ to reset all settings.

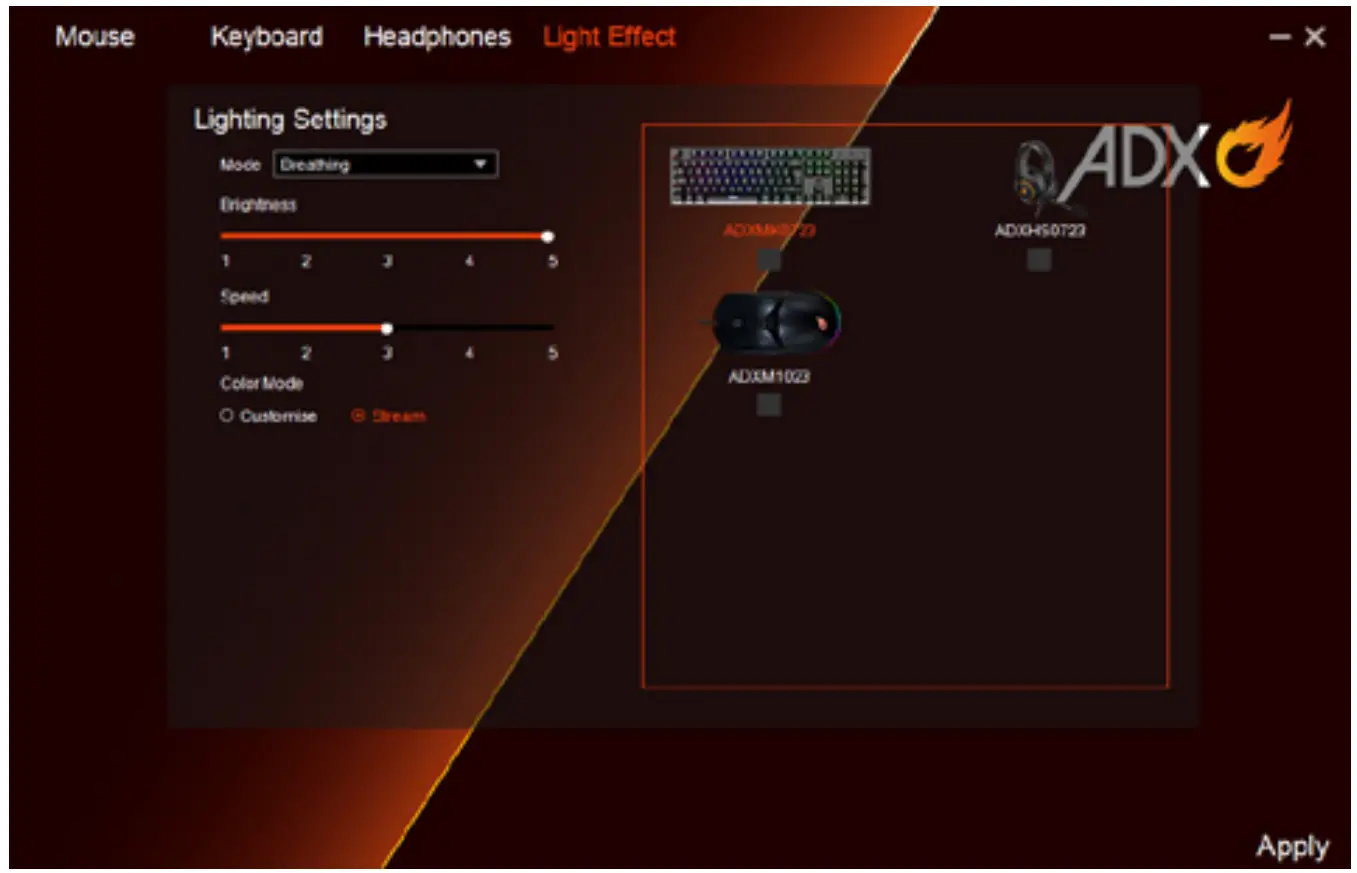

User Interface Light Effect

If one more ADX gaming device is connected, you may synchronize their light effect.

1. Select Light Effect, and the devices you want to apply the light effect.
2. Select your preferred Lighting Settings (Mode, Brightness and Speed).
3. Select “Apply“ to implement your settings.


To reset the setting of a particular device, select a connected device shown in the menu, and then select Reset.

System Requirements

Operating Systems: Microsoft® Windows® 8 / 10 / 11
Hardware: 1 available USB port

Hints and Tips

• Make sure the USB plug is fully plugged into a USB port and the computer is on or try to use a different USB port.
• If the mouse is moving erratically, change the working surface which the mouse is operating on.
• If the software is not working properly, uninstall it and then reboot the computer. Re-install the software.
• If the unit is not working properly, re-insert the USB plug into the USB port.

Specifications

Features and specifications are subject to change without prior notice.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

All trademarks are the property of their respective owners and all rights are acknowledged.
