Shenzhen Poweroak Newener Eb200 2000wh Energy Storage System User Manual

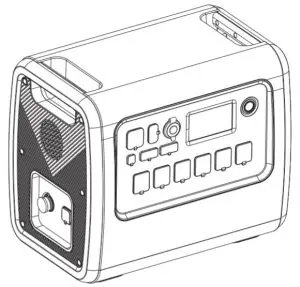

PowerBook Newener EB200 2000Wh Energy Storage System
User Manual

Please read this manual before use and follow its guidance. Keep this manual for future reference.

Safety instructions

Please observe the following instructions to ensure safe usage:

1. Do not alter or disassemble this product.
2. Do not move during charging or using it, because the vibration and impact during moving will lead to poor contact of output interface.
3. In case of fire, use dry powder fire extinguishers for this product. Do not use water fire extinguishers, which may cause electric shock.
4. Close supervision is required when using this product near children.
5. Please confirm the rated specification of your load, and do not use it beyond the specification.
6. Do not place the product near heat sources, such as electric furnaces and heaters.
7. Not permitted on aircraft because the battery capacity exceeds 100Wh.
8. Do not touch the product or the plug-in points if your hands are wet.
9. Check the product and accessories prior to every use. Do not use it if it is damaged or broken.
10. Please unplug the AC adapter from the wall outlet immediately in case of a lightning strike, which may cause heating, fire, and other accidents.
11. Use original charger and cables.

General Specs

Rated Output power	Typical Capacity	Battery Type	Net Weight	Dimensions	Charging Temperature	Discharge Temperature	Working Humidity	Working Noise
2000Wh,50VDC,40Ah 2000W<Ioad<2500W,2min. 2500W<Ioatimmediately	2000Wh	Lithium-ion Battery	About 27.5KG/60.6Ibs (The weight may be subject to slightly change without notice)	440x296x387.5mm 07.3)01 6X15.3 inches)	0-40°C 32- 104T	-20-40°C -4-1041	10%-90%	554dB

Output Specs

AC	USB-A x2	USB-A x2	USB-C x1	Cigarette Lighter x1	5521 x2	RV x1	Wireless Charging Pad x2
100-120VAC x6 220-240VAC x4 2000W	5-12VDC, 3A,36W Total	5VDC,3A 15W Total	5-1 5VDC,3A 2 OVDC,5A	1 2VDC,10A Total		1 2VDC,2 5A	5-15W

Input Specs

AC-DC Adapter	Solar Charging	Car Charging	Battery Charging
58.8VDC,8A	35V-150V/12A	12-30V/8.2A

Estimated operating time

2000WhxDODxq÷ (the current load power W) = available time(unit: hrs/times)
Note: DOD is the battery discharge depth, n is the local inverter efficiency, DOD=90°/0,n=90°/0.

QUICK GUIDE

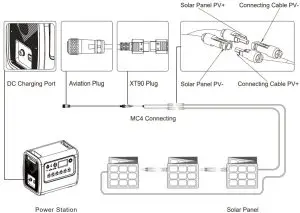

Solar Charging

Safety instructions

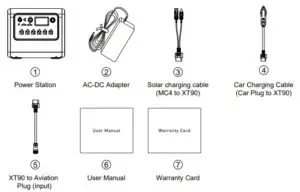

What`s In The Box

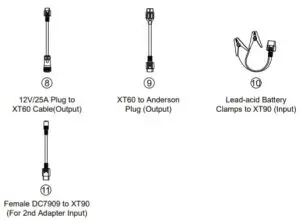

Optional

FREQUENTLY ASKED QUESTIONS

1. The adapter (power brick) got hot when I charge it, is that alright?
   It’s totally normal for the adapter to get warm, because of the heat produced in the circuit during charging.
2. Why did the unit shut down automatically with my appliance connecting?
   A The“ECO MODE”(press then hold for 4s to launch) is set to shut down the unit when the AC output of the unit is lower than 50W in 4 hours for power saving.
3. What caused the cooling fan not to launch?
   A With the excellent heat dissipation design, the cooling fan will only launch when the total loads exceed 30% of the rated output.
4. Can I charge and discharge the power station simultaneously?
   A Yes, it is supported but not recommended in order to protect the lifespan of a battery
5. How to claim the warranty?
   A Please refer to the warranty card or the official website for further warranty policy.

Abbreviation Explain:

Warning:
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

RF exposure compliance statement:
This device has been evaluated to meet the general RF exposure requirement it can be used in portable exposure conditions without restriction
