Dimplex Gfp050we Girona Panel Heater User Manual

GFP050WE Girona Panel Heater
User Manual

GFP050WE Girona Panel Heater

Controls
Digitally controlled electronic thermostat accurate to (+/-0.2º C).
Timer Modes: 7 Day Programmable User Timer.
Pre-programmed Timer Modes: Out All Day, Home All Day, Away.
Continuous Heat Modes: Eco, Manual, Frost Protect, Setback, Runback, Off.

• Graphical display with RGB backlight
• Capacitive buttons with audio feedback
• User replaceable battery (coin-type)

Controller Functions

• Open window detection
• Adaptive start
• Advanced time period for timer operation
• Adjustable max set point range (7-32ºC)
• Bluetooth for software updates
• Child lock & Landlord lock (PIN-based)

Safety Features

• Thermal cut-out. Auto reset type
• Overheat detection

Colour/Finish
Metal Chassis, Air Outlet Grille & Control Moulding

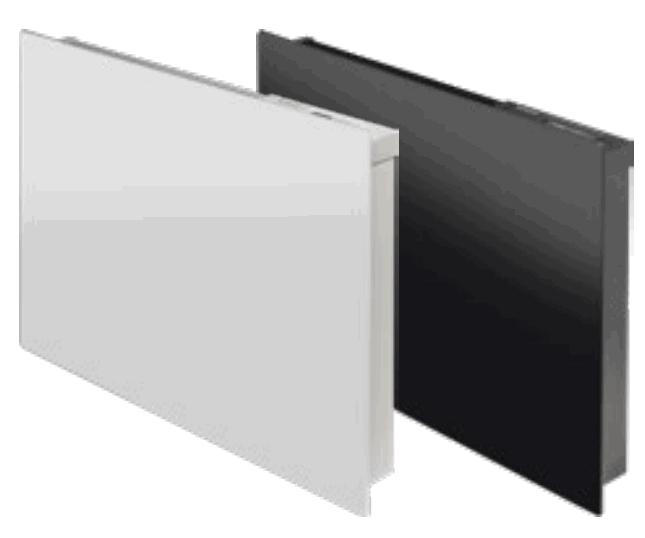

• Traffic White (RAL9016) on WE models, black on BE models.

Element
Compact, finned, mineral filled sheathed element.
Supply

• 1.3 metres fitted, 3 core for fused spur installation
• 1/N/PE ~230-240V, 50Hz Class I with earth wire

Guarantee
2 year UK manufacturer Guarantee.
IP Rating
IP24

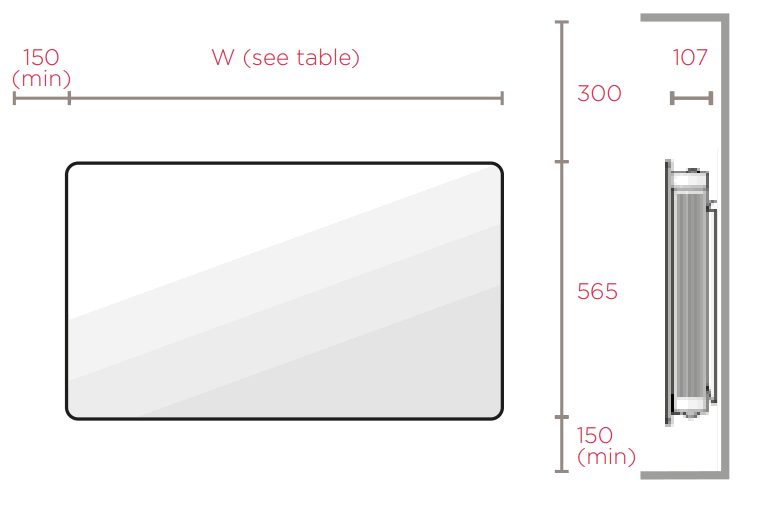

Product Dimensions

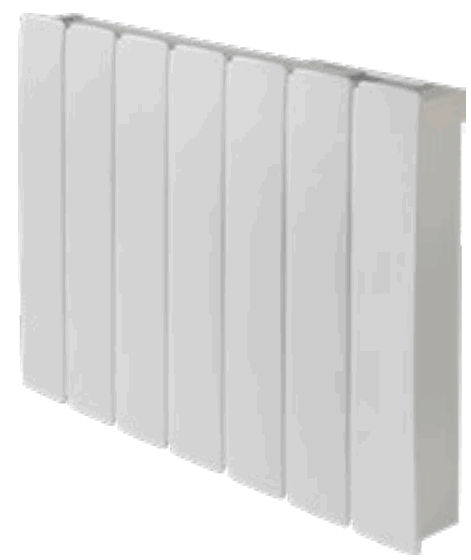

Monterey

Panel heaterController Functions

• Open window detection
• Adaptive start
• Advanced time period for timer operation
• Adjustable max set point range (7-32°C)
• Bluetooth for software updates
• Child lock & Landlord lock (PIN-based)

Safety Features

• Thermal cut-out. Auto reset type
• Overheat detection

Colour/Finish
Metal Chassis, Air Outlet Grille & Control Moulding

• Traffic White (RAL9016).

Element
Compact, finned, mineral filled sheathed element.

Supply

• 1.3 metres fitted, 3 core for fused spur installation
• 1/N/PE ~230-240V, 50Hz Class I with earth wire

Guarantee
2 year UK manufacturer Guarantee.

IP Rating
IP24

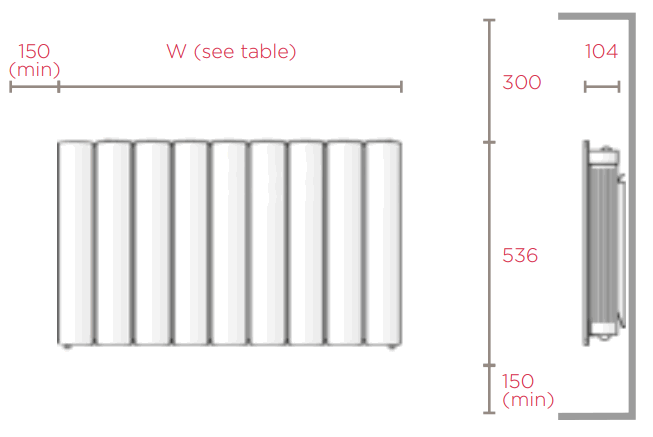

Product Dimensions
