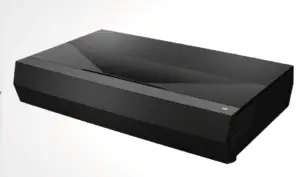

Smart 4K UHD Laser Cinema Cinema X P1 ultra short throw projector All-in-one home entertainment system
3,000 lumens laser light source with 1,500,000:1 contrast ratio
4K UHD HDR with high-performance glass lens
Nu Force Dolby Digital 2.0 audio with 2 full range aluminum drivers and 2 woofers
Smart FIT companion app with auto geometry correction system for Android and iOS
Smart+ technology with Alexa, Google Actions and IFTTT integration, and Info Wall
Dolby Digital and Dolby Digital Plus passthrough via HDMI ARC or optical S/PDIF

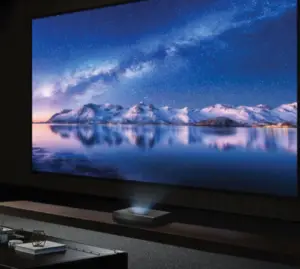

Bring the cinematic experience home with the 3,000
lumens, ultra short throw, Optoma Cinema X P1 Smart 4K
UHD Laser Cinema projector. The space-saving design,
high-performance glass lens and SmartFIT auto geometry
correction system ensure easy place and play setup for a
instant huge screen experience anywhere.
Wide color gamut and HDR support with a 1,500,000:1
contrast ratio provides stunning color accuracy, brighter
whites and deeper black levels. An integrated Dolby Digital
2.0 soundbar with two full range aluminum drivers, two
woofers, ported, isolated chambers and 40 watts of power,
engineered by NuForce, delivers crisp details with superior
dialogue clarity.
Smart+ technology enable Amazon Alexa, Google
Assistant and IFTTT support for easy integration into
your smart home while Info Wall provides a personalized,
configurable information display. An Android OS with smart
TV apps and Optoma Marketplace deliver USB media
playback compatibility, Internet streaming services and
downloadable apps.
CONNECTIVITY (May require optional accessories)
4K UHD Blu-ray Player 4K Game Console 4K Media Streaming Computers
ENTERTAINMENT CENTER FURNITURE
Recommended height 13” – 18” (124% offset
SMART FEATURES
| Operating System | Android 8.0 with customizable launcher |
| USB Media Player Compatibility | Videos: 480p, 720p, 1080p, 1440p, 4K UHD, 4K UHD HDR File formats: MKV, MP4, M4V, AVI, H.264, HEVC, MOV, TS Audio: MP3, AAC, WAV, FLAC 16/24-bit Images: JPEG, BMP, GIF |
| Video streaming | Available Optoma Marketplace with access to YouTube 4K Netflix (480p), CNBC, TED TV, NBA TV, CNBC, BBC & more |
| PC-free Image Viewer and Document Viewer | Supports viewing of office documents (Word, Excel & PowerPoint), PDFs and images via USB storage devices Auto play PDF / PowerPoint: 3, 5, 10, 15 & 20 second intervals |
| Smart Home Features | Amazon Alexa, Google Assistant & IFTTT integration |
| Smart FIT | iOS (App Store) & Android (Play Store & Amazon Appstore) |
AMAZON ALEXA FEATURES
| Smart Home Skill | Commands: power on/off, volume control (1-10), change input source, media player controls (play, stop, pause, next, previous, FF, REW, start over) |
| Custom Skill | Commands: change display mode, HDR picture mode, Pure Motion setting |
| Alexa AV Gear Region Support | United States – English, Canada |
GOOGLE ASSISTANT FEATURES
| Actions | Commands: power on/off, volume control (1-10), change input source, media player controls (play, stop, pause, next, previous, FF, REW, start over), change display mode, HDR picture mode, Pure Motion setting |
| Region Support | All regions – English only |
4K UHD Smart Projector – Cinema X P1
OPTICAL/TECHNICAL SPECIFICATIONS
| Display Technology | Single 0.47” 4K UHD ECD DMD by Texas Instruments™ |
| Color Wheel | RGBYRGBY 8 segment color wheel |
| Native Resolution | 4K UHD 3840 x 2160 @ 60Hz with XPR Technology |
| Maximum Resolution | 4K 4096 x 2160 @ 30Hz |
| Brightness | 3,000 ANSI lumens |
| Contrast Ratio | Up to 1,500,000:1 with Dynamic Black |
| Color Gamut Support | REC.709 color gamut provides rich accurate color based on the HDTV broadcast specification. DCI-P3 wide color gamut with REC.2020 tone mapping produces rich, vibrant, life-like color |
| HDR (High Dynamic Range) | HDR10 compatible (REC.2020) Picture Modes: Normal, Bright, Detail, Film HDR SIM (simulate HDR effect with non-HDR content) |
| 4K UHD Upscale | Upscales WXGA, 720p, 1080p, WUXGA, 1440p resolutions and frame rates up to 4K UHD (3840 x 2160), 60 Hz |
| Video Processing | Pure Motion technology eliminates noise, motion blur and judder in fast motion video, producing clear and onsistently smooth images |
| Input Response | 55ms (4K UHD, 60 Hz) Smart FIT and Pure Motion must be disabled for PC and console gaming. |
| Color Depth | 3840 x 2160 @30Hz YUV 4:4:4 (8bit, 10bit, 12bit), YUV 4:2:2 (8bit, 10bit, 12bit), YUV 4:2:0 (8bit, 10bit, 12bit) 3840 x 2160 @60Hz YUV 4:4:4 (8bit), YUV 4:2:2 (8bit), YUV 4:2:0 (8bit, 10bit, 12bit) |
| Light Source Life | Up to 30,000/20,000 hours (Eco/Normal) |
| Projection Method | Front, rear, ceiling, table top |
| Vertical Lens Shift | NA |
| Uniformity | 90% |
| Offset | 124% +6%/-2.5% |
| Aspect Ratio | 16:9 (native), 4:3 and LBX compatible |
| Throw Ratio | 0.25:1 |
| Laser Guard | 2 PIR sensors that automatically lower light source when person or object is in the light path |
| Projection Distance | 8” – 16.5” (from back of projector to projection surface) |
| Image Size | 85” – 120” |
| Projection Lens | F=2.04, f=525mm |
| Focus | Digital focus, adjustable with remote control |
| Digital Zoom | 0.8 – 2.0x |
| Audio | Nu Force 40W Dolby Digital 2.0 sound bar with 2 full range aluminum drivers, 2 woofers and ported chambers. Sound effects: Movie, Music, Sport, Game, Night |
| Noise Level | 26dB |
| Remote Control | Rechargeable Bluetooth smart home remote & air mouse |
| Operating Temperature | 41–104°F (5–40°C), 85% max humidity |
| Power Supply | AC input 100–240V, 50–60Hz, auto-switching |
| Power Consumption | 410W max (Bright), 360W typical (Bright), 255W max (Eco), 225W typical (Eco) |
| High Altitude | Operating temp @ sea level to 10,000 feet = 23C (max); must manually switch to high altitude mode @ 5,000 feet & above (using OSD) |
COMPATIBILITY SPECIFICATIONS
| Computer Compatibility | 4K UHD 2160p, 4K DC, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1280 x 800), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible |
| Video Compatibility | 4K UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz), 480i/p, 576i/p |
| HDR Source Compatibility | Ultra HD Blu-Ray player, 4K UHD streaming media device (Roku 4K Ultra), Xbox One S / One X (Ultra HD Blu-ray, 4K media streaming & HDR gaming) and PS4 Pro (4K UHD media streaming and 4K UHD HDR gaming only) |
| 3D Compatibility† | Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e. 60 or 72 frames per eye). 1080p 120 Hz PC 3D not supported. 3D glasses are needed and are sold separately. Refer to user manual for details. |
| Scan Rate | Vertical: 50~ 85 Hz (120Hz for 1080p 3D feature projector |

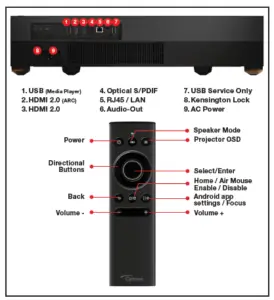

| I/O Connection Ports | 1x HDMI 2.0 (HDCP 2.2), 1x HDMI 2.0 (HDCP 2.2, HDMIARC), 1x HDMI 2.0 (HDCP 2.2, side), 1x USB 2.0 (4K media player), USB 2.0 power (side), USB (service), optical S/PDIF out, audio out (3.5mm, subwoofer compatible), RJ45 |
| Loop Through (Audio) | Optical S/PDIF & HDMI-ARC (PCM, Dolby Digital and Dolby Digital Plus bitstream / pass through) (Dolby ATMOS passthrough via HDMI-ARC) |
NETWORK CONNECTIVITY
| Wi-Fi | 802.11ac (dual-band, 2×2) |
| Wi-Fi Security | WEP, TKIP, AES, WPA, WPA2 |
| Bluetooth | Bluetooth 4.0 |
| Firmware | OTA updates via Wi-Fi or Ethernet |
PHYSICAL SPECIFICATIONS
| Security | Kensington® lock port, password (OSD) |
| Weight | 24.25 lbs. |
| Dimensions (W x H x D) | 22.1” x 5.1” x 15” |
Warranty
3-year Optoma Express service
What’s in the Box
Cinema X P1, distance cards, quick start guide, Bluetooth smart home remote with
Air mouse (rechargable ), HDMI cable, power cable, warranty card
Optional Accessories
Bluetooth smart home remote with air mouse (replacement), Cinema X P1 distance cards
Accessory Part Numbers
Bluetooth smart home remote with air mouse: BR-3074R
Cinema X P1 distance cards: BD-25120
UPC 796435 81 338 3
Optoma.com
Light source life is dependent upon many factors, including brightness mode, display mode,
usage, environmental conditions and more. Light source brightness can decrease over time.
†3D content can be viewed with DLP Link active shutter 3D glasses when projector is used with a compatible 3D player. Please visit us at Optoma.com for more information.
Copyright © 2019 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks
of Texas Instruments™. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Assistant is a trademark of Google, LLC. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. All other trademarks are the property of their respective owners. All specifications subject to change at any time. 09262019
