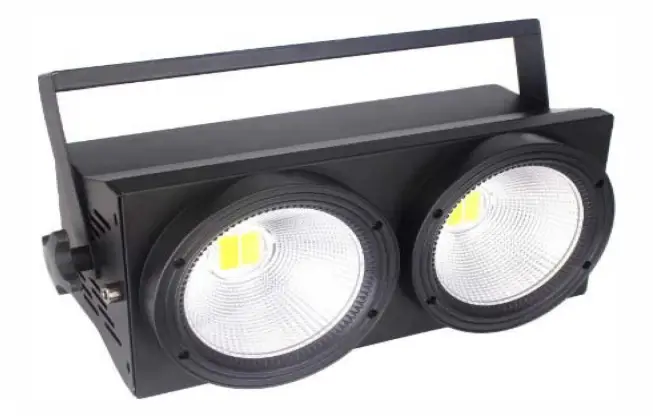

BLaSTeR MJ-3200 200W LED COB Blinder
Thanks for choosing our product, please carefully read this manual and operate it obey the spectification, in order to make sure you can install ,operate and maintain it correctly and safely. We will not take any responsibility for the damage and body injury which are caused by the abnormal operation.
Security instructions
- Verify that your power source matches with the product.
- Before starting, make sure the voltage is correct
- Turn off the power after You have finished using the product.
- This product is not waterproof. lf ever get wet, liquid water into the machine, unplug it immediately and contact the service shop.
- Never open the machine and try to repair the internal parts on yourself, it very dangerous, and will void the warranty completely
- The machine should only be operated by an adult. Keep the machine away from the reach of children. Pay attention to the machi ne while it is running.
- Place the machine in a well-ventilated area. Never cover the vents of the machine as it could cause fires.
WARNING: Make sure the product is disconnected from power before any installation, maintenance or cleaning
Product Features
- Power Control mode: sound
activation, auto, master/slave, DMX-512 - DMX channels : 4/ 8 CHS
- Dimmer : 0-100% with regulated constant color control
- Working environment: up to 40° C
- Protection rate: IP20
Technical Data
- Power supply: AC100-240V, 50Hz/60Hz
- Power consumption: 200W
- Light source: 2* 1 00W WW OR CW COB LED
- Color temperature : 3000-5600K
- N.W: 3.5kg

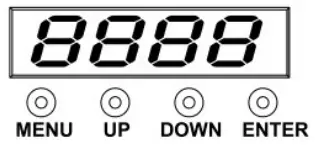

KEYS INSTRUCTION
DIGITAL SHOW FUNCTION FORM
| No | Show | Function | Value | Instruction |
| 1 | d001 | DMX address | 001-512 | 4CH mode UP.DOWN increase or reduce the value |
| 2 | A001 | DMX address | 001-512 | 8CH mode UP,DOWN increase or reduce the value |
| 3 | S-SL | Dim speed | SL/FA | DMX512 Dimming speed set: SL:Slow dimming, FA:Fast dimming. |
| 4 | d-Ho | Signal lost setting | Ho/oF | DMX512 Signal loss processing mode: Ho, Hold the final DMX signal state, oF: Close all LEDs |
| 5 | rFye | Remote control | ye/no | Ye: RF enable; no:RF disable |
| 6 | r255 | WW Dimmer | 000-255 | 1# Warm White Dimmer- Dark to Bright |
| 7 | G255 | CW Dimmer | 000-255 | 1# Cold White Dimmer- Dark to Bright |
| 8 | b255 | WW Dimmer | 000-255 | 2# Warm White Dimmer- Dark to Bright |
| 9 | u255 | CW Dimmer | 000-255 | 2# Cold White Dimmer- Dark to Bright |
| 10 | F255 | Total Strobe | 005- 255 | UP.DOWN change the speed |
| 11 | CC15 | Colors Jump | 00 – 15 | UP.DOWN change the speed |
| 12 | DE15 | Colors Gradate | 00 – 15 | UP.DOWN change the speed |
| 13 | CP15 | Colors Pulse | 00 – 15 | UP,DOWN change the speed |
| 14 | SoUd | sound-Active | Sound-Active | |
| 15 | t 30 | Temperature display | 00-99 | Current temperature display. |
DMX MODE
4 Channels Mode (d001)
| Channel | Function | Instruction |
| CH1 | WW Dimmer | 1# Warm White Dimmer- Dark to Bright |
| CH2 | CW Dimmer | 1# Cold White Dimmer- Dark to Bright |
| CH3 | WW Dimmer | 2# Warm White Dimmer- Dark to Bright |
| CH4 | CW Dimmer | 2# Cold White Dimmer- Dark to Bright |
8 Channels Mode (A001)
| Channel | Function | Instruction |
| CH1 | Total Dimmer | Total Dimmer- Dark to Bright |
| CH2 | WW Dimmer | 1# Warm White Dimmer- Dark to Bright |
| CH3 | CW Dimmer | 1# Cold White Dimmer- Dark to Bright |
| CH4 | WW Dimmer | 2# Warm White Dimmer- Dark to Bright |
| CH5 | CW Dimmer | 2# Cold White Dimmer- Dark to Bright |
| CH6 | Total Strobe | Total Flash Strobe, 005-255 Slow to Fast |
|
CH? |
Function Choice | 000-050: CH1-CH6 Control. 051-100: Different Colors output 101-150: Colors Jump Change. 151-200: Colors Gradate. 201-250: Colors Pulse Change. 251-255: Sound-Active |
| CHS | Function/Speed | Slow to Fast (At the Colors output choose the color) |
