Topaction B8, B10, B12 Series Cycle Computer User Manual

B8, B10, B12 Series Cycle Computer
User Manual

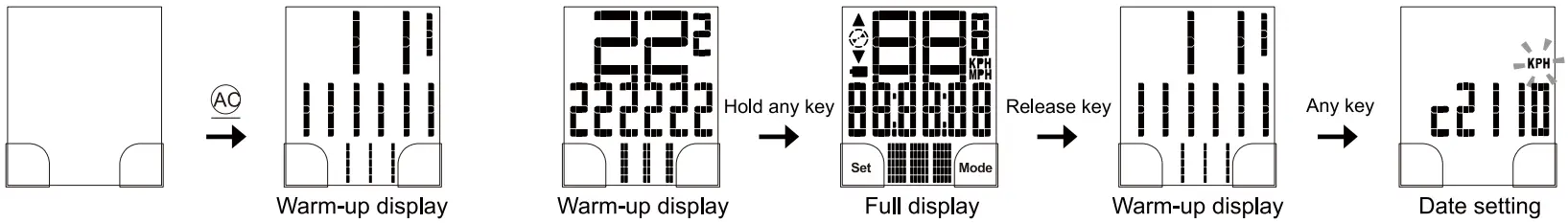

All clear (initial)

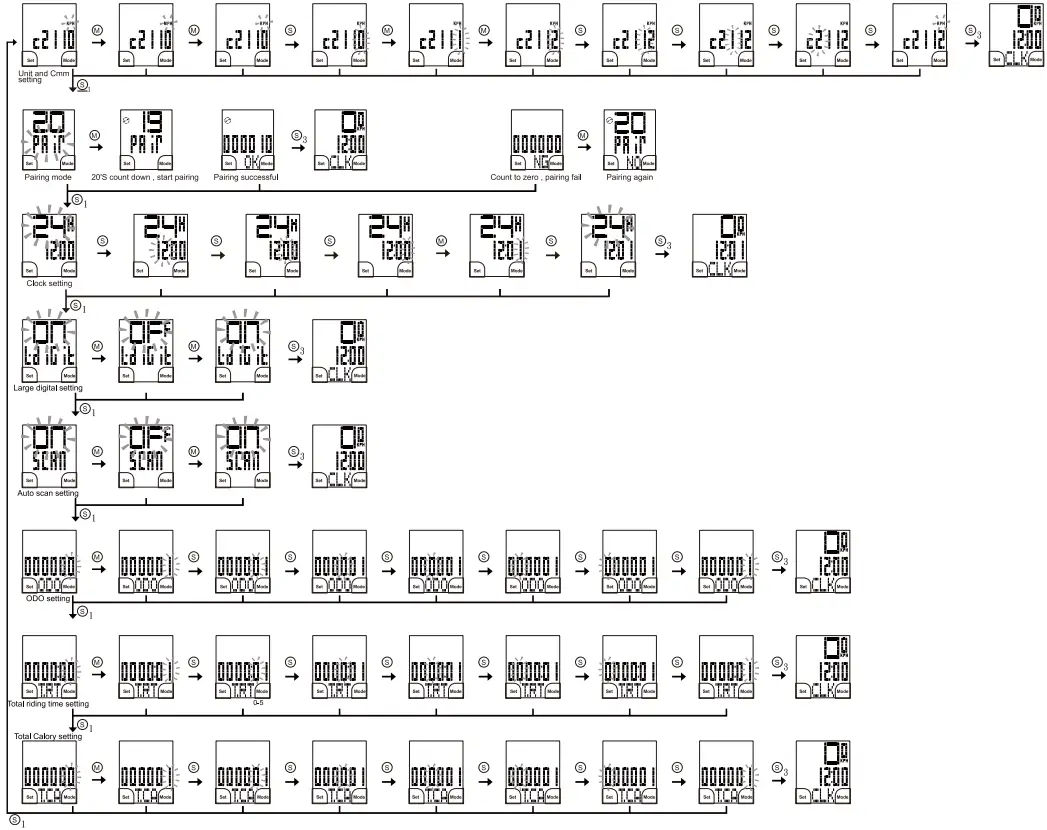

Data setting (Auto quit after 20’S without any operating)

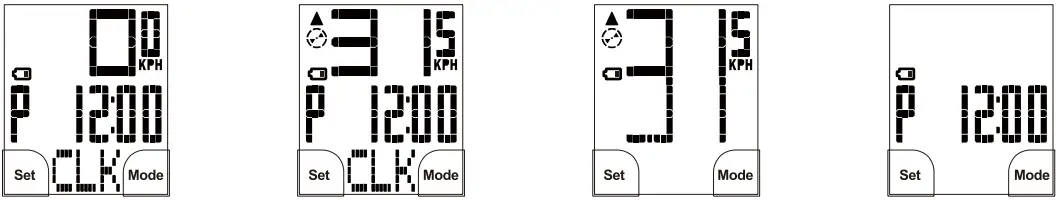

Large display ( When large display , stop auto scan function )

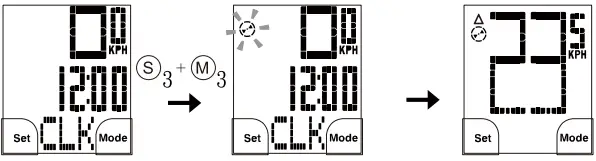

Sensor Re – Pairing

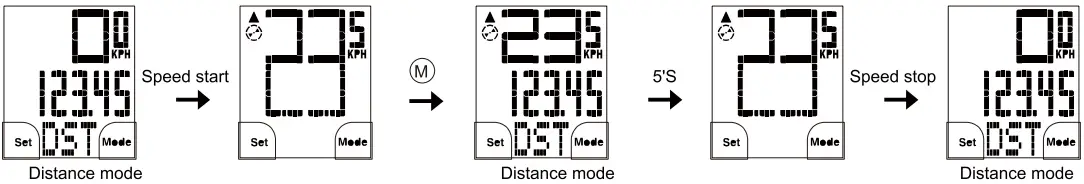

Speed stop status

Speed stop status

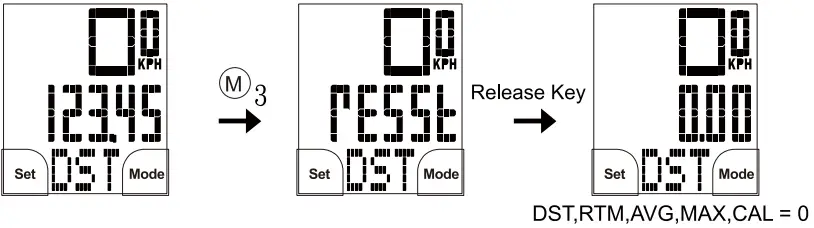

Data Reset

Low Battery indictor: Change battery immediately when the symbol appears, after changing battery,the symbol may keep displaying for 1 or 2 minutes,due t o there is a big capacitor inside the computer.“H Gk SE.

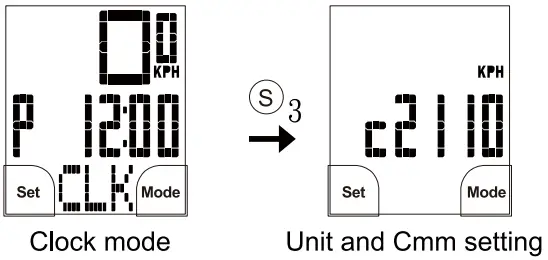

Enter data setting mode when under Speed stop status

Imperial

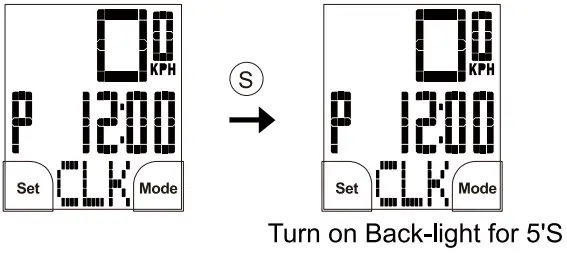

Turn on Back-light/optional

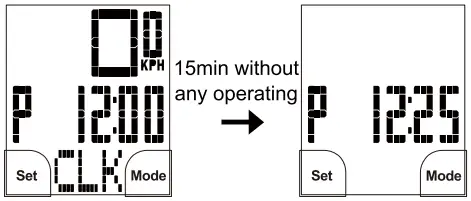

Power off

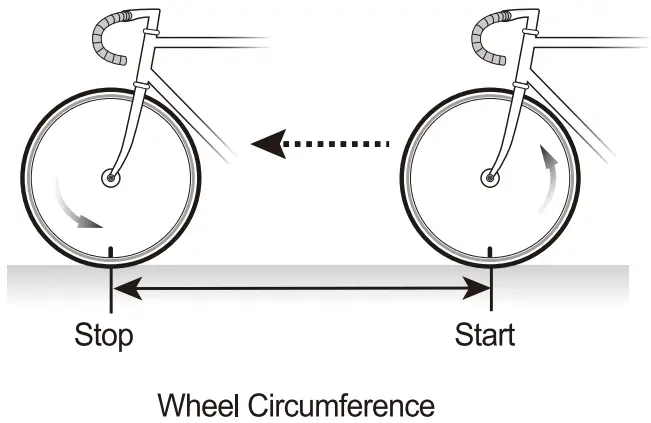

Wheel Circumference Measurement

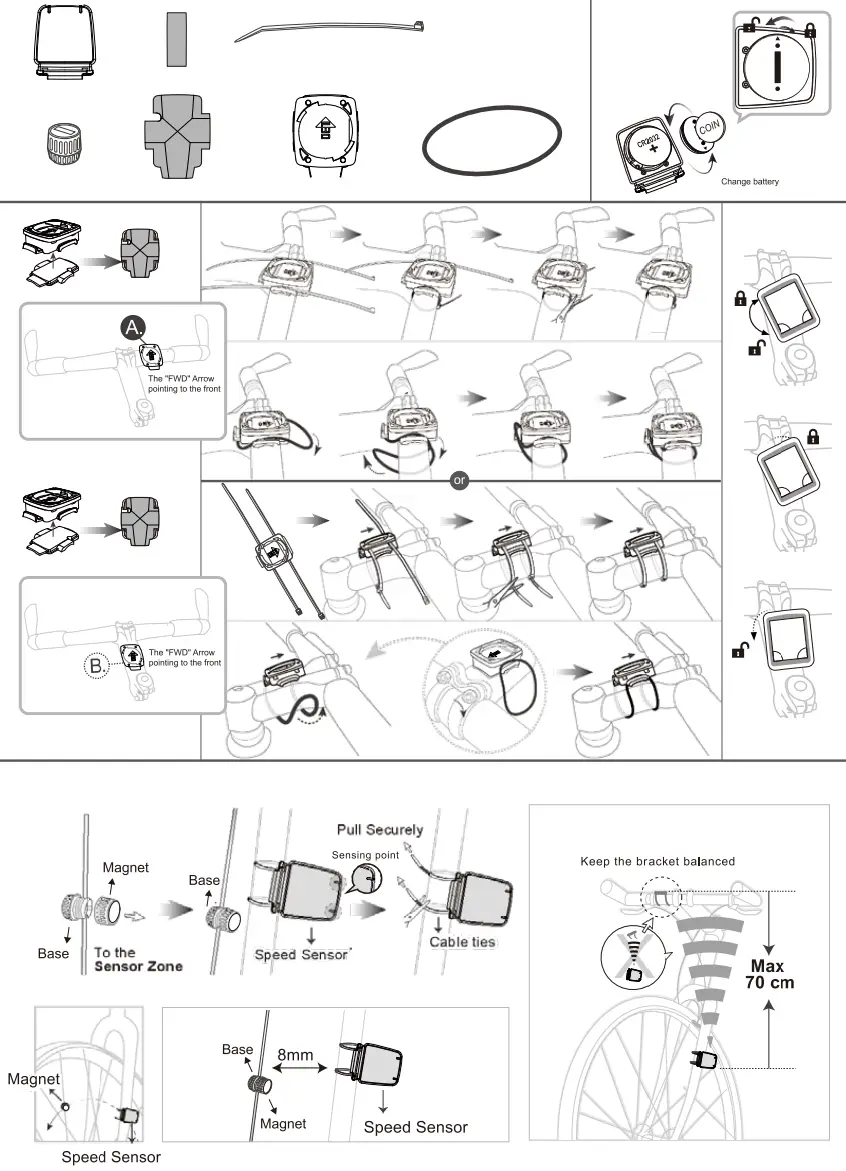

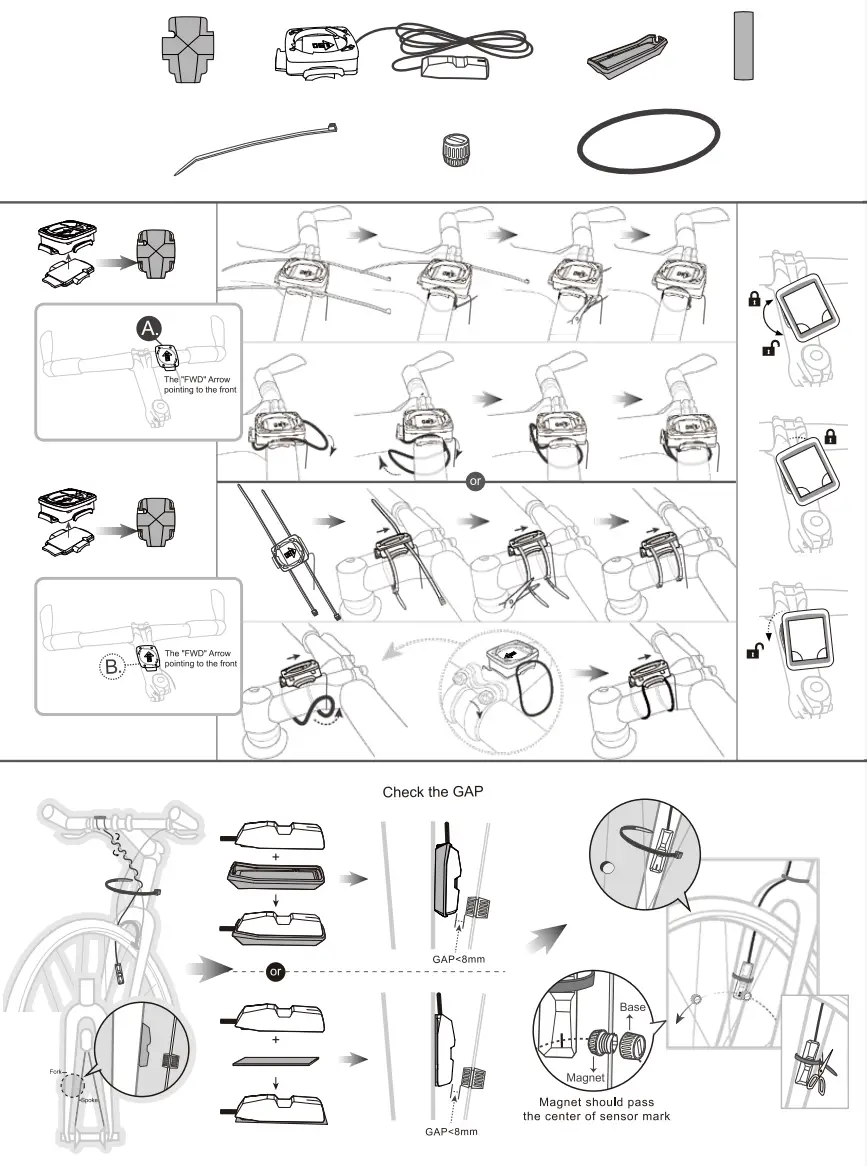

Wireless Installation

Key function description

1. Mode KEY
   M : means hold Mode key for 1’s
   M : means hold Mode key for 3’s
   M : means digital flash
   All clear (AC) the computer :
   Press (S)to All clear (initial) the cycle computer Hold 63’s to check and reset EEPROM (This operating for factory only )
   Press (M) for enter data setting mode
2. Data setting mode :
   Press(M) for increase setting digital
   Press(S) for change to next setting digital
   Hold(S) 1’S for change to next setting mode
   Hold (S)3’S for quit data setting mode

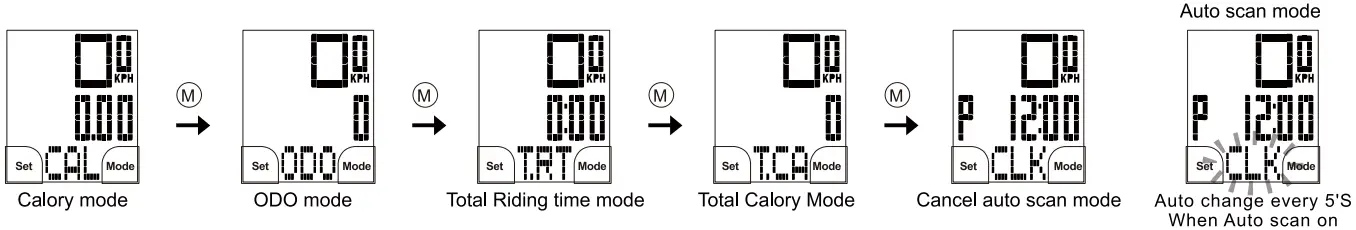

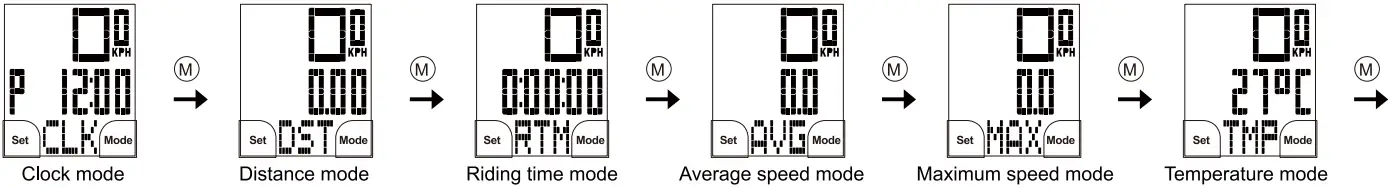

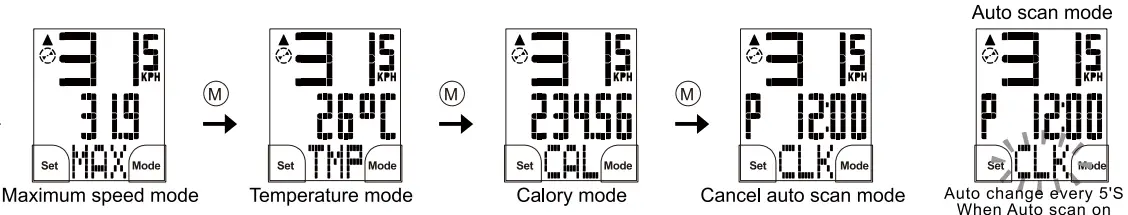

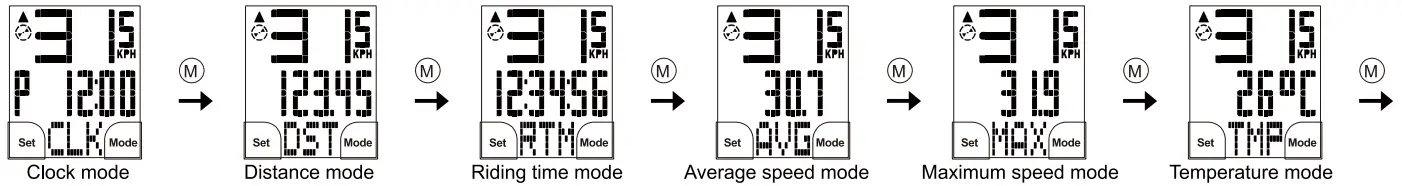

3. General mode :
   Press(M) for change function display
   Hold (M) 3’S for reset trip data
   Hold (S) 3’S for enter data setting mode
   Press(L) for Lock/Unlock touch key

Warning / Caution

1. Always pay attention to the road condition
2. Before the first time you use the computer, and after you change the battery, please do ALL Clear
3. Do not leave the computer under high temperature or direct sunlight for long
4. Do not disassemble the computer
5. Please check the position of magnet and sensor periodically
6. Do not use alcohol, thinner or benzine to clean the computer and accessories

FUNCTION
