COMMERCIAL TEST REPORT
No.: Comb-172 I 20.26 I 2Ol7
Month : July, 2OL7
TATZIIOU CHANGFA, CF 8O5 SD

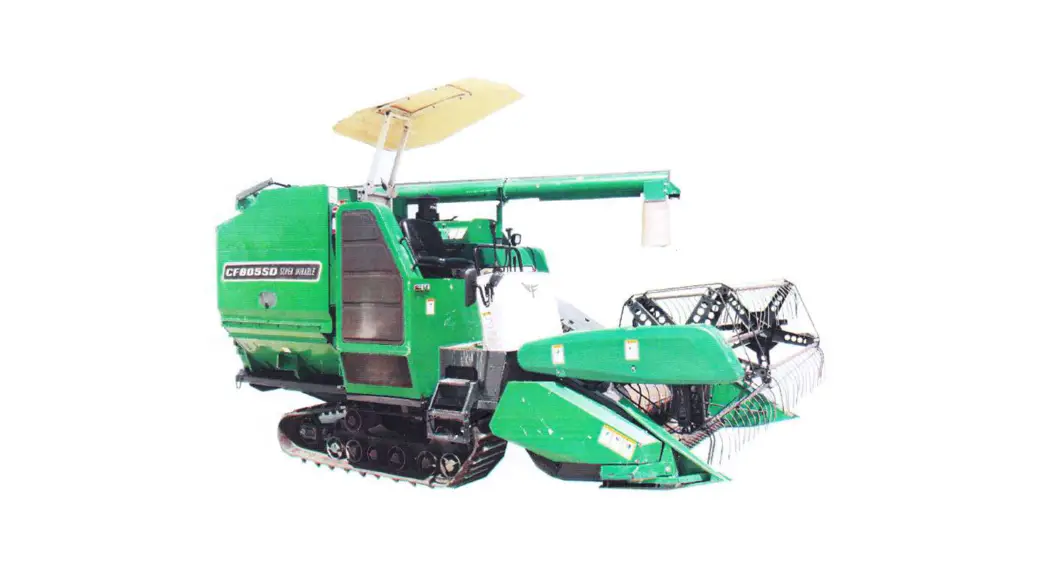

SELF PROPELLED COMBINE HARVESTER (TRACK TYPEI

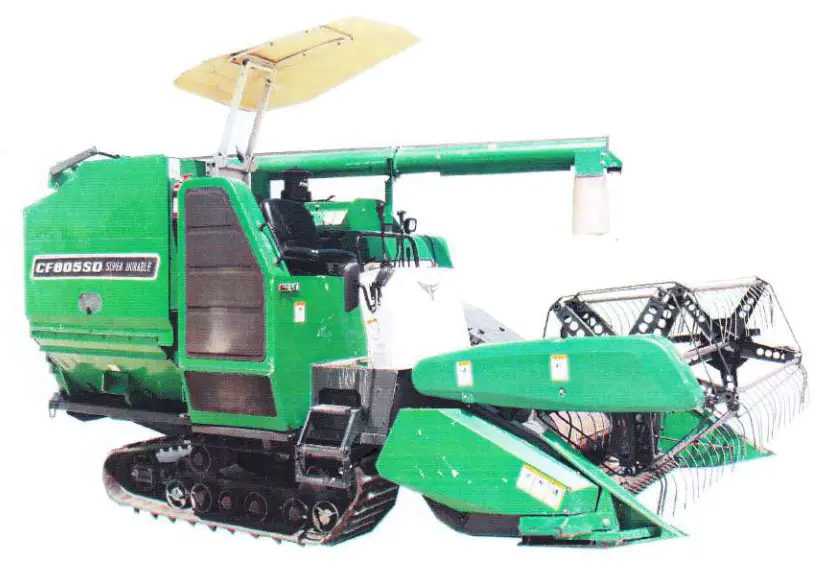

CF 805 SD Track Combine Harvester
| COMB-17212026120t7 | TAIZHOU CHANGFA, CF 805 SD SELF PROPELLED COMBINE HARVESTER (TRACK TYPE) COMMERCIAL |
SUMMARY OF OBSERVATIONS
| 17. | Engine Performance Test: | |||||
| Brake Power KW | Engine speed (rpm) | Fuel consumption | Specific energy, kWh/1 | |||
| 1/h | kg/h | Specific, kg/ kWh | ||||
| 1 | 2 | 3 | 4 | 5 | 6 | |
| i)Maximum ower — Two hour test: | ||||||
| 65. | 2376 | 20. | 17. | 0.260 | 3. | |
| 62. | 2150 | 18. | 15. | 0.248 | 3.405* | |
| ii)Power at rated engine speed: ( 2400 rpm) | ||||||
| 64. | 2400 | 20. | 17. | 0.262 | 3. | |
* Under part throttle setting recommended for field work.
ENGINE TEST HIGH AMBIENT
| Brake Power (kW) | Engine speed (rpm) | Fuel consumption | Specific energy, kWh/1 | |||||||||||
| 1/h | kg/h | Specific, kg/ kWh | ||||||||||||
| (1) | (2) | (3) | (4) | (5) | (6) | |||||||||
| a)Maximum power- | ||||||||||||||
| 60. | 2375 | 19.50 | 16. | 0.273 | 3. | |||||||||
| b)Power at rated engine speed: (2400 rpm) | ||||||||||||||
| 60. | 2400 | 19. | 16.40 | 0.272 | 3. | |||||||||
17.2 Field Test:
17.2.1Summary of field tests: The results of the field test are summarized below:
| S. No. | Parameters | Observed Range | |
| Wheat Harvesting | Paddy Harvesting | ||
| 1. | Average speed of operation (kmph) | 3.57 to 3.93 | 2.60 to 3.41 |
| 2. | Average area covered (ha/h) | 0.349 to 0.504 | 0.226 to 0.339 |
| 3. | Average fuel consumption: – (1/h) – (1/ha) | 8.87 to 9.95 17.59 to 24.39 | 8.59 to 10.66 31.43 to 41.14 |
| 4. | Average crop throughput (tonne/h) | 4.59 to 6.32 | 5.03 to 12.58 |
| 5. | Average grain breakage in main grain outlet (%) | 0.3 to 0.9 | 0.2 to 0.6 |
| 6. | :Average header losses (%) | 0.841 to 2.223 | 0.656 to 1.511 |
| 7. | Average total non-collectable losses (%) | 1.1 to 2.4 | 0.9 to 1.8 |
| 8. | Average total collectable losses (%) (un threshed from main outlet) | 0.788 to 1.432 | 0.216 to 0.583 |
| 9. | Average total processing losses (%) | 1.296 to 1.925 | 0.876 to 1.330 |
| 10. | Average threshing efficiency (%) | 98 to 99 | 99 |
| 11. | Average cleaning efficiency (%) | 97 to 98 | 98 |
RTHERN REGION FARM MACHINERY TRAINING & TESTING INSTITUTE, HISAR 46 of 6l
17.3 Conformity to Indian Standard
(i) IS: 6025-1982 (Reaffirmed 2014)-Specification for knife section for harvesting machine. : Does not conform
(ii) IS: 6024-1983 (Reatfirmed 2014)-Specification for guards for harvesting machines. : Does not conform
(iii) IS: 10378-1982 (Reaffirmed 2016)-Specification of knife back for harvesting machine. : Does not conform
(iv) IS: 15806-2008(Reaffirmed 2013)-Combine harvester thresher selected performance and other characteristics recommendations.: Does not conform
(v) IS: 6283 (Part II)-2007(Reaffirmed 2014)-Tractors andmachinery for agriculture and forestry-symbol for operator controls and other displays. : Does not conform
(vi) IS: 8133-1983 (Reaffirmed 2014)-Guidelines for location & operation of operator controls on agricultural tractors and machinery. -: Docs not conform
18. | SELECTED PERFORMANCE AND OTHER CHARACTERISTICS AS PER
IS: 15806-2008.
| S. No | Characteristics | Requirement | Declared | Observed | Remark | |
| 1. | Prime mover performance | |||||
| i) | Max. power (absolute) Average max. power observed during 2 hrs. max. power test in natural ambient condition, kW | -5% of declared value | 63. | 65. | Conforms | |
| ii) | Max. power observed during test after adjusting the no load engine speed as per recommendation of the manufacturer for field work, kW | -5% of declared value | 54. | 62. | Conforms | |
| iii) | Power at rated engine speed, kW | -5% of declared value. | 60. | 64. | Conforms | |
| iv) | Specific fuel consumption g/kWh. | ±5% of declared value | 285 | 260 | Conforms | |
| v) | Max. smoke density at 80% load between the speed at max. power & 55% of speed at max power. or 1000 rpm whichever is higher. | As pre CMV rules. Maximum smoke density Light absorption coefficient 3.25 m/Hartridge units 75 | — | 0.60 | Conforms | |
| Conforms | |||||||||||
| vi) vii) viii) | Max. crank shaft torque, (N-m) observed during the test after no load engine speed is adjusted as per mantilla:tures recommendation for field work | -8% of declared value | 290 | 338. | |||||||
| Back u to 4 le, % | 7% min. | — | 27.4 | Conforms | |||||||
| Max. Operating temperature, °C i)Engine oil ii)Coolant | To be declared by the manufacturcr | 125 99 | 128 84 | Does not conform Conforms | |||||||
| ix) | Lubrication oil consumption, g/kWh | 1 % of SFC at maximum power (high ambient), (tolerance+10%) | — | 0.81 | Conforms | ||||||
| Brake performance | |||||||||||
| i) | Whether parking brake is effective at a force of 600 N at foot pedal or 400 N at 1-land and v r | Yes or No | — | Yes | Conforms | ||||||
| Mechanical vibration | |||||||||||
| i)Operator’s platform | 120 gm max. | …. | 5100 | Does not conform | |||||||
| ii)Steering lever | 150 pm max. | … | 5700 | Does not conform | |||||||
| iii)Seat with driver seated | 120 pm max. | …. | 4800 | Dues not conform | |||||||
| I. | ,Air | cleaner oil ull over | |||||||||
| i) | Max. oil pull over in % age when tested in accordance with IS: 8122 pt. (11)-2000 | 0.25% max. | Machine is provided with dry type air cleaner hence test is not a licable | NA | — | ||||||
| Noise measurement | |||||||||||
| i) | Max. ambient noise emitted by combine dB (A) | 88 dB (A) as per CMVR | .. | 86.0 dB(A) | Conforms | ||||||
| i’) | Max. noise at operator’s car level dll (A) | 98 dB (A) as per CMVR | — | 98.9 dB(A) | Does not confom | ||||||
| 6. | Discard limit | |||||
| i) | Cylinder bore diameter, mm | Should not exceed the values declared by the manufacture | 102. | 102. | Confonns | |
| iii_ | Piston diameter, mm | -do- | 102. | 102. | Conforms | |
| iii) | Clearance between piston and cylinder liner at skirt | -do- | 0.15 | 0.09 | Conforms | |
| iv) | Ring end gap, mm 1.Top compression ring 2.2nd compression ring 3.Oil ring | -do- | 0.7 0.9 0.7 | 0.40 0.60 0.50 | Conforms Conforms Conforms | |
| v) | Ring groove clearance, nun I. Top compression ring 2.2nd compression ring 3.Oil ring | -do- | — 0.11 0.10 | — 0.090 0.055 | — Conforms Conforms | |
| vi) | Diametrical and axial clearance of big end bearing, mm Diametrical Axial | -do- | 0.15 0.50 | 0.12 0.25 | . Conforms Conforms | |
| vii) | 1 Diametrical and axial clearance of main bearings, mm Ditunetrical Axial/crank shaft end float | -do- | 0.15 0.35 | 0.14 0.19 | Conforms Conforms | |
| viii) | Thickness of brake lining. mm | -do- | NA | — | — | |
| ix) | Thickness of clutch plate. mm | -do- | NA | — | — | |
| 7. | Field performance | |||||
| i) | Suitability for crops | Wheat & paddy essential | — | Wheat & Paddy | Conforms | |
| ii) | Crain breakage in grain tank | 53.% | — | Wheat-0.3 to 0.9 Paddy-0.2 to 0.6 | Conforms Conforms | |
| iii) | Non collectable losses | < 2.5% for wheat, paddy & gram < 4.0% for soya bean | — – | Wheat-1.1 to 2.4 Paddy0.9 to 1.8 | Conforms Conforms | |
| iv) | Threshing efficiency | > 98% wheat & paddy | — | Wheat- 98 to 99 Paddy- 99 | Conforms Conforms | ||||||||
| v) | Cleaning efficiency | > 96 % wheat & paddy | — | Wheat- 97 to 98 Paddy- 98 | Conforms Conforms | ||||||||
| 3. | Safety requirement | ||||||||||||
| „7 {LH | Guards against all moving parts | Essential | Provided | Provided — | Conforms | ||||||||
| Lighting arrangement a)Head light b)Parking light c)Indication d)Reverse gear c) Brake 0 Number plate | Essential as per CMVR | NA | — | ||||||||||
| iii) | Grain tank cover | Essential | Provided | Conforms | |||||||||
| iv) | Spark arrester in engine’s exhaust | Essential | Not provided where as turbo charger in engine exhaust. | — | |||||||||
| v) | Stone trap before concave | Essential | Not provided | Does not conform | |||||||||
| vi) | Rear view mirror | ( Essential | provided | Conforms | |||||||||
| vii) | Slip clutch at following drives— a)Cutting platform auger b)under shot conveyor drive c)Grain & tailing elevator | Essential | Not provided Not provided Not provided | Does not conform Does not conform Does not conform | |||||||||
| Viii) Anti slip surfaces at operator platform & ladder & proper gripping for the control levers. | Essential | Provided | Conforms | ||||||||||
| ix) Working clearance around the controls | Essential 70 mm. min. | Provided | Conforms | ||||||||||
| x) Labelling of control and gauges | Essential | Not provided | Does not conform | ||||||||||
| 9. | Material of construction | ||||||||
| i) | Knife guard should conforms to IS: 6024 – 2004 | The guard I (except ledger plate) shall be manufactured from malleable iron casting (IS: 2108-1977), steel casting (IS: 1030-1974) or steel forging (IS: 2004-1978) Hardness 1631113 max. | — | Not declared by the applicant 219 to 229 | Unascer- tamable Does not conform | ||||
| ii) | Knife blade As per IS :6025 -2004 | It must have chemical composition as C=0.70-0.95 % Mn4.30-0.50% | — | 0— 0.5383% Mn=0.6285% | Does not conform Does not conform | ||||
| iii) | Knife back should meet the requirement of IS:10378-2006 | The knife back shall be manufactured from Carbon Steel having minimum carbon content of 0.35 % | — | C= 0.5292% | Does not conform | ||||
| 10. | Break down (critical | major & minor | |||||||
| Sr. No. | Category of breakdowns | Category (Evaluative! Non evaluative) | Requirements as per IS: 15806-2008 | As observed | Whether meets the requirements (Yes/No) | ||||
| 1. | Critical | Evaluative | No critical breakdown | None | Yes | ||||
| 2. | Major | Evaluative | Not more than three and neither of them should be repetitive in nature | None | Yes | ||||
| ~.; | Minor | Evaluative | Not more than live and frequency of each should not be more than three | None | Yes | ||||
COMMENTS AND RECOMMENDTIONS
19.1 Engine performance test
i) The back-up torque of- the engine under natural ambient condition was reported to be
27.4 and 17.5 percent at full throttle and at setting recommend for fieid operation respectively.
ii) The maximum operating temperature of engine oil was observed as 128 0C 1C.It against the declared value of D5 is oh higher siOe. tt should be looked into.
19.2 Mechanical vibration
The amplitude of mechanical vibration of components marked as (8) in chapter 12 of this :repofi are observed on higher side. This calls for providing suitable “-.diul measures Ito dampen the vibration in order to improve the operational comfort and service life of 4t: various components &sub-assemblies.
Noise measurement The noise emitted by the machine at operator’s ear level was measured as 98.9 dB(A), :- which does not meet the requirements of IS: 15806-2008. This should be looked into.
19.4 Field performance test
During paddy harvesting, frequent chocking of unloading auger was observed. It
19.4.1 should be looked into.
19.5 Ease of operation and safety provision
i) It is recommended that the symbols as per the requirement of 15-6283 (part 2)-2007 may be provided.
ii) Drive safety arrangement (slip clutch) is not providecl at cutting platform auger, under shot conveyor, grain and tailing elevator. It is recommended io provide drive safety as it is essential requirement as per IS:15806-200g.
iii) First aid box is not provided on machine. It may be provided for safety.
iv) Stone trap is not provided before the threshing cylinder and concave, it may be provided lbr saf-ety.
v) The location of hand accelerator lever should preferably be at front or to the right side of operator as per IS: 8133:1983.
vii) Safety against accidental starl of engine as per IS: 8133:1983 is not provided. It should be looked into.
19.6 Service schedule of air cleaner is not specified. It MUST be specified for proper maintenance of machine.
19.7 On labelling plate of the combine SFC of engine is provided as < 30 kg/hm2. It may be provided in kg/kwh unit.
19.8 Hardness and chemical composition
19.g.1 Hardness & chemical composition of knife blade does not conform to the limits as specified in IS: 6025-1982.It should be looked into at regular production level.
19.8..Z Hardness of knife guard is not within the limit as specified in 15:6024-1983′ It should be looked into for improvement’
19.8.3 The carbon content of the knife back does not conform to the requirement of relevant IS code. It should be looked in to for improvement.
19.8.4 Equivalent Indian brand apPlicant.name & capacity of battery should be specified by
19.8.5 The equivalent Indian grades and brands of oil are not provided for guidance of user. provided. It MUST be
19.9 test with test Literature supplied with the Machine: Following literatures are provided by the applicant lbr ref-erence dr-rring sample
- Operation instruction – CF 805 SD (E’nglish)
- Parts Catalogue – CF 805 SD (English)
- Parts catalogue
– CF 4C95G-Z (English)
The operation manual lbr engine is not provided, it should be brought outas per IS 81321999.
The operation manuals of combine should be updated as per IS 8132:1999′
| G. R. AMBALKAR AGRICULTURAL ENGINE,ER |  |
| R. K. NEMA SENIOR AGRICULTURAL ENGINEER |  |
| P. K. PANDEY DIRECTOR |  |
Government of India
Ministry of Agriculture and Farmers Welfare
Department of Agriculture, Cooperation and Farmers Welfare
Northern Region F arm Machinery Training and Testing Institute
Tradtor Nagar, Sirsa Road, HISAR (Haryana)-125 OOI
Website: http://lnrfmtti.gov.in/
E-mail: [email protected]
Tele. / FAX : A T662-2V 6984
