QUICK START MANUAL
SAFETY INSTRUCTIONS
IS930.RG
MODEL M93A01

KEYS AND SPECIAL FEATURES

INTRODUCTION

This document contains information and safety regulations that are to be observed without fail for the safe operation of the device IS930.RG (Model M93A01) under the described conditions. Non-observance of this information and instructions can have serious consequences and/or may violate regulations. Please read the manual and these safety instructions before using the device. In case of contradicting information, the text of these safety instructions shall apply. In case of any doubt, the German version shall apply. The current EU declaration of conformity, safety instructions, and manuals can be found at www.isafe-mobile.com or requested from i.safe MOBILE GmbH.

RESERVATION

The content of this document is presented as it currently exists. i.safe MOBILE GmbH does not provide any explicit or tacit guarantee for the accuracy or completeness of the content of this document, including, but not restricted to, the tacit guarantee of market suitability or fitness for a specific purpose unless applicable laws or court decisions make liability mandatory. i.safe MOBILE GmbH reserves the right to make changes to this document or to withdraw it any time without prior notice. Changes, errors, and misprints may not be used as a basis for any claim for damages. All rights reserved. i.safe MOBILE GmbH cannot be held responsible for any data or other loss and direct or indirect damages caused by any improper use of this device.

EU-DECLARATION OF CONFORMITY

The EU declaration of conformity can be found at the end of this manual.

FCC/IC STATEMENT
The FCC/IC Statement can be found under downloads on the product page of our website: www.isafe-mobile.com/en/products.

FAULTS AND DAMAGES

If there is any reason to suspect that the safety of the device has been compromised, it must be withdrawn from use immediately. Measures must be taken to prevent any accidental restarting of the device. The safety of the device may be compromised if, for example,

• Malfunctions occur.
• The housing of the device shows damage.
• The device has been subjected to excessive loads.
• The device has been stored improperly.

We recommend that a device displaying errors or in which an error is suspected be sent back to i.safe MOBILE GmbH to be checked.

FURTHER SAFETY ADVISES

• Do not touch the screen of the device with sharp objects. Dust particles and nails may scratch the screen. Please maintain the screen clean. Remove dust on the screen with a soft cloth gently, and do not scratch the screen.
• Do not put the device in environments with excessive temperatures, as this could lead to heating of the battery, resulting in fire or explosion.
• Do not charge the device near any flammable or explosive substances.
• Charge the device under dry indoor conditions only.
• Do not charge the device in environments with much dust or humidity.
• Do not use the device in areas where regulations or legislation prohibit the use.
• Do not expose the device or charger to strong magnetic fields, such as are emitted from induction ovens or microwaves.
• Do not attempt to open or repair the device. Improper repair or opening can lead to the destruction of the device, fire, or explosion. Only authorized personnel are allowed to repair the device.
• Only use accessories approved by i.safe MOBILE GmbH.
• Power off the device in hospitals or other places where the use of mobile phones is prohibited. This device may affect proper work of medical equipment, such as pacemakers, so always keep a distance of at least 15 cm between the device and these devices.
• Observe all corresponding laws that are in force in the respective countries regarding the use of devices while operating a vehicle.
• Please power off the device and disconnect the charging cable before cleaning the device. » Do not use any chemical cleaning agents to clean the device or the charger. Use a damp and anti-static soft cloth for cleaning.
• Do not discard old and abandoned lithium batteries into the trash, send them to designated waste disposal locations.
• The user alone is responsible for any and all damages and liabilities caused by malware downloaded when using the network or other data-exchange functions of the device. i.safe MOBILE GmbH cannot be held responsible for any of those claims.

WARNING
i.safe MOBILE GmbH will not assume any liability for damages caused by disregarding any of these advices or by any inappropriate use of the device.

 MAINTENANCE/REPAIR

Please note any legal requirements for periodic inspection.
The device itself has no user-serviceable parts. It is recommended to perform inspections according to the safety regulations and advice. If there is a problem with the device, please contact your vendor or consult the service center. If your device is in need of repair, you can either contact the service center or your vendor.

BATTERY

The battery is not fully charged when the device is purchased, but it contains enough energy to power on the device. To obtain the best battery performance and battery life, let the battery discharge completely before charging it completely for the first three charging cycles. The device may only be charged at ambient temperatures in a range from +5°C … +35°C

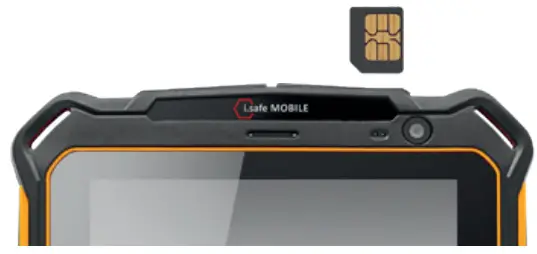

INSTALLATION OF THE MICRO SIM CARD

The device features a micro SIM card slot. The slot is accessible on the top of the device (see page 2).

WARNING
Do only change the SIM card when the device is switched off. Do not try to insert or remove the
SIM cards when any external power supply is connected, otherwise the
SIM cards may be damaged.

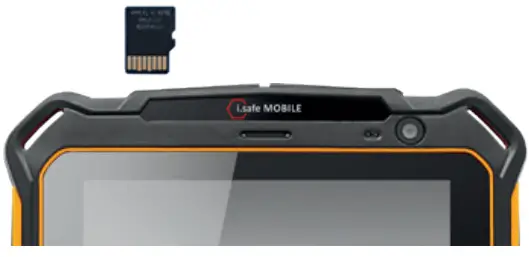

INSTALLATION OF THE microSD CARD

The device features a microSD card slot (up to 128GB). The slot for the microSD card is on the top of the device (see page 2). If you want to remove the microSD card, please make sure that the card is not in use by the device. To remove the microSD card follow the instructions given in <Settings> <Storage>.

WARNING
Do only change the microSD card when the device is switched off.
Do not try to insert or remove the microSD card when any external power supply is connected, otherwise, the microSD card may be damaged.

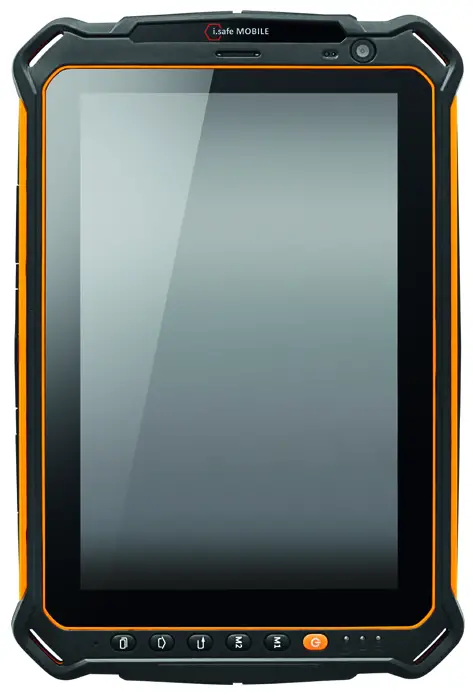

KEYS AND SPECIAL FEATURES
(see illustration on page 2)

1. SOS KEY: Long press automatically selects an emergency number stored by you. This function can only be used in conjunction with an optionally available LWP app.
2. SD CARD SLOT: Use for microSD card.
3. SIM CARD SLOT: Use for SIM card.
4. CAMERA: Front camera.
5. VOLUME UP KEY: Volume up.
6. VOLUME DOWN KEY: Volume down.
7. STATUS LED: battery status, charging.
8. POWER KEY: Long press to power ON/OFF the device. Short press to power ON/OFF the standby mode.
9. FUNCTION KEY M1: Optional key used by different apps.
10. FUNCTION KEY M2: Optional key used by different apps.
11. BACK KEY: Return to the previous screen.
12. HOME KEY: Return to Homescreen.
13. CURRENT APPLICATION: Close all applications.
14. USB TYP C: To charge and connect the device with the delivered USB cable.
15. EARPHONE JACK: Connect an earphone.
16. MAGNETIC CHARGER PORT: To charge the device with the delivered magnetic USB cable.
17. DOCKING STATION: Connect to the external docking station.

RECYCLING
The crossed-out wheeled bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies to the European Union. Do not dispose of these products as unsorted municipal waste. Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials. More detailed information is available from the product retailer, local waste authorities, national producer responsibility organizations, or your local i.safe MOBILE GmbH representative.

SPECIFIC ABSORPTION RATE (SAR)
CERTIFICATION INFORMATION

Maximum SAR for this model and conditions under which it was recorded:
SAR (body-worn) 1.53 W/kg
TRADEMARKS

• i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH.
• EEA version: Comes with the Google™ app and Google Chrome™ Google and Google Play are trademarks of Google LLC.
• All other trademarks and copyrights are the properties of their respective owners.

NB WARNING

CAUTION

• Use care with the earphone may be possible excessive sound pressure from earphones and headphones can cause hearing loss.
• CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
• Operation temperature: -10°C …+55°C (EN/IEC 62368-1).
• The device shall only be connected via accessory authorized by i.safe MOBILE GmbH.
• AC Adapter:
• Approved external adapter model ICP12-050-2000B (Input: AC100-240V 50/60Hz 0.3A; Output: 5VDC, 2A) or other approved external AC/DC adapter which complies with the requirements of LPS (Limited Power Source) and has output rated 5VDC/2A.
• Adapter shall be installed near the equipment and shall be easily accessible.
• The plug is considered independent of the adapter.
• The device complies with RF specifications when the device is used at 0.5 cm from your body.
  The i.safe MOBILE GmbH hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. This information has to be presented in such a way that the user can readily understand it. Typically, this will necessitate translation into every local language (required by national consumer laws) of the markets where the equipment is intended to be sold. Illustrations, pictograms, and using international abbreviations for country names may help reduce the need for translation.

CONTACT/SERVICE CENTER

FOR FURTHER QUESTIONS PLEASE CONTACT OUR SERVICE CENTER:
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany
[email protected]
www.isafe-mobile.com/service

MAXIMUM OUTPUT POWER

Restrictions in the 5 GHz band:
According to Article 10 (10) of Directive 2014/53/EU, the packaging shows that this radio equipment will be subject to some restrictions when placed on the market in Kingdom
The WLAN function for this device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.

	AT	BE	BG	CH	CY	CZ	DE	DK
	EE	EL	ES	Fl	FR	HR	HU	IE
	IS	IT	LI	LT	LU	LV	MT	NL
	PL	PT	RO	SE	SI	SK	TR	UK

EU-DECLARATION OF CONFORMITY

EU – Declaration of Conformity according to directive 2014/53/EU and 2011/65/EU (2015/863/EU)
The company i.safe MOBILE GmbH declares under its sole responsibility that the product to which this declaration relates is in accordance with the provisions of the following data, directives, and standards:
Name & address of the manufacturer in the EU
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda – Koenigshofen
Germany
Description of the device
Tablet
type: IS930.RG
model: M93A01
Conformity statement 2014/53/EU issued by

PHOENIX TESTLAB GmbH
Königswinkel 10
32825 Blomberg, Germany
identification number 0700
Applied harmonized standards
EN 62368-1:2014/A11:2017;
EN 50332-1:2013;
EN 50332-2:2013;
EN 50566:2017;
EN 62209-2:2010+A1:2019;
EN 62479:2010;
EN 50663:2017;
EN IEC 62311:2020;
ETSI EN 301 489-1 V2.2.3;
ETSI EN 301 489-3 V2.1.1;
ETSI EN 301 489-17 V3.2.4;
ETSI EN 301 489-19 V2.1.1;
Draft ETSI EN 301 489-52 V1.1.0;
EN 55032:2015+A11:2020;
EN 55035:2017+A11:2020;
ETSI EN 301 511 V12.5.1;
ETSI EN 301 908-1 V13.1.1;
ETSI EN 301 908-2 V13.1.1;
ETSI EN 301 908-13 V13.1.1;
ETSI EN 300 328 V2.2.2;
ETSI EN 301 893 V2.1.1;
ETSI EN 300 440 V2.2.1;
ETSI EN 300 330 V2.1.1;
ETSI EN 303 413 V1.1.1
Conformity statement 2015/863/EU amending 2011/65/EU issued by
SGS-CSTC Standards Technical Services Co., Ltd.
Guangzhou Branch
No. 198 Kezhu Road, Scientech Park, Guangzhou
Economic & Technology Development District
Guangzhou, Guangdong Province, 510663
China
Applied harmonized standards
IEC 62321-2: 2013; IEC 62321-1: 2013;
IEC 62321-3-1: 2013; IEC 62321-5: 2013;
IEC 62321-4: 2013 + A1: 2017;
IEC 62321-7-1: 2015;
IEC 62321-7-2: 2017 & ISO 17075-1: 2017;
IEC 62321-6: 2015;
IEC 62321-8: 2017
CE Marking

Lauda – Koenigshofen 02.09.2021

Dirk Amann
Managing Director
1042CC07REV00_cmu All rights reserved, i.safe MOBILE GmbH
Document No. 1042MM01REV01
Version: 2021-11-30
(c) 2021 i.safe MOBILE GmbH
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany
Tel. +49 9343/60148-0
[email protected]
www.isafe-mobile.com
Template: TEMPMM01REV10

WWW.ISAFE-MOBILE.COM
